Pressure Compensators

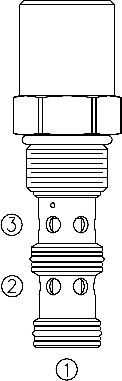

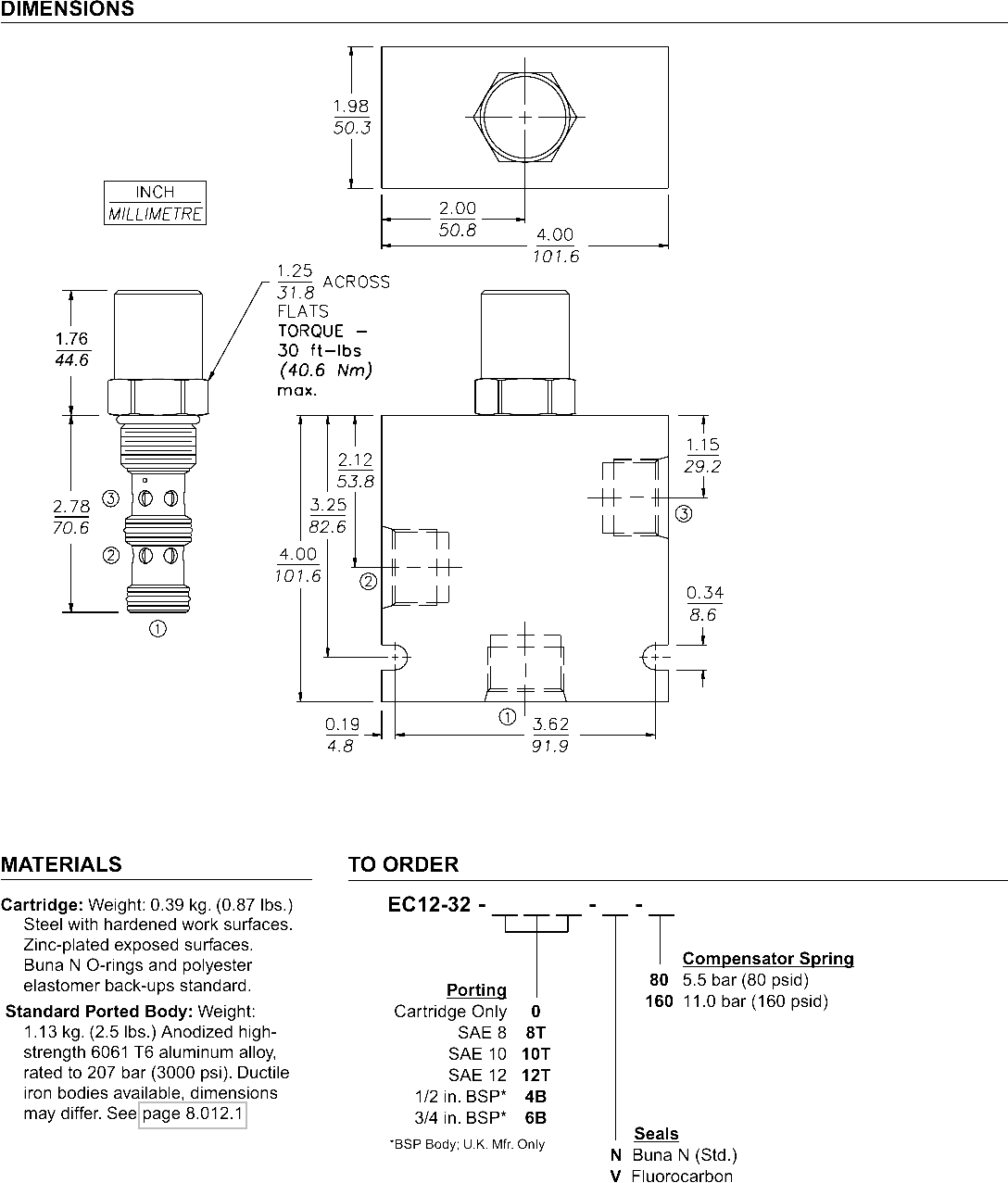

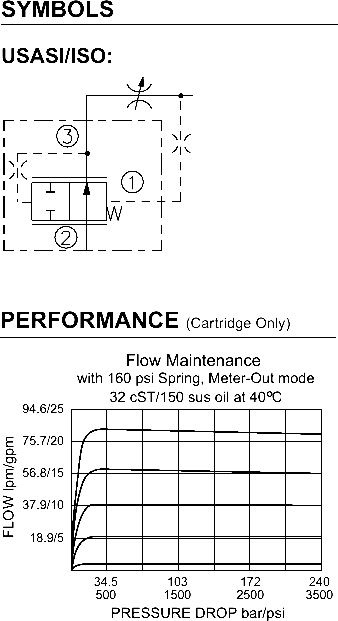

EC12-32 Pressure Compensator (EC12-32)

<div>
<h3>Product Operation</h3>
With inlet flow at ➁, the EC12-32 willl deliver required flow at ➂, in response to load differential pressure sensed at ➀
</div>
<div>
<h3>Product Features</h3>
• Hardened parts for long life.
• Quiet, modulated response.
• Industry common cavity.
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure: Inlet: 241 bar (3500 psi)
Maximum Regulated Flow: 57 lpm (15 gpm) with 80 psi compensating spring; 83 lpm (22 gpm) with 160 psi compensating spring.
Flow Maintenance: See performance chart
Temperature: -40 to 120°C with Buna N seals
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>
Cavity: VC12-3; See page <a title="9.112.1" href="https://www.savery.co.uk/products/view/9-112-1">9.112.1</a>
Cavity Tool: CT12-3XX; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK12-3X-MM; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
</div>

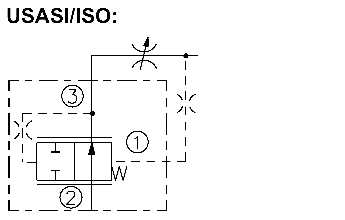

5-426-1-symbols

5-426-1-main-image

5-426-1-image-dimensions

5-426-1-symbols-graphs-image

A screw-in, cartridge-style, load sense, flow-on-demand pressure-compensator.

24.03.28_BAR_Savery_2577
