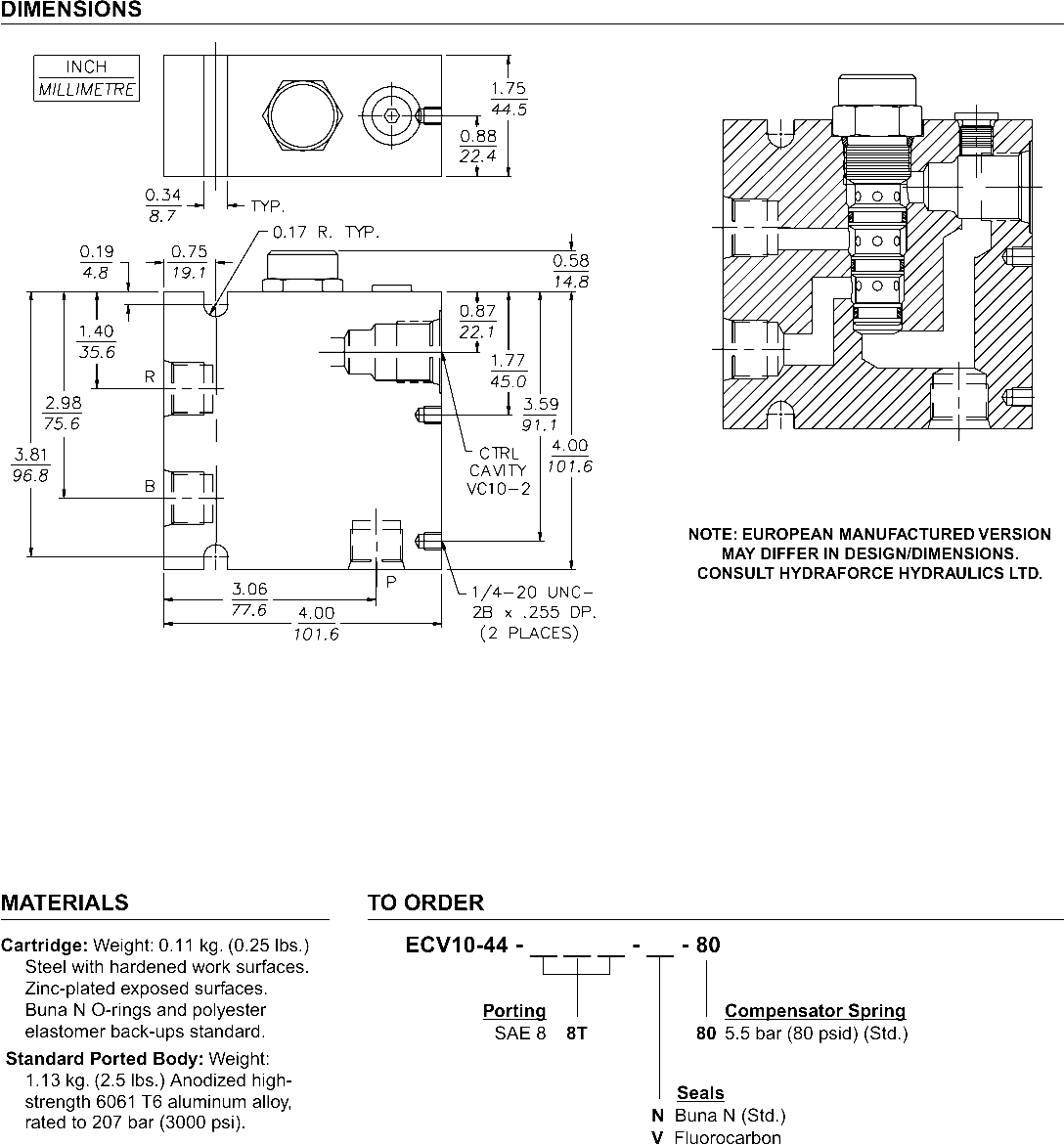

ECV10-44 In-Line Pressure Compensator w/Control Cavity (ECV10-44)
The ECV10-44 is a standard model EC10-40 in a convenient in-line plumbed body with an integral control cartridge cavity VC10-2. Addition of needle valves, rotary valves, electro-proportional valves, etc. allow for infi nitely variable pressure-compensated priority flow output.
Product Operation

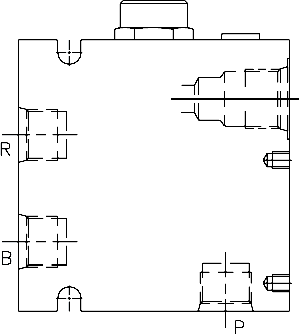

The ECV10-44 maintains a constant flow rate from port R regardless of load pressure
changes in the circuit downstream of port R.

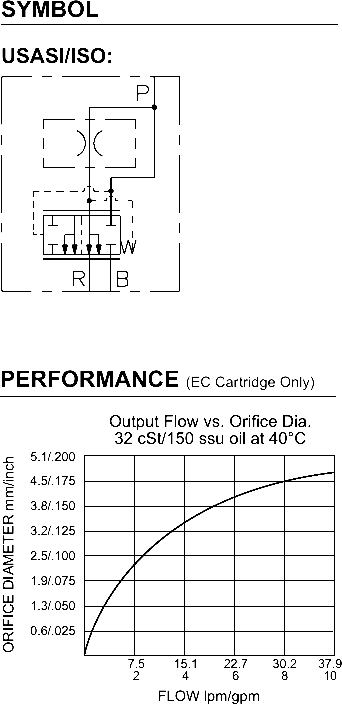

The cartridge maintains a constant differential pressure from port P to port R

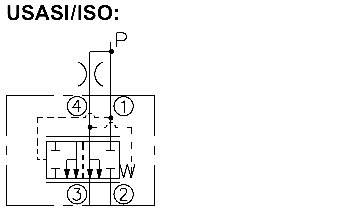

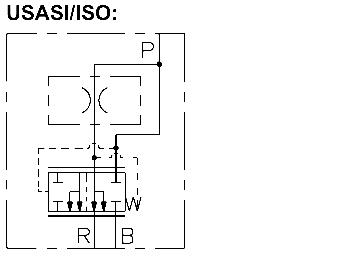

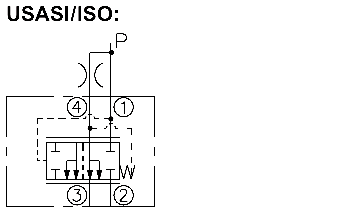

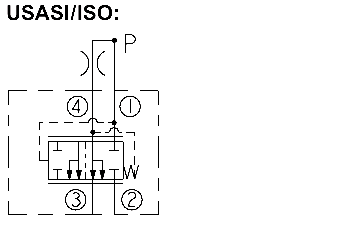

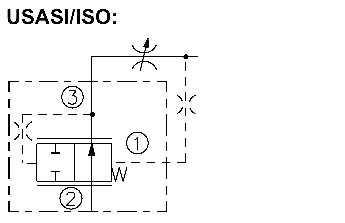

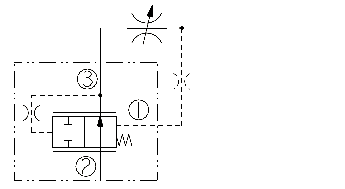

(see USASI Symbol), thereby regulating the hydraulic flow rate between the two
ports. The ECV10-44 is a priority type regulator, delivering pump flow fi rst to R, then
bypassing excess to B. All ports may be fully pressurized. Flow output is a function
of the flow required to maintain a pressure drop as detemined by the compensating
spring value. The control cavity is cartridge port ➁ in, cartridge port ➀ out, so all cartridge restrictions on ➀ to ➁ use apply.
Product Features
• Hardened parts for long life.
• Quiet, modulated response.
• Panel-mount capability.• Lock-down bracket holes.
Product Ratings
Operating Pressure: 207 bar (3000 psi)
Flow Rate: Determined by control used
Standard Compensator Bias Spring: 5.5 bar (80 psid)
Flow Maintenance: 0.38 to 1.86 lpm (0.1 to 0.49 gpm) settings ±20%; 1.89 to 5.64 lpm (0.5 to 1.49 gpm) settings ±15%; 5.68 to 37.85 lpm (1.5 to 10 gpm) settings ±10%
Temperature: -40 to 120°C
Filtration: See page 9.010.1.
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page 9.060.1
Installation: No restrictions; See page 9.020.1
Seal Kit: Refer to EC10-40 data, page 5.482.1
