With over 300 years of engineering experience, Savery designs and manufactures high-quality hydraulic systems tailored to your needs. If you're interested in this product, fill in our contact form, and our team will be in touch.

Pressure Compensators

EC16-40 Pressure Compensator (EC16-40)

<div>
<h3>Product Operation</h3>
The EC16-40 maintains a constant flow rate from ➂ regardless of load pressure changes in the circuit downstream of ➂The cartridge maintains a constant differential pressure from circuit point P to
port ➂ (see USASI Symbol), thereby regulating the hydraulic flow rate between the two points in the circuit. The EC16-40 is a priority type regulator, delivering pump
flow fi rst to ➂, then bypassing excess to ➁. All ports may be fully pressurized.
</div>
<div>
<h3>Product Features</h3>
• Hardened parts for long life.
• Quiet, modulated response.
• Industry common cavity.
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure: 240 bar (3500 psi)
Flow Rate: 100 lpm (26.5 gpm) max. regulated; 180 lpm (47.5 gpm) max. input. Pressure at ➀ begins to rise higher than compensating pressure differential when bypass flow exceeds 80 lpm (21 gpm).
Standard Compensator Bias Spring: 5.5 bar (80 psid)
Flow Maintenance: 7.57 to 98.4 lpm (2 to 26 gpm) settings ±10%
Temperature: -40 to 120°C
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>
Cavity: VC16-4; See page <a title="9.116.2" href="https://www.savery.co.uk/products/view/9-116-2">9.116.2</a>
Cavity Tool: CT16-4XX; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK16-4X-TMB; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
</div>

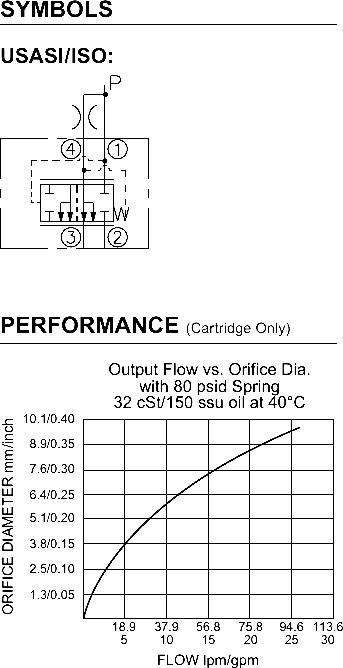

5-454-1-symbols

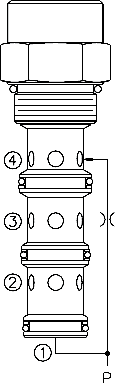

5-454-1-main-image

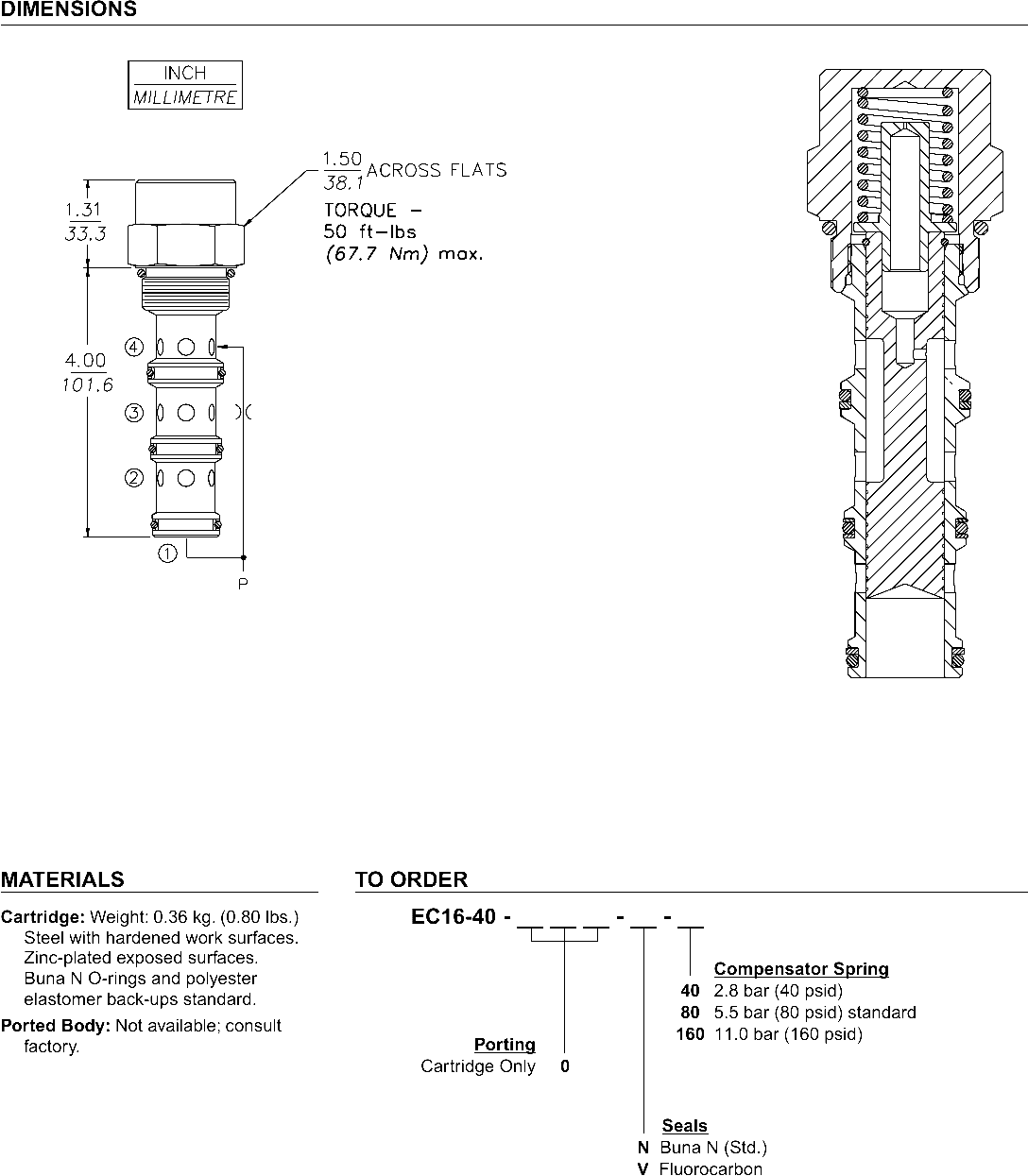

5-454-1-image-dimensions

5-454-1-symbols-graphs-image

A screw-in, cartridge-style pressure-compensating element, intended for use with a remote fi xed or variable orifice to yield a three-port (bypass-type), pressure-compensated, flow regulating hydraulic valve.
