Pressure Compensators

EC50-30 Pressure Compensator, High Pressure (EC50-30)

<div>
<h3>Product Operation</h3>
The EC50-30 maintains a constant flow rate from ➁ regardless of load pressure changes in the circuit downstream of ➁The cartridge maintains a constant differential pressure from circuit point P to port ➂ (see USASI Symbol), thereby regulating the hydraulic flow rate between the two points in the circuit.
</div>
<div>
<h3>Product Features</h3>
• Hardened parts for long life.
• Quiet, modulated response.
• Industry common cavity.
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure: 345 bar (5000 psi)
Regulated Flow Rate: 30.3 lpm (8 gpm) max.
Standard Compensator Bias Spring: 5.5 bar (80 psid)
Flow Maintenance: ±10% from 0.38 to 38 lpm (0.1 to 10 gpm) at pressures from 5.5 to 345 bar (80 to 5000 psi)
Temperature: -40 to 120°C
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>
Cavity: VC10-3; See page <a title="9.110.1" href="https://www.savery.co.uk/products/view/9-110-1">9.110.1</a>
Cavity Tool: CT10-3XX; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK10-3P-TB; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
</div>

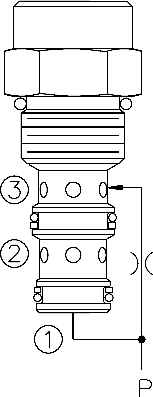

5-406-1-symbols

5-406-1-main-image

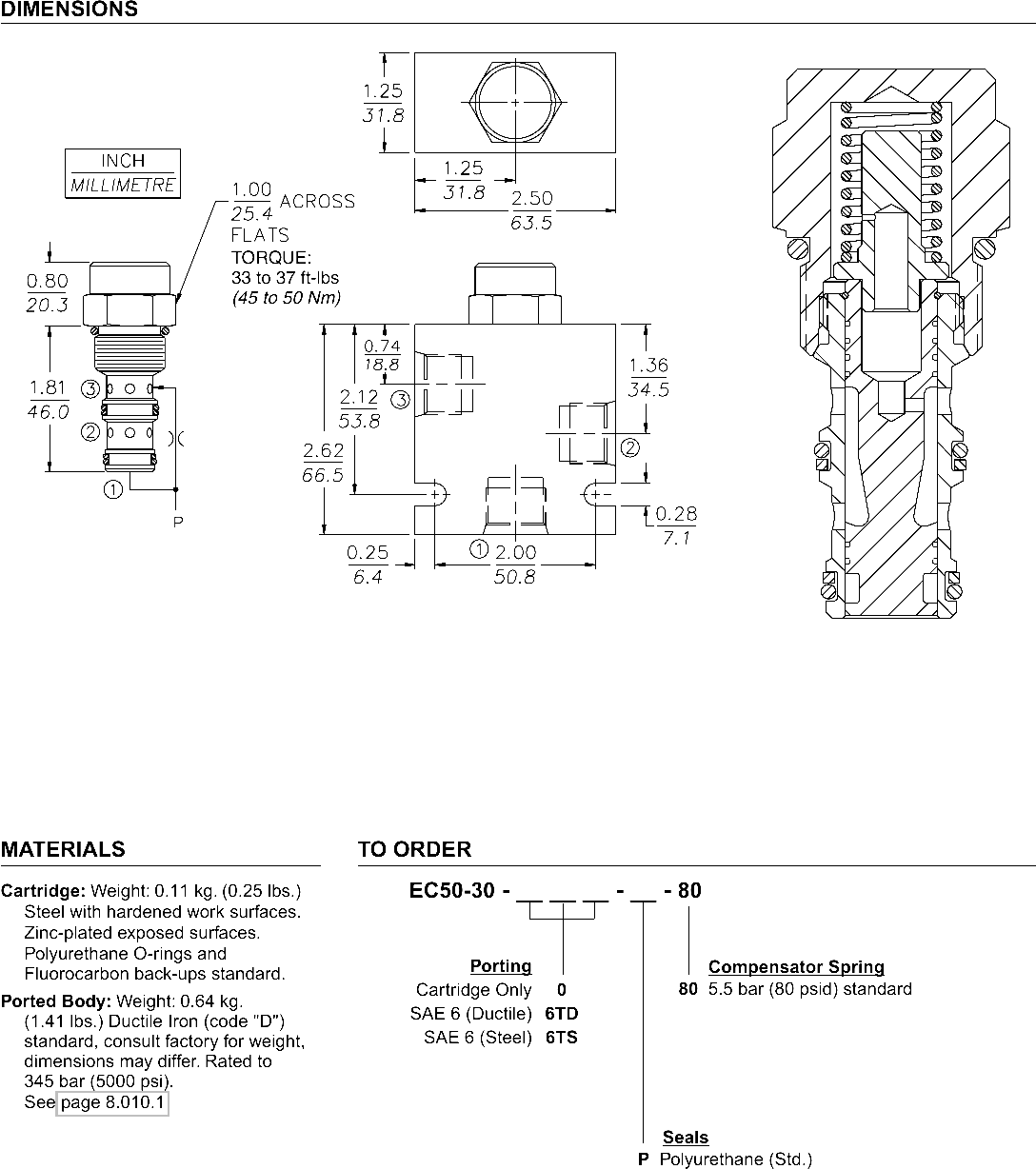

5-406-1-image-dimensions

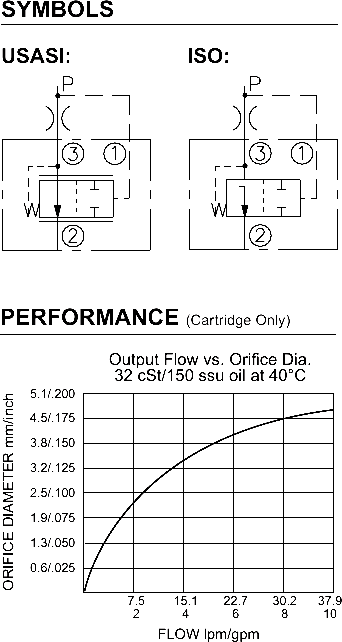

5-406-1-symbols-graphs-image

A screw-in, cartridge-style pressure-compensating element, intended for use with a remote fixed or variable orifice to yield a two-port-type, pressure-compensated, flow regulating hydraulic valve for use in high pressure circuits.
