Pressure Compensators

EC42-M40 Pressure Compensator (EC42-M40)

<div class="product-info group">
<div>
<h3>Product Operation</h3>
The EC42-M40 maintains a constant flow rate from ➂ regardless of load pressure changes in the circuit downstream of ➂The cartridge maintains a constant differential pressure from circuit point “P” to
port ➂ (see symbol), thereby regulating the hydraulic flow rate between the two points in the circuit. The EC42-M40 is a priority type regulator, delivering pump flow
fi rst to ➂, then bypassing excess to ➁. All ports may be fully pressurized.
</div>
<div>
<h3>Product Features</h3>
• Hardened parts for long life.
• Quiet, modulated response.
• Industry common cavity.
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure: Inlet: 240 bar (3500 psi)
Maximum Inlet Flow: 302.8 lpm (80.0 gpm)
Maximum Regulated Flow: 151.1 lpm (40.0 gpm) with 5.5 bar (80 psi) compensating spring; 208.2 lpm (55.0 gpm) with 10.3 bar (150 psi) compensating spring
Maximum Bypass Flow: 170.3 lpm (45.0 gpm) with 5.5 bar (80 psi) compensating spring; 208.2 lpm (55.0 gpm) with 10.3 bar (150 psi) compensating spring
Flow Maintenance: see performance chart
Temperature: -40 to 120°C with Buna N seals
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>
Cavity: VC42-M4; See page <a title="9.142.1" href="https://www.savery.co.uk/products/view/9-142-1">9.142.1</a>
Cavity Tool: CT42-M4XX; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK42-4X-MMM; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
</div>
</div>
<div class="product-related"> </div>

5-458-1-symbols

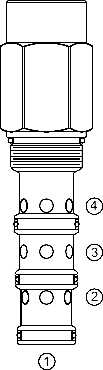

5-458-1-main-image

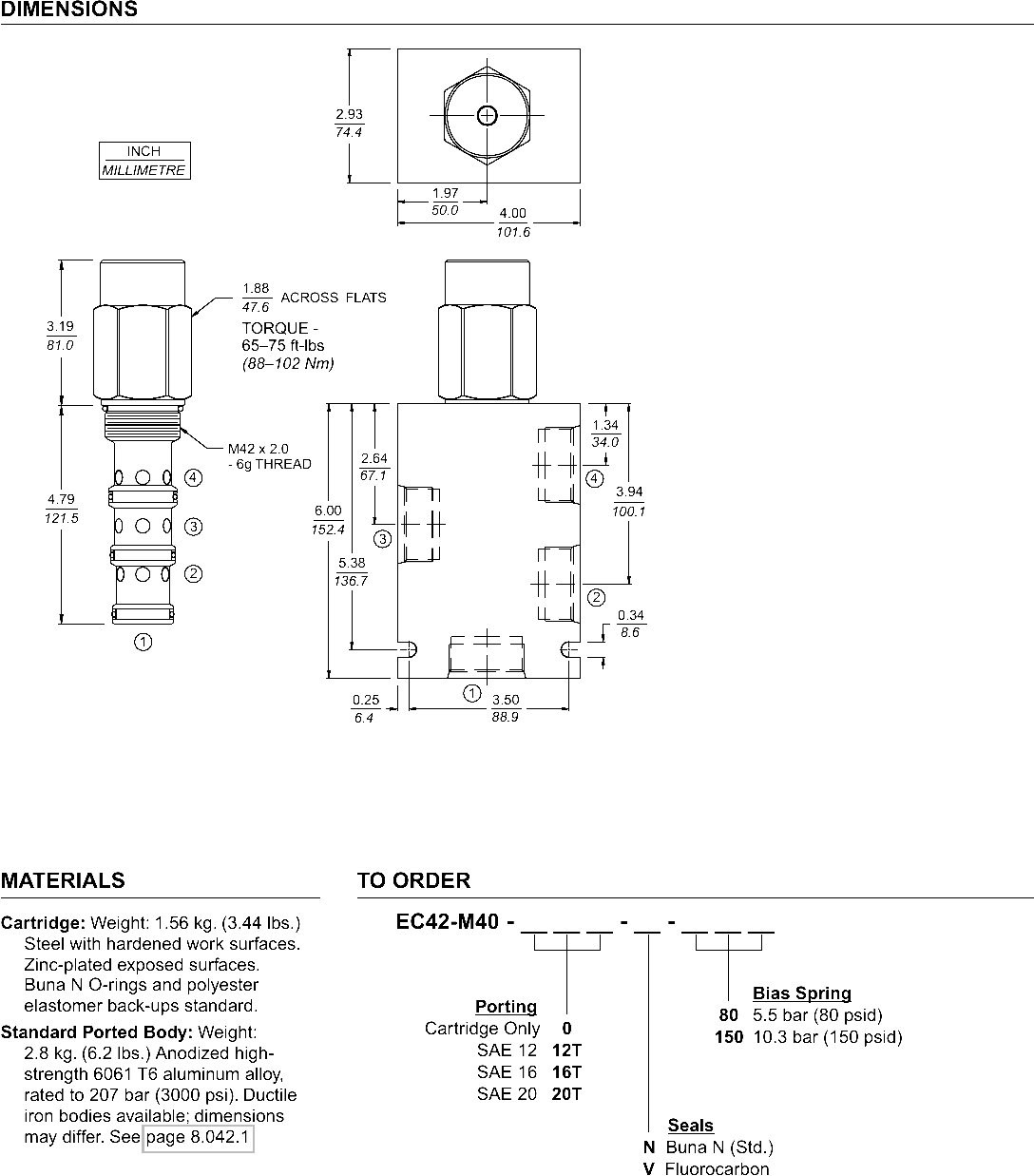

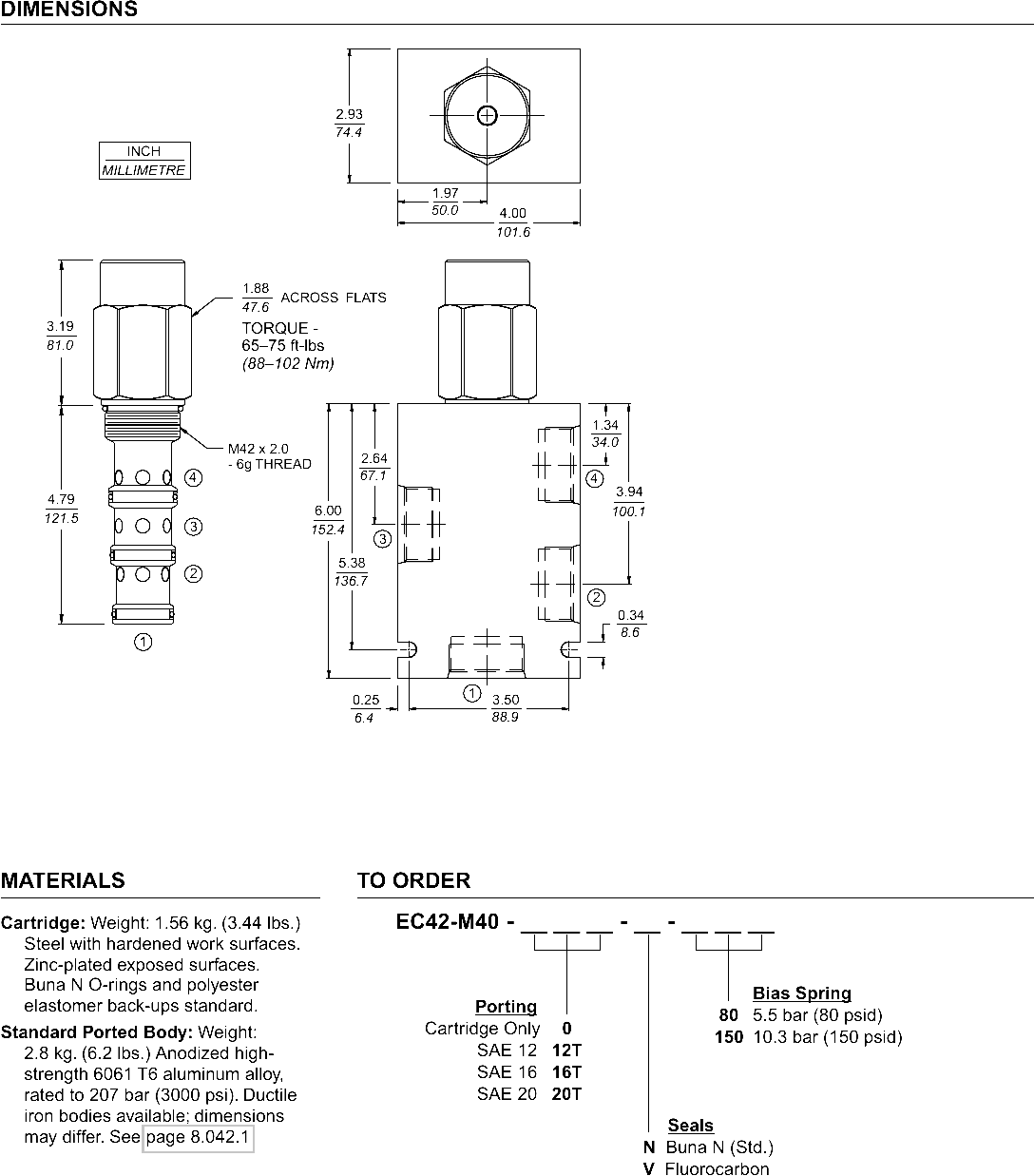

5-458-1-image-dimensions

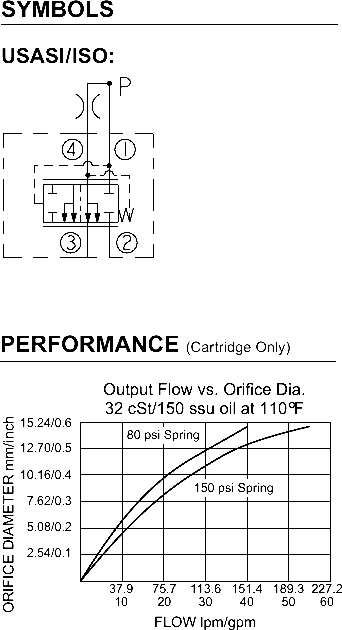

5-458-1-symbols-graphs-image

A screw-in, cartridge-style pressure-compensating element intended for use with a remote fi xed or variable orifice to yield a three-port (bypass-type), pressure-compensated, flow regulating hydraulic valve.
