Pressure Compensators

HEC12-34 Pressure Compensator, Load Holding (HEC12-34)

<div class="product-info group">
<div>
<h3>Product Operation</h3>
The HEC12-34 is designed to be used in combination with a flow control valve for lowering and holding a load. With inlet flow at port 2, port 3 will deliver required flow regardless of load pressure sensed at port 1.
</div>
<div>
<h3>Product Features</h3>
• Hardened parts for long life.
• Hardened seat for low-leakage load-holding capability.
• Quiet, modulated response.
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure: 350 bar (5075 psi) 10% cycle life 420 bar (6090 psi)
Proof Pressure: 690 bar (10,000 psi)
Burst Pressure: 1380 bar (20,000 psi)
Minimum Inlet Pressure Required in Load-Holding Mode: 31.0 bar (450 psi)
Flow Rating: 83 lpm (22 gpm) with 200 psi compensating spring
Flow Maintenance: See performance chart
Maximum Internal Leakage: 5 drops per minute at port 1 with 350 bar (5075 psi) pressure at port 2 and port 3 blocked.
Temperature: -54 to 107°C (-65 to 225°F) with PPDI urethane seals
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>
Cavity: HVC12-3; See page <a title="9.112.1" href="https://www.savery.co.uk/products/view/9-112-1">9.112.1</a>
Cavity Tool: HCT12-3X0-X-X; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: HSK12-3U-0; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>U.S. Patent 7,261,030ORCE.com®PRESSURE DROP bar/psi276/4000207/300069/1000345/5000138/200094.6/2556.8/1518.9/575.7/2037.9/10FLOW (lpm/gpmFlow Characteristics (Meter Out Mode)HEC12-34 with 13 Bar (200 psi) Spring32cSt Oil at 40°C (104°F)
</div>
</div>
<div class="product-related"> </div>

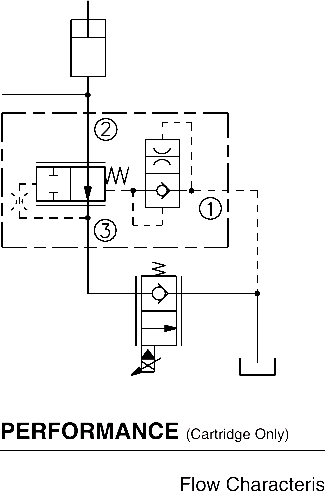

5-435-1-symbols

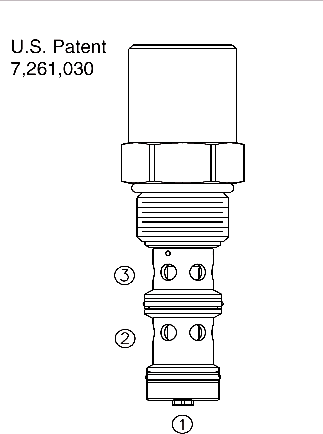

5-435-1-main-image

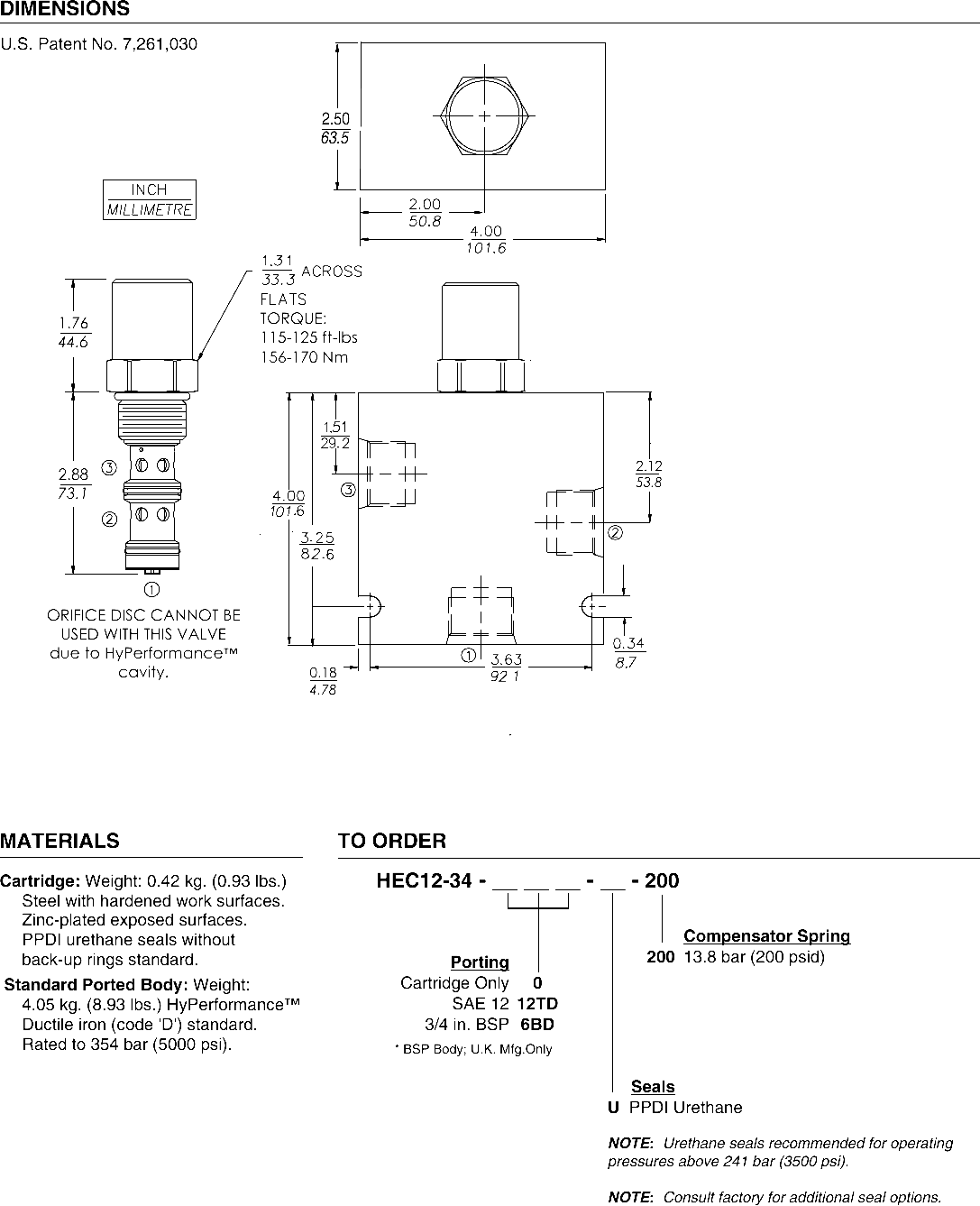

5-435-1-image-dimensions

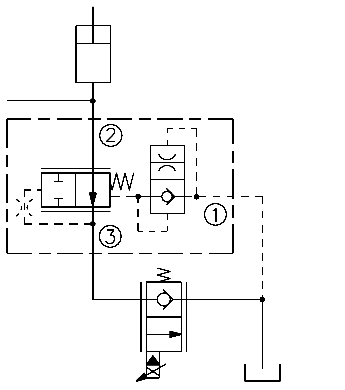

5-435-1-symbols-image

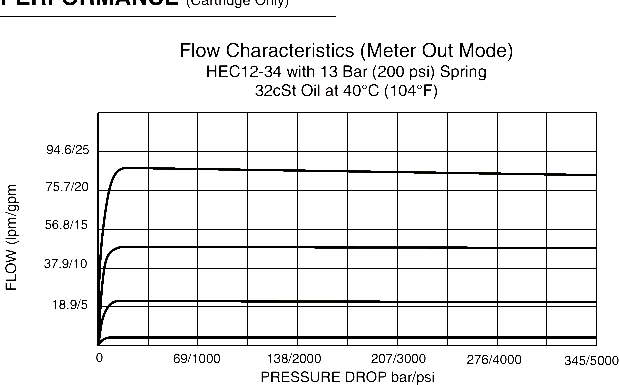

5-435-1-graphs-image

A screw-in, cartridge-style, load sense, flow-on-demand pressure-compensator with built-in damping and load-holding features for use in gravity-lowering circuits.
