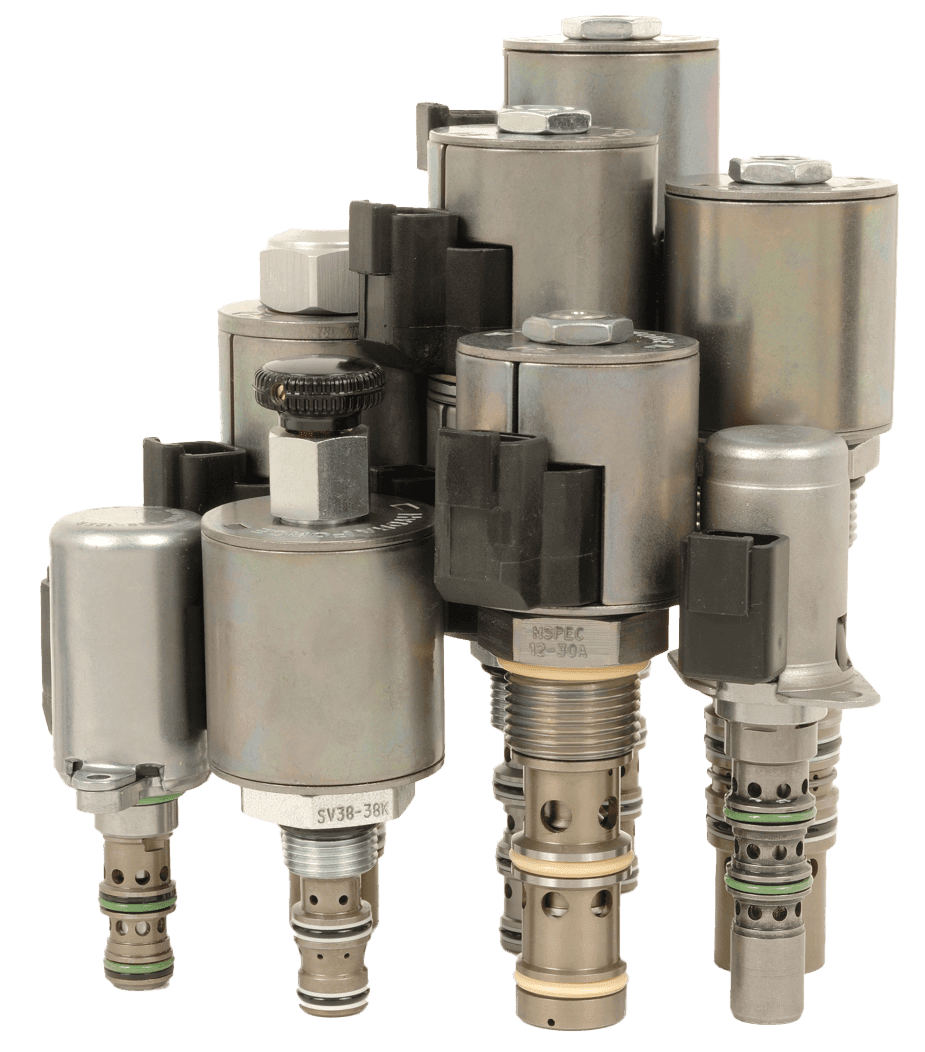

Coils

Hydraforce coils
<ul>
<li>08-Size</li>
<li>10-Size</li>
<li>12-Size</li>
<li>EHPR-Size</li>
</ul>

thumb-coils

24.03.28_BAR_Savery_4084

Directional Valves

Hydraforce directional valves offer multiple functions with a wide range of application potential within the hydraulic industry, from controlling the rate of shift, to low pressure drop and with flows up to 280lpm available.
Spool-type and Poppet-type directional valves offer a wide variety of flow path configurations to suit your needs. Hydraforce’s Pilot-Operated spool-type directional control valve offers the very best in flow path control, a simple two position 2-Way valve to a three position 4-Way valve can be easily controlled by a remote pilot signal.
Hydraforce also offers a PE series of valves which gives proportional control when a pilot signal pressure is used. A manual spring return can also be featured on both directional valves with an optional rotational lock position. These models can be used for flows up to 57lpm.
<ul>
<li>Industry-common cavity sizes -04, -08, -10, -12, -16, -20 and -42.</li>
<li>Hydraulically piloted or manually-operated directional and logic valves enable circuit flexibility and high performance.</li>
<li>Proportional, piloted 3-position, 4-way directional valves for flow rates up to 170 lpm/45 gpm.</li>
<li>Hardened precision seats, spools and cages for long life and low leakage.</li>
</ul>

thumb-directional-valves

<ul>
<li>Designed for reliability in mobile machinery applications and in exposed environmental conditions.</li>
<li>Excellent linearity and low hysteresis.</li>
<li>Hardened precision spools and cages for long life.</li>
<li>Industry-common cavity sizes enable interchangeability with non-proportional valves.</li>
<li>Drop-in style, sealed, proportional clutch actuation and piloting valves.</li>
<li>Series &#8220;E&#8221; water/weather-resistant coils with integral connectors rated up to IP69K.</li>
</ul>

thumb-electro-proportional-valves

Electro-Proportional Valves

The coil offers a superior frame density from the copper windings and thick iron that surround it increasing the coils flux density and therefore its power as an electromagnet. Coils come in both AC and DC and in a variety of voltages to suit your needs and also offer multiple termination types from DIN to dual spade connections.
Hydraforce also offer Series E coils which are water and weather resistant. Coils have full encapsulated windings and a rugged external metal shell which provides exceptional protection from physical damage. These coils were built for high temperature operation but also maintain the easy installation as the standard coils on offer.

thumb-electronic-coils-and-valve-position-sensor-options

Hydraforce coils are made with the highest quality materials which include H magnet wire, specialist copper windings and thick iron that surround the coil itself.

Electronic Coils And Valve Position Sensor Options

A full line of vehicle controls, sensors, monitors, displays and electrical connectors for integrated control applications in mobile, material handling and industrial equipment is available.
VDR1, EFDR1, ETDR1 Plug-In Style Controllers for Valve Coil Mounting
The EVDR1 is a general-purpose PC-programmable controller for HydraForce proportional directional, flow or pressure control valves.
EFDR1 for proportional fan drive control, and ETDR1 for transmission control applications.
ExDR1-type controllers are designed for convenient plug-in coil mounting on valve coils with the Deutsch electrical connector.
EVDR4 and EVDR5 can drive four proportional and one on/off valve with customer-programmable interface. The EVDR4 is stand-alone. The EVDR5 uses a CAN communications interface.
EVDR7 Operates two proportional or on/off valves and provides up to four 5V references.
EVDR9 and EVDR10 CAN expansion modules provide up to nine networked outputs and ten to eighteen inputs using a J1939 interface
&nbsp;
Coretek™ Programmable Machine Controllers
The new CoreTek™ line of general-purpose programmable controllers can be used as stand-alone controllers or integrated with other CAN networked devices. They are designed to withstand the environmental demands of mobile equipment applications. They feature flexible input and output configuration and are capable of driving up to 3.0 amps per output pin.
CoreTek controllers are fully sealed within a compact cast aluminium housing. Operating temperature range is -40°C to +70°C (-40°F to 158°F) and no external cooling or heat dissipation is required.
These controllers are programmed using the powerful CoDeSys™ Programming Tool.
This open software environment offers maximum flexibility and painless servicing of a machine.
Model ECU-0710; Part No. 4000351
Up to 20 inputs, consisting of digital, pulse, current measuring feedback and analog. A total of seven output configurations can be set, including six PWM or digital high-side drivers and a single low-side driver.
Model ECU-2415; Part No. 4000352
Up to 39 digital, pulse, current measuring feedback and analog inputs along with 24 outputs consisting of up to 24 PWM or digital high-side drivers.
Model ECU-2032; Part No. 4000355
Up to 52 inputs and 20 outputs consisting of up to eight PWM or 20 digital high-side drivers.
Model ECU-2820; Part No. 4000356
Up to 52 inputs and 28 outputs consisting of up to 24 PWM or digital high-side drivers and up to four digital low-side drivers.

thumb-electronic-vehicle-controls

EVDR1

EVDR7

electro-vehicle

Electronic Vehicle Controls

<ul>
<li>Variable or fixed orifice restrictor valves.</li>
<li>Pressure-compensated flow regulators.</li>
<li>Pressure compensators for restrictive, bypass and priority circuits, with load-sensing system compatibility.</li>
<li>Optional settings and adjustment styles available.</li>
<li>Flow dividers/combiners for cylinder synchronising and anti-stall applications.</li>
</ul>

thumb-flow-control-valves

Flow Control Valves

<ul>
<li>Pressure relief, reducing/relieving, unloading and sequencing operations.</li>
<li>Industry common cavity sizes up to -16 (303 lpm/80 gpm).</li>
<li>Pilot operated, direct-acting, and differential-area pressure regulators for all application conditions.</li>
<li>Operating pressures up to 350 bar/5075 psi.</li>
<li>Optional spring ranges and adjustment styles.</li>
</ul>

thumb-solenoid-onoff-valves

thumb-pressure-control-valves

Pressure Control Valves

Hydraforce boast a wide range of solenoid valves which include both poppet and spool type valves. All valves are hardened to extend working life of the product.
Models are available for flows up to 150lpm and operation pressure of up to 345 bar. Hydraforce solenoid poppet type valves come in a variety of configurations for load holding or blocking valves for applications requiring low internal leakage.
Spool type valves are 2-Way normally open or normally closed, 3-Way, 4-Way and 4-Way three position. There is also the choice of blocking/low flow valves which are supplied 2-Way normally closed, load-holding or venting valves.
<ul>
<li>Continuous-duty coils with a wide range of voltages, terminations and diode options.</li>
<li>Designed for mobile operating environments including low voltage, high and low temperatures, and exposed environmental conditions.</li>
<li>Industry-common cavity sizes -07, -08, -10, -12, -16, -20, as well as drop-in style construction.</li>
<li>Series &#8220;E&#8221; water/weather-resistant coils with integral connectors rated up to IP69K.</li>
<li>Manual override option on most models.</li>
</ul>

Solenoid On / Off Valves

Valve Housing and Accessories

thumb-valve-housing-and-accessories

Default Confirmation

Enter consent agreement text here.  The Consent Field will store this agreement text with the form entry in order to track what the user has consented to.

Admin Notification

New Newsletter Submission

Newsletter

BFPA-Logo-White

ISO9001 LOGO_White

ISO14001 LOGO_White

Hydraforce

Hydraforce products meet global quality standards including ISO 9001, QS 9000 and CE. Every Hydraforce valve, coil, solenoid, manifold and electro-hydraulic control goes through rigorous testing and inspection to perform beyond industry standards.

Savery offers one of the most comprehensive lines of hydraulic valves, solenoids and coils and is the UK distributor for the Hydraforce range of products for the mobile and industrial equipment markets, including high performance valves for flow rates of 0.4 to 530lpm and pressure up to 420 bar.

Tile_image

Savery_36_comp

Tile_backgorund_image_No_2

24.03.28_BAR_Savery_2577

Bespoke Projects

<ul class="ul1">
<li class="li1">Bespoke lubrication systems for testing Aerospace propulsion using high temperature fluids and test article scavenge capability</li>
<li class="li1">Bespoke lubrication solution for testing Automotive EV components.</li>
<li class="li1">Bespoke assembly rigs for Aircraft landing gear with built in test facilities.</li>
<li class="li1">Bespoke pressure testing and flushing rigs for Aircraft assembly plants.</li>
<li class="li1">Purpose design test benches for fluid power components.</li>
<li class="li1">Ground support trolleys for production and field use for Aircraft testing.</li>
<li class="li1">Hydraulic ring mains for aircraft production and servicing.</li>
<li class="li1">Hydraulic Infrastructure for test houses.</li>
</ul>

Bespoke-Projects

140223Savery_154

140223Savery_175 (1)

Savery Hydraulics have a highly experienced team for fluid control for hydraulic, electronic control, installation and project management. Using this experience we have supported customers with a wide range of projects which are not traditionally considered hydraulic equipment. Some examples of bespoke projects we have successfully delivered are:-

Savery_2_comp

Hydraulic Control Systems

Tailored Solutions for Precision Control
Our in-house hardware and software design team is dedicated to delivering cost-effective and reliable solutions for a wide array of control system needs. From embedded microcontroller systems to large-scale machine controls, we excel in designing and developing systems that meet the most demanding specifications.
&nbsp;
Cloud-Based Monitoring for Seamless Access
We offer cloud-based system monitoring solutions that provide 24/7 access through smart phone or tablet apps, giving you real-time insights into your operations from anywhere.
&nbsp;
Industry-Leading Expertise
With extensive experience across various industries, including aerospace, automotive, wind turbine testing, marine, and industrial sectors, our engineers bring invaluable expertise to every project.

Hardware and Software Capabilities
Small-Scale Control Systems: We design cost-effective control systems in-house using bespoke electronic control boards giving you optimal performance for your specific needs.
Microchip Programming: We specialise in programming microchips for specialist applications in fluid power, providing tailored solutions for precise control.
Large-Scale Machine Control Systems: Our capabilities include designing dedicated Motor Control Centre (MCC) cabinets and implementing System Control and Data Acquisition (SCADA) plant monitoring for seamless operation of complex machinery.
Software Authoring: We are proficient in various software platforms, including:
<ul>
<li>Delta Motion Controllers </li>
<li>National Instruments LabView© </li>
<li>National Instruments LabWindows CVI© </li>
<li>PLCs: Allen Bradley, Siemens, Omron, Schneider, Bachmann, Koyo </li>
<li>HMI and SCADA Systems: Siemens, Schneider, Bachmann, Koyo </li>
</ul>

Cost-Effective Solutions, Tailored to Your Needs
Our deep understanding of different control systems enables us to select the most cost-effective platform to suit your systems development, ensuring you get the best value for your investment.
At Savery, we are committed to delivering innovative, reliable, and tailored solutions that optimise the performance of your hydraulic systems, empowering you to achieve your goals with precision and efficiency.
Get in touch with us today to discuss your project needs.

140223Savery_125

140223Savery_127

140223Savery_155

140223Savery_126

At Savery, we design and manufacture electronic systems that ensure the safe and efficient control and monitoring of hydraulic equipment. Our expertise lies in providing comprehensive control system solutions tailored to your specific requirements, with a focus on bespoke applications.

Hydraulic-Control-System

Savery_39_comp

24_03_28_BAR_Savery_3818

Hydraulic Control Systems

24.03.28_BAR_Savery_2711

Hydraulic Power Unit

Our power units vary from compact, fixed pump systems to intricate setups featuring multiple variable displacement pumps and energy-saving variable speed drive technology. These units can be equipped with control manifolds for basic relief unloading functions or complex hydraulic control circuitry, custom-made for your application.
We offer bespoke electrical control equipment that can manually or automatically control the power source, adhering to all current safety standards. This can be paired with simple condition monitoring for parameters such as flow, pressure, level, temperature, and fluid condition, or with advanced SCADA data recording for remote access via the cloud. This ensures safe and reliable 24/7 operation of equipment.
Our power units can include fluid reservoirs ranging from 10 litres to over 14,000 litres, with built-in bund containment to meet regulatory requirements.
With Savery, you’re in safe hands. We work with you from conception through design, project planning, installation, commissioning, and servicing to deliver a cost-effective and efficient hydraulic and control solution.
We have successfully completed projects in various industries, including:
<ul>
<li data-leveltext="" data-font="Symbol" data-listid="2" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="1" data-aria-level="1">Civil: Flood Barriers, Roll-on/Roll-off dock equipment </li>
<li data-leveltext="" data-font="Symbol" data-listid="2" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="2" data-aria-level="1">Marine: Ship Stabiliser, steering and deck equipment (with in-house 60 Hz testing capability) </li>
<li data-leveltext="" data-font="Symbol" data-listid="2" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="3" data-aria-level="1">Testing Infrastructure: Automotive, Aerospace, research and production component testing </li>
<li data-leveltext="" data-font="Symbol" data-listid="2" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="4" data-aria-level="1">Mechanical Handling: Large Scissor lifts </li>
<li data-leveltext="" data-font="Symbol" data-listid="2" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="5" data-aria-level="1">Defence and Security: Specialist equipment </li>
<li data-leveltext="" data-font="Symbol" data-listid="2" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="6" data-aria-level="1">Wind: Turbine Blade testing </li>
</ul>
Trust Savery Hydraulics for your hydraulic power needs.

Hydraulic-Power-Unit

At Savery Hydraulics, we specialise in the design and manufacture of hydraulic power units tailored to customer specifications. Our offerings range from single fractional power motors to multiple pump sets, with power installations up to 2 Mw.

Savery_11_comp

24.03.28_BAR_Savery_2719

Savery custom manifolds can be designed as part of a new power unit or to enhance your existing equipment & machinery. Custom designed manifolds offer no-leak, screw-in components with fast and easy valve removal and replacement.

ManifoldAssembly

Our team of experienced engineers can simplify the most complex hydraulic circuits to reduce cost, improve reliability, minimise pipe work connections and the physical size &amp; weight of the solutions.
Custom manifold assemblies are:
<ul>
<li data-leveltext="" data-font="Symbol" data-listid="1" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="1" data-aria-level="1">Designed by our engineers in house using the latest 3D CAD software for integration into your product. </li>
<li data-leveltext="" data-font="Symbol" data-listid="1" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="2" data-aria-level="1">Designed utilising Hydraforce cartridge valves and a vast range of other manufacturer’s components to achieve the required performance. </li>
<li data-leveltext="" data-font="Symbol" data-listid="1" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="3" data-aria-level="1">Machined using modern CNC equipment with specialist tooling to ensure high quality. </li>
<li data-leveltext="" data-font="Symbol" data-listid="1" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="4" data-aria-level="1">Manufactured from aluminium, steel or stainless steel to meet system pressure, flow and application requirements. </li>
<li data-leveltext="" data-font="Symbol" data-listid="1" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="5" data-aria-level="1">Designed in conjunction with your engineers to ensure we meet your unique requirements and installation needs. </li>
<li data-leveltext="" data-font="Symbol" data-listid="1" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="6" data-aria-level="1">Supplied in a variety of sizes from small manifold blocks with cartridges capable of controlling low(a few litres per minute) flow rate up to large complex assemblies for hundreds of litres per minute. </li>
<li data-leveltext="" data-font="Symbol" data-listid="1" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="7" data-aria-level="1">Supplied fully assembled &amp; tested in our UK facility &amp; meeting the necessary ISO recommended guidelines for hydraulic cleanliness prior to dispatch. </li>
</ul>

Manifold-Assembly

24.03.28_BAR_Savery_2587

Savery custom manifolds can be designed as part of a new power unit or to enhance your existing equipment & machinery. Custom designed manifolds offer no-leak, screw-in components with fast and easy valve removal and replacement.

Manifold Assembly

For Product page (2) (1)

Contact Us

Savery hydraulic power packs and mini power packs are the culmination of many years of experience in manufacturing AC and DC power packs.

Small HydraulicPower Packs

The PB300 series of power units offer the latest design and features not normally associated with this type of unit. The units have a pressure of 300 bar, which is achieved by the use of high specification materials. The centre adaptor where the unit is cased, is made using an advanced aluminium manifold die-casting process, eliminating porosity to give a lightweight assembly.
Applications for this type of unit are numerous DC units for battery powered use include our tail lift packs and can be found on tippers, aerial access equipment and material handling trucks. AC units with power ratings from 0.25kW to 5.5kW have an even greater range of applications including the retail and service industry for the handling of goods &#8211; loading and unloading of vehicles and the lift industry for lifts installed in the home, disabled lifts and automotive assembly plants.
Savery has developed hydraulic power packs specifically for applications such as dock levellers, which provide a bridge between the loading bay and the truck being loaded or unloaded.
PB300 units have;
<ul>
<li>DC units 12V &amp; 24V / 0.2 – 3.5kW.</li>
<li>AC units 3 Phase &amp; 1 Phase / 0.25 – 5.5kW.</li>
<li>A vast range of control options for single and double acting circuits.</li>
<li>Advanced pressure die-cast aluminium centre adaptor.</li>
<li>The ability to eliminate porosity.</li>
</ul>
<img loading="lazy" decoding="async" class="alignnone size-full wp-image-5274" src="https://cms.savery.co.uk/wp-content/uploads/2024/03/E11-Logo.jpg" alt="" width="110" height="48" />

Small-Hydraulic-Power-Pack

Product page tile image (1)

Mini-packs-

Product_Page_Image

Savery offer a complete and comprehensive range of hydraulic power units, incorporating highly flexible, cost effective modular construction suited to both OEM and small users. The design of units for special applications is an important part of Savery’s marketing activities and our engineers can develop a unit to perfectly match our customer’s requirements.

Savery hydraulic power packs and mini power packs are the culmination of many years of experience in manufacturing AC and DC power packs.


Savery_34_comp

Small Hydraulic Power Packs

HEC32-43 Pressure Compensator (HEC32-43)

<div class="product-info group">
<div>
<h3>Product Operation</h3>
With inlet flow at port ➂, the HEC32-43 will deliver required priority flow at port ➃, based on the size of the external orifice, regardless of load pressure. Excess flow
exits, or is bypassed, at port ➁. Port ➀ is the load sense port. All ports may be fully pressurized.
</div>
<div>
<h3>Product Features</h3>
• Hardened parts for long life.
• Quiet, modulated response.
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure: 350 bar (5075 psi)
Proof Pressure: 690 bar (10000 psi)
Burst Pressure: 1380 bar (20000 psi)
Maximum Inlet Flow Rate: 530 lpm (140 gpm) with 10.3 bar (150 psi) compensating spring; 379 lpm (100 gpm) with 5.5 bar (80 psi) compensating spring
Priority Flow Rate: 60% of maximum input flow
Flow Maintenance: See performance chart
Temperature: -54° to 107°C (-65° to 225°F) with PPDI Urethane seals
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>
Cavity: HVC32-4; See page <a title="9.132.1" href="https://www.savery.co.uk/products/view/9-132-1">9.132.1</a>
Cavity Tool: HCT32-4-xxx; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK32-4x-xxx; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
</div>
</div>
<div class="product-related"> </div>

5-502-1-symbols

5-502-1-main-image

5-502-1-image-dimensions

5-502-1-symbols-image

5-502-1-graphs-image

A screw-in, cartridge-style, priority-on-demand, pressure compensator with dynamic load sense intended to provide priority flow in the required amount, while allowing excess flow to be used for auxiliary functions.

HEC12-43 Pressure Compensator, Dynamic Load-Sense (HEC12-43)

<div>
<h3>Product Operation</h3>
With inlet flow at port 3, the HEC12-43 will deliver required priority flow at port 4, regardless of load pressure. Excess flow exits, or is bypassed, at port 2. Port 1 is the load sense port. All ports may be fully pressurized.
</div>
<div>
<h3>Product Features</h3>
• Hardened parts for long life.
• Quiet, modulated response.
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure: 350 bar (5075 psi) 10% cycle life 420 bar (6090 psi)
Proof Pressure: 690 bar (10000 psi)
Burst Pressure: 1380 bar (20000 psi)
Maximum Inlet Flow Rate: 68 lpm (18 gpm) with 5.5 bar (80 psi) compensating spring; 95 lpm (25 gpm) with 11 bar (160 psi) compensating spring
Priority Flow Rate: Up to 80% of maximum input flow
Load Sense Line Flow Rate: 1.1 lpm (0.3 gmp) maximum with 350 bar (5075 psi) pressure adn Port 3 and Ports 2 and 4 blocked
Flow Maintenance: See performance chart
Temperature: -54° to 107°C (-65° to 225°F) with PPDI Urethane seals
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>
Cavity: HVC12-4
Cavity Tool: HCT12-4-xxx; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: HSK12-4U-0; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
</div>

5-491-1-symbols

5-491-1-main-image

5-491-1-image-dimensions

5-491-1-symbols-image

5-491-1-graphs-image

HEC12-42 Pressure Compensator, Static Load Sense (HEC12-42)

<div class="product-info group">
<div>
<h3>Product Operation</h3>
With inlet flow at port 3, the HEC12-42 will deliver required priority flow at port 4, based on the size of the external orifice, regardless of load pressure. Excess flow exits, or is bypassed, at port 2. Port 1 is the load sense port. All ports may be fully pressurized.
</div>
<div>
<h3>Product Features</h3>
• Hardened parts for long life.
• Quiet, modulated response.
• Industry common cavity.
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure: Inlet: 350 bar (5075 psi) 10% lift cycle; 420 bar (6090 psi)
Proof Pressure: 690 bar (10000 psi)
Burst Pressure: 1380 bar (20000 psi)
Maximum Inlet Flow Rate: 95 lpm (25 gpm) with 11 bar (160 psi) compensating spring; 68 lpm (18 gpm) with 5.5 bar (80 psi) compensating spring
Priority Flow Rate: Up to 80% of maximum input flow
Flow Maintenance: See performance chart.
Temperature: -54° to 107°C (-65° to 225°F) with PPDI Urethane seals
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>
Cavity: HVC12-4
Cavity Tool: HCT12-4-xxx; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: HSK12-4U-MMM; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
</div>
</div>
<div class="product-related"> </div>

5-471-1-symbols

5-471-1-main-image

5-471-1-image-dimensions

5-471-1-symbols-image

5-471-1-graphs-image

A screw-in, cartridge-style, priority-on-demand, pressure compensator with static load sense intended to provide priority flow in the required amount, while allowing excess flow to be used for auxiliary functions.

EC50-43 Pressure Compensator, High Pressure (EC50-43)

<div>
<h3>Product Operation</h3>
With inlet flow at ➂, the EC50-43 will deliver required priority flow at ➃, regardless of load pressure. Excess flow exits at ➁. Port ➀ is the load sense port. All ports may be fully pressurized.
</div>
<div>
<h3>Product Features</h3>
• Hardened parts for long life.
• Quiet, modulated response.
• Industry common cavity.
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure: Inlet: 345 bar (5000 psi)
Input Flow Rate: 45.4 lpm (12 gpm) maximum
Maximum Regulated Flow: 37.9 lpm (10 gpm) with 10.3 bar (150 psi) compensator spring; 30.2 lpm (8.0 gpm) with 5.5 bar (80 psi) compensator spring
Flow Maintenance: see performance chart
Temperature: -40 to 120°C
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>
Cavity: VC10-4; See page <a title="9.110.1" href="https://www.savery.co.uk/products/view/9-110-1">9.110.1</a>
Cavity Tool: CT10-4-XXX; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK10-4P-TMB; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
</div>

5-486-1-symbols

5-486-1-main-image

5-486-1-image-dimensions

5-486-1-symbols-graphs-image

A screw-in, cartridge-style, priority-on-demand, pressure-compensator with a dynamic load sense, intended to provide priority flow in the required amount, while allowing excess flow to be used for auxiliary functions.

EC50-42 Pressure Compensator, High Pressure (EC50-42)

<div>
<h3>Product Operation</h3>
With inlet flow at ➂, the EC50-42 will deliver required priority flow at ➃, regardless of load pressure. Excess flow exits at ➁. Port ➀ is the load sense port. All ports may be fully pressurized.
</div>
<div>
<h3>Product Features</h3>
• Hardened parts for long life.
• Quiet, modulated response.
• Industry common cavity.
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure: Inlet: 345 bar (5000 psi)
Input Flow Rate: 45.4 lpm (12 gpm) maximum
Maximum Regulated Flow: 37.9 lpm (10 gpm) with 10.3 bar (150 psi) compensator spring; 30.2 lpm (8.0 gpm) with 5.5 bar (80 psi) compensator spring
Flow Maintenance: see performance chart
Temperature: -40 to 120°C
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>
Cavity: VC10-4; See page <a title="9.110.1" href="https://www.savery.co.uk/products/view/9-110-1">9.110.1</a>
Cavity Tool: CT10-4-XXX; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK10-4P-TMB; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
</div>

5-466-1-symbols

5-466-1-main-image

5-466-1-image-dimensions

5-466-1-symbols-image

5-466-1-graphs-image

A screw-in, cartridge-style, priority-on-demand, pressure-compensator with a static load sense, intended to provide priority flow in the required amount, while allowing excess flow to be used for auxiliary functions.

EC42-M43 Pressure Compensator (EC42-M43)

<div>
<h3>Product Operation</h3>
The EC42-M43 provides priority flow in the required amount, while allowing excess
flow to be used for auxiliary functions. With port ➂ providing inlet flow, port ➃ will deliver the required priority flow regardless of load pressure. Excess flow exits at ➁. Port ➀ is the load sense port. All ports may be fully pressurized.NOTE: 0.031 in. (0.79 mm) orifice is recommended to be installed in the load sense
line at port ➀ for better stability.
</div>
<div>
<h3>Product Features</h3>
• Hardened parts for long life.
• Quiet, modulated response.
• Industry common cavity.
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure: 241 bar (3500 psi)
Maximum Input Flow: 303 lpm (80.0 gpm)
Maximum Priority Flow: 208 lpm (55.0 gpm) with 10.3 bar (150 psi) spring; 151 lpm (40.0 gpm) with 5.5 bar (80 psi) spring
Maximum Bypass Flow: 208 lpm (55.0 gpm) with 10.3 bar (150 psi) spring; 151 lpm (40.0 gpm) with 5.5 bar (80 psi) spring
Flow Maintenance: see performance chart
Temperature: -40 to 120°C with Buna N seals
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>
Cavity: VC42-M4; See page <a title="9.142.1" href="https://www.savery.co.uk/products/view/9-142-1">9.142.1</a>
Cavity Tool: CT42-M4XX; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK42-4X-MMM; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
</div>

5-498-1-symbols

5-498-1-main-image

5-498-1-image-dimensions

5-498-1-symbols-image

5-498-1-graphs-image

A screw-in, cartridge-style priority-on-demand pressure-compensator with dynamic load sense.

EC42-M42 Pressure Compensator (EC42-M42)

<div class="product-info group">
<div>
<h3>Product Operation</h3>
The EC42-M42 provides priority flow in the required amount, while allowing excess
flow to be used for auxiliary functions. With port ➂ providing inlet flow, port ➃ will deliver the required priority flow regardless of load pressure. Excess flow exits at ➁. Port ➀ is the load sense port. All ports may be fully pressurized.NOTE: 0.031 in. (0.79 mm) orifice is recommended to be installed in the load sense
line at port ➀ for better stability.
</div>
<div>
<h3>Product Features</h3>
• Hardened parts for long life.
• Quiet, modulated response.
• Industry common cavity.
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure: 241 bar (3500 psi)
Maximum Input Flow: 303 lpm (80.0 gpm)
Maximum Priority Flow: 208 lpm (55.0 gpm) with 10.3 bar (150 psi) spring; 151 lpm (40.0 gpm) with 5.5 bar (80 psi) spring
Maximum Bypass Flow: 208 lpm (55.0 gpm) with 10.3 bar (150 psi) spring; 151 lpm (40.0 gpm) with 5.5 bar (80 psi) spring
Flow Maintenance: see performance chart
Temperature: -40 to 120°C with Buna N seals
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>
Cavity: VC42-M4; See page <a title="9.142.1" href="https://www.savery.co.uk/products/view/9-142-1">9.142.1</a>
Cavity Tool: CT42-M4XX; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK42-4X-MMM; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
</div>
</div>
<div class="product-related"> </div>

5-478-1-symbols

5-478-1-main-image

5-478-1-image-dimensions

5-478-1-graphs-image

5-478-1-symbols-image

A screw-in, cartridge-style priority-on-demand pressure-compensator with static load sense.

EC16-43 Pressure Compensator (EC16-43)

<div class="product-info group">
<div>
<h3>Product Operation</h3>
With inlet flow at ➂, the EC16-43 will deliver required priority flow at ➃, regardless of load pressure. Excess flow exits at ➁. Port ➀ is the load sense port. All ports may be fully pressurized.
</div>
<div>
<h3>Product Features</h3>
• Hardened parts for long life.
• Quiet, modulated response.
• Industry common cavity.
</div>
<div>
<h3>Product Ratings</h3>
Maximum Operating Pressure: Inlet: 240 bar (3500 psi)
Maximum Input Flow: 190 lpm (50 gpm)
Maximum Priority Flow Rate: 95 lpm (25 gpm)
Flow Maintenance: see performance chart
Temperature: -40 to 120°C with Buna N seals
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>
Cavity: VC16-4; See page <a title="9.116.1" href="https://www.savery.co.uk/products/view/9-116-1">9.116.1</a>
Cavity Tool: CT16-4-XXX; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK16-4X-MMM; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
</div>
</div>
<div class="product-related"> </div>

5-494-1-symbols

5-494-1-main-image

5-494-1-image-dimensions

5-494-1-symbols-graphs-image

A screw-in, cartridge-style, priority on-demand, pressure-compensator with dynamic load sense. It is intended to provide priority flow in the required amount while allowing excess flow to be used for auxiliary functions.

EC16-42 Pressure Compensator, (EC16-42)

<div class="product-info group">
<div>
<h3>Product Operation</h3>
The EC16-42 is a priority-type valve delivering pump flow at port ➂. Port ➃ will deliver required priority flow regardless of load pressure. Excess flow exits at port ➁. Port ➀ is the load sense port. All ports may be fully pressurized.
</div>
<div>
<h3>Product Features</h3>
• Hardened parts for long life.
• Quiet, modulated response.
• Industry common cavity.
</div>
<div>
<h3>Product Ratings</h3>
Maximum Operating Pressure: 240 bar (3500 psi)
Input Flow: 190 lpm (50 gpm)
Priority Flow Rate: 95 lpm (25 gpm)
Temperature: -40 to 120°C with Buna N seals
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>
Cavity: VC16-4; See page <a title="9.116.4" href="https://www.savery.co.uk/products/view/9-116-4">9.116.4</a>
Cavity Tool: CT16-4XX; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK16-4X-MMM; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
</div>
</div>
<div class="product-related"> </div>

5-474-1-symbols

5-474-1-main-image

5-474-1-image-dimensions

5-474-1-symbols-graphs-image

A screw-in, cartridge-style, priority on-demand, pressure-compensating element intended to provide priority flow in required amount while allowing excess flow to be used for auxiliary functions.

EC12-43 Pressure Compensator (EC12-43)

<div class="product-info group">
<div>
<h3>Product Operation</h3>
With inlet flow at port ➂, the EC12-43 will deliver required priority flow at port ➃, based on the size of the external orifice, regardless of load pressure. Excess flow
exits, or is bypassed, at port ➁. Port ➀ is the load sense port. All ports may be fully pressurized.
</div>
<div>
<h3>Product Features</h3>
• Hardened parts for long life.
• Quiet, modulated response.
• Industry common cavity.
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure: Inlet: 345 bar (5000 psi); Note: Steel body required when used at or near 5000 psi.
Maximum Input Flow Rate: 95 lpm (25 gpm) with 160 psi compensating spring; 68 lpm (18 gpm) with 80 psi compensating spring
Priority Flow Rate: Up to 80% of input flow
Flow Maintenance: See performance chart
Temperature: -40 to 120°C with Buna N seals
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>
Cavity: VC12-4; See page <a title="9.112.1" href="https://www.savery.co.uk/products/view/9-112-1">9.112.1</a>
Cavity Tool: CT12-4-XXX; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK12-4X-MMM; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
</div>
</div>
<div class="product-related"> </div>

Hydraforce

Coils

Directional Valves

Electro-Proportional Valves

Electronic Coils And Valve Position Sensor Options

Electronic Vehicle Controls

Flow Control Valves

Pressure Control Valves

Solenoid On / Off Valves

Valve Housing and Accessories

Savery also offer

Bespoke Projects

Hydraforce

Hydraulic Control Systems

Hydraulic Power Unit

Manifold Assembly

Small Hydraulic Power Packs
