Pressure Compensators

EC10-S31 Pressure Compensator (EC10-S31)

<div class="product-info group">
<div>
<h3>Product Operation</h3>
The EC10-S31 delivers constant flow to port ➀ regardless of load pressure changes.
</div>
<div>
<h3>Product Features</h3>
• Hardened seat for long life and low leakage.
• Quiet, modulated response.
• Industry common cavity.
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure: Inlet: 240 bar (3500 psi)
Maximum Compensated Flow: 30.3 lpm (8 gpm) with 7.6 bar (110 psi) spring; 22.7 lpm (6 gpm) with 5.5 bar (80 psi) spring
Standard Compensator Bias Spring: 5.5 bar (80 psid)
Flow Maintenance: see performance chart
Temperature: -40 to 120°C
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>
Cavity: VC10-S3; See page <a title="9.110.1" href="https://www.savery.co.uk/products/view/9-110-1">9.110.1</a>
Cavity Tool: CT10-S3-XX; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK10-S3X-MM; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
</div>
</div>
<div class="product-related"> </div>

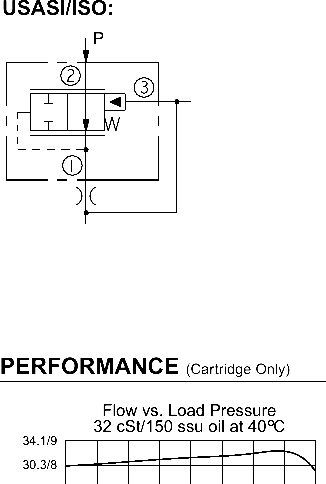

5-414-1-symbols

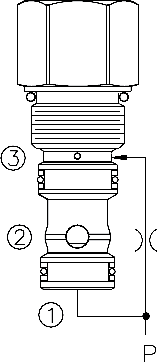

5-414-1-main-image

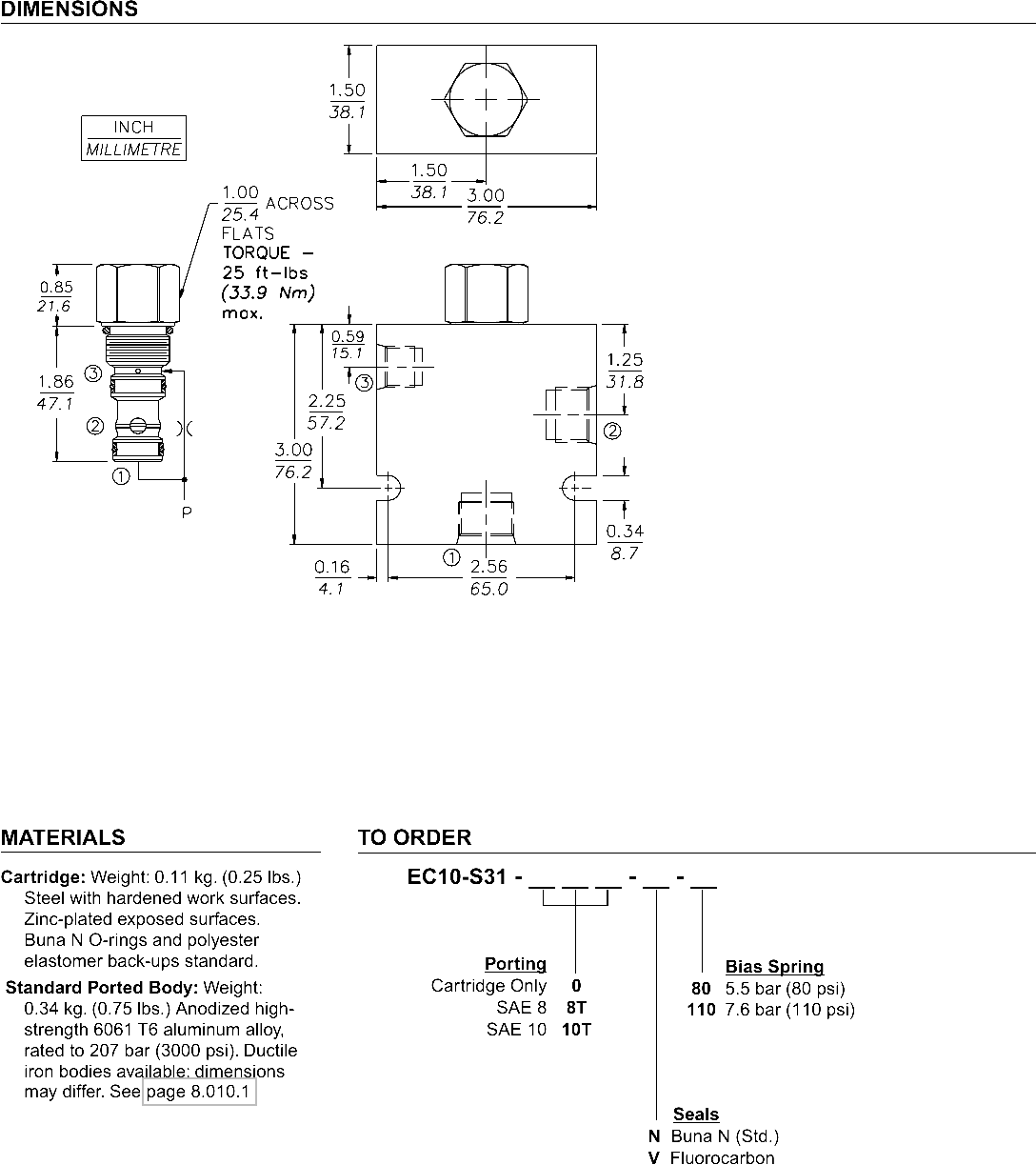

5-414-1-image-dimensions

5-414-1-symbols-image

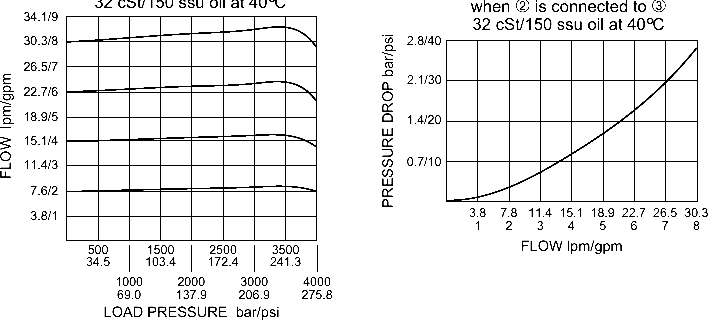

5-414-1-graphs-image

A screw-in, cartridge-style pressure-compensator, intended for use upstream of a remote fixed or variable orifice to provide a constant flow rate regardless of load pressure changes.
