Pressure Compensators

EC10-32 Pressure Compensator (EC10-32)

<div class="product-info group">
<div>
<h3>Product Operation</h3>
With inlet flow at ➁, the EC10-32 will deliver required flow at ➂, in response to load differential pressure sensed at ➀
</div>
<div>
<h3>Product Features</h3>
• Hardened parts for long life.
• Quiet, modulated response.
• Industry common cavity.
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure: Inlet: 207 bar (3000 psi)
Maximum Regulated Flow: 38.1 lpm (10.0 gpm) with 150 psi compensating spring; 28.0 lpm (7.5 gpm) with 80 psi compensating spring.
Flow Maintenance: See performance chart
Temperature: -40 to 120°C with Buna N seals
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>
Cavity: VC10-3; See page <a title="9.110.1" href="https://www.savery.co.uk/products/view/9-110-1">9.110.1</a>
Cavity Tool: CT10-3XX; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK10-3X-MM; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
</div>
</div>
<div class="product-related"> </div>

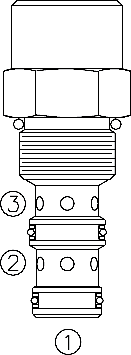

5-422-1-symbols

5-422-1-main-image

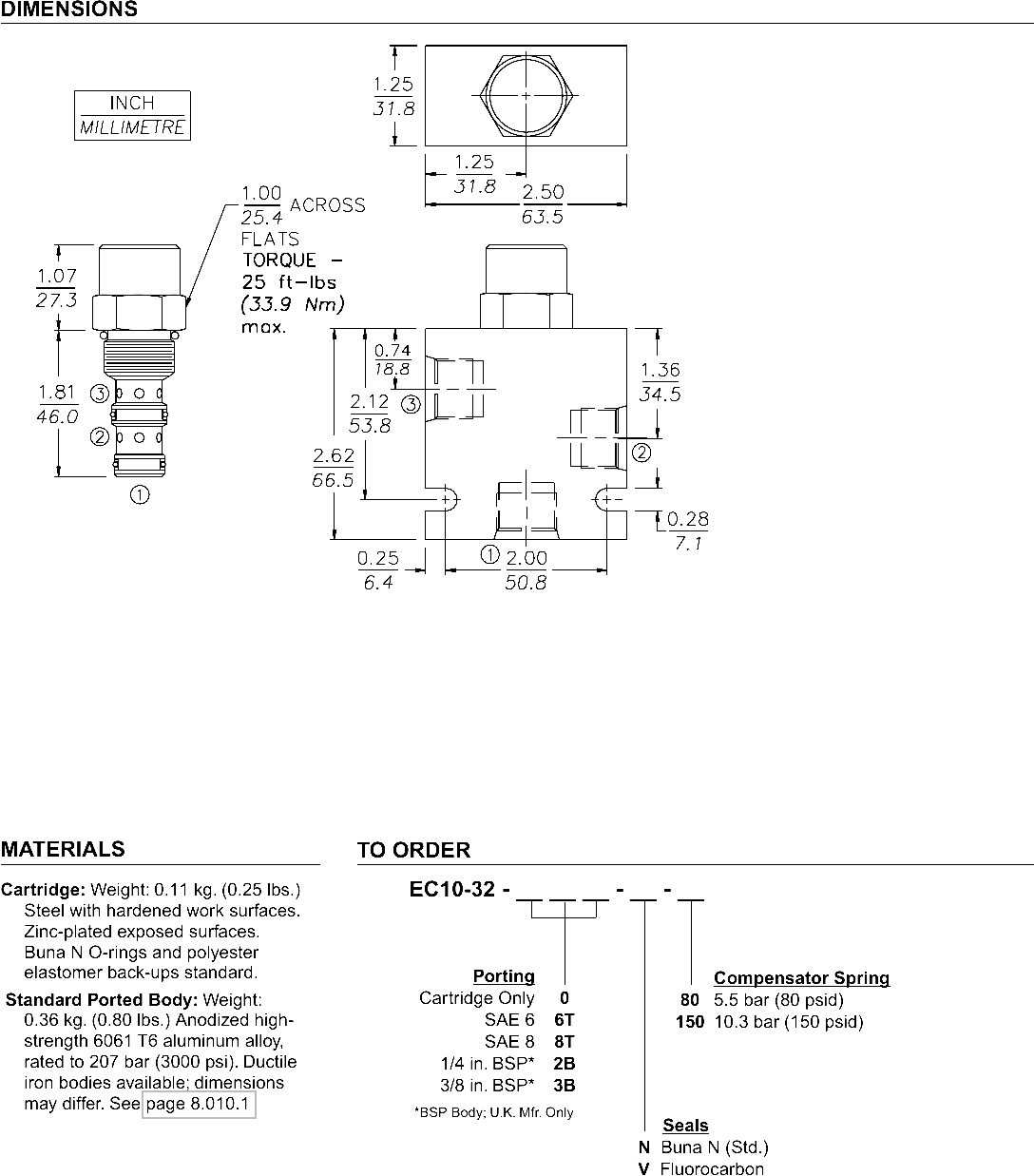

5-422-1-image-dimensions

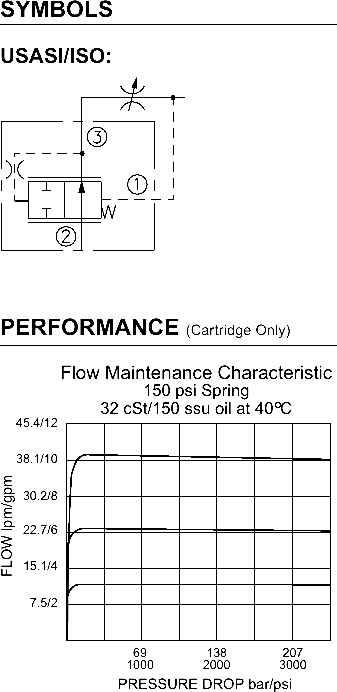

5-422-1-symbols-graphs-image

A screw-in, cartridge-style, load sense, flow-on-demand pressure-compensator.
