FD10-42 Flow Divider/Combiner w/ Anti-Stall Feature (FD10-42)
A screw-in, cartridge-style, spool-type flow divider/combiner. Optional flow dividing/combining ratios are maintained regardless of system operating pressure conditions.
Product Operation

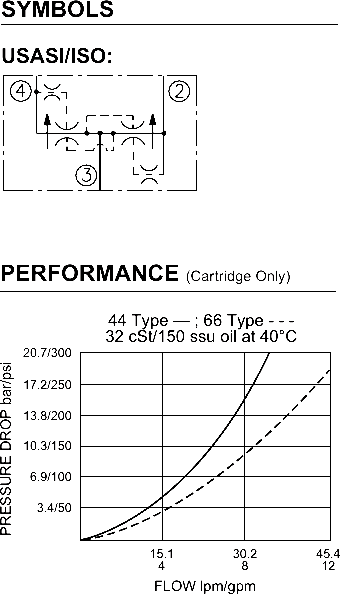

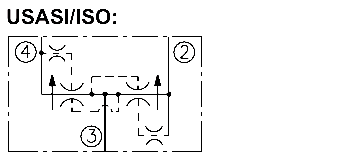

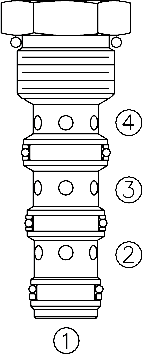

In the dividing mode, the FD10-42 will divert input flow from port ➂ to ports ➁ and ➃, based on the ratio specifi ed, regardless of operating pressure.
The cartridge will combine input flows from ports ➁ and ➃The FD10-42 is designed to maintain a flow path to both combining ports ➁ and ➃ when one port is “free-wheeling.” This feature keeps hydraulic (parallel) motor drive
circuits from stalling in the combining mode only.
Product Features
• Hardened parts for long life.
• Quiet, modulated response.
• Industry common cavity.

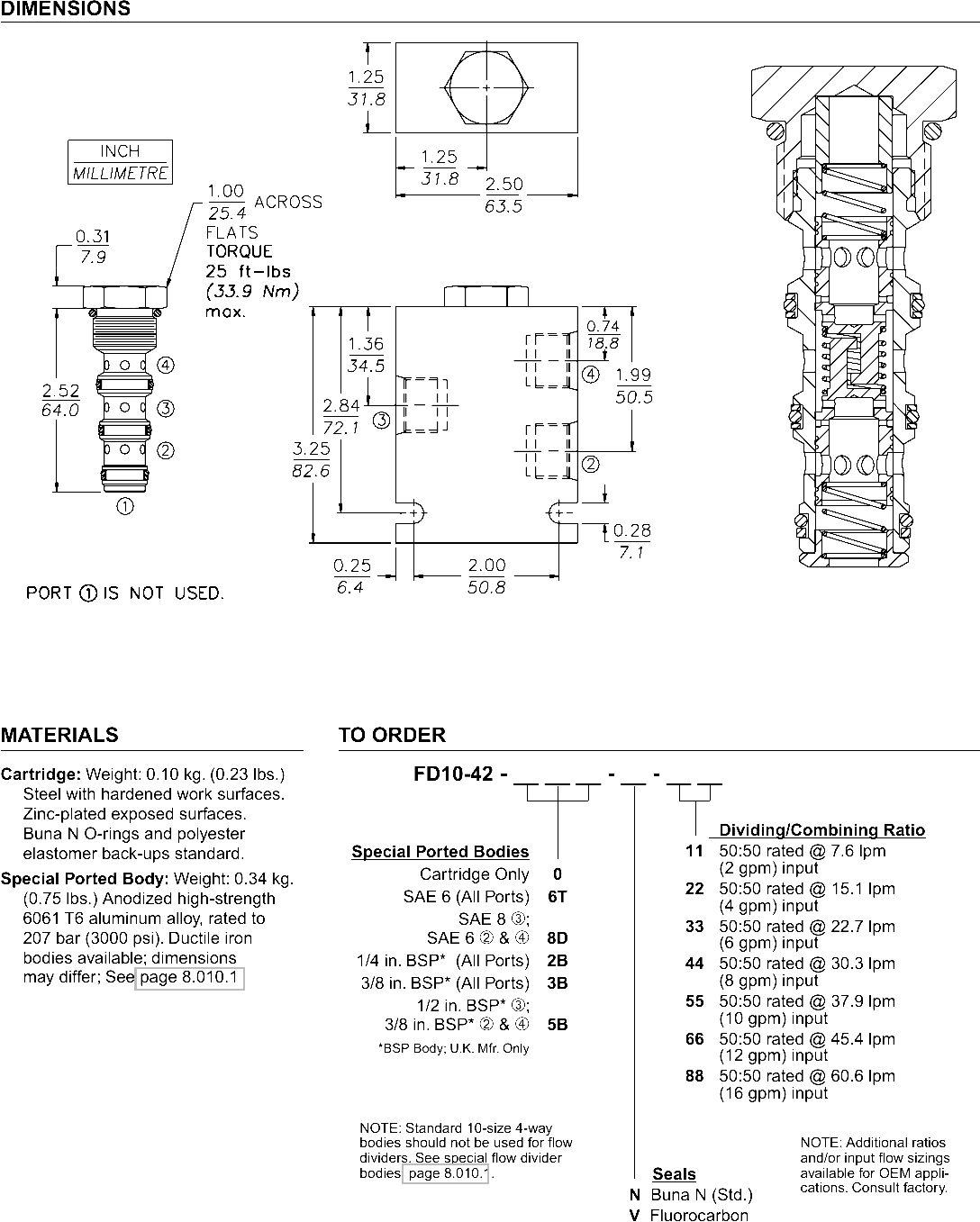

Product Ratings
Operating Pressure: 240 bar (3500 psi)
Flow: 60.6 lpm (16 gpm) input max.
Flow Options: Input Flow: 7.6 lpm (2 gpm); Ratio: 50:50; Model Code: 11 Input Flow: 15.1 lpm (4 gpm); Ratio: 50:50; Model Code: 22 Input Flow: 22.7 lpm (6 gpm); Ratio: 50:50; Model Code: 33 Input Flow: 30.3 lpm (8 gpm); Ratio: 50:50; Model Code: 44 Input Flow: 37.9 lpm (10 gpm); Ratio: 50:50; Model Code: 55 Input Flow: 45.4 lpm (12 gpm); Ratio: 50:50; Model Code: 66 Input Flow: 60.6 lpm (16 gpm); Ratio: 50:50; Model Code: 88 Other ratio options available; consult factory.
Standard Compensator Bias Spring: 2.07 bar (30 psid)
Flow Accuracy: 10% from 30–100% of rated flow
Temperature: -40 to 120°C
Filtration: See page 9.010.1
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page 9.060.1
Installation: No restrictions; See page 9.020.1. Note: Standard 10 size 4-way bodies should not be used with this product. See page 8.010.1 for special flow divider bodies.
Cavity: VC10-4 (Variation “A”); See page 9.110.1
Cavity Tool: CT10-4XX; See page 8.600.1
Seal Kit: SK10-4X-MMM; See page 8.650.1
