Flow Dividers : Combiners

FD16-42 Flow Divider/Combiner, w/Anti-Stall Feature (FD16-42)

<div class="product-info group">
<div>
<h3>Product Operation</h3>
In the dividing mode, the FD16-42 will divert input flow from port ➂ to ports ➁ and ➃, based on the ratio specifi ed, regardless of operating pressure.
The cartridge will combine input flows from both ➁ and ➃The FD16-42 is designed to maintain a flow path to both combining ports ➁ and ➃ when one port is “free-wheeling.” This feature keeps hydraulic (parallel) motor drive
circuits from stalling in the combining mode only.
</div>
<div>
<h3>Product Features</h3>
• Hardened parts for long life.
• Quiet, modulated response.
• Industry common cavity.
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure: 240 bar (3500 psi)
Flow: See Performance Chart
Flow Options:Input Flow: 98.4 lpm (26 gpm); Ratio: 50:50; Model Code: 44Input Flow: 151.4 lpm (40 gpm); Ratio: 50:50; Model Code: 66Other ratio options available; consult factory.
Standard Compensator Bias Spring: 2.07 bar (30 psid)
Flow Accuracy: 10% from 33-100% of rated flow
Temperature: -40 to 120°C
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a> Note that standard 16 size 4-way bodies should not be used with this product. See page <a title="8.016.1" href="https://www.savery.co.uk/products/view/8-016-1">8.016.1</a> for special flow divider bodies.
Cavity: VC16-4; See page <a title="9.116.2" href="https://www.savery.co.uk/products/view/9-116-2">9.116.2</a>
Cavity Tool: CT16-4XX; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK16-4X-MMM; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
</div>
</div>
<div class="product-related"> </div>

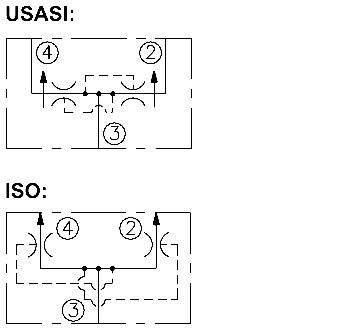

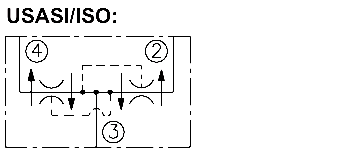

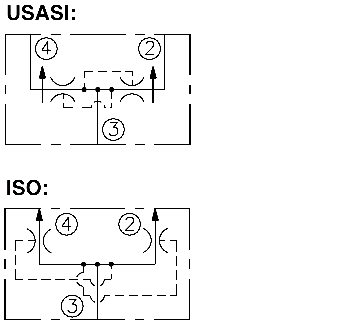

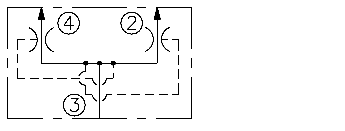

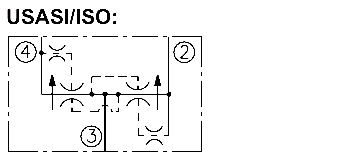

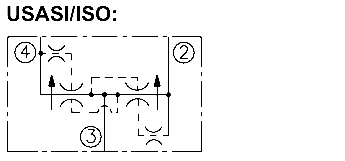

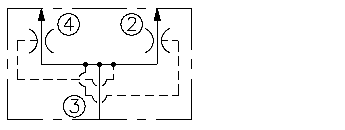

5-626-1-symbols

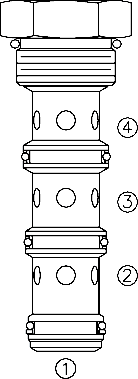

5-626-1-main-image

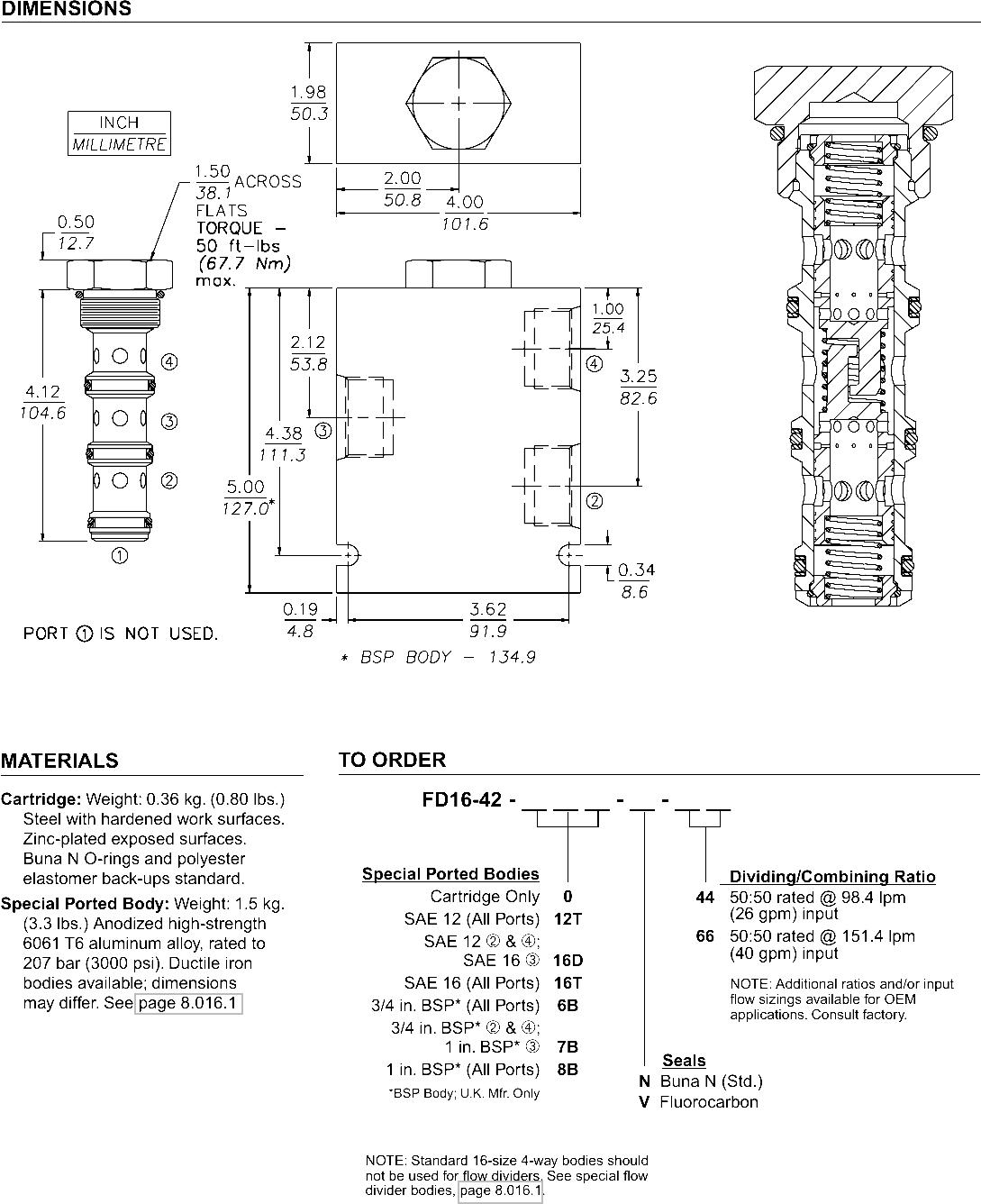

5-626-1-image-dimensions

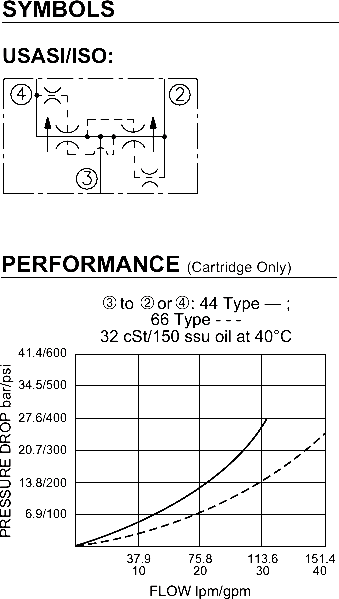

5-626-1-symbols-graphs-image

A screw-in, cartridge-style, spool-type flow divider/combiner. Standard flow dividing/combining ratios are maintained regardless of system operating pressure conditions.

24.03.28_BAR_Savery_2577

Bespoke Projects

<ul class="ul1">
<li class="li1">Bespoke lubrication systems for testing Aerospace propulsion using high temperature fluids and test article scavenge capability</li>
<li class="li1">Bespoke lubrication solution for testing Automotive EV components.</li>
<li class="li1">Bespoke assembly rigs for Aircraft landing gear with built in test facilities.</li>
<li class="li1">Bespoke pressure testing and flushing rigs for Aircraft assembly plants.</li>
<li class="li1">Purpose design test benches for fluid power components.</li>
<li class="li1">Ground support trolleys for production and field use for Aircraft testing.</li>
<li class="li1">Hydraulic ring mains for aircraft production and servicing.</li>
<li class="li1">Hydraulic Infrastructure for test houses.</li>
</ul>

Bespoke-Projects

140223Savery_154

140223Savery_175 (1)

Savery Hydraulics have a highly experienced team for fluid control for hydraulic, electronic control, installation and project management. Using this experience we have supported customers with a wide range of projects which are not traditionally considered hydraulic equipment. Some examples of bespoke projects we have successfully delivered are:-

Savery_2_comp

hero-bg

Hydraforce

Hydraforce products meet global quality standards including ISO 9001, QS 9000 and CE. Every Hydraforce valve, coil, solenoid, manifold and electro-hydraulic control goes through rigorous testing and inspection to perform beyond industry standards.

Savery offers one of the most comprehensive lines of hydraulic valves, solenoids and coils and is the UK distributor for the Hydraforce range of products for the mobile and industrial equipment markets, including high performance valves for flow rates of 0.4 to 530lpm and pressure up to 420 bar.

Tile_image

Savery_36_comp

Tile_backgorund_image_No_2

Hydraulic Control Systems

Tailored Solutions for Precision Control
Our in-house hardware and software design team is dedicated to delivering cost-effective and reliable solutions for a wide array of control system needs. From embedded microcontroller systems to large-scale machine controls, we excel in designing and developing systems that meet the most demanding specifications.
&nbsp;
Cloud-Based Monitoring for Seamless Access
We offer cloud-based system monitoring solutions that provide 24/7 access through smart phone or tablet apps, giving you real-time insights into your operations from anywhere.
&nbsp;
Industry-Leading Expertise
With extensive experience across various industries, including aerospace, automotive, wind turbine testing, marine, and industrial sectors, our engineers bring invaluable expertise to every project.

Hardware and Software Capabilities
Small-Scale Control Systems: We design cost-effective control systems in-house using bespoke electronic control boards giving you optimal performance for your specific needs.
Microchip Programming: We specialise in programming microchips for specialist applications in fluid power, providing tailored solutions for precise control.
Large-Scale Machine Control Systems: Our capabilities include designing dedicated Motor Control Centre (MCC) cabinets and implementing System Control and Data Acquisition (SCADA) plant monitoring for seamless operation of complex machinery.
Software Authoring: We are proficient in various software platforms, including:
<ul>
<li>Delta Motion Controllers </li>
<li>National Instruments LabView© </li>
<li>National Instruments LabWindows CVI© </li>
<li>PLCs: Allen Bradley, Siemens, Omron, Schneider, Bachmann, Koyo </li>
<li>HMI and SCADA Systems: Siemens, Schneider, Bachmann, Koyo </li>
</ul>

Cost-Effective Solutions, Tailored to Your Needs
Our deep understanding of different control systems enables us to select the most cost-effective platform to suit your systems development, ensuring you get the best value for your investment.
At Savery, we are committed to delivering innovative, reliable, and tailored solutions that optimise the performance of your hydraulic systems, empowering you to achieve your goals with precision and efficiency.
Get in touch with us today to discuss your project needs.

140223Savery_125

140223Savery_127

140223Savery_155

140223Savery_126

At Savery, we design and manufacture electronic systems that ensure the safe and efficient control and monitoring of hydraulic equipment. Our expertise lies in providing comprehensive control system solutions tailored to your specific requirements, with a focus on bespoke applications.

Hydraulic-Control-System

Savery_39_comp

24_03_28_BAR_Savery_3818

Hydraulic Control Systems

24.03.28_BAR_Savery_2711

Hydraulic Power Unit

Our power units vary from compact, fixed pump systems to intricate setups featuring multiple variable displacement pumps and energy-saving variable speed drive technology. These units can be equipped with control manifolds for basic relief unloading functions or complex hydraulic control circuitry, custom-made for your application.
We offer bespoke electrical control equipment that can manually or automatically control the power source, adhering to all current safety standards. This can be paired with simple condition monitoring for parameters such as flow, pressure, level, temperature, and fluid condition, or with advanced SCADA data recording for remote access via the cloud. This ensures safe and reliable 24/7 operation of equipment.
Our power units can include fluid reservoirs ranging from 10 litres to over 14,000 litres, with built-in bund containment to meet regulatory requirements.
With Savery, you’re in safe hands. We work with you from conception through design, project planning, installation, commissioning, and servicing to deliver a cost-effective and efficient hydraulic and control solution.
We have successfully completed projects in various industries, including:
<ul>
<li data-leveltext="" data-font="Symbol" data-listid="2" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="1" data-aria-level="1">Civil: Flood Barriers, Roll-on/Roll-off dock equipment </li>
<li data-leveltext="" data-font="Symbol" data-listid="2" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="2" data-aria-level="1">Marine: Ship Stabiliser, steering and deck equipment (with in-house 60 Hz testing capability) </li>
<li data-leveltext="" data-font="Symbol" data-listid="2" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="3" data-aria-level="1">Testing Infrastructure: Automotive, Aerospace, research and production component testing </li>
<li data-leveltext="" data-font="Symbol" data-listid="2" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="4" data-aria-level="1">Mechanical Handling: Large Scissor lifts </li>
<li data-leveltext="" data-font="Symbol" data-listid="2" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="5" data-aria-level="1">Defence and Security: Specialist equipment </li>
<li data-leveltext="" data-font="Symbol" data-listid="2" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="6" data-aria-level="1">Wind: Turbine Blade testing </li>
</ul>
Trust Savery Hydraulics for your hydraulic power needs.

Hydraulic-Power-Unit

At Savery Hydraulics, we specialise in the design and manufacture of hydraulic power units tailored to customer specifications. Our offerings range from single fractional power motors to multiple pump sets, with power installations up to 2 Mw.

Savery_11_comp

24.03.28_BAR_Savery_2719

24.03.28_BAR_Savery_4084

Savery custom manifolds can be designed as part of a new power unit or to enhance your existing equipment & machinery. Custom designed manifolds offer no-leak, screw-in components with fast and easy valve removal and replacement.

ManifoldAssembly

Our team of experienced engineers can simplify the most complex hydraulic circuits to reduce cost, improve reliability, minimise pipe work connections and the physical size &amp; weight of the solutions.
Custom manifold assemblies are:
<ul>
<li data-leveltext="" data-font="Symbol" data-listid="1" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="1" data-aria-level="1">Designed by our engineers in house using the latest 3D CAD software for integration into your product. </li>
<li data-leveltext="" data-font="Symbol" data-listid="1" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="2" data-aria-level="1">Designed utilising Hydraforce cartridge valves and a vast range of other manufacturer’s components to achieve the required performance. </li>
<li data-leveltext="" data-font="Symbol" data-listid="1" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="3" data-aria-level="1">Machined using modern CNC equipment with specialist tooling to ensure high quality. </li>
<li data-leveltext="" data-font="Symbol" data-listid="1" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="4" data-aria-level="1">Manufactured from aluminium, steel or stainless steel to meet system pressure, flow and application requirements. </li>
<li data-leveltext="" data-font="Symbol" data-listid="1" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="5" data-aria-level="1">Designed in conjunction with your engineers to ensure we meet your unique requirements and installation needs. </li>
<li data-leveltext="" data-font="Symbol" data-listid="1" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="6" data-aria-level="1">Supplied in a variety of sizes from small manifold blocks with cartridges capable of controlling low(a few litres per minute) flow rate up to large complex assemblies for hundreds of litres per minute. </li>
<li data-leveltext="" data-font="Symbol" data-listid="1" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="7" data-aria-level="1">Supplied fully assembled &amp; tested in our UK facility &amp; meeting the necessary ISO recommended guidelines for hydraulic cleanliness prior to dispatch. </li>
</ul>

Manifold-Assembly

24.03.28_BAR_Savery_2587

Savery custom manifolds can be designed as part of a new power unit or to enhance your existing equipment & machinery. Custom designed manifolds offer no-leak, screw-in components with fast and easy valve removal and replacement.

Manifold Assembly

For Product page (2) (1)

Contact Us

Savery hydraulic power packs and mini power packs are the culmination of many years of experience in manufacturing AC and DC power packs.

Small HydraulicPower Packs

The PB300 series of power units offer the latest design and features not normally associated with this type of unit. The units have a pressure up to 300 bar, which is achieved by the use of high specification materials. The centre adaptor can be machined to give a vast range of integral control options for single and double acting circuits.
Applications for this type of unit are numerous DC units for battery powered use include our tail lift packs and can be found on tippers, aerial access equipment and material handling trucks. AC units with power ratings from 0.25kW to 5.5kW have an even greater range of applications including the retail and service industry for the handling of goods &#8211; loading and unloading of vehicles and the lift industry for lifts installed in the home, disabled lifts and automotive assembly plants.
Savery has developed hydraulic power packs specifically for applications such as dock levellers, which provide a bridge between the loading bay and the truck being loaded or unloaded.
PB300 units have;
<ul>
<li>DC units 12V &amp; 24V / 0.2 – 3.5kW.</li>
<li>AC units 3 Phase &amp; 1 Phase / 0.25 – 5.5kW.</li>
<li>A vast range of control options for single and double acting circuits.</li>
<li>Advanced pressure die-cast aluminium centre adaptor.</li>
<li>The ability to eliminate porosity.</li>
</ul>
<img loading="lazy" decoding="async" class="alignnone size-full wp-image-5274" src="https://cms.savery.co.uk/wp-content/uploads/2024/03/E11-Logo.jpg" alt="" width="110" height="48" />

Small-Hydraulic-Power-Pack

Product page tile image (1)

Mini-packs-

Product_Page_Image

Savery offer a complete and comprehensive range of hydraulic power units, incorporating highly flexible, cost effective modular construction suited to both OEM and small users. The design of units for special applications is an important part of Savery’s marketing activities and our engineers can develop a unit to perfectly match our customer’s requirements.

Savery hydraulic power packs and mini power packs are the culmination of many years of experience in manufacturing AC and DC power packs.


Savery_34_comp

Small Hydraulic Power Packs

FDC16 Flow Divider/Combiner (FDC16)

<div class="product-info group">
<div>
<h3>Product Operation</h3>
In the dividing mode, the FDC16 will divert input flow from valve port 3 (V) to ports 2 (C2) and 4 (C1) based on the ratio specified, while pressure at 2 and 4 remains relatively equal. If a pressure differential develops, fluid will be transfered to the lower pressure port from the higher pressure port via an internal body orifice: 4 to 2 or 2 to 4.In the combining mode, the internal orifice will serve to equalize load pressures, preventing combiner spool lock-up.
</div>
<div>
<h3>Product Features</h3>
• Hardened parts for long life.
• Quiet, modulated response.
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure: 207 bar (3000 psi) with aluminum body;345 bar (5000 psi) with ductile iron body and polyurethane seals.Pressure Drop: 24 bar (350 psi) at maximum inlet flow.
Flow: See Performance Chart
Flow Options:Code
44: 50:50 rated @ 25 to 98.4 lpm (6.5 to 26 gpm) inputCode
66: 50:50 rated @ 32 to 128 lpm (8.5 to 34 gpm) inputCode
88: 50:50 rated @ 57 to 167 lpm (15 to 44 gpm) inputCode
99: 50:50 rated @ 68 to 197 lpm (18 to 52 gpm) inputOther ratio options available; consult factory.
Balancing Orifice: 1.52 mm (0.06 in.) standard.
Standard Compensator Bias Spring: 2.07 bar (30 psid)
Flow Accuracy: 10% from 33-100% of rated flow with approximately equal 2 and 4 port loads.
Temperature: -40 to 120°C (-40 to 248°F)
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>
Seal Kit: for FD56-45 cartridge: SK16-4X-MMM; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
</div>
</div>
<div class="product-related"> </div>

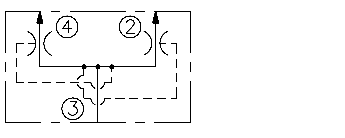

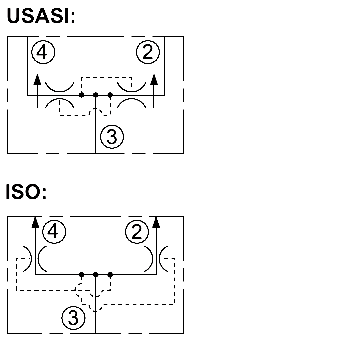

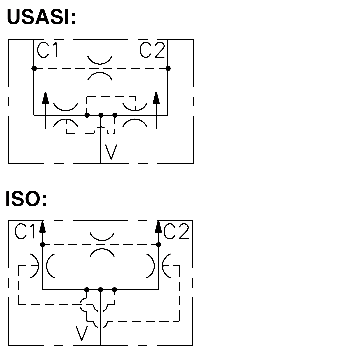

5-706-1-symbols

5-706-1-main-image

5-706-1-image-dimensions

5-706-1-symbols-graphs-image

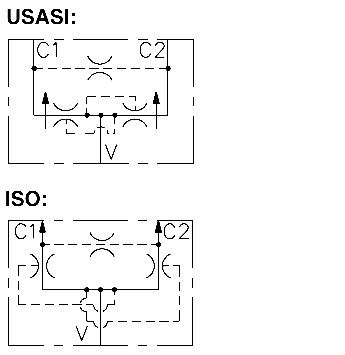

A specialized flow divider/combiner valve manifold, commonly applied in hydraulic motor drive applications with uneven pressure loads caused by steering or ground conditions. This valve/manifold assembly uses the FD56-45 cartridge valve; see page 5.636.1.

FD56-45 Flow Divider/Combiner . . . Heavy Duty, (FD56-45)

<div>
<h3>Product Operation</h3>
In the dividing mode, the FD56-45 will divert input flow from 3 to 2 and 4, based on the ratio specified, regardless of operating pressure. When the flow direction is reversed the valve will combine flows from 2 and 4 to port 3. Synchronizing flow is provided in both the dividing and combining modes at &#8220;bottomed&#8221; conditions in cylinder applications and at stalled conditions in motor applications.
</div>
<div>
<h3>Product Features</h3>
• Hardened parts for long life.
• Quiet, modulated response.
• Wide operating flow range.
• Industry common cavity.
• Synchronizing in dividing and combining modes.
• Floating cage — High installation torque.
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure: 345 bar (5000 psi)
Pressure Drop: 24 bar (350 psi) at max inlet flow
Flow Options, Dividing/Combing (Ratio: 50:50)Input Flow: 25-98 lpm (6.5-26 gpm) Model Code: 44Input Flow: 32-128 lpm (8.5-34 gpm) Model Code: 66Input Flow: 57-167 lpm (15-44 gpm) Model Code: 88Input Flow: 68-197 lpm (18-52 gpm) Model Code: 99
Flow Accuracy: 10% of maximum rated flow for Models 44 &amp; 66; 15% for 88 &amp; 99
Synchronizing Flow: Approximately 10% of maximum inlet flow
Temperature: -40 to 100°C (-40 to 212°F) with Buna N seals; -26 to 204°C (-15 to 400°F) with fluorocarbon seals; -54 to 107°C (-65 to 224°F) with polyurethane seals.
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>Note: Standard 16 size 4-way bodies can be used with this product with Port 1 plugged. See page <a title="8.016.1" href="https://www.savery.co.uk/products/view/8-016-1">8.016.1</a> for special flow divider bodies.
Cavity: VC16-4; See page <a title="9.116.1" href="https://www.savery.co.uk/products/view/9-116-1">9.116.1</a>
Cavity Tool: CT16-4X; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK16-4X-MMM; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
</div>

5-636-1-symbols

5-636-1-main-image

5-636-1-image-dimensions

5-636-1-graphs-image

A heavy duty, multifunction, screw-in, cartridge-style, spool-type flow divider/combiner. It provides pressure-compensated proportional division of inlet flow or combining of two return flows regardless of system operating pressure. The FD56-45 has an orifice at Port 1 to facilitate removal of the spring ring if needed.

FD52-45 Flow Divider/Combiner . . . Heavy Duty, (FD52-45)

<div>
<h3>Product Operation</h3>
In the dividing mode, the FD52-45 will divert input flow from port 3 to ports 2 and 4, based on the ratio specified, regardless of operating pressure. When the flow direc-tion is reversed, the valve will combine flows from 2 and 4 to port 3. Synchronizing flow is provided in both the dividing and combining modes at &#8220;bottomed&#8221; conditions in cylinder applications and at &#8220;stalled&#8221; conditions in motor applications.
</div>
<div>
<h3>Product Features</h3>
• Hardened parts for long life.
• Quiet, modulated response.
• Wide operating flow range.
• Industry common cavity.
• Synchronizing in dividing and combining modes.
• Floating cage — high installation torque.
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure: 345 bar (5000 psi)
Flow Options (Ratio 50:50)Input Flow: 15-60 lpm (4-16 gpm); Model Code: 44Input Flow: 23-90 lpm (6-24 gpm); Model Code: 66Input Flow: 50-106 lpm (8-28 gpm); Model Code: 88
Flow Accuracy: 10% of inlet flow for Models 44 and 66; 15% of inlet flow for Model 88.
Temperature: -40 to 100°C (-40 to 212°F) for Buna N seals; -26 to 204C (-15 to 400F) for fluorocarbon seals; -54 to 107°C (-65 to 225°F) for polyurethane seals.
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>Note: Standard 12 size 4-way bodies can be used with this product with Port 1 plugged. See page <a title="8.012.1" href="https://www.savery.co.uk/products/view/8-012-1">8.012.1</a> for special flow divider bodies.
Cavity: VC12-4; See page <a title="9.112.1" href="https://www.savery.co.uk/products/view/9-112-1">9.112.1</a>
Cavity Tool: CT12-4X; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK12-4X-MMM; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
</div>

5-634-1-symbols

5-634-1-main-image

5-634-1-image-dimensions

5-634-1-symbols-graphs-image

A heavy duty, multifunction, screw-in, cartridge-style, spool-type flow divider/combiner valve. It provides pressure-compensated proportional division of inlet flow or combination of two return flows, regardless of system operating pressure conditions. The valve provides synchronizing flow in dividing and combining modes.

FD50-45 Flow Divider/Combiner . . . Heavy Duty, (FD50-45)

<div>
<h3>Product Operation</h3>
In the dividing mode, the FD50-45 will divert input flow from port 3 to ports 2 and 4, based on the ratio specified, regardless of operating pressure. When the flow direction is reversed the valve will combine flows from 2 and 4 to port 3. Synchronizing flow is provided in both the dividing and combining modes at “bottomed” conditions in cylinder applications and at “stalled” conditions in motor applications.
</div>
<div>
<h3>Product Features</h3>
• Hardened parts for long life.
• Quiet, modulated response.
• Wide operating flow range.
• Synchronizing in dividing and combining modes.
• Floating cage — high installation torque
• Industry common cavity.
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure: 345 bar (5000 psi)
Burst Pressure: 1103 bar (16000 psi)
Flow Options: Input Flow: 4 &#8211; 19 lpm (1 &#8211; 5 gpm); Ratio: 50:50; Model Code: 22 Input Flow: 5.5 &#8211; 26.7 lpm (5 &#8211; 7 gpm); Ratio: 50:50; Model Code: 33 Input Flow: 9.5 &#8211; 38 lpm (2.5 &#8211; 10 gpm); Ratio: 50:50; Model Code: 44 Input Flow: 11.5 &#8211; 41.5 lpm (3 -11 gpm); Ratio: 50:50; Model Code: 55 Input Flow: 15 &#8211; 45 lpm (4 -12 gpm); Ratio: 50:50; Model Code: 66 Input Flow: 19 &#8211; 57 lpm (5 &#8211; 15 gpm); Ratio: 50:50; Model Code: 88
Synchronizing Flow: Approximately 10% of maximum inlet flow
Flow Accuracy: 10% of inlet flow for Models 22, 33, 44, 55 and 66; 15% of inlet flow for Model 88.
Temperature: -40 to 100°C (-40 to 212°F) for Buna N seals; -26 to 204°C (-15 to 400°F) for fluorocarbon seals; -54 to 107°C (-65 to 225°F) for polyurethane and urethane seals.
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a> Note: Standard 10 size 4-way bodies can be used with this product with Port 1 plugged. See page <a title="8.010.1" href="https://www.savery.co.uk/products/view/8-010-1">8.010.1</a> for special flow divider bodies.
Cavity: VC10-4; See page <a title="9.110.1" href="https://www.savery.co.uk/products/view/9-110-1">9.110.1</a>
Cavity Tool: CT10-4X; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK10-4X-MMM; SK10-2U-000 (urethane). See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
</div>

5-632-1-symbols

5-632-1-main-image

5-632-1-image-dimensions

5-632-1-symbols-graphs-image

A heavy duty, multifunction, screw-in, cartridge-style, spool-type flow divider/combiner.

FD50-44 Flow Divider/Combiner . . . Heavy Duty, (FD50-44)

<div>
<h3>Product Operation</h3>
In the dividing mode, the FD50-44 will divert input flow from port ➂ to ports ➁ and ➃, based on the ratio specifi ed. This valve provides a highly accurate, pressure compensated division of inlet flow or combination of return flow regardless of system operating pressure. When the flow direction is reversed, the valve will combine flows from ports ➁ and ➃ to port ➂
</div>
<div>
<h3>Product Features</h3>
• Hardened parts for long life.
• Quiet, modulated response.
• Wide operating flow range.
• Accurate division or combination of flow.
• Industry common cavity.
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure: 345 bar (5000 psi)
Pressure Drop: 24 bar (350 psi) at maximum inlet flow
Flow Range Options: Model Code
11: 50:50 rated @ 2.5–9.5 lpm (0.7–2.5 gpm) inputModel Code
22: 50:50 rated @ 4–19 lpm (1.0–5.0 gpm) inputModel Code
44: 50:50 rated @ 7.5–38 lpm (2.0–10.0 gpm) input
Flow Accuracy: 5% of inlet flow at maximum flow rate; 10% of inlet flow at minimum flow rate
Temperature: -40 to 120°C
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>Note: Standard 10 size 4-way bodies should not be used with this product. See page <a title="8.010.1" href="https://www.savery.co.uk/products/view/8-010-1">8.010.1</a> for special flow divider bodies.
Cavity: VC10-4 (Variation “A”); See page <a title="9.110.1" href="https://www.savery.co.uk/products/view/9-110-1">9.110.1</a>
Cavity Tool: CT10-4X; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK10-4X-MMM; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
</div>

5-630-1-symbols

5-630-1-main-image

5-630-1-image-dimensions

5-630-1-graphs-image

5-630-1-symbols-image

High performance, high pressure, multifunction, screw-in, cartridge-style, spool-type flow divider/combiner.

FD16-40 Flow Divider/Combiner (FD16-40)

<div class="product-info group">
<div>
<h3>Product Operation</h3>
In the dividing mode, the FD16-40 will divert input flow from 3 to 2 and 4, based on the ratio specified, regardless of operating pressure.
The cartridge will combine input flows from both 2 and 4 to 3.
Should circuit operation result in a blockage of either 2 or 4, the opposite port may also close under certain conditions. Should this potential exist, consult factory.
</div>
<div>
<h3>Product Features</h3>
• Hardened parts for long life.
• Quiet, modulated response.
• Industry common cavity.
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure: 240 bar (3500 psi)
Flow: See Performance Chart
Flow Options:Input Flow: 98.4 lpm (26 gpm); Ratio: 50:50; Model Code: 44Input Flow: 151.4 lpm (40 gpm); Ratio: 50:50; Model Code: 66Other ratio options available; consult factory.
Standard Compensator Bias Spring: 2.07 bar (30 psid)
Flow Accuracy: 10% from 33-100% of rated flow
Temperature: -40 to 120°C
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>. Note that standard 16 size 4-way bodies should not be used with this product. See page <a title="8.016.1" href="https://www.savery.co.uk/products/view/8-016-1">8.016.1</a> for special flow divider bodies.
Cavity: VC16-4; See page <a title="9.116.2" href="https://www.savery.co.uk/products/view/9-116-2">9.116.2</a>
Cavity Tool: CT16-4XX; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK16-4X-MMM; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
</div>
</div>
<div class="product-related"> </div>

5-604-1-symbols

5-604-1-main-image

5-604-1-image-dimensions

5-604-1-symbols-graphs-image

FD12-41 Flow Divider/Combiner, Cylinder Synch. (FD12-41)

<div>
<h3>Product Operation</h3>
In the dividing mode, the FD12-41 will divert input flow from port ➂ to ports ➁ and ➃, based on the ratio specifi ed, regardless of operating pressure.
The cartridge will combine input flows from ports ➁ and ➃The FD12-41 is designed to allow flow to the opposite cylinder once the fi rst cylinder
has “bottomed” in the combining mode.
</div>
<div>
<h3>Product Features</h3>
• Hardened parts for long life.
• Quiet, modulated response.
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure: 240 bar (3500 psi)
Flow: 90.8 lpm (24 gpm) input max.
Flow Options: Input Flow: 60.6 lpm (16 gpm); Ratio: 50:50; Model Code: 44 Input Flow: 75.7 lpm (20 gpm); Ratio: 50:50; Model Code: 55 Input Flow: 90.8 lpm (24 gpm); Ratio: 50:50; Model Code: 66
Standard Compensator Bias Spring: 2.07 bar (30 psid)
Flow Accuracy: 10% from 30–100% of rated flow
Temperature: -40 to 120°C
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a> Note: Standard 12 size 4-way bodies should not be used with this product. See page <a title="8.012.3" href="https://www.savery.co.uk/products/view/8-012-3">8.012.3</a> for special flow divider bodies.
Cavity: VC12-4; See page <a title="9.112.1" href="https://www.savery.co.uk/products/view/9-112-1">9.112.1</a> (Cavity Variation &#8220;A&#8221;)
Cavity Tool: CT12-4XX; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK12-4X-MMM; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
</div>

5-613-1-symbols

5-613-1-main-image

5-613-1-image-dimensions

5-613-1-symbols-graphs-image

A screw-in, cartridge-style, spool-type flow divider/combiner. Optional flow dividing/combining ratios are maintained regardless of system operating pressure conditions.

FD12-40 Flow Divider/Combiner (FD12-40)

<div class="product-info group">
<div>
<h3>Product Operation</h3>
In the dividing mode, the FD12-40 will divert input flow from port ➂ to ports ➁ and ➃, based on the ratio specifi ed, regardless of operating pressure.
The cartridge will combine input flows from ports ➁ and ➃Should circuit operation result in a blockage of either ➁ or ➃, the opposite port may also close under certain conditions. Should this potential exist, consult the factory.
</div>
<div>
<h3>Product Features</h3>
• Hardened parts for long life.
• Quiet, modulated response.
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure: 240 bar (3500 psi)
Flow: 90.8 lpm (24 gpm) input max.
Flow Options: Input Flow: 60.6 lpm (16 gpm); Ratio: 50:50; Model Code: 44 Input Flow: 75.7 lpm (20 gpm); Ratio: 50:50; Model Code: 55 Input Flow: 90.8 lpm (24 gpm); Ratio: 50:50; Model Code: 66
Standard Compensator Bias Spring: 2.07 bar (30 psi)
Flow Accuracy: 10% from 30–100% of rated flow
Temperature: -40 to 120°C
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>. Note: Standard 12 size 4-way bodies should not be used with this product. See page <a title="8.012.3" href="https://www.savery.co.uk/products/view/8-012-3">8.012.3</a> for special flow divider bodies.
Cavity: VC12-4; See page <a title="9.112.1" href="https://www.savery.co.uk/products/view/9-112-1">9.112.1</a> (Cavity Variation &#8220;A&#8221;)
Cavity Tool: CT12-4XX; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK12-4X-MMM; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
</div>
</div>

5-603-1-symbols

5-603-1-main-image

5-603-1-image-dimensions

5-603-1-symbols-graphs-image

FD10-42 Flow Divider/Combiner w/ Anti-Stall Feature (FD10-42)

<div>
<h3>Product Operation</h3>
In the dividing mode, the FD10-42 will divert input flow from port ➂ to ports ➁ and ➃, based on the ratio specifi ed, regardless of operating pressure.
The cartridge will combine input flows from ports ➁ and ➃The FD10-42 is designed to maintain a flow path to both combining ports ➁ and ➃ when one port is “free-wheeling.” This feature keeps hydraulic (parallel) motor drive
circuits from stalling in the combining mode only.
</div>
<div>
<h3>Product Features</h3>
• Hardened parts for long life.
• Quiet, modulated response.
• Industry common cavity.
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure: 240 bar (3500 psi)
Flow: 60.6 lpm (16 gpm) input max.
Flow Options: Input Flow: 7.6 lpm (2 gpm); Ratio: 50:50; Model Code: 11 Input Flow: 15.1 lpm (4 gpm); Ratio: 50:50; Model Code: 22 Input Flow: 22.7 lpm (6 gpm); Ratio: 50:50; Model Code: 33 Input Flow: 30.3 lpm (8 gpm); Ratio: 50:50; Model Code: 44 Input Flow: 37.9 lpm (10 gpm); Ratio: 50:50; Model Code: 55 Input Flow: 45.4 lpm (12 gpm); Ratio: 50:50; Model Code: 66 Input Flow: 60.6 lpm (16 gpm); Ratio: 50:50; Model Code: 88 Other ratio options available; consult factory.
Standard Compensator Bias Spring: 2.07 bar (30 psid)
Flow Accuracy: 10% from 30–100% of rated flow
Temperature: -40 to 120°C
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>. Note: Standard 10 size 4-way bodies should not be used with this product. See page <a title="8.010.1" href="https://www.savery.co.uk/products/view/8-010-1">8.010.1</a> for special flow divider bodies.
Cavity: VC10-4 (Variation “A”); See page <a title="9.110.1" href="https://www.savery.co.uk/products/view/9-110-1">9.110.1</a>
Cavity Tool: CT10-4XX; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK10-4X-MMM; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
</div>
