Flow Dividers : Combiners

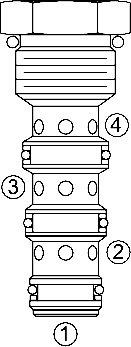

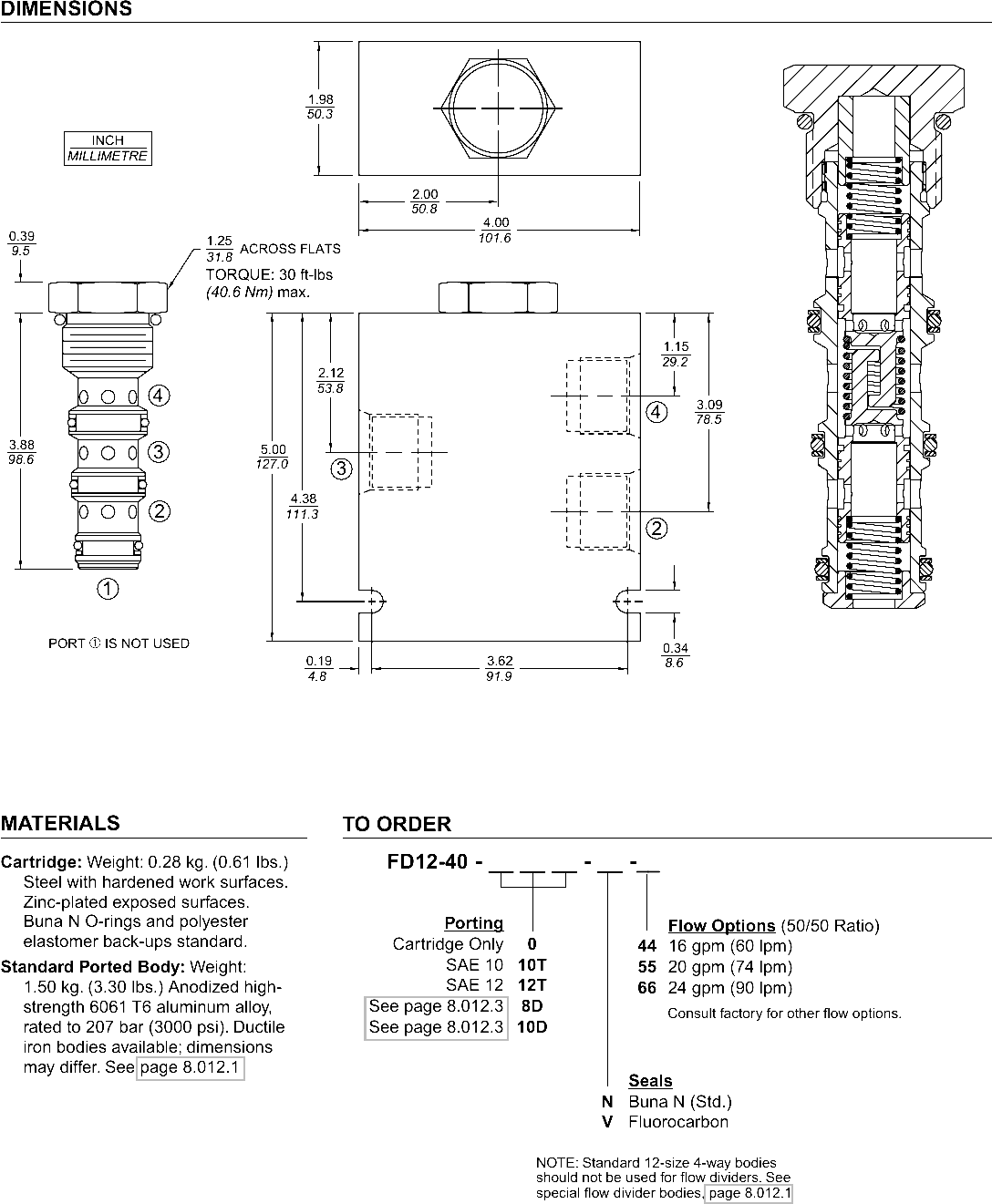

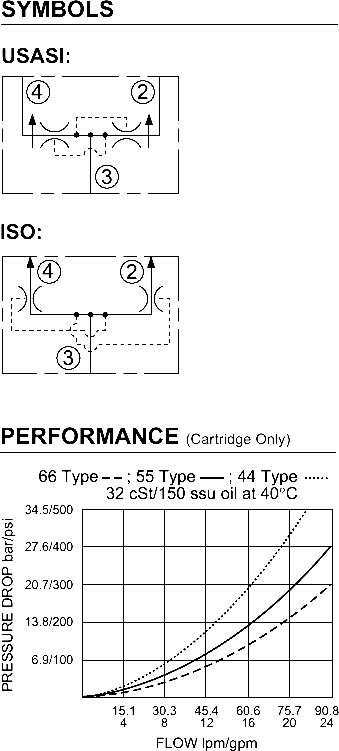

FD12-40 Flow Divider/Combiner (FD12-40)

<div class="product-info group">
<div>
<h3>Product Operation</h3>
In the dividing mode, the FD12-40 will divert input flow from port ➂ to ports ➁ and ➃, based on the ratio specifi ed, regardless of operating pressure.
The cartridge will combine input flows from ports ➁ and ➃Should circuit operation result in a blockage of either ➁ or ➃, the opposite port may also close under certain conditions. Should this potential exist, consult the factory.
</div>
<div>
<h3>Product Features</h3>
• Hardened parts for long life.
• Quiet, modulated response.
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure: 240 bar (3500 psi)
Flow: 90.8 lpm (24 gpm) input max.
Flow Options: Input Flow: 60.6 lpm (16 gpm); Ratio: 50:50; Model Code: 44 Input Flow: 75.7 lpm (20 gpm); Ratio: 50:50; Model Code: 55 Input Flow: 90.8 lpm (24 gpm); Ratio: 50:50; Model Code: 66
Standard Compensator Bias Spring: 2.07 bar (30 psi)
Flow Accuracy: 10% from 30–100% of rated flow
Temperature: -40 to 120°C
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>. Note: Standard 12 size 4-way bodies should not be used with this product. See page <a title="8.012.3" href="https://www.savery.co.uk/products/view/8-012-3">8.012.3</a> for special flow divider bodies.
Cavity: VC12-4; See page <a title="9.112.1" href="https://www.savery.co.uk/products/view/9-112-1">9.112.1</a> (Cavity Variation &#8220;A&#8221;)
Cavity Tool: CT12-4XX; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK12-4X-MMM; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
</div>
</div>

5-603-1-symbols

5-603-1-main-image

5-603-1-image-dimensions

5-603-1-symbols-graphs-image

A screw-in, cartridge-style, spool-type flow divider/combiner. Optional flow dividing/combining ratios are maintained regardless of system operating pressure conditions.
