FD52-45 Flow Divider/Combiner . . . Heavy Duty, (FD52-45)
A heavy duty, multifunction, screw-in, cartridge-style, spool-type flow divider/combiner valve. It provides pressure-compensated proportional division of inlet flow or combination of two return flows, regardless of system operating pressure conditions. The valve provides synchronizing flow in dividing and combining modes.
Product Operation

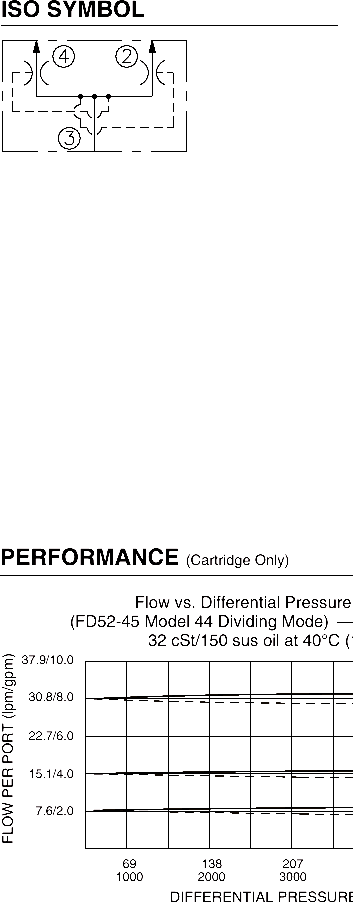

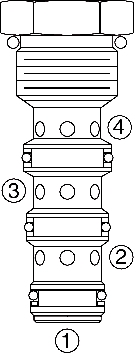

In the dividing mode, the FD52-45 will divert input flow from port 3 to ports 2 and 4, based on the ratio specified, regardless of operating pressure. When the flow direc-tion is reversed, the valve will combine flows from 2 and 4 to port 3. Synchronizing flow is provided in both the dividing and combining modes at “bottomed” conditions in cylinder applications and at “stalled” conditions in motor applications.
Product Features
• Hardened parts for long life.
• Quiet, modulated response.
• Wide operating flow range.
• Industry common cavity.
• Synchronizing in dividing and combining modes.
• Floating cage — high installation torque.
Product Ratings
Operating Pressure: 345 bar (5000 psi)
Flow Options (Ratio 50:50)Input Flow: 15-60 lpm (4-16 gpm); Model Code: 44Input Flow: 23-90 lpm (6-24 gpm); Model Code: 66Input Flow: 50-106 lpm (8-28 gpm); Model Code: 88
Flow Accuracy: 10% of inlet flow for Models 44 and 66; 15% of inlet flow for Model 88.
Temperature: -40 to 100°C (-40 to 212°F) for Buna N seals; -26 to 204C (-15 to 400F) for fluorocarbon seals; -54 to 107°C (-65 to 225°F) for polyurethane seals.
Filtration: See page 9.010.1
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page 9.060.1

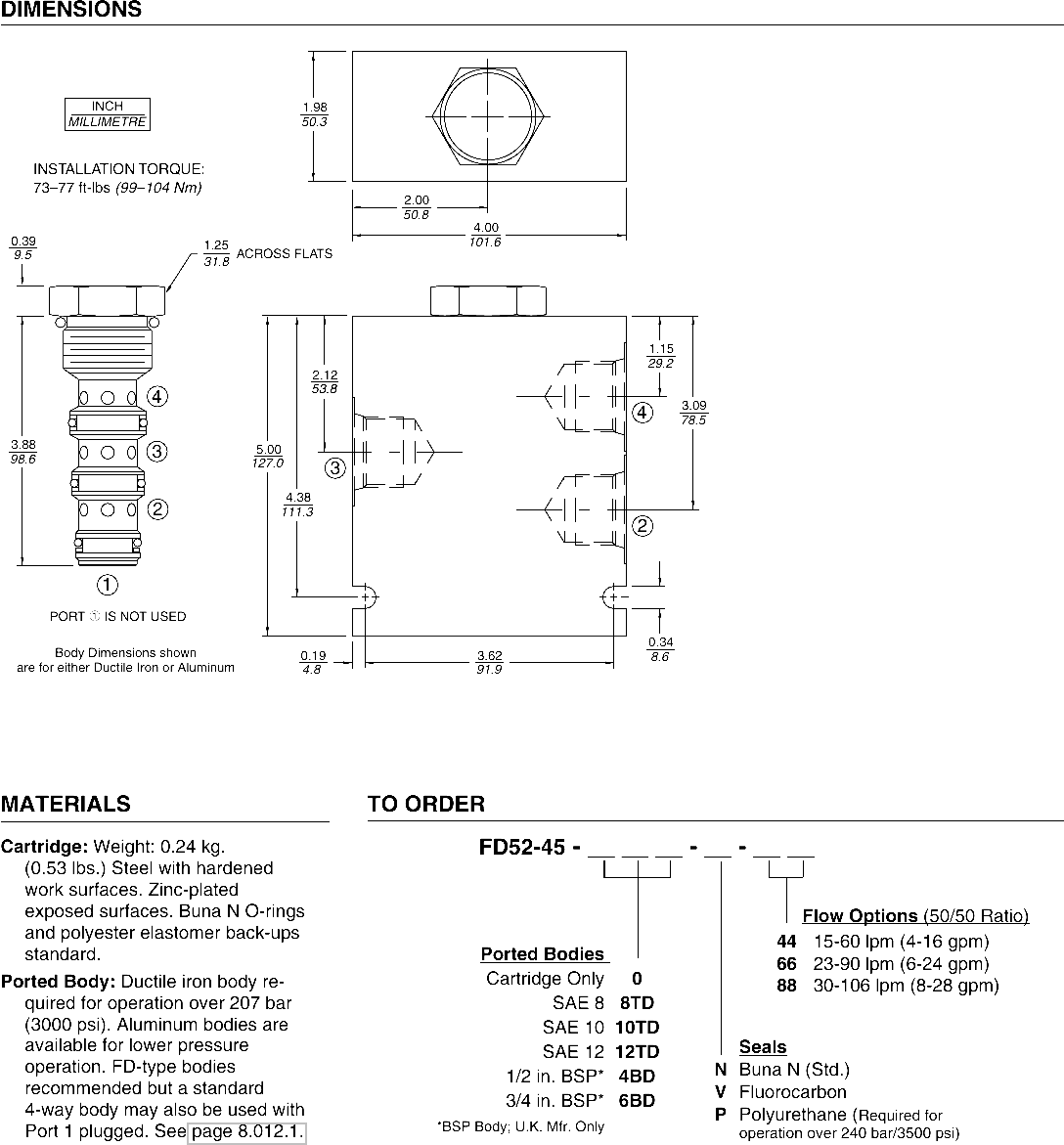

Installation: No restrictions; See page 9.020.1Note: Standard 12 size 4-way bodies can be used with this product with Port 1 plugged. See page 8.012.1 for special flow divider bodies.
Cavity: VC12-4; See page 9.112.1
Cavity Tool: CT12-4X; See page 8.600.1
Seal Kit: SK12-4X-MMM; See page 8.650.1
