FD56-45 Flow Divider/Combiner . . . Heavy Duty, (FD56-45)

A heavy duty, multifunction, screw-in, cartridge-style, spool-type flow divider/combiner. It provides pressure-compensated proportional division of inlet flow or combining of two return flows regardless of system operating pressure. The FD56-45 has an orifice at Port 1 to facilitate removal of the spring ring if needed.

Product Operation

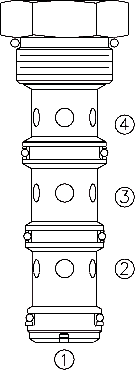

In the dividing mode, the FD56-45 will divert input flow from 3 to 2 and 4, based on the ratio specified, regardless of operating pressure. When the flow direction is reversed the valve will combine flows from 2 and 4 to port 3. Synchronizing flow is provided in both the dividing and combining modes at “bottomed” conditions in cylinder applications and at stalled conditions in motor applications.

Product Features

• Hardened parts for long life.
• Quiet, modulated response.
• Wide operating flow range.
• Industry common cavity.
• Synchronizing in dividing and combining modes.
• Floating cage — High installation torque.

Product Ratings

Operating Pressure: 345 bar (5000 psi)
Pressure Drop: 24 bar (350 psi) at max inlet flow
Flow Options, Dividing/Combing (Ratio: 50:50)Input Flow: 25-98 lpm (6.5-26 gpm) Model Code: 44Input Flow: 32-128 lpm (8.5-34 gpm) Model Code: 66Input Flow: 57-167 lpm (15-44 gpm) Model Code: 88Input Flow: 68-197 lpm (18-52 gpm) Model Code: 99

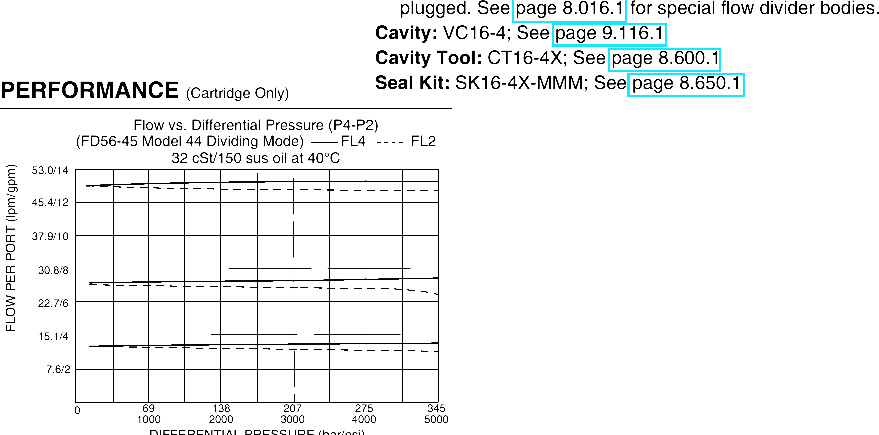

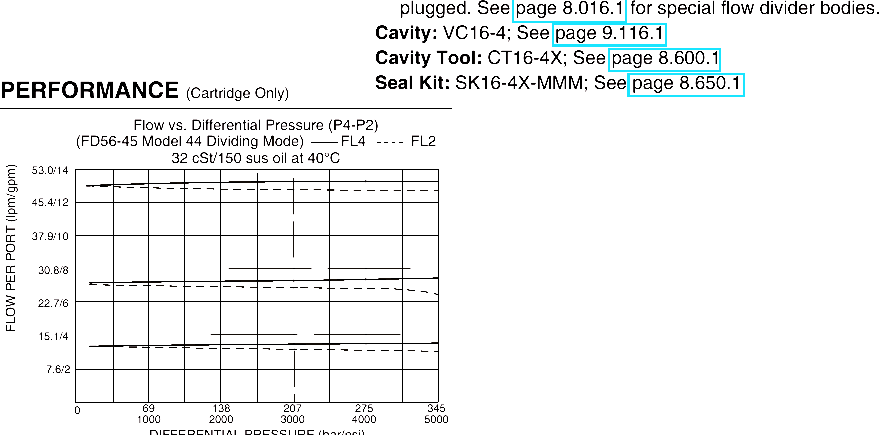

Flow Accuracy: 10% of maximum rated flow for Models 44 & 66; 15% for 88 & 99
Synchronizing Flow: Approximately 10% of maximum inlet flow
Temperature: -40 to 100°C (-40 to 212°F) with Buna N seals; -26 to 204°C (-15 to 400°F) with fluorocarbon seals; -54 to 107°C (-65 to 224°F) with polyurethane seals.
Filtration: See page 9.010.1
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page 9.060.1

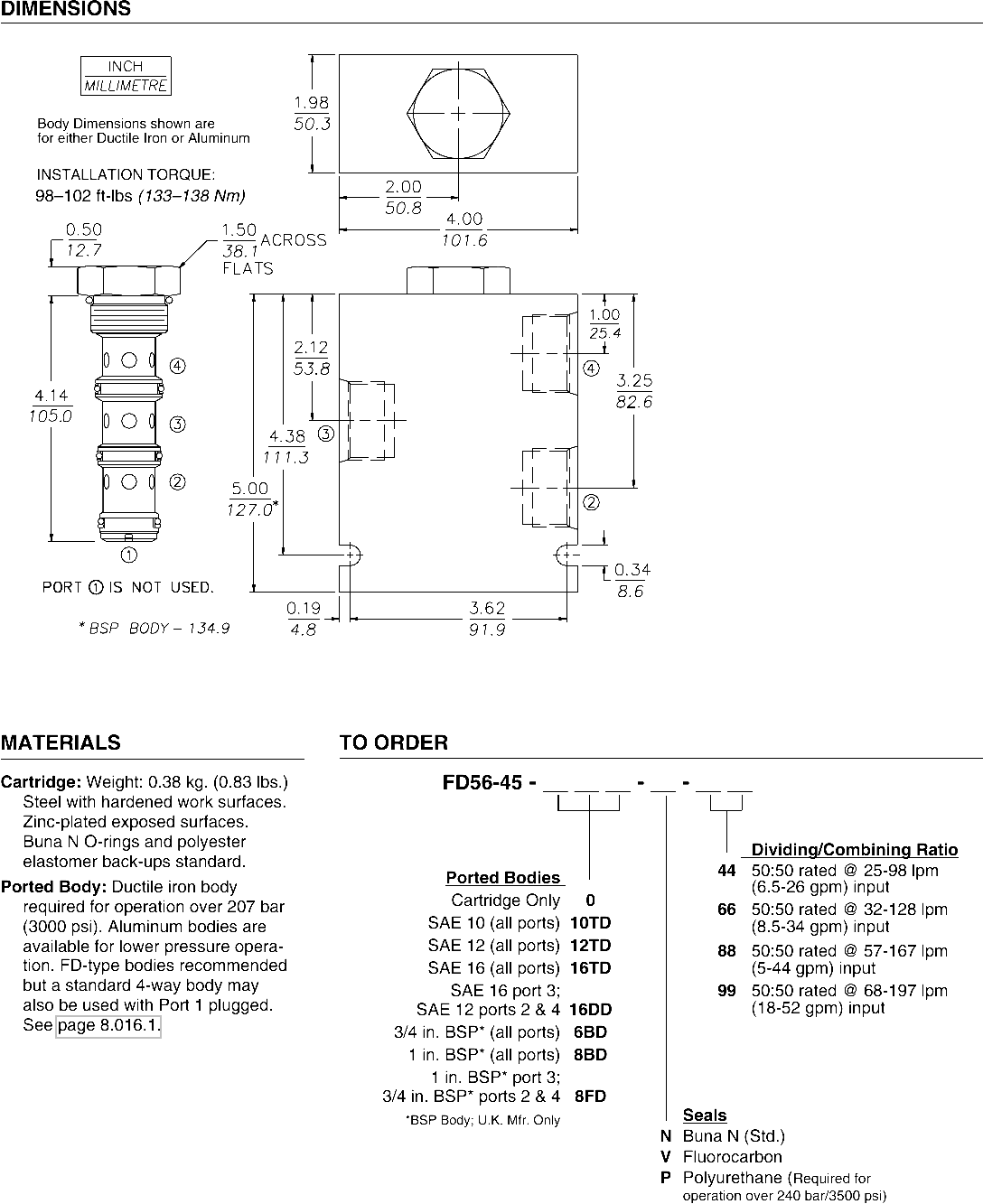

Installation: No restrictions; See page 9.020.1Note: Standard 16 size 4-way bodies can be used with this product with Port 1 plugged. See page 8.016.1 for special flow divider bodies.
Cavity: VC16-4; See page 9.116.1
Cavity Tool: CT16-4X; See page 8.600.1
Seal Kit: SK16-4X-MMM; See page 8.650.1
