ECR16-S35 Piloted Logic Element w/Built-in Relief (ECR16-S35)

<div class="product-info group">
<div>
<h3>Product Operation</h3>
The ECR16-S35 is a spring-biased blocking valve which will shift to allow full flow
from ➀ to ➁ only when pressure at ➀ exceeds the cumulative pressure of ➂, plus the bias spring pressure value.
If the pressure at ➀ and ➂ exceeds the relief valve setting, the valve operates as a relief valve, opening the ➀ to ➁ flow path.
</div>
<div>
<h3>Product Features</h3>
• Multiple function/application potential.
• Low pressure drop.
• Industry common cavity.
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure: 240 bar (3500 psi)
Proof Pressure: 420 bar (6090 psi)
Flow: 189 lpm (50 gpm) max.
Internal Leakage: 164 ml/minute (10 cu. in./minute) max. at 207 bar (3000 psi)
Temperature: -40 to 120°C with standard Buna seals
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>
Cavity: VC16-S3; See page <a title="9.116.1" href="https://www.savery.co.uk/products/view/9-116-1">9.116.1</a>
Cavity Tool: CT16-S3xx; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK16-S3x-MM; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
</div>
</div>
<div class="product-related"> </div>

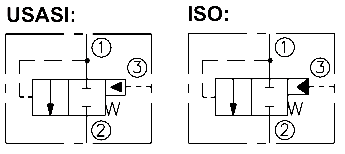

4-480-1-symbols

4-480-1-image-dimensions

4-480-1-main-image

4-480-1-symbols-graphs-image

A spool-type, screw-in, cartridge-style, hydraulic directional element, with a built-in, non-adjustable pressure relief valve.

EP08-35 Piloted Directional Element (EP08-35)

<div>
<h3>Product Operation</h3>
The EP08-35 is a spring-biased blocking valve which will shift to allow full flow from ➀ to ➁ only when pressure at ➀ exceeds the cumulative pressure of ➂, plus the bias spring pressure value.
EP08-35 is a pilot-to-close directional valve.
With no pressure at ➂, flow will be allowed from ➀ to ➁ once the bias spring force is overcome with pressure at ➀
</div>
<div>
<h3>Product Features</h3>
• Multiple function/application potential.
• Low pressure drop.
• Industry common cavity
• Compact size.
</div>
<div>
<h3>Product Ratings</h3>
Maximum Operating Pressure: 345 bar (5000 psi) with steel or ductile housing;207 bar (3000 psi) with aluminum housing
Flow Rate: See Performance Chart
Maximum Internal Leakage: 115 ml per minute (7 cu. in. per minute) at 345 bar (5000 psi)
Bias Springs:Code 10 0.7 bar (10 psi)
Code 40 2.8 bar (40 psi)
Code 80 5.5 bar (80 psi)
Code 110 7.6 bar (110 psi)
Code 150 10.3 bar (150 psi)
Temperature: -40 to 120°C with standard Buna N seals
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>
Cavity: VC08-3; See page <a title="9.108.1" href="https://www.savery.co.uk/products/view/9-108-1">9.108.1</a>
Cavity Tool: CT08-3XX; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK08-3X-MM; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
</div>

4-490-1-symbols

4-490-1-image-dimensions

4-490-1-symbols-graphs-image

4-490-1-main-image

A spool-type, screw-in, cartridge-style, hydraulic directional element, with multi-function potential when used with other directional, pressure, or flow control devices.

EP10-S35 Piloted Spool-Type Logic Element (EP10-S35)

<div class="product-info group">
<div>
<h3>Product Operation</h3>
The EP10-S35 is a spring-biased blocking valve which will shift to allow full flow from ➀ to ➁ only when pressure at ➀ exceeds the cumulative pressure of ➂, plus the bias spring pressure value.
EP10-S35 is a pilot-to-close directional valve.
With no pressure at ➂, flow will be allowed from ➀ to ➁ once the bias spring force is overcome with pressure at ➀
</div>
<div>
<h3>Product Features</h3>
• Multiple function/application potential.
• Low pressure drop.
• Industry common cavity.
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure: 350 bar (5000 psi) cartridge; 207 bar (3000 psi) standard aluminum housing; 350 bar (5000 psi) ductile iron housing.
Flow: See Performance Chart
Internal Leakage: 164 cc/minute (10 cu. in./minute) max. at 207 bar (3000 psi)
Bias Spring Pressure Options: 0.7 bar (10 psi);2.8 bar (40 psi);5.5 bar (80 psi);7.6 bar (110 psi)11.0 bar (160 psi)Note: Tall cap option required for 11.0 bar (160 psi) spring.
Temperature: -40 to 120°C with standard Buna seals
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>
Cavity: VC10-S3; See page <a title="9.110.1" href="https://www.savery.co.uk/products/view/9-110-1">9.110.1</a>
Cavity Tool: CT10-S3xx; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK10-S3x-MM; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
</div>
</div>
<div class="product-related"> </div>

4-500-1-symbols

4-500-1-main-image

4-500-1-symbols-graphs-image

4-500-1-image-dimensions

A spool-type, screw-in, cartridge-style, hydraulic directional element, with multi-func-tion potential when used with other directional, pressure, or flow control devices.

EP10-S38 Piloted Poppet-Type Logic Element (EP10-S38)

<div>
<h3>Product Operation</h3>
</div>
<div>
The EP10-S38 is a spring-biased poppet valve which will block ➀ to ➁ or ➁ to ➀ until pressure at ➀ or ➁ exceeds the cumulative pressure at ➂ and bias spring. With no pressure at ➂, flow will be allowed from ➀ to ➁ or ➁ to ➀ once the bias spring force is overcome with pressure at ➀ or ➁. When the element is in closed state, the ratio of areas ➀ and ➁ is 1:1, and the ratio of areas ➀ or ➁ to ➂ is 1:2.
</div>
<div>
<h3>Product Features</h3>
• Multiple function/application potential.
• Low pressure drop.
• Industry common cavity.
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure: 350 bar (5000 psi) cartridge; 207 bar (3000 psi) standard aluminum housing
Flow: See Performance Chart
Internal Leakage: 0.2 cc/minute (.01 cu. in./minute) max. at 240 bar (3500 psi)
Bias Spring Pressure: 11.0 bar (160 psi)
Temperature: -40 to 120°C with standard Buna seals
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>
Cavity: VC10-S3; See page <a title="9.110.1" href="https://www.savery.co.uk/products/view/9-110-1">9.110.1</a>
Cavity Tool: CT10-S3xx; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK10-S3x-MM; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
</div>

4-510-1-symbols

4-510-1-main-image

4-510-1-symbols-graphs-image

4-510-1-image-dimensions

A poppet-type, screw-in, cartridge-style, hydraulic directional element, with multifunction potential when used with other directional, pressure, or flow control devices.

EP12-S35 Piloted Spool-Type Logic Element (EP12-S35)

<div class="product-info group">
<div>
<h3>Product Operation</h3>
The EP12-S35 is a spring-biased blocking valve which will shift to allow full flow from ➀ to ➁ only when pressure at ➀ exceeds the cumulative pressure of ➂, plus the bias spring pressure value.
EP10-S35 is a pilot-to-close directional valve.
With no pressure at ➂, flow will be allowed from ➀ to ➁ once the bias spring force is overcome with pressure at ➀
</div>
<div>
<h3>Product Features</h3>
• Multiple function/application potential.
• Low pressure drop.
• Industry common cavity.
• Manual override option available with 80 psi spring only.
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure: 350 bar (5000 psi) cartridge; 207 bar (3000 psi) standard aluminum housing
Flow: See Performance Chart
Internal Leakage: 131 cc/minute (8 cu. in./minute) max. at 350 bar (5000 psi)
Bias Spring Pressure Options:0.7 bar (10 psi)5.5 bar (80 psi)7.0 bar (100 psi)11.0 bar (160 psi) Tall Cap option required16.5 bar (240 psi) Tall Cap option required
Temperature: -40 to 120°C with standard Buna seals
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>
Cavity: VC12-S3; See page <a title="9.112.1" href="https://www.savery.co.uk/products/view/9-112-1">9.112.1</a>
Cavity Tool: CT12-S3xx; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK12-S3x-MM; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
</div>
</div>
<div class="product-related"> </div>

4-501-1-symbols

4-501-1-main-image

4-501-1-symbols-graphs-image

4-501-1-image-dimensions

EP16-S35 Piloted Spool-Type Logic Element (EP16-S35)

<div class="product-info group">
<div>
<h3>Product Operation</h3>
The EP16-S35 is a spring-biased blocking valve which will shift to allow full flow from 1 to 2 only when pressure at 1 exceeds the cumulative pressure of 3, plus the bias spring pressure value.
EP16-S35 is a pilot-to-close directional valve.
With no pressure at 3, flow will be allowed from 1 to 2 once the bias spring force is overcome with pressure at 1.It requires a tall cap when specified with bias springs from 6,2 to 16,5 bar (90 to240 psi). The 240 psi spring requires an extra tall cap. A manual override option is also available for valves with bias springs from 6,2 to 16,5 bar (90-240 psi). NOTE: Orifice discs should not be used with this valve.
</div>
<div>
<h3>Product Features</h3>
• Multiple function/application potential.
• Low pressure drop.
• Industry common cavity.
• Manual override available with 90, 110, 160 and 240 psi bias springs.
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure: 240 bar (3500 psi)
Proof Pressure: 420 bar (6090 psi)
Flow: See Performance Chart
Internal Leakage: 164 cc/minute (10 cu. in./minute) max. at 207 bar (3000 psi)
Temperature: -40 to 100°C (-40 to 212° F) with standard Buna seals; -26 to 204°C (-15 to 400° F) with Fluorocarbon seals; -54 to 104°C (-65 to 225° F) with Polyurethane seals.
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>
Cavity: VC16-S3; See page <a title="9.116.1" href="https://www.savery.co.uk/products/view/9-116-1">9.116.1</a>
Cavity Tool: CT16-S3xx; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK16-S3x-MM; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
</div>
</div>
<div class="product-related"> </div>

4-502-1-symbols

4-502-1-image-dimensions

4-502-1-main-image

4-502-1-symbols-graphs-image

EP20-S35 Piloted Spool-Type Logic Element (EP20-S35)

<div>
<h3>Product Operation</h3>
The EP20-S35 is a spring-biased blocking valve which will shift to allow full flow from ➀ to ➁ only when pressure at ➀ exceeds the cumulative pressure of ➂, plus the bias spring pressure value.
EP20-S35 is a pilot-to-close directional valve.
With no pressure at ➂, flow will be allowed from ➀ to ➁ once the bias spring force is overcome with pressure at ➀
</div>
<div>
<h3>Product Features</h3>
• Multiple function/application potential.
• Low pressure drop.
• Industry common cavity.
</div>
<div>
<h3>Product Ratings</h3>
Maximum Operating Pressure: Cartridge Only: Ports ➀ &amp; ➁: 345 bar (5000 psi); Port ➂: 320 bar (4600 psi); Polyurethane seals are recommended for operation over 240 bar (3500 psi). Aluminum bodies are rated for 207 bar (3000 psi).
Flow: See Performance Chart
Internal Leakage: 1 cc/minute (1 cu. in./minute) max. at 345 bar (5000 psi)
Bias Spring Pressure Options: 5.5 bar (80 psi); 11.0 bar (160 psi)
Temperature: -40 to 120°C with standard Buna seals
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>
Cavity: VC20-S3; See page <a title="9.120.1" href="https://www.savery.co.uk/products/view/9-120-1">9.120.1</a>
Cavity Tool: CT20-S3xx; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK20-S3x-MM; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
</div>

4-503-1-symbols

4-503-1-image-dimensions

4-503-1-main-image

4-503-1-symbols-graphs-image

EP20-S38 Piloted Poppet-Type Logic Element (EP20-S38)

<div>
<h3>Product Operation</h3>
The EP20-S38 is a spring-biased poppet valve which will block ➀ to ➁ or ➁ to ➀ until pressure at ➀ or ➁ exceeds the cumulative pressure at ➂ and bias spring. With no pressure at ➂, flow will be allowed from ➀ to ➁ or ➁ to ➀ once the bias spring force is overcome with pressure at ➀ or ➁. When the element is in the closed state, the ratio of areas ➀ and ➁ is 1:1, and the ratio of areas ➀ or ➁ to ➂ is 1:2.
</div>
<div>
<h3>Product Features</h3>
• Multiple function/application potential.
• Low pressure drop.
• Industry common cavity.
</div>
<div>
<h3>Product Ratings</h3>
Maximum Operating Pressure: Cartridge Only: Ports ➀ &amp; ➁, 241 bar (3500 psi)
Flow: See Performance Chart
Internal Leakage: 0.6 cc/minute (12 drops/minute) max. at 241 bar (3500 psi)
Bias Spring Pressure Options: 2.8 bar (40 psi); 11.0 bar (160 psi)
Temperature: -40 to 120°C with standard Buna seals
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>
Cavity: VC20-S3; See page <a title="9.120.1" href="https://www.savery.co.uk/products/view/9-120-1">9.120.1</a>
Cavity Tool: CT20-S3xx; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK20-S3x-MM; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
</div>

4-513-1-symbols

4-513-1-main-image

4-513-1-symbols-graphs-image

4-513-1-image-dimensions

A poppet-type, screw-in, cartridge-style, hydraulic directional element, with multi-function potential when used with other directional, pressure, or flow control devices.

EP20-S39 Vented Poppet-Type Logic Element (EP20-S39)

<div>
<h3>Product Operation</h3>
The EP20-S39 will allow flow from ➀ to ➁ or ➁ to ➀ only when ➂ is vented to create a pressure drop across the internal orifice which exceeds the pressure value of the
bias spring. When the element is in the neutral (closed) state, the ratio of areas ➀ and ➁ is 1:1, and the ratio of areas ➀ or ➁ to ➂ is 1:2.
</div>
<div>
<h3>Product Features</h3>
• Multiple function/application potential.
• Low pressure drop.
• Industry common cavity.
</div>
<div>
<h3>Product Ratings</h3>
Maximum Operating Pressure: Cartridge Only: Ports ➀ &amp; ➁, 241 bar (3500 psi)
Flow: See Performance Chart
Internal Leakage: 0.6 ml/minute (12 drops/minute) max. at 241 bar (3500 psi)
Internal Orifi ce: 0.79 mm (0.031 in.)
Temperature: -40 to 120°C with standard Buna seals
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>
Cavity: VC20-S3; See page <a title="9.120.1" href="https://www.savery.co.uk/products/view/9-120-1">9.120.1</a>
Cavity Tool: CT20-S3xx; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK20-S3x-MM; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
</div>

4-515-1-symbols

4-515-1-symbols-graphs-image

4-515-1-main-image

4-515-1-image-dimensions

A poppet-type, screw-in, cartridge-style, spring-biased, bi-directional blocking-type hydraulic valve with two built-in checks. When used in conjunction with a small pilot solenoid valve, the EP20-S39 is ideal for either high-flow double-blocking circuits or selector circuits. The integral two-check system prevents leakage, maintaining the pilot signal regardless of the transition or the work-port pressure changes.


HEP16-S35 HyPerformance (HEP16-S35)

<div>
<h3>Product Operation</h3>
The HEP16-S35 is a spring-biased blocking valve which will shift to allow full flow from ➀ to ➁ only when pressure at ➀ exceeds the cumulative pressure of ➂, plus the bias spring pressure value.
HEP16-S35 is a pilot-to-close directional valve.
With no pressure at ➂, flow will be allowed from ➀ to ➁ once the bias spring force is overcome with pressure at ➀
</div>
<div>
<h3>Product Features</h3>
• Multiple function/application potential.
• Low pressure drop.
x All HyPerformance products are tested to the rigorous standards of the NFPA specifi cation T<a title="2.6.1" href="https://www.savery.co.uk/products/view/2-6-1">2.6.1</a>.
 All HyPerformance valves are tested at a verifi cation level of 90% and an assurance of 99%.
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure: 350 bar (5075 psi); 10% cycle life: 420 bar (6090 psi)Note: All HyPerformance products are tested for 900K cycles at 350 bar and 100K at 420 bar.
Proof Pressure: 690 bar (10000 psi)
Burst Pressure: 1380 bar (20000 psi)
Flow: 190 lpm (50 gpm)
Internal Leakage: 164 ml/minute (10 cu. in./minute) max. at 350 bar (5075 psi)
Operating Temperature: -54 to 107°C (-65 to 225°F) with Urethane seals
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>
Cavity: HVC16-S3; See page <a title="9.116.1" href="https://www.savery.co.uk/products/view/9-116-1">9.116.1</a>
Cavity Tool: HCT16-S3XX; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK16-S3X-X; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
HYDRAFORCE.com®6.9/1005.5/8076203810114301895015140FLOW lpm/gpmPRESSURE DROP bar/psi➀ to ➁ Fully Open32 cSt/150 sus oil at 40°C2.8/404.1/601.4/20
</div>

4-502-3-symbols

4-502-3-symbols-graphs-image

4-502-3-main-image

4-502-3-image-dimensions

A high-pressure spool-type, screw-in, cartridge-style, hydraulic directional element, with multi-function potential when used with other directional, pressure, or flow control devices.



Default Confirmation

Enter consent agreement text here.  The Consent Field will store this agreement text with the form entry in order to track what the user has consented to.

Admin Notification

New Newsletter Submission

Newsletter

BFPA-Logo-White

ISO9001 LOGO_White

ISO14001 LOGO_White

Logo

moog_savery_test_solutions_logo_vertical

HEP42-S39 HyPerformance (HEP42-S39)

HEP42-S38 HyPerformance (HEP42-S38)

HEP42-S35 HyPerformance (HEP42-S35)

Directional Valves

Piloted Logic Elements

directional-valves

24.03.28_BAR_Savery_2577

Bespoke Projects

<ul class="ul1">
<li class="li1">Bespoke lubrication systems for testing Aerospace propulsion using high temperature fluids and test article scavenge capability</li>
<li class="li1">Bespoke lubrication solution for testing Automotive EV components.</li>
<li class="li1">Bespoke assembly rigs for Aircraft landing gear with built in test facilities.</li>
<li class="li1">Bespoke pressure testing and flushing rigs for Aircraft assembly plants.</li>
<li class="li1">Purpose design test benches for fluid power components.</li>
<li class="li1">Ground support trolleys for production and field use for Aircraft testing.</li>
<li class="li1">Hydraulic ring mains for aircraft production and servicing.</li>
<li class="li1">Hydraulic Infrastructure for test houses.</li>
</ul>

Bespoke-Projects

140223Savery_154

140223Savery_175 (1)

Savery Hydraulics have a highly experienced team for fluid control for hydraulic, electronic control, installation and project management. Using this experience we have supported customers with a wide range of projects which are not traditionally considered hydraulic equipment. Some examples of bespoke projects we have successfully delivered are:-

Savery_2_comp

hero-bg

Hydraforce

Hydraforce products meet global quality standards including ISO 9001, QS 9000 and CE. Every Hydraforce valve, coil, solenoid, manifold and electro-hydraulic control goes through rigorous testing and inspection to perform beyond industry standards.

Savery offers one of the most comprehensive lines of hydraulic valves, solenoids and coils and is the UK distributor for the Hydraforce range of products for the mobile and industrial equipment markets, including high performance valves for flow rates of 0.4 to 530lpm and pressure up to 420 bar.

Tile_image

Savery_36_comp

Tile_backgorund_image_No_2

Hydraulic Control Systems

Tailored Solutions for Precision Control
Our in-house hardware and software design team is dedicated to delivering cost-effective and reliable solutions for a wide array of control system needs. From embedded microcontroller systems to large-scale machine controls, we excel in designing and developing systems that meet the most demanding specifications.
&nbsp;
Cloud-Based Monitoring for Seamless Access
We offer cloud-based system monitoring solutions that provide 24/7 access through smart phone or tablet apps, giving you real-time insights into your operations from anywhere.
&nbsp;
Industry-Leading Expertise
With extensive experience across various industries, including aerospace, automotive, wind turbine testing, marine, and industrial sectors, our engineers bring invaluable expertise to every project.

Hardware and Software Capabilities
Small-Scale Control Systems: We design cost-effective control systems in-house using bespoke electronic control boards giving you optimal performance for your specific needs.
Microchip Programming: We specialise in programming microchips for specialist applications in fluid power, providing tailored solutions for precise control.
Large-Scale Machine Control Systems: Our capabilities include designing dedicated Motor Control Centre (MCC) cabinets and implementing System Control and Data Acquisition (SCADA) plant monitoring for seamless operation of complex machinery.
Software Authoring: We are proficient in various software platforms, including:
<ul>
<li>Delta Motion Controllers </li>
<li>National Instruments LabView© </li>
<li>National Instruments LabWindows CVI© </li>
<li>PLCs: Allen Bradley, Siemens, Omron, Schneider, Bachmann, Koyo </li>
<li>HMI and SCADA Systems: Siemens, Schneider, Bachmann, Koyo </li>
</ul>

Cost-Effective Solutions, Tailored to Your Needs
Our deep understanding of different control systems enables us to select the most cost-effective platform to suit your systems development, ensuring you get the best value for your investment.
At Savery, we are committed to delivering innovative, reliable, and tailored solutions that optimise the performance of your hydraulic systems, empowering you to achieve your goals with precision and efficiency.
Get in touch with us today to discuss your project needs.

140223Savery_125

140223Savery_127

140223Savery_155

140223Savery_126

At Savery, we design and manufacture electronic systems that ensure the safe and efficient control and monitoring of hydraulic equipment. Our expertise lies in providing comprehensive control system solutions tailored to your specific requirements, with a focus on bespoke applications.

Hydraulic-Control-System

Savery_39_comp

24_03_28_BAR_Savery_3818

Hydraulic Control Systems

24.03.28_BAR_Savery_2711

Hydraulic Power Unit

Our power units vary from compact, fixed pump systems to intricate setups featuring multiple variable displacement pumps and energy-saving variable speed drive technology. These units can be equipped with control manifolds for basic relief unloading functions or complex hydraulic control circuitry, custom-made for your application.
We offer bespoke electrical control equipment that can manually or automatically control the power source, adhering to all current safety standards. This can be paired with simple condition monitoring for parameters such as flow, pressure, level, temperature, and fluid condition, or with advanced SCADA data recording for remote access via the cloud. This ensures safe and reliable 24/7 operation of equipment.
Our power units can include fluid reservoirs ranging from 10 litres to over 14,000 litres, with built-in bund containment to meet regulatory requirements.
With Savery, you’re in safe hands. We work with you from conception through design, project planning, installation, commissioning, and servicing to deliver a cost-effective and efficient hydraulic and control solution.
We have successfully completed projects in various industries, including:
<ul>
<li data-leveltext="" data-font="Symbol" data-listid="2" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="1" data-aria-level="1">Civil: Flood Barriers, Roll-on/Roll-off dock equipment </li>
<li data-leveltext="" data-font="Symbol" data-listid="2" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="2" data-aria-level="1">Marine: Ship Stabiliser, steering and deck equipment (with in-house 60 Hz testing capability) </li>
<li data-leveltext="" data-font="Symbol" data-listid="2" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="3" data-aria-level="1">Testing Infrastructure: Automotive, Aerospace, research and production component testing </li>
<li data-leveltext="" data-font="Symbol" data-listid="2" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="4" data-aria-level="1">Mechanical Handling: Large Scissor lifts </li>
<li data-leveltext="" data-font="Symbol" data-listid="2" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="5" data-aria-level="1">Defence and Security: Specialist equipment </li>
<li data-leveltext="" data-font="Symbol" data-listid="2" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="6" data-aria-level="1">Wind: Turbine Blade testing </li>
</ul>
Trust Savery Hydraulics for your hydraulic power needs.

Hydraulic-Power-Unit

At Savery Hydraulics, we specialise in the design and manufacture of hydraulic power units tailored to customer specifications. Our offerings range from single fractional power motors to multiple pump sets, with power installations up to 2 Mw.

Savery_11_comp

24.03.28_BAR_Savery_2719

24.03.28_BAR_Savery_4084

Savery custom manifolds can be designed as part of a new power unit or to enhance your existing equipment & machinery. Custom designed manifolds offer no-leak, screw-in components with fast and easy valve removal and replacement.

ManifoldAssembly

Our team of experienced engineers can simplify the most complex hydraulic circuits to reduce cost, improve reliability, minimise pipe work connections and the physical size &amp; weight of the solutions.
Custom manifold assemblies are:
<ul>
<li data-leveltext="" data-font="Symbol" data-listid="1" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="1" data-aria-level="1">Designed by our engineers in house using the latest 3D CAD software for integration into your product. </li>
<li data-leveltext="" data-font="Symbol" data-listid="1" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="2" data-aria-level="1">Designed utilising Hydraforce cartridge valves and a vast range of other manufacturer’s components to achieve the required performance. </li>
<li data-leveltext="" data-font="Symbol" data-listid="1" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="3" data-aria-level="1">Machined using modern CNC equipment with specialist tooling to ensure high quality. </li>
<li data-leveltext="" data-font="Symbol" data-listid="1" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="4" data-aria-level="1">Manufactured from aluminium, steel or stainless steel to meet system pressure, flow and application requirements. </li>
<li data-leveltext="" data-font="Symbol" data-listid="1" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="5" data-aria-level="1">Designed in conjunction with your engineers to ensure we meet your unique requirements and installation needs. </li>
<li data-leveltext="" data-font="Symbol" data-listid="1" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="6" data-aria-level="1">Supplied in a variety of sizes from small manifold blocks with cartridges capable of controlling low(a few litres per minute) flow rate up to large complex assemblies for hundreds of litres per minute. </li>
<li data-leveltext="" data-font="Symbol" data-listid="1" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="7" data-aria-level="1">Supplied fully assembled &amp; tested in our UK facility &amp; meeting the necessary ISO recommended guidelines for hydraulic cleanliness prior to dispatch. </li>
</ul>

Manifold-Assembly

24.03.28_BAR_Savery_2587

Savery custom manifolds can be designed as part of a new power unit or to enhance your existing equipment & machinery. Custom designed manifolds offer no-leak, screw-in components with fast and easy valve removal and replacement.

Manifold Assembly

For Product page (2) (1)

Contact Us

Savery hydraulic power packs and mini power packs are the culmination of many years of experience in manufacturing AC and DC power packs.

Small HydraulicPower Packs

The PB300 series of power units offer the latest design and features not normally associated with this type of unit. The units have a pressure up to 300 bar, which is achieved by the use of high specification materials. The centre adaptor can be machined to give a vast range of integral control options for single and double acting circuits.
Applications for this type of unit are numerous DC units for battery powered use include our tail lift packs and can be found on tippers, aerial access equipment and material handling trucks. AC units with power ratings from 0.25kW to 5.5kW have an even greater range of applications including the retail and service industry for the handling of goods &#8211; loading and unloading of vehicles and the lift industry for lifts installed in the home, disabled lifts and automotive assembly plants.
Savery has developed hydraulic power packs specifically for applications such as dock levellers, which provide a bridge between the loading bay and the truck being loaded or unloaded.
PB300 units have;
<ul>
<li>DC units 12V &amp; 24V / 0.2 – 3.5kW.</li>
<li>AC units 3 Phase &amp; 1 Phase / 0.25 – 5.5kW.</li>
<li>A vast range of control options for single and double acting circuits.</li>
<li>Advanced pressure die-cast aluminium centre adaptor.</li>
<li>The ability to eliminate porosity.</li>
</ul>
<img loading="lazy" decoding="async" class="alignnone size-full wp-image-5274" src="https://cms.savery.co.uk/wp-content/uploads/2024/03/E11-Logo.jpg" alt="" width="110" height="48" />

Small-Hydraulic-Power-Pack

Product page tile image (1)

Mini-packs-

Product_Page_Image

Savery offer a complete and comprehensive range of hydraulic power units, incorporating highly flexible, cost effective modular construction suited to both OEM and small users. The design of units for special applications is an important part of Savery’s marketing activities and our engineers can develop a unit to perfectly match our customer’s requirements.

Savery hydraulic power packs and mini power packs are the culmination of many years of experience in manufacturing AC and DC power packs.


Piloted Logic Elements

ECR16-S35 Piloted Logic Element w/Built-in Relief (ECR16-S35)

EP08-35 Piloted Directional Element (EP08-35)

EP10-S35 Piloted Spool-Type Logic Element (EP10-S35)

EP10-S38 Piloted Poppet-Type Logic Element (EP10-S38)

EP12-S35 Piloted Spool-Type Logic Element (EP12-S35)

EP16-S35 Piloted Spool-Type Logic Element (EP16-S35)

EP20-S35 Piloted Spool-Type Logic Element (EP20-S35)

EP20-S38 Piloted Poppet-Type Logic Element (EP20-S38)

EP20-S39 Vented Poppet-Type Logic Element (EP20-S39)

HEP16-S35 HyPerformance (HEP16-S35)

Vented, Spool-Type Logic Elements

Pressure-Compensatig Logic Elements

Piloted, 4-Way Spool Valves, with Vented Spring

Piloted, 4-Way Spool Valves

Piloted, 3-Way Spool Valves, Vented

Piloted, 3-Way Spool Valves, Ported Vent

Piloted, 2-Way Spool Valves, Vented

Piloted, 2-Way Spool Valves, Ported Vent

Piloted Logic Elements

Pilot-Operated, Proportional Valves

Savery also offer

Bespoke Projects

Hydraforce

Hydraulic Control Systems

Hydraulic Power Unit

Manifold Assembly

Small Hydraulic Power Packs
