Piloted Logic Elements

ECR16-S35 Piloted Logic Element w/Built-in Relief (ECR16-S35)

<div class="product-info group">
<div>
<h3>Product Operation</h3>
The ECR16-S35 is a spring-biased blocking valve which will shift to allow full flow
from ➀ to ➁ only when pressure at ➀ exceeds the cumulative pressure of ➂, plus the bias spring pressure value.
If the pressure at ➀ and ➂ exceeds the relief valve setting, the valve operates as a relief valve, opening the ➀ to ➁ flow path.
</div>
<div>
<h3>Product Features</h3>
• Multiple function/application potential.
• Low pressure drop.
• Industry common cavity.
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure: 240 bar (3500 psi)
Proof Pressure: 420 bar (6090 psi)
Flow: 189 lpm (50 gpm) max.
Internal Leakage: 164 ml/minute (10 cu. in./minute) max. at 207 bar (3000 psi)
Temperature: -40 to 120°C with standard Buna seals
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>
Cavity: VC16-S3; See page <a title="9.116.1" href="https://www.savery.co.uk/products/view/9-116-1">9.116.1</a>
Cavity Tool: CT16-S3xx; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK16-S3x-MM; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
</div>
</div>
<div class="product-related"> </div>

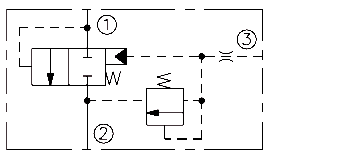

4-480-1-symbols

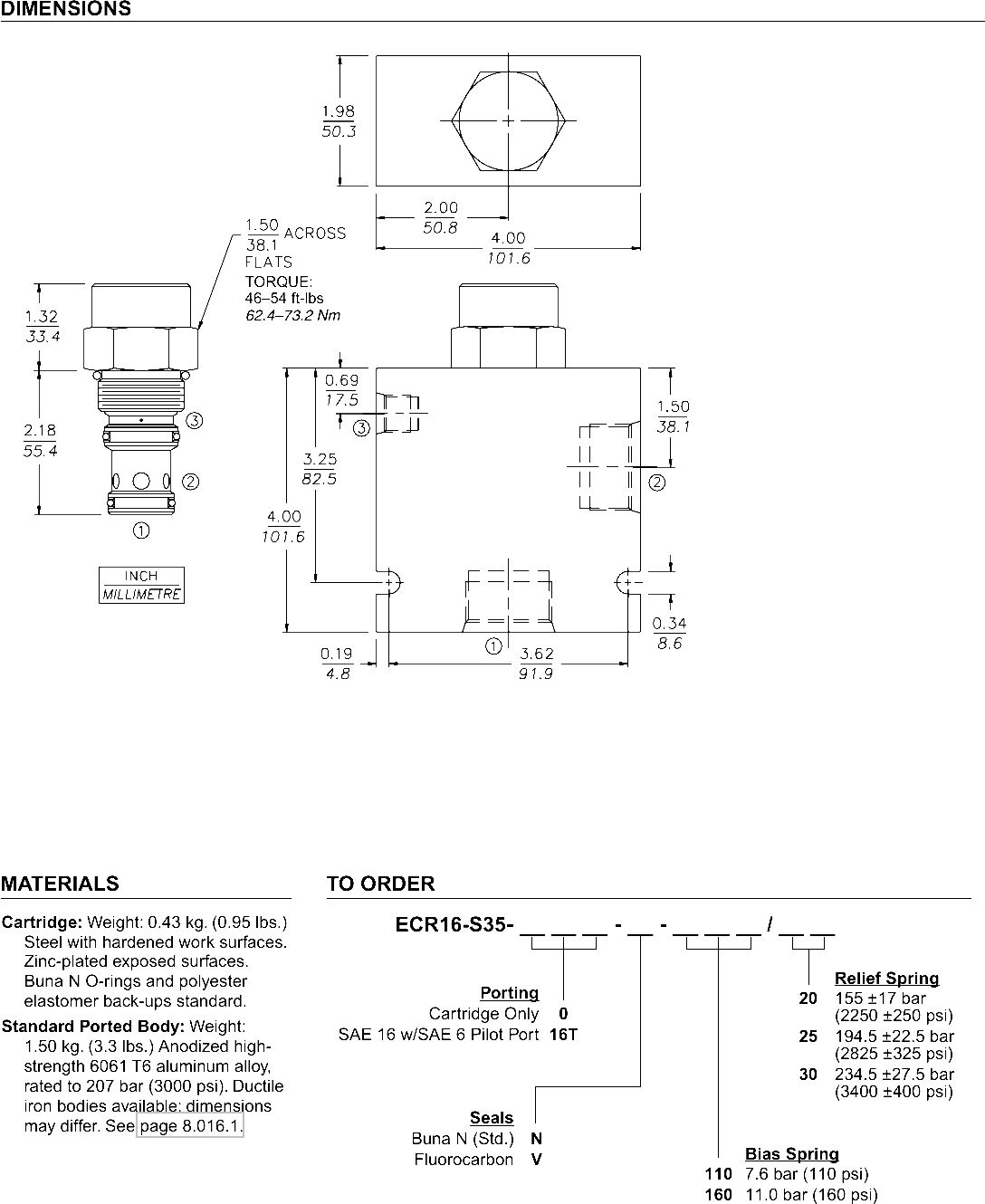

4-480-1-image-dimensions

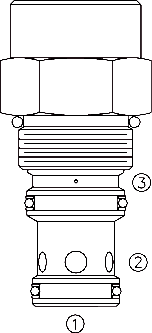

4-480-1-main-image

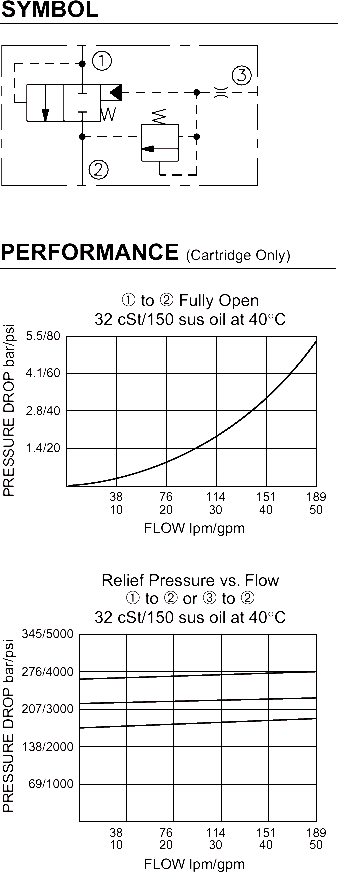

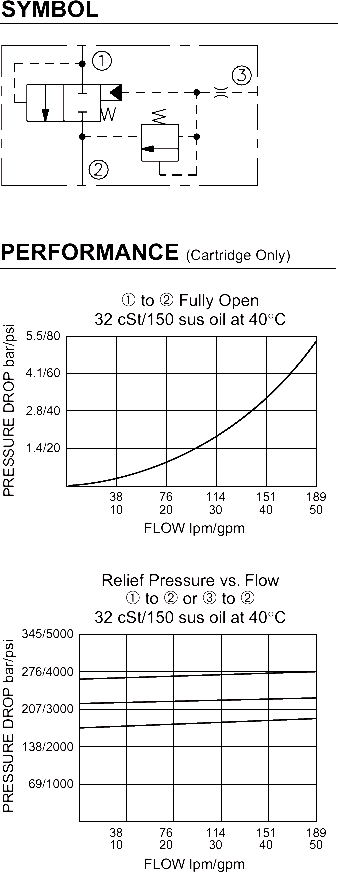

4-480-1-symbols-graphs-image

A spool-type, screw-in, cartridge-style, hydraulic directional element, with a built-in, non-adjustable pressure relief valve.
