Piloted Logic Elements

EP10-S38 Piloted Poppet-Type Logic Element (EP10-S38)

<div>
<h3>Product Operation</h3>
</div>
<div>
The EP10-S38 is a spring-biased poppet valve which will block ➀ to ➁ or ➁ to ➀ until pressure at ➀ or ➁ exceeds the cumulative pressure at ➂ and bias spring. With no pressure at ➂, flow will be allowed from ➀ to ➁ or ➁ to ➀ once the bias spring force is overcome with pressure at ➀ or ➁. When the element is in closed state, the ratio of areas ➀ and ➁ is 1:1, and the ratio of areas ➀ or ➁ to ➂ is 1:2.
</div>
<div>
<h3>Product Features</h3>
• Multiple function/application potential.
• Low pressure drop.
• Industry common cavity.
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure: 350 bar (5000 psi) cartridge; 207 bar (3000 psi) standard aluminum housing
Flow: See Performance Chart
Internal Leakage: 0.2 cc/minute (.01 cu. in./minute) max. at 240 bar (3500 psi)
Bias Spring Pressure: 11.0 bar (160 psi)
Temperature: -40 to 120°C with standard Buna seals
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>
Cavity: VC10-S3; See page <a title="9.110.1" href="https://www.savery.co.uk/products/view/9-110-1">9.110.1</a>
Cavity Tool: CT10-S3xx; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK10-S3x-MM; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
</div>

4-510-1-symbols

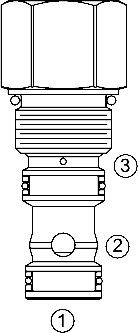

4-510-1-main-image

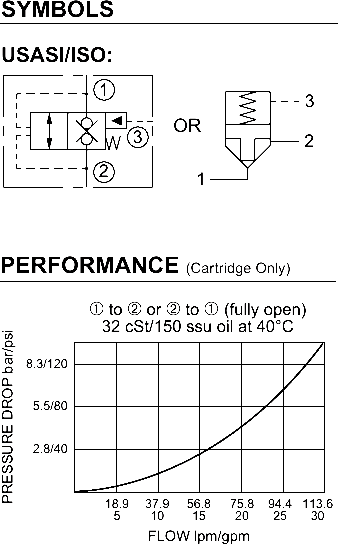

4-510-1-symbols-graphs-image

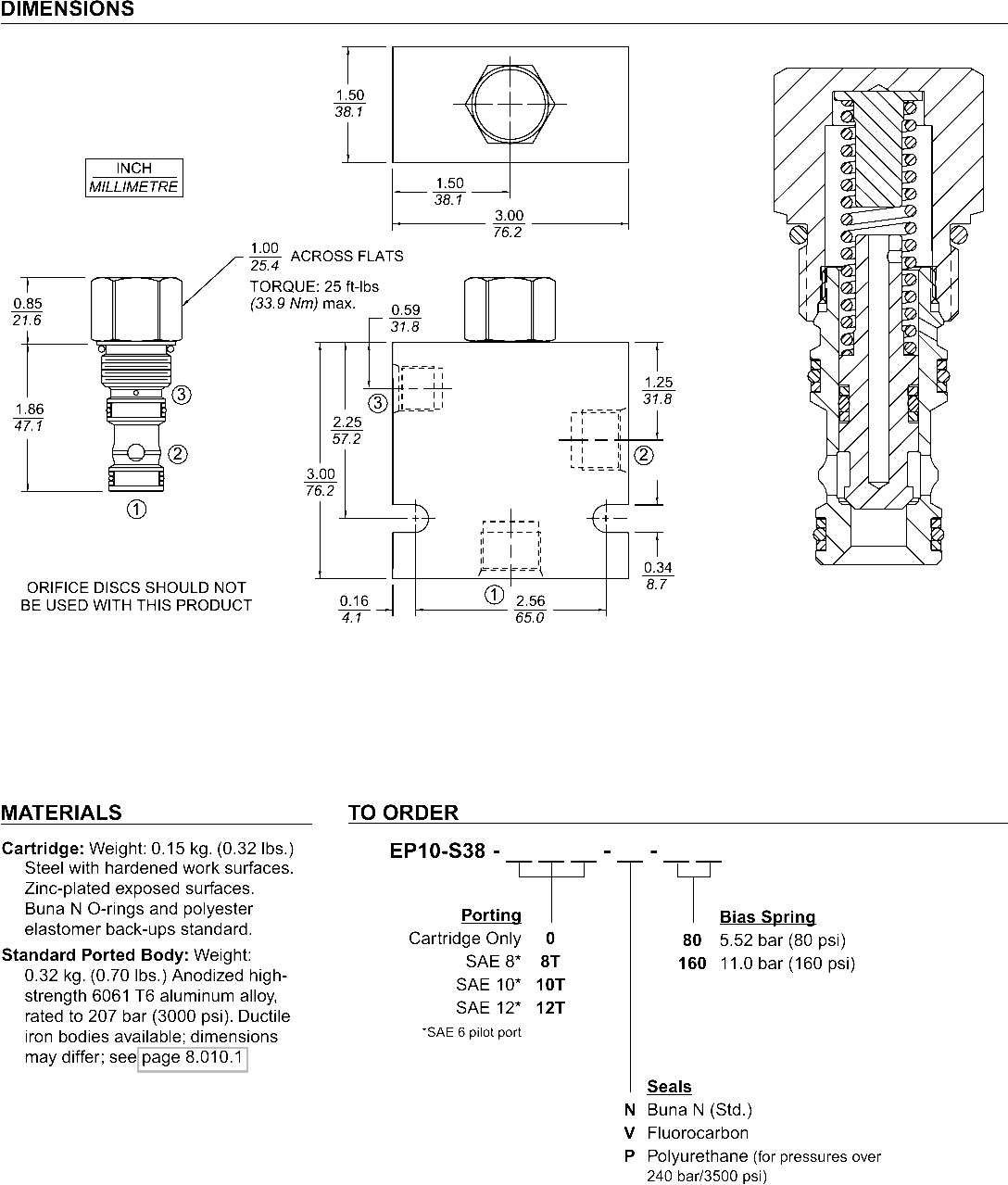

4-510-1-image-dimensions

A poppet-type, screw-in, cartridge-style, hydraulic directional element, with multifunction potential when used with other directional, pressure, or flow control devices.
