EPFR16-S35 Pressure Compensator with Internal (EPFR16-S35)

<div class="product-info group">
<div>
<h3>Product Operation</h3>
The EPFR16-S35 is a spring-biased spool-type valve with an internal pressure-com-pensated flow regulator between ➁ and ➂. When used as a pump unloading com-pensator, this valve will bypass flow to tank at port ➁ when system pressure reaches the load pressure plus the bias spring value. When the system load is neutralized, the load signal is bled through the flow regulator bringing the valve to stand-by condition.
</div>
<div>
<h3>Product Features</h3>
• Multiple function in a single cavity.
• Low bleed flow throughout the operating pressure range.
• High system effi ciency.
• Industry common cavity
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure: Cartridge only: 241 bar (3500 psi); Aluminum housing: 207 bar (3000 psi); Ductile iron housing: 345 bar (5000 psi).
Flow: 189.3 lpm (50 gpm); See Performance Chart
Maximum Flow Loss between ➂
and ➁
: 0.95 lpm (0.25 gpm) at 241 bar (3500 psi)
Bias Spring Pressure Options: 6.2 bar (90 psi);7.6 bar (110 psi)11.0 bar (160 psi)16.5 bar (240 psi) Tall Cap Required
Temperature: -40 to 120°C with standard Buna seals
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>
Cavity: VC16-S3; See page <a title="9.116.1" href="https://www.savery.co.uk/products/view/9-116-1">9.116.1</a>
Cavity Tool: CT16-S3xx; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK16-S3x-MM; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
</div>
</div>
<div class="product-related"> </div>

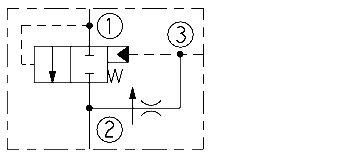

4-466-1-symbols

4-466-1-graphs-image

4-466-1-image-dimensions

4-466-1-symbols-image

4-466-1-main-image

A screw-in, cartridge-style, bypass-type, pressure-compensating element, with inte-gral flow regulator for load sense signal drain. The internal pressure-compensated flow regulator restricts the load signal bleed flow in order to minimize system losses even at high operating pressures. The main compensator element holds the valves primary flow constant regardless of load pressure changes.

EPFR20-S35 Pressure Compensator with Internal (EPFR20-S35)

<div>
<h3>Product Operation</h3>
The EPFR20-S35 is a spring-biased spool-type valve with an internal pressure-com-pensated flow regulator between ➁ and ➂. When used as a pump unloading com-pensator, this valve will bypass flow to tank at port ➁ when system pressure reaches the load pressure plus the bias spring value. When the system load is neutralized, the load signal is bled through the flow regulator bringing the valve to stand-by condition.
</div>
<div>
<h3>Product Features</h3>
• Multiple function in a single cavity.
• Low bleed flow throughout the operating pressure range.
• High system effi ciency.
• Industry common cavity
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure: Cartridge only: 320 bar (4600 psi); Aluminum housing: 207 bar (3000 psi); Ductile iron housing: 345 bar (5000 psi).
Flow: 303 lpm (80 gpm); See Performance Chart
Maximum Flow Loss between ➂
and ➁
: 0.95 lpm (0.25 gpm) at 320 bar (4600 psi)
Bias Spring Pressure Options: 6.2 bar (90 psi); 11.0 bar (160 psi)
Operating Fluid Temperature: -40°C to 120°C with Buna N seals; -35°C to 204°C with Fluorocarbon seals; -54°C to 107°C with Polyurethane seals
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>
Cavity: VC20-S3; See page 9.120.1;
Cavity Tool: CT20-S3xx; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK20-S3x-MM; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
</div>

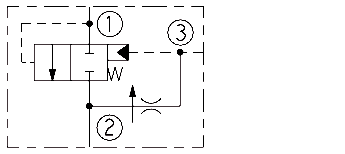

4-468-1-symbols

4-468-1-main-image

4-468-1-symbols-image

4-468-1-graphs-image

4-468-1-image-dimensions

A screw-in, cartridge-style, bypass-type, pressure-compensating element, with integral flow regulator for load sense signal drain. The internal pressure-compensated flow regulator restricts the load signal bleed flow in order to minimize system losses even at high operating pressures. The main compensator element holds the valves primary flow constant regardless of load pressure changes.

EPFR50-S35 Pressure Compensator with Internal (EPFR50-S35)

<div class="product-info group">
<div>
<h3>Product Operation</h3>
The EPFR50-S35 is a spring-biased spool-type valve with an internal pressure-com-pensated flow regulator between ➁ and ➂. When used as a pump unloading com-pensator, this valve will bypass flow to tank at port ➁ when system pressure reaches the load pressure plus the bias spring value. When the system load is neutralized, the load signal is bled through the flow regulator bringing the valve to stand-by condition.
</div>
<div>
<h3>Product Features</h3>
• Multiple function in a single cavity.
• Low bleed flow throughout the operating pressure range.
• High system effi ciency.
• Industry common cavity
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure: Cartridge only: 345 bar (5000 psi); Aluminum housing: 207 bar (3000 psi); Ductile iron housing: 345 bar (5000 psi).
Flow: See Performance Chart
Maximum Flow Loss between ➂
and ➁
: 0.95 lpm (0.25 gpm) at 345 bar (5000 psi)
Bias Spring Pressure Options: 5.5 bar (80 psi);7.6 bar (110 psi)11.0 bar (160 psi) Tall Cap Required15.9 bar (230 psi) Tall Cap Required
Temperature: -40 to 120°C with standard Buna seals
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>
Cavity: VC10-S3; See page <a title="9.110.1" href="https://www.savery.co.uk/products/view/9-110-1">9.110.1</a>
Cavity Tool: CT10-S3xx; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK10-S3x-MM; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
</div>
</div>
<div class="product-related"> </div>

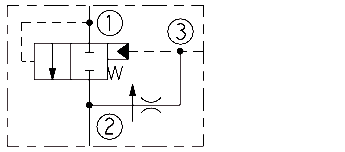

4-462-1-symbols-1

4-462-1-symbols-image

4-462-1-main-image

4-462-1-image-dimensions

4-462-1-graphs-image

A screw-in, cartridge-style, bypass-type, pressure-compensating element, with inte-gral flow regulator for load sense signal drain. The internal pressure-compensated flow regulator restricts the load signal bleed flow in order to minimize system losses even at high operating pressures. The main compensator element holds the valves primary flow constant regardless of load pressure changes.



EPFR52-S35 Pressure Compensator with Internal (EPFR52-S35)

<div>
<h3>Product Operation</h3>
The EPFR52-S35 is a spring-biased spool-type valve with an internal pressure-com-pensated flow regulator between ➁ and ➂. When used as a pump unloading com-pensator, this valve will bypass flow to tank at port ➁ when system pressure reaches the load pressure plus the bias spring value. When the system load is neutralized, the load signal is bled through the flow regulator bringing the valve to stand-by condition.
</div>
<div>
<h3>Product Features</h3>
• Multiple function in a single cavity.
• Low bleed flow throughout the operating pressure range.
• High system effi ciency.
• Industry common cavity
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure: Cartridge only: 350 bar (5000 psi); Aluminum housing: 207 bar (3000 psi); Ductile iron housing: 350 bar (5000 psi).
Flow: 151 lpm (40 gpm); See Performance Chart
Maximum Flow Loss between ➂
and ➁
: 0.95 lpm (0.25 gpm) at 345 bar (5000 psi)
Bias Spring Pressure Options: 5.5 bar (80 psi);7.6 bar (110 psi)11.0 bar (160 psi) Tall Cap Required16.5 bar (240 psi) Tall Cap Required
Temperature: -40 to 120°C with standard Buna seals
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>
Cavity: VC12-S3; See page <a title="9.112.1" href="https://www.savery.co.uk/products/view/9-112-1">9.112.1</a>
Cavity Tool: CT12-S3xx; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK12-S3x-MM; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
</div>

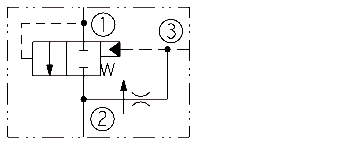

4-464-1-symbols

4-464-1-graphs-image

4-464-1-image-dimensions

4-464-1-symbols-image

4-464-1-main-image

EPFR58-35 Pressure Compensator with Internal (EPFR58-35)

<div class="product-info group">
<div>
<h3>Product Operation</h3>
The EPFR58-35 is a spring-biased spool-type valve with an internal pressure-com-pensated flow regulator between ➁ and ➂. When used as a pump unloading com-pensator, this valve will bypass flow to tank at port ➁ when system pressure reaches the load pressure plus the bias spring value. When the system load is neutralized, the load signal is bled through the flow regulator bringing the valve to stand-by condition.
</div>
<div>
<h3>Product Features</h3>
• Multiple function in a single cavity.
• Low bleed flow throughout the operating pressure range.
• High system effi ciency.
• Industry common cavity
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure: Cartridge only: 345 bar (5000 psi); Aluminum housing: 207 bar (3000 psi); Ductile iron housing: 345 bar (5000 psi).
Flow Rate: See Performance Chart
Maximum Flow Loss between ➂
and ➁
: 0.95 lpm (0.25 gpm) at 345 bar (5000 psi)
Bias Springs:Code 80 5.5 bar (80 psi)
Code 110 7.6 bar (110 psi)
Code 150 10.3 bar (150 psi)
Temperature: -40 to 120°C with standard Buna N seals
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>
Cavity: VC08-3; See page <a title="9.108.1" href="https://www.savery.co.uk/products/view/9-108-1">9.108.1</a>
Cavity Tool: CT08-3XX; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK08-3X-MM; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
</div>
</div>
<div class="product-related"> </div>

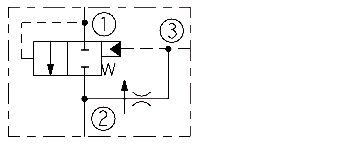

4-460-1-symbols

4-460-1-graphs-image

4-460-1-image-dimensions

4-460-1-symbols-image

4-460-1-main-image
