HEP42-S39 HyPerformance (HEP42-S39)

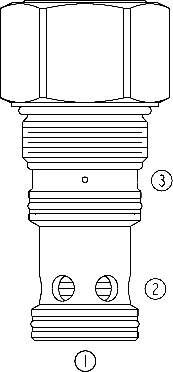

A high pressure, poppet-type, screw-in, cartridge-style, spring-biased, bi-directional blocking-type hydraulic valve with two built-in checks. When used in conjunction with a small pilot solenoid valve, the HEP42-S39 is ideal for either high-flow double-blocking circuits or selector circuits. The integral two-check system prevents leak-age, maintaining the pilot signal regardless of the transition or the work-port pressure changes.

Product Operation

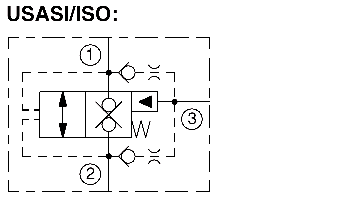

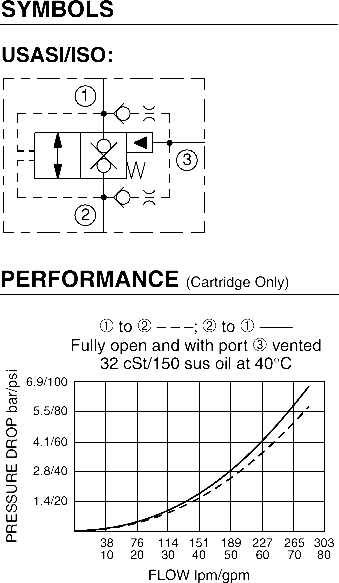

The HEP42-S39 will allow flow from 1 to 2 or 2 to 1 only when 3 is vented to create a pressure differential across the internal orifice which exceeds the pressure value of the bias spring. When the element is in the neutral (closed) state, the ratio of areas 1 and 2 is 1:1, and the ratio of areas 1 or 2 to 3 is 1:2.

Product Features


Multiple function/application potential.• Low pressure drop.• All HyPerformance products are tested to the rigorous standards of the NFPA specification T2.6.1.• All HyPerformance valves are tested at a verification level of 90% and an assurance of 99%.

Product Ratings

Operating Pressure: 350 bar (5075 psi); 10% cycle life: 420 bar (6090 psi)Note: All HyPerformance products are tested for 900K cycles at 350 bar and 100K at 420 bar.
Proof Pressure: 690 bar (10000 psi)
Burst Pressure: 1380 bar (20000 psi)
Flow: 284 lpm (75 gpm)
Internal Leakage: 12 drops per minute max. at 350 bar (5075 psi)
Operating Temperature: -54 to 107°C (-65 to 225°F) with Urethane seals
Filtration: See page 9.010.1
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page 9.060.1
Installation: No restrictions; See page 9.020.1

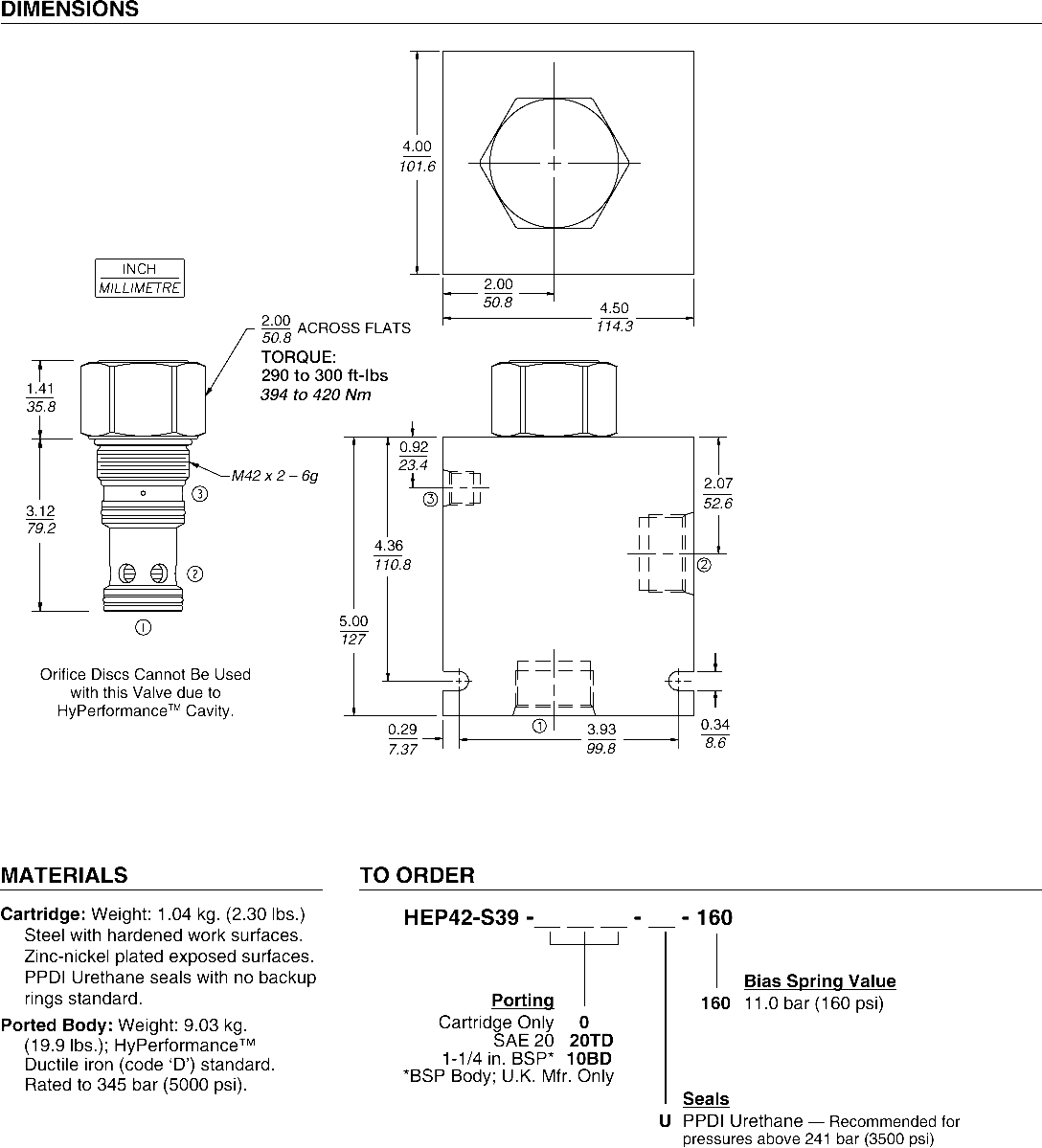

Cavity: HVC42-S3; See page 9.142.1
Cavity Tool: HCT42-S3XX; See page 8.600.1
Seal Kit: SK42-S3X-MM; See page 8.650.1
