Piloted, 4-Way Spool Valves, with Vented Spring

PD42-S60N Piloted, 2-Position, 4-Way Spool (PD42-S60N)

<div>
<h3>Product Operation</h3>
In the neutral position, the PD42-S60N allows flow between ports 2 and 3 and from 4 to 5. On remote pilot signal at 1, the valve shifts to allow flow between ports 3 and 4, and from 2 to 5.
The spring chamber is vented to the tank through port 6. The vented spring chamber allows the valve to be fully pressurized at ports 2, 3, and 4 without affecting required pilot pressure. Pressure at 6 will affect required pilot pressure.
</div>
<div>
<h3>Product Features</h3>
• Hardened spool and cage for long life.
</div>
<div>
<h3>Product Ratings</h3>
Maximum Operating Pressure: ports 2, 3 and 4: 324 bar (4700 psi); Port 1: 28 bar (400 psi)
Flow: 0 to 189 lpm (0 to 50 gpm); See Performance Chart
Internal Leakage: Maximum leakage at 207 bar (3000 psi): 1.31 liters/minute (80 cu. in./minute).
Temperature: -40 to 120°C (-40 to 248°F)
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>
Cavity: VC42-S6; See page <a title="9.142.1" href="https://www.savery.co.uk/products/view/9-142-1">9.142.1</a>
Cavity Tool: CT42-S6XX; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK42-S6X-BMMMM; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
</div>

4-390-1-symbols

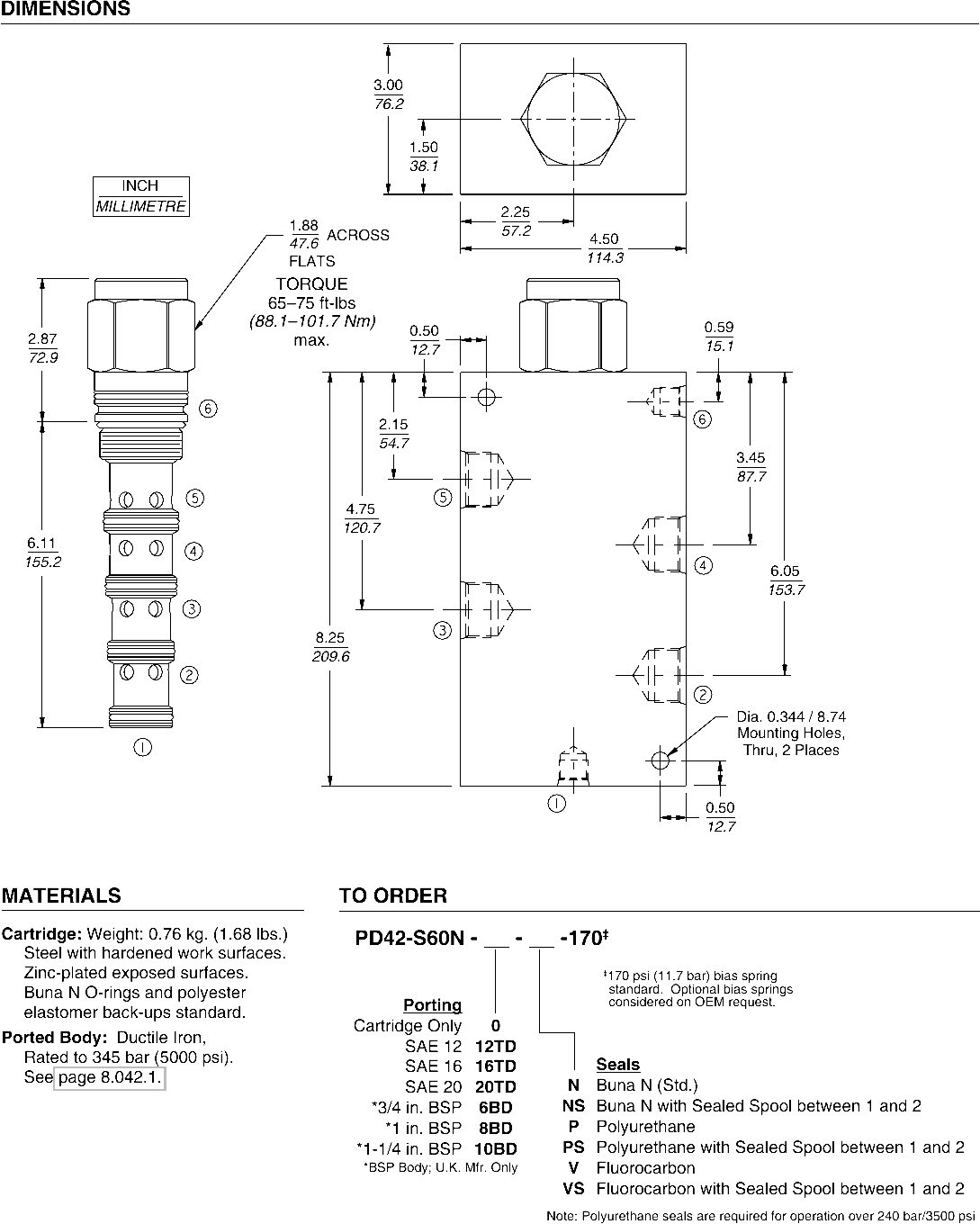

4-390-1-image-dimensions

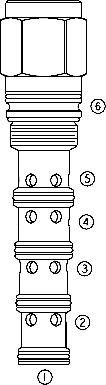

4-390-1-main-image

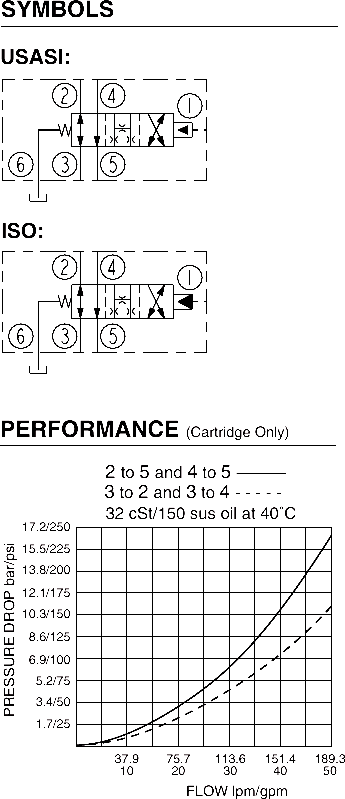

4-390-1-symbols-graphs-image

A screw-in, cartridge-style, pilot-operated, 2-position, 4-way, spool-type, hydraulic directional valve.
