Contact usHPD42-S61 HyPerformance™ Piloted 4-Way Spool (HPD42-S61)
A high pressure, spool-type, screw-in, cartridge-style, pilot-operated, hydraulic directional valve.
Product Operation

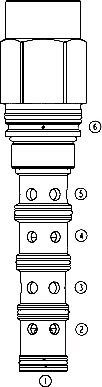

When in neutral the HPD42-S61 allows flow between ports 2 and 3, and between ports 4 and 5. On remote pilot signal at 1, the valve’s spool shifts to allow flow between 3 and 4 while blocking 2 and 5. The spring chamber is vented to the tank through port 6. The vented spring chamber allows the valve to be fully pressurized at ports 1, 2, 3, 4 and 5 without affecting required pilot pressure. Pressure at port 6 will increase the required pilot pressure at a 1:1 ratio.
Product Features
• Hardened spool and cage for long life.
• All HyPerformance™ products are tested to the rigorous standards of the NFPA specification T2.6.1 and are tested at a verification level of 90% and an assurance of 99%
Product Ratings
Operating Pressure: 350 bar (5075 psi); 10% cycle life: 420 bar (6090 psi) Note: All HyPerformance™ products are tested for 900K cycles at 350 bar and 100K at 420 bar.
Proof Pressure: 690 bar (10000 psi)
Burst Pressure: 1380 bar (20000 psi)
Flow Rating: Up to 189 lpm (50 gpm) with seal options N, V and U with no flowrestriction; up to 189 lpm (50 gpm) with seal options NS, VS and US with flowrestriction from ports 2 to 3 of 132 lpm (35 gpm) maximum.

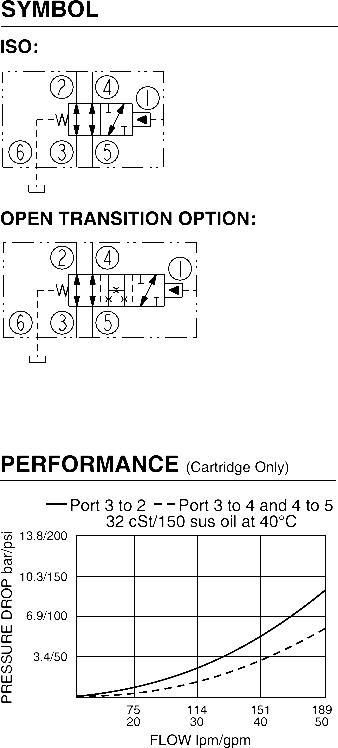

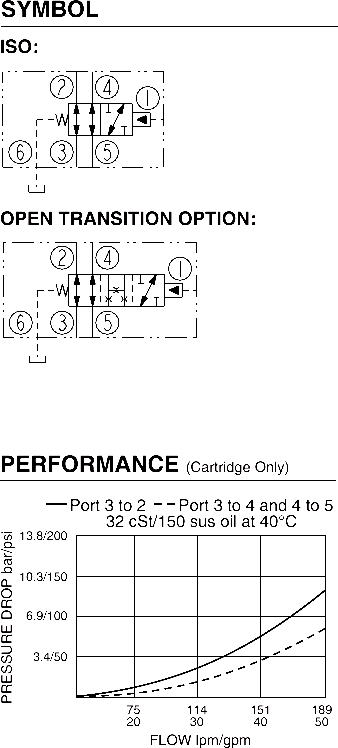

See Performance Chart
Maximum Internal Leakage: at 350 bar (5075 psi) with 32 cSt oil: HPD42-S61: 490 ml/minute (30 cu. in./minute) HPD42-S61N: 640 ml/minute (40 cu. in./minute)
Temperature: -40 to 100°C (-40 to 212°F) with Buna N seals; -26 to 204°C (-15 to 400°F) with Viton seals; -54 to 107°C (-65 to 225°F) with Urethane seals
Filtration: See page 9.010.1
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page 9.060.1
Installation: No restrictions; See page 9.020.1

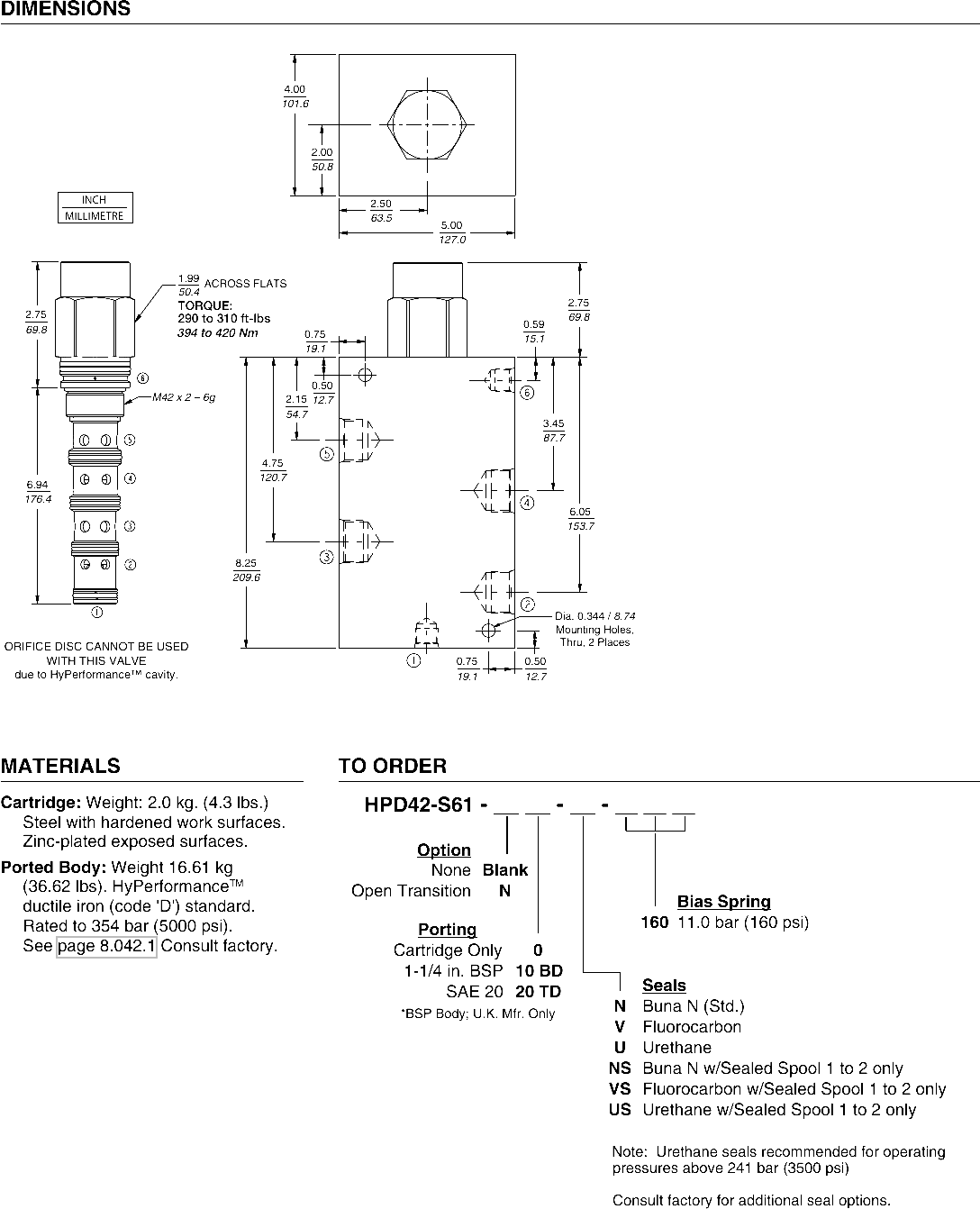

Cavity: HVC42-S6; See page 9.142.1
Cavity Tool: HCT42-S6XX; See page 8.600.1
Seal Kit: HSK42-S6X-BMMMM (Buna N), HSK42-S6V-BMMMM (Viton),HSK42-S6U-0000 (Urethane); See page 8.650.1
