Piloted, 4-Way Spool Valves, with Vented Spring

PD16-S60N Piloted 4-Way Spool (PD16-S60N)

<div>
<h3>Product Operation</h3>
In the neutral position, the PD16-S60N allows flow between ports ➁ and ➂, and from ➃ to ➄. On remote pilot signal at ➀, the valve shifts to allow flow between ➂ and ➃ and from ➁ to ➄. The spring chamber is vented to the tank through port ➅. The vented spring chamber allows the valve to be fully pressurized at ports ➀, ➁, ➂ and ➃ without affecting required pilot pressure. Pressure at port ➅ will affect required pilot pressure.
</div>
<div>
<h3>Product Features</h3>
• Hardened spool and cage for long life.
• 60, 80, 110 and 170 psi bias springs available.
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure: 240 bar (3500 psi)
Flow: 0–95 lpm (0–25 gpm); See Performance Chart
Maximum Internal Leakage: at 207 bar (3000 psi): 164 ml/minute (10 cu. in./minute)
Pilot Pressure Required: 4.1 bar (60 psi) mimimum
Oil Volume Required to Full Shift: 1.5 cc (0.09 cu. in.)
Temperature: -40 to 120°C
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>
Cavity: VC16-S6; See page <a title="9.116.1" href="https://www.savery.co.uk/products/view/9-116-1">9.116.1</a>
Cavity Tool: CT16-S6XX; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK16-S6X-BMMMM; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
</div>

4-388-1-symbols

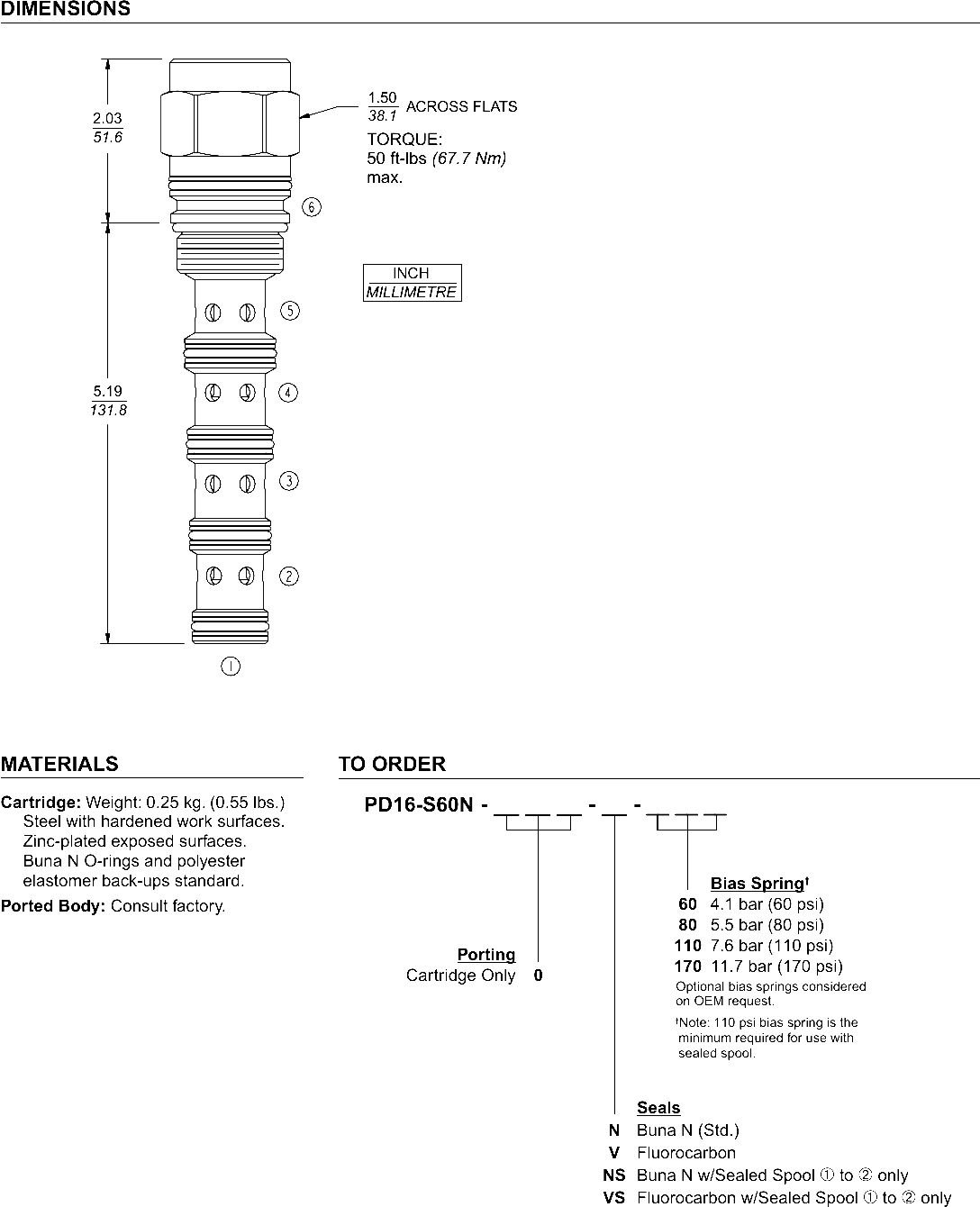

4-388-1-image-dimensions

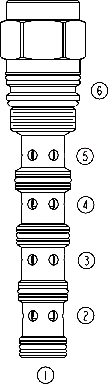

4-388-1-main-image

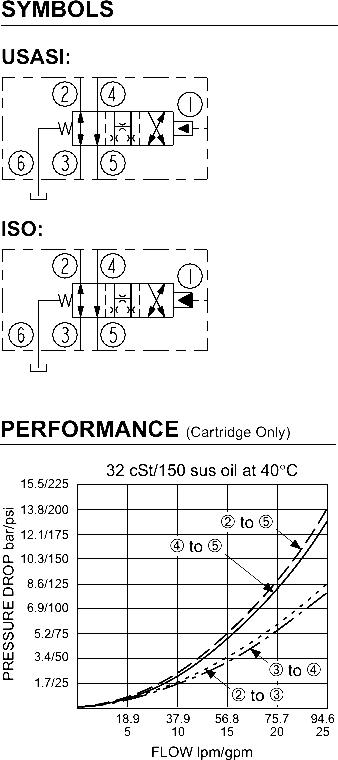

4-388-1-symbols-graphs-image

A screw-in, cartridge-style, pilot-operated, spool-type, hydraulic directional valve.
