Piloted, 4-Way Spool Valves, with Vented Spring

PD10-S62 Piloted Directional Valve (PD10-S62)

<div>
<h3>Product Operation</h3>
In the neutral position, the PD10-S62 allows flow between ports ➁ and ➂ and be-tween ports ➃ and ➄ bidirectionally. When the remote pilot signal at ➀ exceeds the force of the bias spring, the spool shifts to block flow at all ports.
The spring chamber is vented to the tank through port ➅. The vented spring chamber allows the valve to be fully pressurized at ports ➀, ➁, ➂, ➃ and ➄ without affecting required pilot pressure. Pressure at ➅ will affect required pilot pressure.
</div>
<div>
<h3>Product Features</h3>
• Hardened spool and cage for long life.
• Optional sealed spool between ports ➀ and ➁
</div>
<div>
<h3>Product Ratings</h3>
Maximum Operating Pressure: 250 bar (3625 psi) with standard Buna N seals.
Maximum Total Input Flow: 53 lpm (14 gpm) in any combination of flows between ports ➁ and ➂, and ports ➃ and ➄ (e.g., 2 &amp;12 gpm, 7 &amp; 7 gpm, or 10 &amp; 4 gpm).
Internal Leakage: Maximum leakage at 250 bar (3625 psi): 131 ml/minute (8 cu. in./ minute).
Temperature: -40 to 120°C (-40 to 248°F)
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>
Cavity: VC10-S6; See page <a title="9.110.1" href="https://www.savery.co.uk/products/view/9-110-1">9.110.1</a>
Cavity Tool: CT10-S6X; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK10-S6X-BMMMM; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
</div>

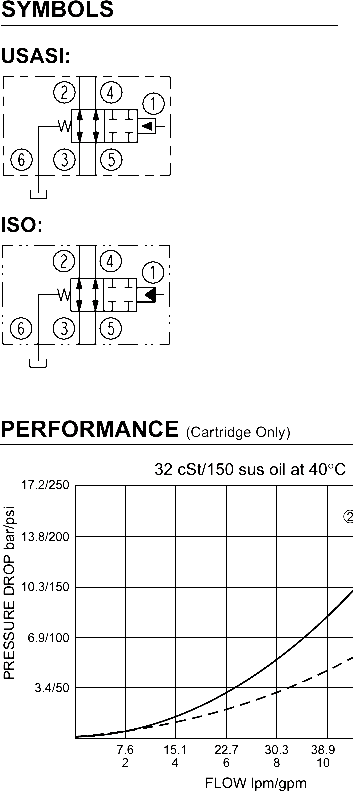

4-394-1-symbols

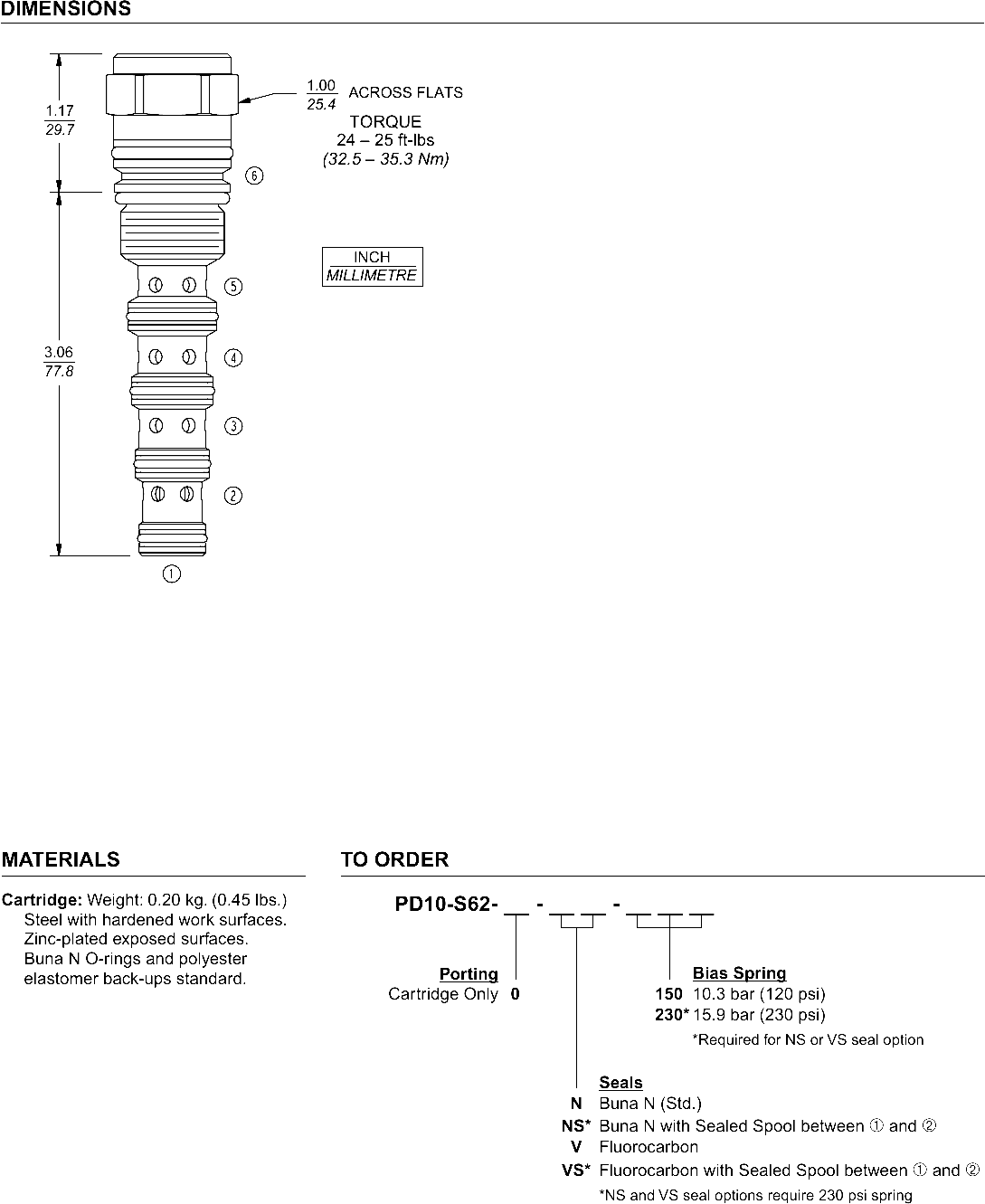

4-394-1-image-dimensions

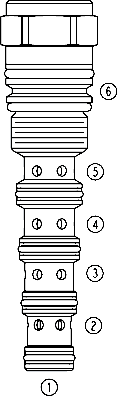

4-394-1-symbols-graphs-image

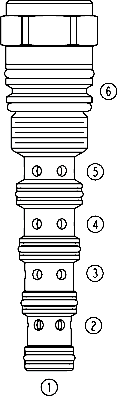

4-394-1-main-image

A screw-in, cartridge-style, pilot-operated, spool-type, hydraulic cartridge valve.
