Piloted, 3-Way Spool Valves, Ported Vent

PD10-51 Piloted 3-Way Spool (PD10-51)

<div>
<h3>Product Operation</h3>
When in neutral the PD10-51 allows flow between ports 2, 3 and 4. On remote pilot signal at 1, the valve’s spool shifts to block all ports. The spring chamber is vented to the tank through port 5. The vented spring chamber allows the valve to be fully pres-surized at ports 1, 2, 3, and 4 without affecting required pilot pressure. Pressure at port 5 will affect required pilot pressure.
</div>
<div>
<h3>Product Features</h3>
• Hardened spool and cage for long life.
• 150 and 250 psi bias springs available.
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure: 240 bar (3500 psi)
Flow: 0–45 lpm (0–12 gpm); See Performance Chart
Internal Leakage at 241 bar (3500 psi): 164 ml/minute (10 cu. in./minute). Zero leakage from port 1 to 2 with sealed spool.
Temperature: -40 to 120°C
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>
Cavity: VC10-5; See page <a title="9.110.1" href="https://www.savery.co.uk/products/view/9-110-1">9.110.1</a>
Cavity Tool: CT10-5XX; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK10-5X-BMMM; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
</div>

4-380-1-symbols

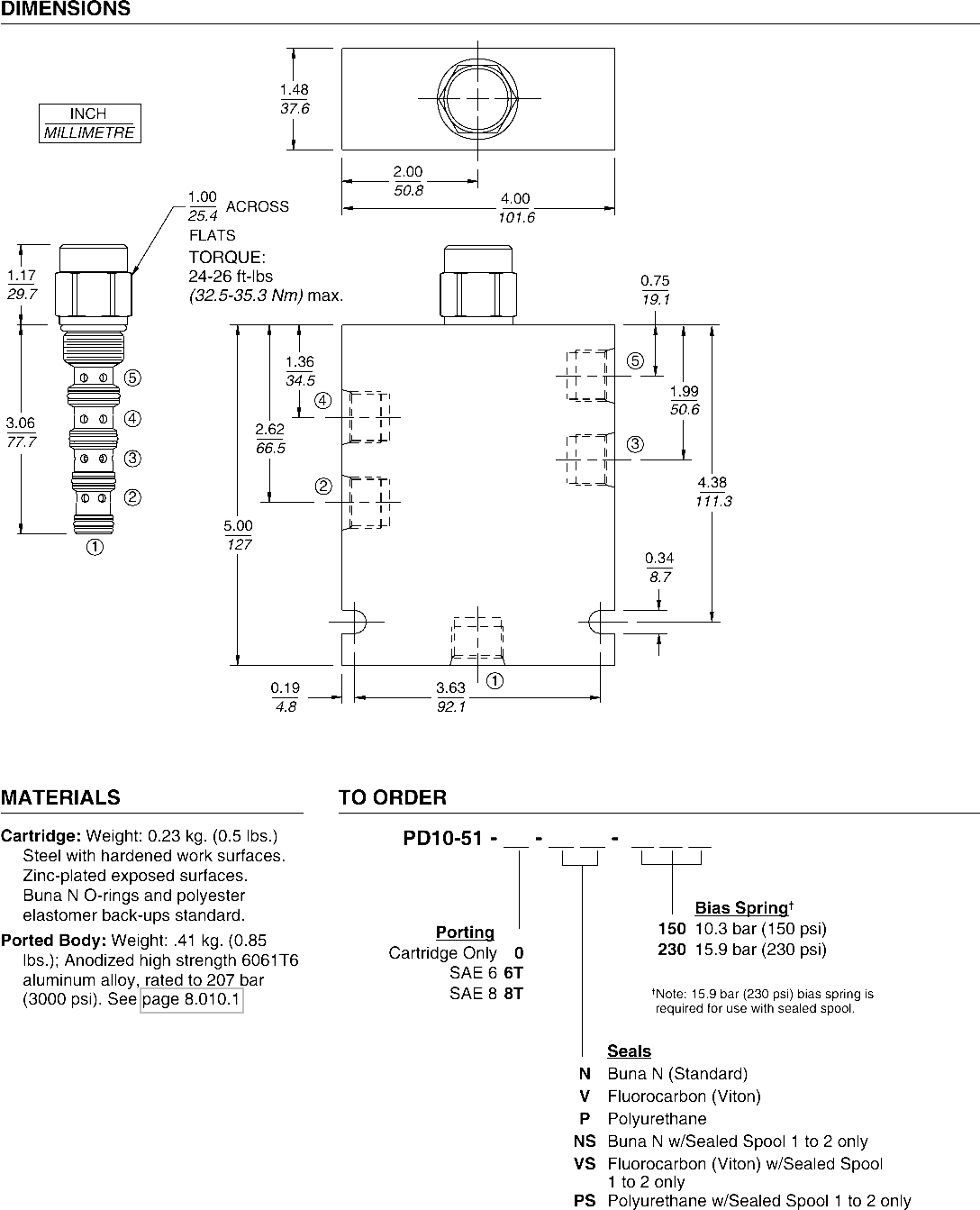

4-380-1-image-dimensions

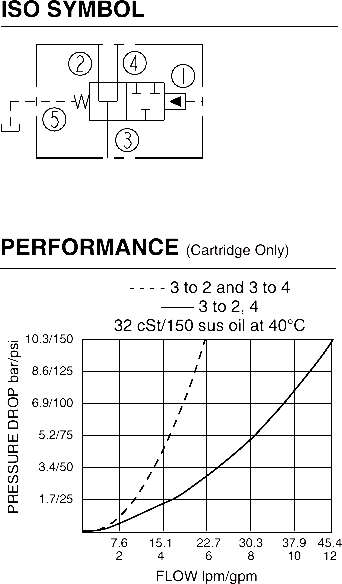

4-380-1-symbols-graphs-image
