Piloted, 3-Way Spool Valves, Ported Vent

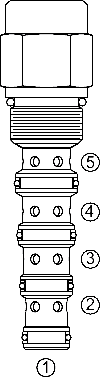

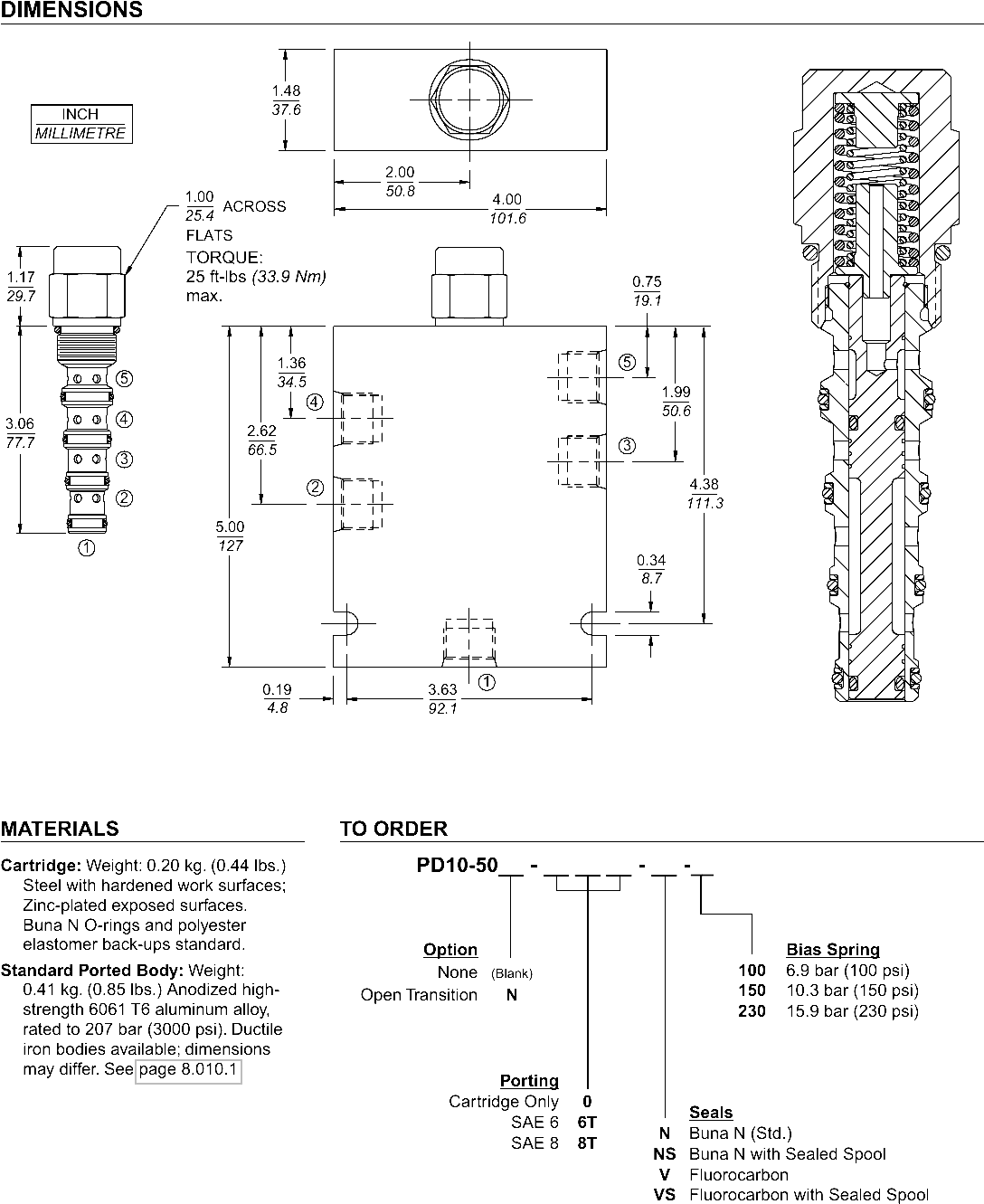

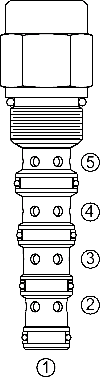

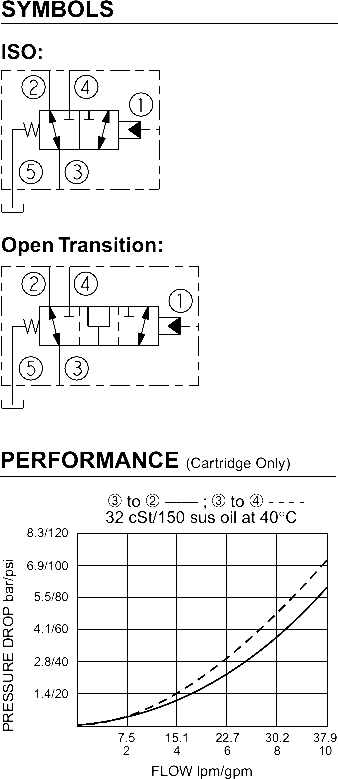

PD10-50 Piloted 3-Way Spool (PD10-50)

<div>
<h3>Product Operation</h3>
In neutral (unpiloted), the PD10-50 allows flow from ➂ to ➁ bidirectionally, while flow is blocked from ➂ to ➃. The spring chamber is vented to tank at port ➄, and is inter-nally O-ring sealed from the cartridge flow paths.
On remote pilot signal at ➀, the valve shifts to block flow from ➂ to ➁, while opening flow between ➂ and ➃ bidirectionally. Any pressure at port ➄ is added to the spring value.
</div>
<div>
<h3>Product Features</h3>
• Hardened spool and cage for long life.
• Cost-effective cavity.
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure: 240 bar (3500 psi)
Proof Pressure: 350 bar (5075 psi)
Flow: See Performance Chart
Internal Leakage: 82 cc/minute (5 cu. in./minute) max. at 207 bar (3000 psi)
Pilot Pressure Required using 10.3 bar (150 psi) Spring:To Spool Crossover: 10.3 bar (150 psi)To Full Spool Shift:
12.2 bar (177 psi)
Oil Volume Required to Full Shift: 0.44 cc (0.027 cu. in.)
Temperature: -40 to 100°C with standard Buna seals
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>
Cavity: VC10-5; See page <a title="9.110.1" href="https://www.savery.co.uk/products/view/9-110-1">9.110.1</a>
Cavity Tool: CT10-5XX; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK10-5X-MMMM; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
Cap Vent Seal: Part No. 6003117
</div>

4-370-1-symbols

4-370-1-main-image

4-370-1-symbols-graphs-image

4-370-1-image-dimensions

A screw-in, cartridge-style, pilot-operated, spool-type, hydraulic directional valve which is open in transition, for three-way circuits requiring remote pilot operation.

24.03.28_BAR_Savery_2577

Bespoke Projects

<ul class="ul1">
<li class="li1">Bespoke lubrication systems for testing Aerospace propulsion using high temperature fluids and test article scavenge capability</li>
<li class="li1">Bespoke lubrication solution for testing Automotive EV components.</li>
<li class="li1">Bespoke assembly rigs for Aircraft landing gear with built in test facilities.</li>
<li class="li1">Bespoke pressure testing and flushing rigs for Aircraft assembly plants.</li>
<li class="li1">Purpose design test benches for fluid power components.</li>
<li class="li1">Ground support trolleys for production and field use for Aircraft testing.</li>
<li class="li1">Hydraulic ring mains for aircraft production and servicing.</li>
<li class="li1">Hydraulic Infrastructure for test houses.</li>
</ul>

Bespoke-Projects

140223Savery_154

140223Savery_175 (1)

Savery Hydraulics have a highly experienced team for fluid control for hydraulic, electronic control, installation and project management. Using this experience we have supported customers with a wide range of projects which are not traditionally considered hydraulic equipment. Some examples of bespoke projects we have successfully delivered are:-

Savery_2_comp

hero-bg

Hydraforce

Hydraforce products meet global quality standards including ISO 9001, QS 9000 and CE. Every Hydraforce valve, coil, solenoid, manifold and electro-hydraulic control goes through rigorous testing and inspection to perform beyond industry standards.

Savery offers one of the most comprehensive lines of hydraulic valves, solenoids and coils and is the UK distributor for the Hydraforce range of products for the mobile and industrial equipment markets, including high performance valves for flow rates of 0.4 to 530lpm and pressure up to 420 bar.

Tile_image

Savery_36_comp

Tile_backgorund_image_No_2

Hydraulic Control Systems

Tailored Solutions for Precision Control
Our in-house hardware and software design team is dedicated to delivering cost-effective and reliable solutions for a wide array of control system needs. From embedded microcontroller systems to large-scale machine controls, we excel in designing and developing systems that meet the most demanding specifications.
&nbsp;
Cloud-Based Monitoring for Seamless Access
We offer cloud-based system monitoring solutions that provide 24/7 access through smart phone or tablet apps, giving you real-time insights into your operations from anywhere.
&nbsp;
Industry-Leading Expertise
With extensive experience across various industries, including aerospace, automotive, wind turbine testing, marine, and industrial sectors, our engineers bring invaluable expertise to every project.

Hardware and Software Capabilities
Small-Scale Control Systems: We design cost-effective control systems in-house using bespoke electronic control boards giving you optimal performance for your specific needs.
Microchip Programming: We specialise in programming microchips for specialist applications in fluid power, providing tailored solutions for precise control.
Large-Scale Machine Control Systems: Our capabilities include designing dedicated Motor Control Centre (MCC) cabinets and implementing System Control and Data Acquisition (SCADA) plant monitoring for seamless operation of complex machinery.
Software Authoring: We are proficient in various software platforms, including:
<ul>
<li>Delta Motion Controllers </li>
<li>National Instruments LabView© </li>
<li>National Instruments LabWindows CVI© </li>
<li>PLCs: Allen Bradley, Siemens, Omron, Schneider, Bachmann, Koyo </li>
<li>HMI and SCADA Systems: Siemens, Schneider, Bachmann, Koyo </li>
</ul>

Cost-Effective Solutions, Tailored to Your Needs
Our deep understanding of different control systems enables us to select the most cost-effective platform to suit your systems development, ensuring you get the best value for your investment.
At Savery, we are committed to delivering innovative, reliable, and tailored solutions that optimise the performance of your hydraulic systems, empowering you to achieve your goals with precision and efficiency.
Get in touch with us today to discuss your project needs.

140223Savery_125

140223Savery_127

140223Savery_155

140223Savery_126

At Savery, we design and manufacture electronic systems that ensure the safe and efficient control and monitoring of hydraulic equipment. Our expertise lies in providing comprehensive control system solutions tailored to your specific requirements, with a focus on bespoke applications.

Hydraulic-Control-System

Savery_39_comp

24_03_28_BAR_Savery_3818

Hydraulic Control Systems

24.03.28_BAR_Savery_2711

Hydraulic Power Unit

Our power units vary from compact, fixed pump systems to intricate setups featuring multiple variable displacement pumps and energy-saving variable speed drive technology. These units can be equipped with control manifolds for basic relief unloading functions or complex hydraulic control circuitry, custom-made for your application.
We offer bespoke electrical control equipment that can manually or automatically control the power source, adhering to all current safety standards. This can be paired with simple condition monitoring for parameters such as flow, pressure, level, temperature, and fluid condition, or with advanced SCADA data recording for remote access via the cloud. This ensures safe and reliable 24/7 operation of equipment.
Our power units can include fluid reservoirs ranging from 10 litres to over 14,000 litres, with built-in bund containment to meet regulatory requirements.
With Savery, you’re in safe hands. We work with you from conception through design, project planning, installation, commissioning, and servicing to deliver a cost-effective and efficient hydraulic and control solution.
We have successfully completed projects in various industries, including:
<ul>
<li data-leveltext="" data-font="Symbol" data-listid="2" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="1" data-aria-level="1">Civil: Flood Barriers, Roll-on/Roll-off dock equipment </li>
<li data-leveltext="" data-font="Symbol" data-listid="2" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="2" data-aria-level="1">Marine: Ship Stabiliser, steering and deck equipment (with in-house 60 Hz testing capability) </li>
<li data-leveltext="" data-font="Symbol" data-listid="2" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="3" data-aria-level="1">Testing Infrastructure: Automotive, Aerospace, research and production component testing </li>
<li data-leveltext="" data-font="Symbol" data-listid="2" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="4" data-aria-level="1">Mechanical Handling: Large Scissor lifts </li>
<li data-leveltext="" data-font="Symbol" data-listid="2" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="5" data-aria-level="1">Defence and Security: Specialist equipment </li>
<li data-leveltext="" data-font="Symbol" data-listid="2" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="6" data-aria-level="1">Wind: Turbine Blade testing </li>
</ul>
Trust Savery Hydraulics for your hydraulic power needs.

Hydraulic-Power-Unit

At Savery Hydraulics, we specialise in the design and manufacture of hydraulic power units tailored to customer specifications. Our offerings range from single fractional power motors to multiple pump sets, with power installations up to 2 Mw.

Savery_11_comp

24.03.28_BAR_Savery_2719

24.03.28_BAR_Savery_4084

Savery custom manifolds can be designed as part of a new power unit or to enhance your existing equipment & machinery. Custom designed manifolds offer no-leak, screw-in components with fast and easy valve removal and replacement.

ManifoldAssembly

Our team of experienced engineers can simplify the most complex hydraulic circuits to reduce cost, improve reliability, minimise pipe work connections and the physical size &amp; weight of the solutions.
Custom manifold assemblies are:
<ul>
<li data-leveltext="" data-font="Symbol" data-listid="1" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="1" data-aria-level="1">Designed by our engineers in house using the latest 3D CAD software for integration into your product. </li>
<li data-leveltext="" data-font="Symbol" data-listid="1" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="2" data-aria-level="1">Designed utilising Hydraforce cartridge valves and a vast range of other manufacturer’s components to achieve the required performance. </li>
<li data-leveltext="" data-font="Symbol" data-listid="1" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="3" data-aria-level="1">Machined using modern CNC equipment with specialist tooling to ensure high quality. </li>
<li data-leveltext="" data-font="Symbol" data-listid="1" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="4" data-aria-level="1">Manufactured from aluminium, steel or stainless steel to meet system pressure, flow and application requirements. </li>
<li data-leveltext="" data-font="Symbol" data-listid="1" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="5" data-aria-level="1">Designed in conjunction with your engineers to ensure we meet your unique requirements and installation needs. </li>
<li data-leveltext="" data-font="Symbol" data-listid="1" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="6" data-aria-level="1">Supplied in a variety of sizes from small manifold blocks with cartridges capable of controlling low(a few litres per minute) flow rate up to large complex assemblies for hundreds of litres per minute. </li>
<li data-leveltext="" data-font="Symbol" data-listid="1" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="7" data-aria-level="1">Supplied fully assembled &amp; tested in our UK facility &amp; meeting the necessary ISO recommended guidelines for hydraulic cleanliness prior to dispatch. </li>
</ul>

Manifold-Assembly

24.03.28_BAR_Savery_2587

Savery custom manifolds can be designed as part of a new power unit or to enhance your existing equipment & machinery. Custom designed manifolds offer no-leak, screw-in components with fast and easy valve removal and replacement.

Manifold Assembly

For Product page (2) (1)

Contact Us

Savery hydraulic power packs and mini power packs are the culmination of many years of experience in manufacturing AC and DC power packs.

Small HydraulicPower Packs

The PB300 series of power units offer the latest design and features not normally associated with this type of unit. The units have a pressure up to 300 bar, which is achieved by the use of high specification materials. The centre adaptor can be machined to give a vast range of integral control options for single and double acting circuits.
Applications for this type of unit are numerous DC units for battery powered use include our tail lift packs and can be found on tippers, aerial access equipment and material handling trucks. AC units with power ratings from 0.25kW to 5.5kW have an even greater range of applications including the retail and service industry for the handling of goods &#8211; loading and unloading of vehicles and the lift industry for lifts installed in the home, disabled lifts and automotive assembly plants.
Savery has developed hydraulic power packs specifically for applications such as dock levellers, which provide a bridge between the loading bay and the truck being loaded or unloaded.
PB300 units have;
<ul>
<li>DC units 12V &amp; 24V / 0.2 – 3.5kW.</li>
<li>AC units 3 Phase &amp; 1 Phase / 0.25 – 5.5kW.</li>
<li>A vast range of control options for single and double acting circuits.</li>
<li>Advanced pressure die-cast aluminium centre adaptor.</li>
<li>The ability to eliminate porosity.</li>
</ul>
<img loading="lazy" decoding="async" class="alignnone size-full wp-image-5274" src="https://cms.savery.co.uk/wp-content/uploads/2024/03/E11-Logo.jpg" alt="" width="110" height="48" />

Small-Hydraulic-Power-Pack

Product page tile image (1)

Mini-packs-

Product_Page_Image

Savery offer a complete and comprehensive range of hydraulic power units, incorporating highly flexible, cost effective modular construction suited to both OEM and small users. The design of units for special applications is an important part of Savery’s marketing activities and our engineers can develop a unit to perfectly match our customer’s requirements.

Savery hydraulic power packs and mini power packs are the culmination of many years of experience in manufacturing AC and DC power packs.


Savery_34_comp

Small Hydraulic Power Packs

PD42-S50 Piloted 3-Way Spool (PD42-S50)

<div>
<h3>Product Operation</h3>
In neutral (unpiloted), the PD42-S50 allows flow from ➂ to ➁ bidirectionally, while flow is blocked at ➃On remote pilot signal at ➀, the valve shifts to open ➂ to ➃ while blocking ➁The spring chamber is vented to the tank through port ➄, which is common to the spring chamber. Pressure on port ➄ will directly (1:1) affect the pilot pressure required and must be added to the bias spring value.
</div>
<div>
<h3>Product Features</h3>
• Hardened spool and cage for long life.
• Optional open transition (ports ➁, ➂ and ➃).
</div>
<div>
<h3>Product Ratings</h3>
Maximum Operating Pressure: 345 bar (5000 psi)
Flow: See Performance Chart
Internal Leakage: 245 ml/minute (15 cu. in./minute) at 345 bar (5000 psi).
Temperature: -40 to 120°C with standard Buna seals
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>
Cavity: VC42-S5; See page <a title="9.142.1" href="https://www.savery.co.uk/products/view/9-142-1">9.142.1</a>
Cavity Tool: CT42-S5; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK42-S5X-BMMM; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
</div>

4-373-1-symbols

4-373-1-image-dimensions

4-373-1-main-image

4-373-1-symbols-graphs-image

A screw-in, cartridge-style, pilot-operated, spool-type, hydraulic directional valve for three-way circuits requiring remote pilot actuation.

PD16-S51 Piloted 3-Way Spool (PD16-S51)

<div class="product-info group">
<div>
<h3>Product Operation</h3>
When in neutral the PD16-S51 allows flow between ports 2, 3 and 4. On remote pilot signal at 1, the valve’s spool shifts to block all ports. The spring chamber is vented to the tank through port 5. The vented spring chamber allows the valve to be fully pres-surized at ports 1, 2, 3, and 4 without affecting required pilot pressure. Pressure at port 5 will affect required pilot pressure.
</div>
<div>
<h3>Product Features</h3>
• Hardened spool and cage for long life.
• 70, 90 and 140 psi bias springs available.
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure: 240 bar (3500 psi)
Flow: 0–151 lpm (0–40 gpm); See Performance Chart
Internal Leakage at 207 bar (3000 psi): 410 ml/minute (25 cu. in./minute) between ports 3 and 2. 820 ml/minute (50 cu. in./minute) between ports 3 and 4.
Pilot Pressure Required: 4.1 bar (60 psi) mimimum
Oil Volume Required to Full Shift: 1.83 cc (0.11 cu. in.)
Temperature: -40 to 120°C
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a> A 6-way body can be used for this valve by plugging body port 2 and using body ports 3, 4, 5 and 6 as ports 2, 3, 4 and 5 for the valve.
Cavity: VC16-S5; See page <a title="9.116.1" href="https://www.savery.co.uk/products/view/9-116-1">9.116.1</a>
Cavity Tool: CT16-S5XX; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK16-S5X-BMMM; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
</div>
</div>
<div class="product-related"> </div>

4-383-1-symbols

4-383-1-main-image

4-383-1-symbols-graphs-image

4-383-1-image-dimensions

A screw-in, cartridge-style, pilot-operated, spool-type, hydraulic directional valve.



PD16-S50 Piloted 3-Way Spool (PD16-S50)

<div class="product-info group">
<div>
<h3>Product Operation</h3>
When in neutral the PD16-S50 allows flow between ports 3 and 2 while blocking at 4. On remote pilot signal at 1, the valve’s spool shifts to allow flow between 3 and 4, while blocking at 5. The spring chamber is vented to the tank through port 5. The vented spring chamber allows the valve to be fully pressurized at ports 1, 2, 3, and 4 without affecting required pilot pressure. Pressure at port 5 will affect required pilot pressure.
</div>
<div>
<h3>Product Features</h3>
• Hardened spool and cage for long life.
• 50, 70, 100 and 150 psi bias springs available.
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure: 240 bar (3500 psi)
Flow: 0–170 lpm (0–45 gpm); See Performance Chart
Internal Leakage at 207 bar (3000 psi): 245 ml/minute (15 cu. in./minute);Zero leakage from port 1 to port 2 with sealed spool.
Temperature: -40 to 120°C
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a> A 6-way body can be used for this valve by plugging body port 2 and using body ports 3, 4, 5 and 6 as ports 2, 3, 4 and 5 for the valve.
Cavity: VC16-S5; See page <a title="9.116.1" href="https://www.savery.co.uk/products/view/9-116-1">9.116.1</a>
Cavity Tool: CT16-S5XX; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK16-S5X-BMMM; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
</div>
</div>

4-372-1-symbols

4-372-1-symbols-graphs-image

4-372-1-main-image

4-372-1-image-dimensions

A screw-in, cartridge-style, pilot-operated, spool-type, hydraulic directional valve.

PD12-S50 Piloted 3-Way Spool with Vented Spring (PD12-S50)

<div class="product-info group">
<div>
<h3>Product Operation</h3>
In neutral (unpiloted), the PD12-S50 allows flow from ➂ to ➁ bidirectionally, while flow is blocked at ➃On remote pilot signal at ➀, the valve shifts to open ➂ to ➃ while blocking ➁The spring chamber is vented to the tank through port ➄, which is, optionally, O-ring sealed from the cartridge flow paths. The vented spring chamber allows the valve to
be fully pressurized at ports ➀, ➁ and ➂ without affecting required pilot pressure. Pressure at ➄ will affect required pilot pressure.
</div>
<div>
<h3>Product Features</h3>
• Hardened spool and cage for long life.
• Optional sealed pilot and spring chamber.
</div>
<div>
<h3>Product Ratings</h3>
Maximum Operating Pressure: 241 bar (3500 psi)
Flow: See Performance Chart
Internal Leakage: 164 cc/minute (10 cu. in./minute) on all flow ports at maximum operating pressure. The sealed pilot version exhibits no leakage at ports ➀ and ➄ at maximum pressure.
Oil Volume Required to Full Shift: 1.07 cc (0.065 cu. in.)
Temperature: -40 to 120°C with standard Buna seals
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>
Cavity: VC12-S5; See page <a title="9.112.1" href="https://www.savery.co.uk/products/view/9-112-1">9.112.1</a>
Cavity Tool: CT12-S5; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK12-S5X-MMMM; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
</div>
</div>
<div class="product-related"> </div>

4-371-1-symbols

4-371-1-image-dimensions

4-371-1-symbols-graphs-image

4-371-1-main-image

PD10-51 Piloted 3-Way Spool (PD10-51)

<div>
<h3>Product Operation</h3>
When in neutral the PD10-51 allows flow between ports 2, 3 and 4. On remote pilot signal at 1, the valve’s spool shifts to block all ports. The spring chamber is vented to the tank through port 5. The vented spring chamber allows the valve to be fully pres-surized at ports 1, 2, 3, and 4 without affecting required pilot pressure. Pressure at port 5 will affect required pilot pressure.
</div>
<div>
<h3>Product Features</h3>
• Hardened spool and cage for long life.
• 150 and 250 psi bias springs available.
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure: 240 bar (3500 psi)
Flow: 0–45 lpm (0–12 gpm); See Performance Chart
Internal Leakage at 241 bar (3500 psi): 164 ml/minute (10 cu. in./minute). Zero leakage from port 1 to 2 with sealed spool.
Temperature: -40 to 120°C
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>
Cavity: VC10-5; See page <a title="9.110.1" href="https://www.savery.co.uk/products/view/9-110-1">9.110.1</a>
Cavity Tool: CT10-5XX; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK10-5X-BMMM; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
</div>

4-380-1-symbols

4-380-1-image-dimensions

4-380-1-symbols-graphs-image

4-380-1-main-image

HPD42-S52 HyPerformance (HPD42-S52)

<div>
<h3>Product Operation</h3>
When in neutral the HPD42-S52 blocks flow between all ports. On remote pilot signal at 1, the valve’s spool shifts to allow flow between ports 2, 3 and 4. The spring chamber is vented to the tank through port 5. The vented spring chamber allows the valve to be fully pressurized at ports 1, 2, 3, and 4 without affecting required pilot pressure. Pressure at port 5 will increase the required pilot pressure at a 1:1 ratio.
</div>
<div>
<h3>Product Features</h3>
•
Hardened spool and cage for long life.• All HyPerformance™ products are tested to the rigorous standards of the NFPA specification T<a title="2.6.1" href="https://www.savery.co.uk/products/view/2-6-1">2.6.1</a>.• All HyPerformance™ valves are tested at a verification level of 90% and an assurance of 99%.
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure: 350 bar (5075 psi); 10% cycle life: 420 bar (6090 psi)Note: All HyPerformance™ products are tested for 900K cycles at 350 bar and 100K at 420 bar.
Proof Pressure: 690 bar (10000 psi)
Burst Pressure: 1380 bar (20000 psi)
Flow Rating: Maximum total input flow 265 lpm (70 gpm)
Internal Leakage: 328 ml/minute (20 cu. in./minute) at 350 bar (5075 psi)
Operating Temperature: -54 to 107°C (-65 to 225°F) with PPDI urethane seals
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>
Cavity: HVC42-S5; See page <a title="9.142.1" href="https://www.savery.co.uk/products/view/9-142-1">9.142.1</a>
Cavity Tool: HCT42-5XX; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: HSK42-S5U-0000 (Urethane); See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
</div>

4-384-3-symbols

4-384-3-main-image

4-384-3-image-dimensions

4-384-3-symbols-graphs-image

A screw-in, cartridge-style, pilot-operated, spool-type, hydraulic directional valve for use in high pressure applications.

HPD42-S51 HyPerformance (HPD42-S51)

<div>
<h3>Product Operation</h3>
When in neutral the HPD42-S51 allows flow between ports 2, 3 and 4. On remote pilot signal at 1, the valve’s spool shifts to block all ports. The spring chamber is vented to the tank through port 5. The vented spring chamber allows the valve to be fully pressurized at ports 1, 2, 3, and 4 without affecting required pilot pressure. Pressure at port 5 will increase the required pilot pressure at a 1:1 ratio.
</div>
<div>
<h3>Product Features</h3>
•
Hardened spool and cage for long life.• All HyPerformance™ products are tested to the rigorous standards of the NFPA specification T<a title="2.6.1" href="https://www.savery.co.uk/products/view/2-6-1">2.6.1</a>.• All HyPerformance™ valves are tested at a verification level of 90% and an assurance of 99%.
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure: 350 bar (5075 psi); 10% cycle life: 420 bar (6090 psi)Note: All HyPerformance products are tested for 900K cycles at 350 bar and 100K at 420 bar.
Proof Pressure: 690 bar (10000 psi)
Burst Pressure: 1380 bar (20000 psi)
Flow: With PPDI urethane seals up to 265 lpm (70 gpm) with no flow restrictions. With seal option US (PPDI urethane with sealed spool between ports 1 and 2) up to 246 lpm (65 gpm) with flow restrictions from ports 2-3 and 3-4 up to 114 lpm (30 gpm).
Internal Leakage: Ports 3-4: 328 ml/minute (20 cu. in./minute) at 350 bar (5075 psi) Ports 3-2: 492 ml/minute (30 cu. in./minute) at 350 bar (5075 psi)
Cycle Life: One million cycles.
Operating Temperature: -54 to 107°C (-65 to 225°F) with PPDI urethane seals
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>
Cavity: HVC42-S5; See page <a title="9.142.1" href="https://www.savery.co.uk/products/view/9-142-1">9.142.1</a>
Cavity Tool: HCT42-5XX; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: HSK42-S5U-0000 (Urethane); See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
</div>

4-383-5-symbols

4-383-5-symbols-graphs-image

4-383-5-main-image

4-383-5-image-dimensions

HPD42-S50 HyPerformance (HPD42-S50)

<div>
<h3>Product Operation</h3>
When in neutral, the HPD42-S50 allows flow between ports 3 and 2 bidirectionally while port 4 is blocked. On remote pilot signal at 1, the valve’s spool shifts to block port 2 while opening flow between ports 3 and 4 bidirectionally. The spring chamber is vented to the tank through port 5. The vented spring chamber allows the valve to be fully pressurized at ports 1, 2, 3, and 4 without affecting required pilot pressure at port 5. Pressure at port 5 will increase the required pilot pressure at a 1:1 ratio.
</div>
<div>
<h3>Product Features</h3>
•
Hardened spool and cage for long life.• All HyPerformance™ products are tested to the rigorous standards of the NFPA specification T<a title="2.6.1" href="https://www.savery.co.uk/products/view/2-6-1">2.6.1</a>.• All HyPerformance™ valves are tested at a verification level of 90% and an assurance of 99%.
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure: 350 bar (5075 psi); 10% cycle life: 420 bar (6090 psi)Note: All HyPerformance products are tested for 900K cycles at 350 bar and 100K at 420 bar.
Fatigue Rating: Two million cycles at 420 bar (6090 psi)
Proof Pressure: 690 bar (10000 psi)
Burst Pressure: 1380 bar (20000 psi)
Flow Rating: 265 lpm (70 gpm) with seal options N, V and U. 246 lpm (65 gpm) with seal options NS, VS and US.
Maximum Internal Leakage: 350 bar (5075 psi) at 32 cSt.HPD42-S50:Ports 3-4: 328 ml/min. (20 cu.in./min.)Ports 3-2: 492 ml/min. (30 cu.in./min.) Pilot Pressure 350 bar (5075 psi)HPD42-S50N: Ports 3-4: 410 ml/min. (25 cu.in./min.)Ports 3-2: 655 ml/min. (40 cu.in./min.) Pilot Pressure 350 bar (5075 psi)
Operating Temperature: -54° to 107°C (-65° to 225°F) with PPDI urethane seals
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>
Cavity: HVC42-S5; See page <a title="9.142.1" href="https://www.savery.co.uk/products/view/9-142-1">9.142.1</a>
Cavity Tool: HCT42-S5XX; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>.
Seal Kit: HSK42-S5U-0000 (Urethane); See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>.
</div>

4-373-3-symbols

4-373-3-image-dimensions

4-373-3-symbols-graphs-image

4-373-3-main-image

A high pressure, screw-in, cartridge-style, pilot-operated, spool-type, hydraulic directional valve.

HPD16-S51 HyPerformance (HPD16-S51)

<div>
<h3>Product Operation</h3>
When in neutral the HPD16-S51 allows flow between ports 2, 3 and 4. On remote pilot signal at 1, the valve’s spool shifts to block all ports. The spring chamber is vented to the tank through port 5. The vented spring chamber allows the valve to be fully pressurized at ports 1, 2, 3, and 4 without affecting required pilot pressure. Pressure at port 5 will increase the required pilot pressure at a 1:1 ratio.
</div>
<div>
<h3>Product Features</h3>
•
Hardened spool and cage for long life.• All HyPerformance™ products are tested to the rigorous standards of the NFPA specification T<a title="2.6.1" href="https://www.savery.co.uk/products/view/2-6-1">2.6.1</a>.• All HyPerformance™ valves are tested at a verification level of 90% and an assurance of 99%.
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure: 350 bar (5075 psi); 10% cycle life: 420 bar (6090 psi)Note: All HyPerformance™ products are tested for 900K cycles at 350 bar and 100K at 420 bar.
Proof Pressure: 690 bar (10000 psi)
Burst Pressure: 1380 bar (20000 psi)
Flow: Up to 151 lpm (40 gpm) with PPDI urethane seals and no flow restriction; up to 151 lpm (40 gpm) with seales spool between ports 1 and 2 and restricted flow between ports 2 and 3 and 3 and 4 up to 95 lpm (25 gpm) maximum.
Internal Leakage: 350 bar (5075 psi) at 32 cSt. Ports 3 to 4: 492 ml/min (30 cu.in./min); Ports 3 to 2: 655 ml/min (40 cu.in./min); Pilot Pressure: 350 bar (5075 psi).
Operating Temperature: -54 to 107°C (-65 to 225°F) with PPDI urethane seals
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>
Cavity: HVC16-S5; See page <a title="9.116.1" href="https://www.savery.co.uk/products/view/9-116-1">9.116.1</a>
Cavity Tool: HCT16-5XX; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: HSK16-S5U-0000 (Urethane); See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
</div>

PD10-50 Piloted 3-Way Spool (PD10-50)

Product Operation

Product Features

Product Ratings

PD42-S50 Piloted 3-Way Spool (PD42-S50)

PD16-S51 Piloted 3-Way Spool (PD16-S51)

PD16-S50 Piloted 3-Way Spool (PD16-S50)

PD12-S50 Piloted 3-Way Spool with Vented Spring (PD12-S50)

PD10-51 Piloted 3-Way Spool (PD10-51)

PD10-50 Piloted 3-Way Spool (PD10-50)

HPD42-S52 HyPerformance (HPD42-S52)

HPD42-S51 HyPerformance (HPD42-S51)

HPD42-S50 HyPerformance (HPD42-S50)

HPD16-S51 HyPerformance (HPD16-S51)

Savery also offer

Bespoke Projects

Hydraforce

Hydraulic Control Systems

Hydraulic Power Unit

Manifold Assembly

Small Hydraulic Power Packs
