HPD42-S50 HyPerformance (HPD42-S50)
A high pressure, screw-in, cartridge-style, pilot-operated, spool-type, hydraulic directional valve.
Product Operation

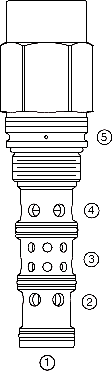

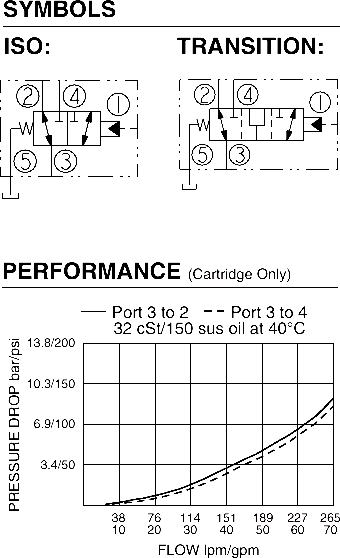

When in neutral, the HPD42-S50 allows flow between ports 3 and 2 bidirectionally while port 4 is blocked. On remote pilot signal at 1, the valve’s spool shifts to block port 2 while opening flow between ports 3 and 4 bidirectionally. The spring chamber is vented to the tank through port 5. The vented spring chamber allows the valve to be fully pressurized at ports 1, 2, 3, and 4 without affecting required pilot pressure at port 5. Pressure at port 5 will increase the required pilot pressure at a 1:1 ratio.
Product Features
•
Hardened spool and cage for long life.• All HyPerformance™ products are tested to the rigorous standards of the NFPA specification T2.6.1.• All HyPerformance™ valves are tested at a verification level of 90% and an assurance of 99%.
Product Ratings
Operating Pressure: 350 bar (5075 psi); 10% cycle life: 420 bar (6090 psi)Note: All HyPerformance products are tested for 900K cycles at 350 bar and 100K at 420 bar.
Fatigue Rating: Two million cycles at 420 bar (6090 psi)
Proof Pressure: 690 bar (10000 psi)
Burst Pressure: 1380 bar (20000 psi)
Flow Rating: 265 lpm (70 gpm) with seal options N, V and U. 246 lpm (65 gpm) with seal options NS, VS and US.
Maximum Internal Leakage: 350 bar (5075 psi) at 32 cSt.HPD42-S50:Ports 3-4: 328 ml/min. (20 cu.in./min.)Ports 3-2: 492 ml/min. (30 cu.in./min.) Pilot Pressure 350 bar (5075 psi)HPD42-S50N: Ports 3-4: 410 ml/min. (25 cu.in./min.)Ports 3-2: 655 ml/min. (40 cu.in./min.) Pilot Pressure 350 bar (5075 psi)
Operating Temperature: -54° to 107°C (-65° to 225°F) with PPDI urethane seals
Filtration: See page 9.010.1
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page 9.060.1
Installation: No restrictions; See page 9.020.1

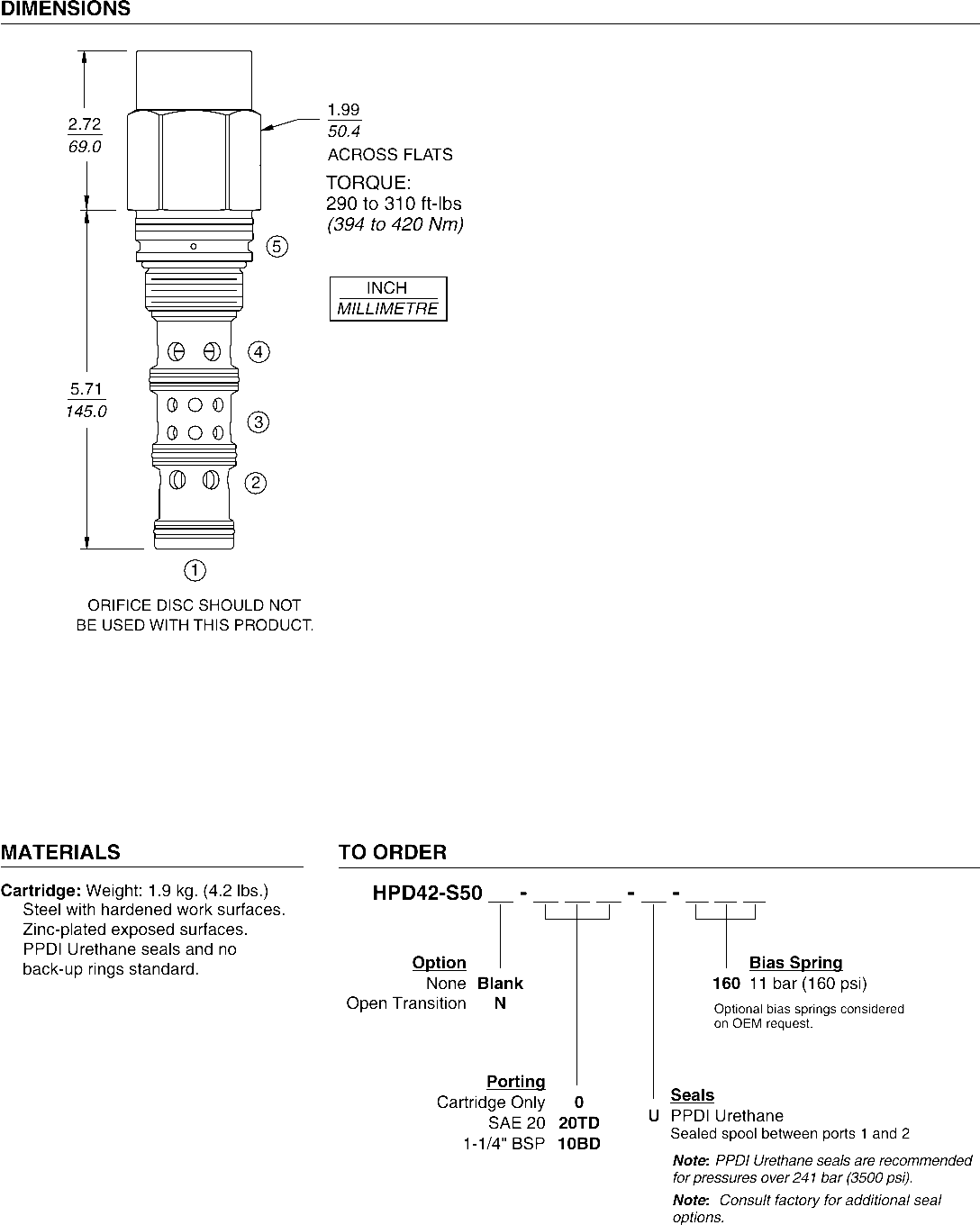

Cavity: HVC42-S5; See page 9.142.1
Cavity Tool: HCT42-S5XX; See page 8.600.1.
Seal Kit: HSK42-S5U-0000 (Urethane); See page 8.650.1.
