Load Shuttle Valves

LSV1 Load Shuttle, Ball-Type (LSV1)

<div>
<h3>Product Operation</h3>
The LSV1 will allow flow from the higher pressure of ➀ or ➂ to ➁The valve is commonly used to direct oil from the pressure side of a bidirectional
hydraulic motor to a pressure-released hydraulic brake.
</div>
<div>
<h3>Product Features</h3>
• Hardened seat for long life and low leakage.• Rapid response to load direction changes.• Compact size.
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure: 240 bar (3500 psi)
Flow: See Performance Chart
Internal Leakage: 0.25 cc/minute (5 drops/minute) max. at 207 bar (3000 psi)
Temperature: -40 to 120°C with standard Buna seals
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions
Seal Kit: Non-serviceable
</div>

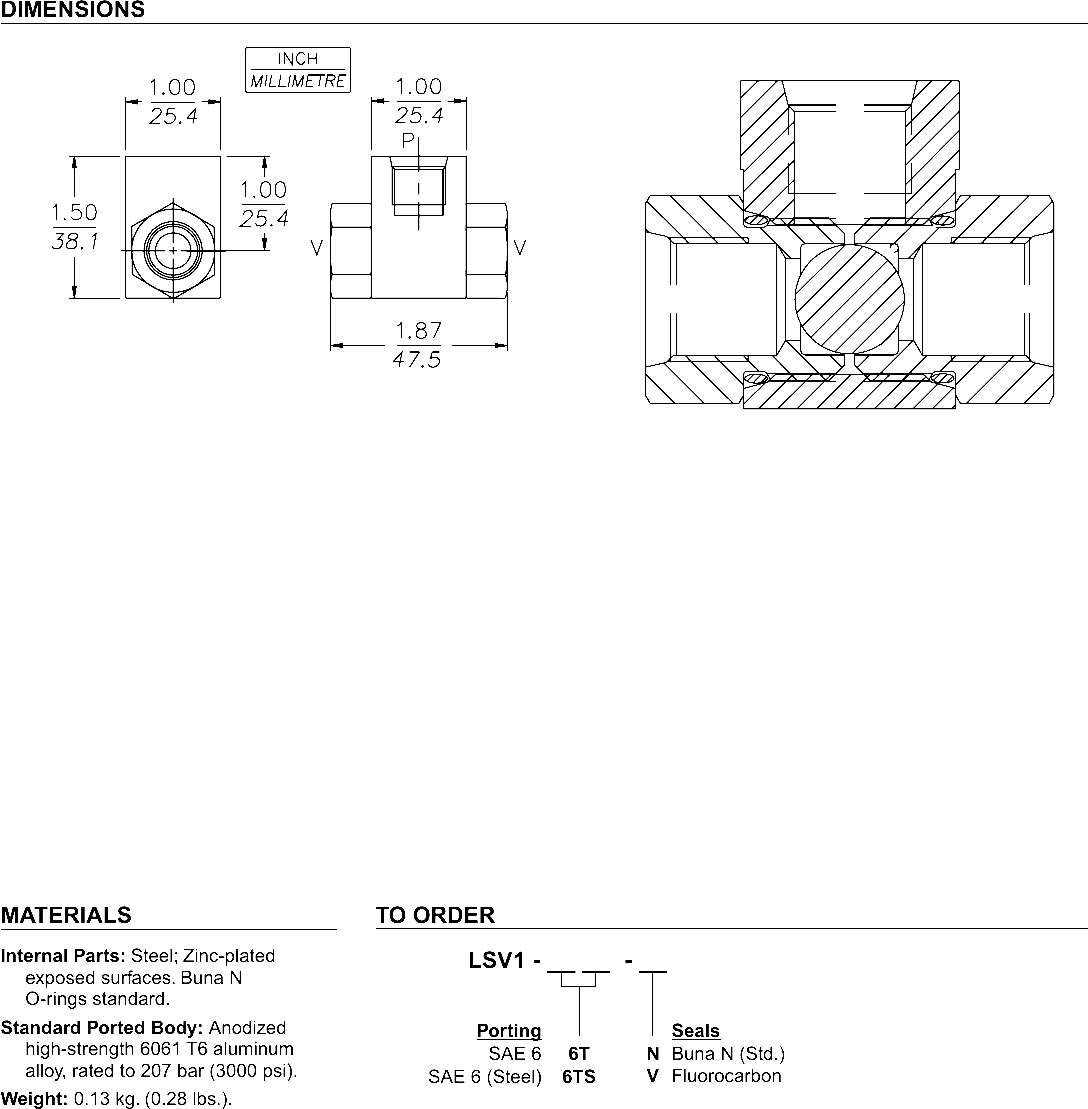

4-260-1-symbols

4-260-1-image-dimensions

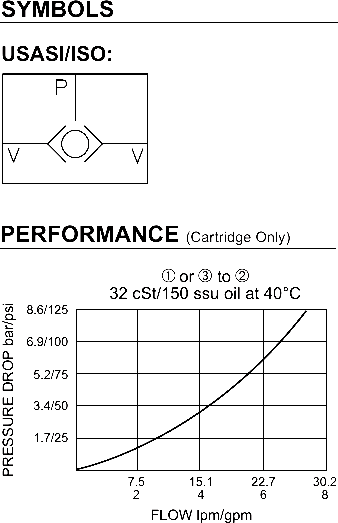

4-260-1-symbols-graphs-image

4-260-1-main-image

An in-line plumbed, low leak, load-shuttling hydraulic check valve for use as a directional selector.
