Load Shuttle Valves

HLS06-30 HyPerformance (HLS06-30)

<div>
<h3>Product Operation</h3>
The HLS06-30 will allow flow from the higher pressure port 1 or 3 to port 2.
The valve is commonly used to direct oil from the pressure side of a bidirectional hydraulic motor to a pressure-released hydraulic brake.
</div>
<div>
<h3>Product Features</h3>
• Rapid response to load direction changes.• Compact size.• Lower pressure drop.• Reduced space claim and smaller hydraulic &#8220;footprint&#8221;.
• All HyPerformance™ products are tested to the rigorous standards of NFPA specification T<a title="2.6.1" href="https://www.savery.co.uk/products/view/2-6-1">2.6.1</a> to a verification level of 90% and an assurance of 99%.
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure: 350 bar (5075 psi); 10% cycle life: 420 bar (6090 psi)
Proof Pressure: 690 bar (10000 psi)
Burst Pressure: 1380 bar (20000 psi)
Flow: 7.6 lpm (2 gpm)
Internal Leakage: 0.10 cc/minute (2 drops/minute) max. at 350 bar (5075 psi)
Temperature: -40 to 100°C (-40 to 212°F) with Buna seals;-26 to 204°C (-15 to 400°F) with Viton seals; -54 to 107°C (-65 to 225°F) with PPDI Urethane seals
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>
Cavity: HVC06-3; See page <a title="9.106.1" href="https://www.savery.co.uk/products/view/9-106-1">9.106.1</a>
Cavity Tool: HCT06-3XX; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: HSK06-3X-MM; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
</div>

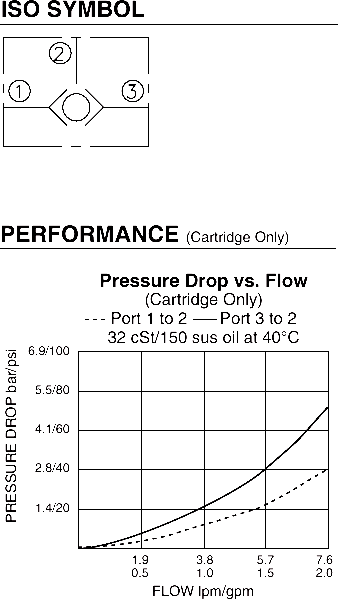

4-266-1-symbols

4-266-1-image-dimensions

4-266-1-symbols-graphs-image

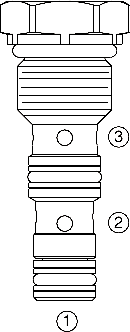

4-266-1-main-image
