Load Shuttle Valves

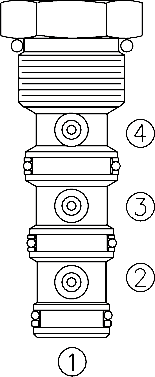

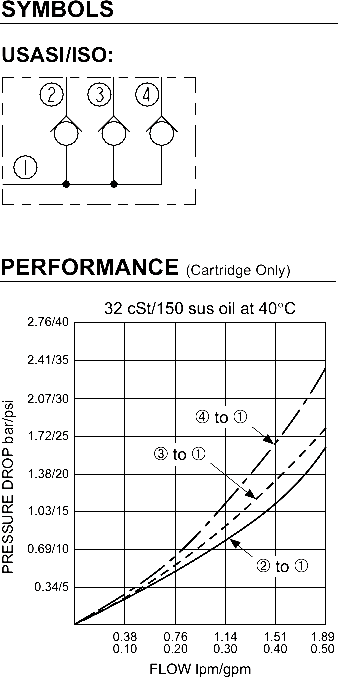

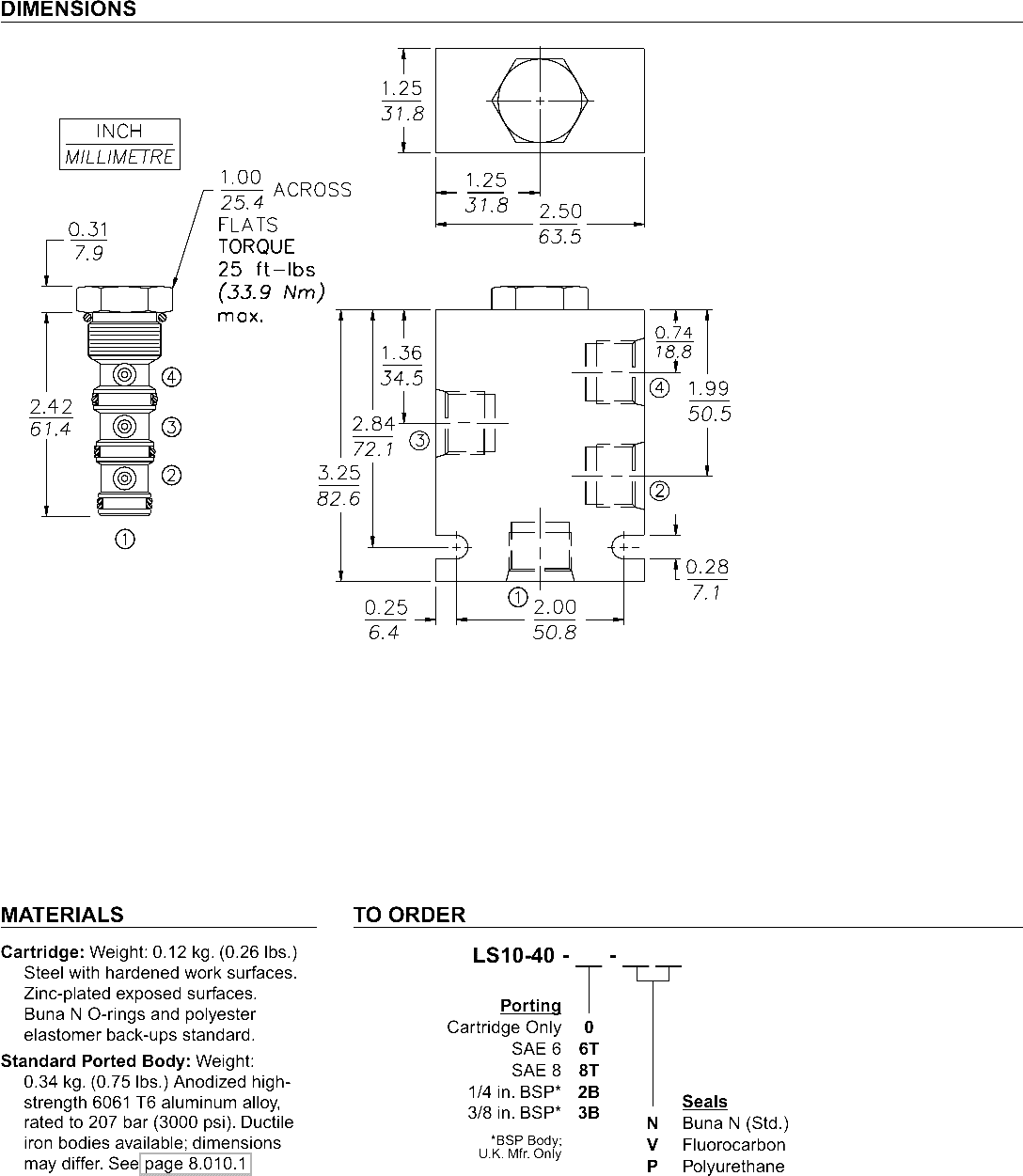

LS10-40 Load Shuttle Network (LS10-40)

<div class="product-info group">
<div>
<h3>Product Operation</h3>
The LS10-40 will compare pressures from three circuits to provide a pressure signal
from the highest pressure circuit, while blocking the other circuits.
The valve will allow flow from the highest pressure port (➃, ➂ or ➁) to port ➀
</div>
<div>
<h3>Product Features</h3>
• Industry common cavity.
• Hardened seat for long life and low leakage.
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure: 240 bar (3500 psi)
Flow: 1.89 lpm (0.5 gpm); See performance chart
Internal Leakage: 0.15 ml/minute (2 drops/minute) at 240 bar (3500 psi)
Temperature: –40 to 120°C with standard Buna seals
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>
Cavity: VC10-4; See page <a title="9.110.1" href="https://www.savery.co.uk/products/view/9-110-1">9.110.1</a>
Cavity Tool: CT10-4XX-X-X; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK10-4X-MMM; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
</div>
</div>
<div class="product-related"> </div>

4-280-1-symbols

4-280-1-image-dimensions

4-280-1-main-image

4-280-1-symbols-graphs-image

A cartridge-style check valve network for use in hydraulic load-sense circuits.

24.03.28_BAR_Savery_2577
