Load Shuttle Valves

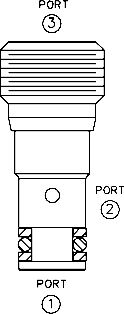

LS04-B30 (LS04-B30)

<div>
<h3>Product Operation</h3>
The LS04-B30 will allow flow from the higher pressure of ➀ or ➂ port to the ➁ port.The valve is commonly used to direct oil from the pressure side of a bidirectional
hydraulic motor to a pressure-released hydraulic brake. It can also be used as a
load-sense signaling valve.
</div>
<div>
<h3>Product Features</h3>
• Rapid response to load direction changes.• Miniature size.
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure: 240 bar (3500 psi)
Flow: See Performance Chart
Internal Leakage: 0.25 cc/minute (5 drops/minute) max. at 207 bar(3000 psi)
Temperature: -40 to 120°C with standard Buna seals
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>
Cavity: VC04-B3; See page <a title="9.104.1" href="https://www.savery.co.uk/products/view/9-104-1">9.104.1</a>
Cavity Tool: CT04-B3XX; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK04-B3X-M; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
</div>

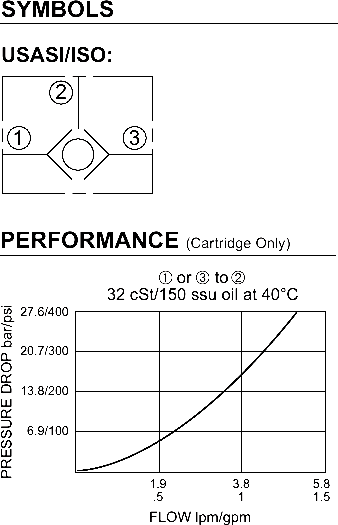

4-265-1-symbols

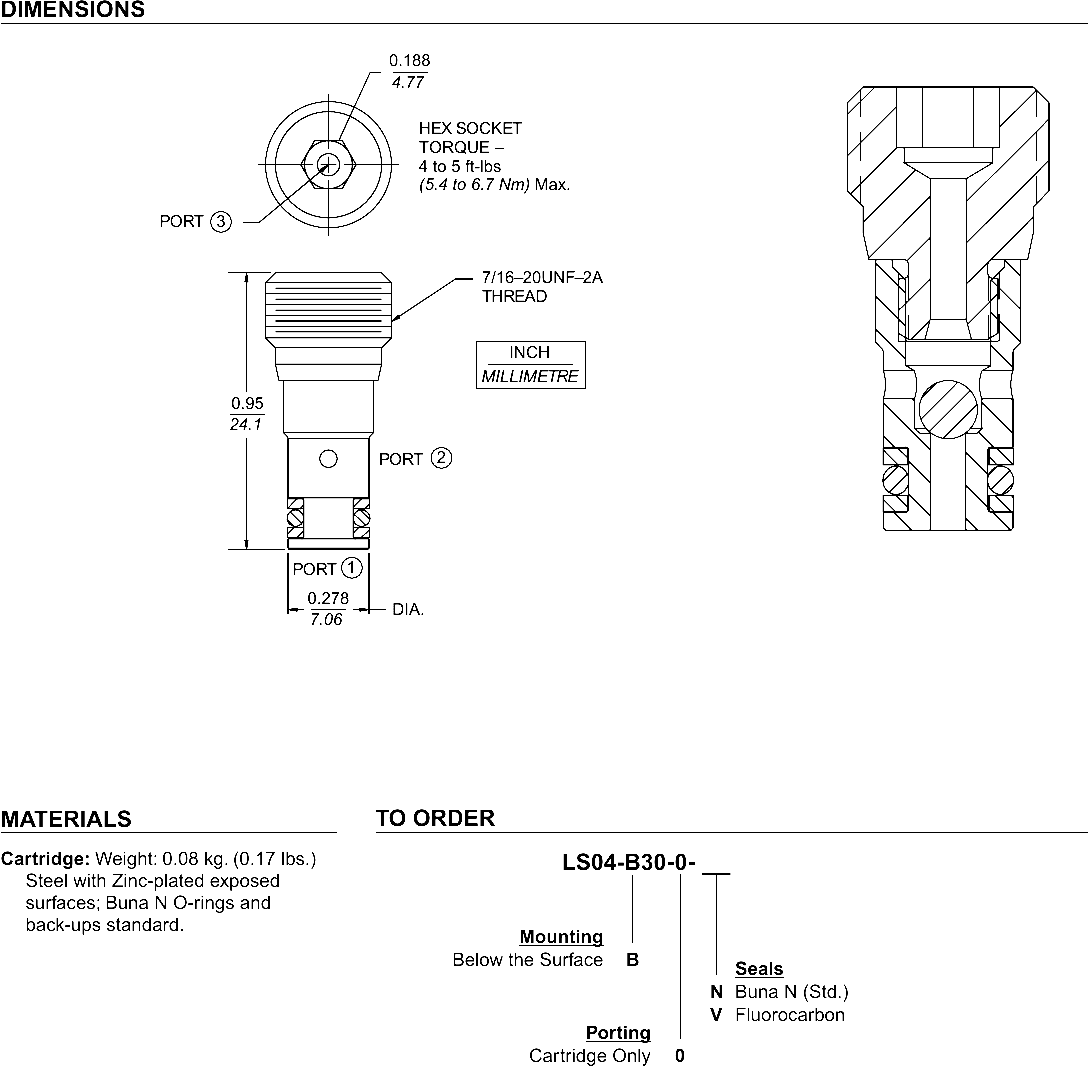

4-265-1-image-dimensions

4-265-1-symbols-graphs-image

4-265-1-main-image

A load-shuttling, screw-in, cartridge-style hydraulic check valve, for use in blocking circuits where a priority of flow/direction is given to a higher pressure circuit over a lower one.
