Load Shuttle Valves

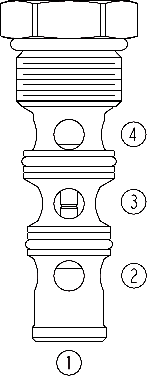

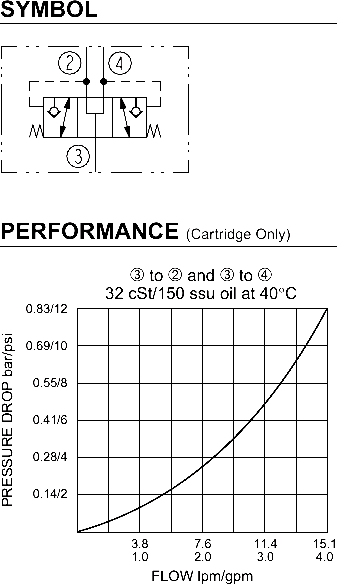

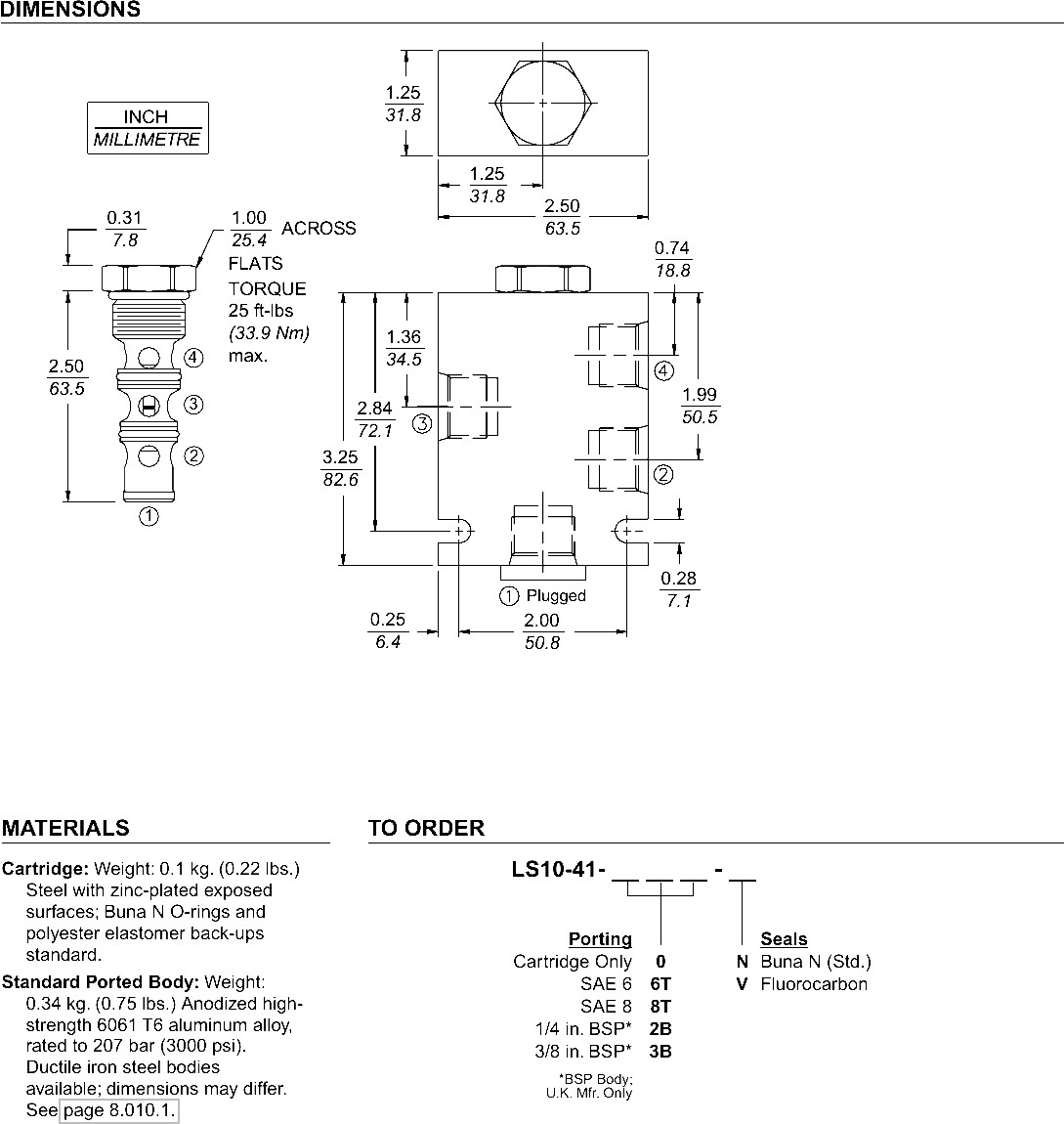

LS10-41 Inverted Shuttle Valve (LS10-41)

<div>
<h3>Product Operation</h3>
If one accumulator fails, the LS10-41 will shift over to protect the good one. All ports
are connected in neutral. When pressure at one of the two load ports exceeds the
other, the poppets shuttle to allow bi-directional flow between other two ports. Typical
applications include braking and steering circuits.
Note: Port ➀ should be blocked.
</div>
<div>
<h3>Product Features</h3>
• Hardened work surfaces.• Industry common cavity.
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure: 240 bar (3500 psi)
Flow: 15.1 lpm (4 gpm); See Performance Chart
Internal Leakage: 0.15 ml per minute (3 drops per minute)
Temperature: -40 to 120°C with standard Buna seals
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>
Cavity: VC10-4; See page <a title="9.110.1" href="https://www.savery.co.uk/products/view/9-110-1">9.110.1</a>
Cavity Tool: CT10-4XX; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK10-4X-TBX; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
</div>

4-281-1-symbols

4-281-1-image-dimensions

4-281-1-main-image

4-281-1-symbols-graphs-image

A screw-in, cartridge-style inverted shuttle valve, which can be used to help protect against brake or steering failure in the event of loss of pressure in either one of two accumulators.
