PS50-36 Pilot-Operated Sequence, Internal Pilot , (PS50-36)

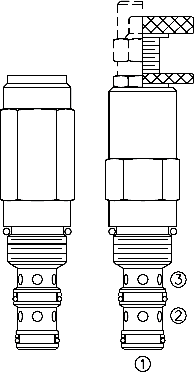

A screw-in, cartridge-style, direct-acting, spool-type, hydraulic sequence valve with internal pilot and spring chamber drain.
Product Operation
In its steady state, the PS50-36 blocks flow from ➀ to ➁, with the spring chamber drained at ➂On attainment of a predetermined pressure at ➀, the cartridge shifts to open ➀ to ➁Note that back-pressure on ➂ adds to the spring setting value.
Product Features
• Adjustments cannot be backed out of the valve.
• Adjustments prohibit springs from going solid.
• Spring range to 331 bar (4800 psi).
• Hardened spool and cage for long life.
• Industry common cavity.
Product Ratings
Operating Pressure: 331 bar (4800 psi) on ports ➀ and ➁; 240 bar (3500 psi) on port ➂
Sequence Pressure Max.: 331 bar (4800 psi)

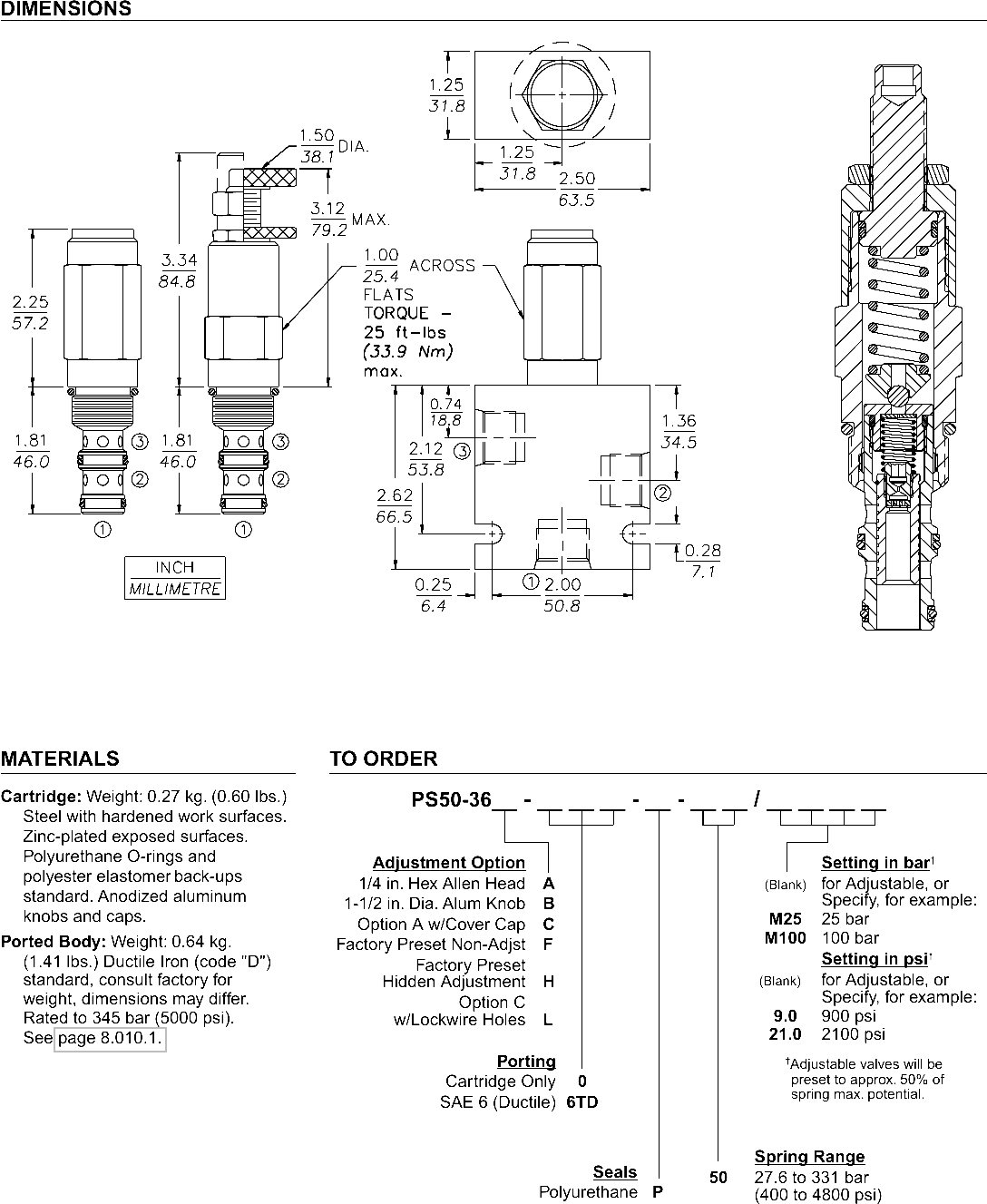

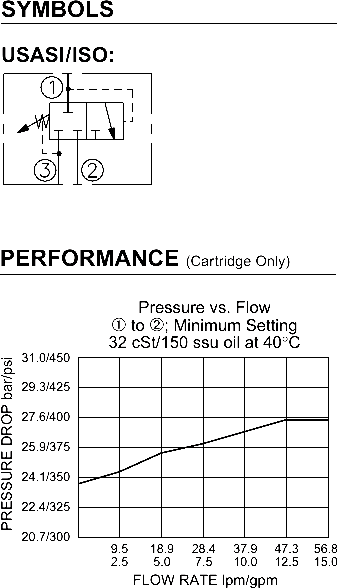

Flow: See Performance Chart
Internal Leakage: 82 cc/minute (5 cu. in./minute) max. to 85% of nominal setting
Pilot Orifi ce: Pilot-operated through 0.51 mm (0.20 inch) hole
Crack Pressure Defi ned: bar (psi) evident at 0.95 lpm (0.25 gpm) attained ➀ to ➁
Standard Spring Range: 27.6 to 331 bar (400 to 4800 psi)
Temperature: -40 to 120°C with standard Buna seals
Filtration: See page 9.010.1
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page 9.060.1
Installation: No restrictions; See page 9.020.1
Cavity: VC10-3; See page 9.110.1
Cavity Tool: CT10-3XX; See page 8.600.1
Seal Kit: SK10-3P-BM; See page 8.650.1
