PS08-35 Sequence, External Pilot, Internal Drain (PS08-35)

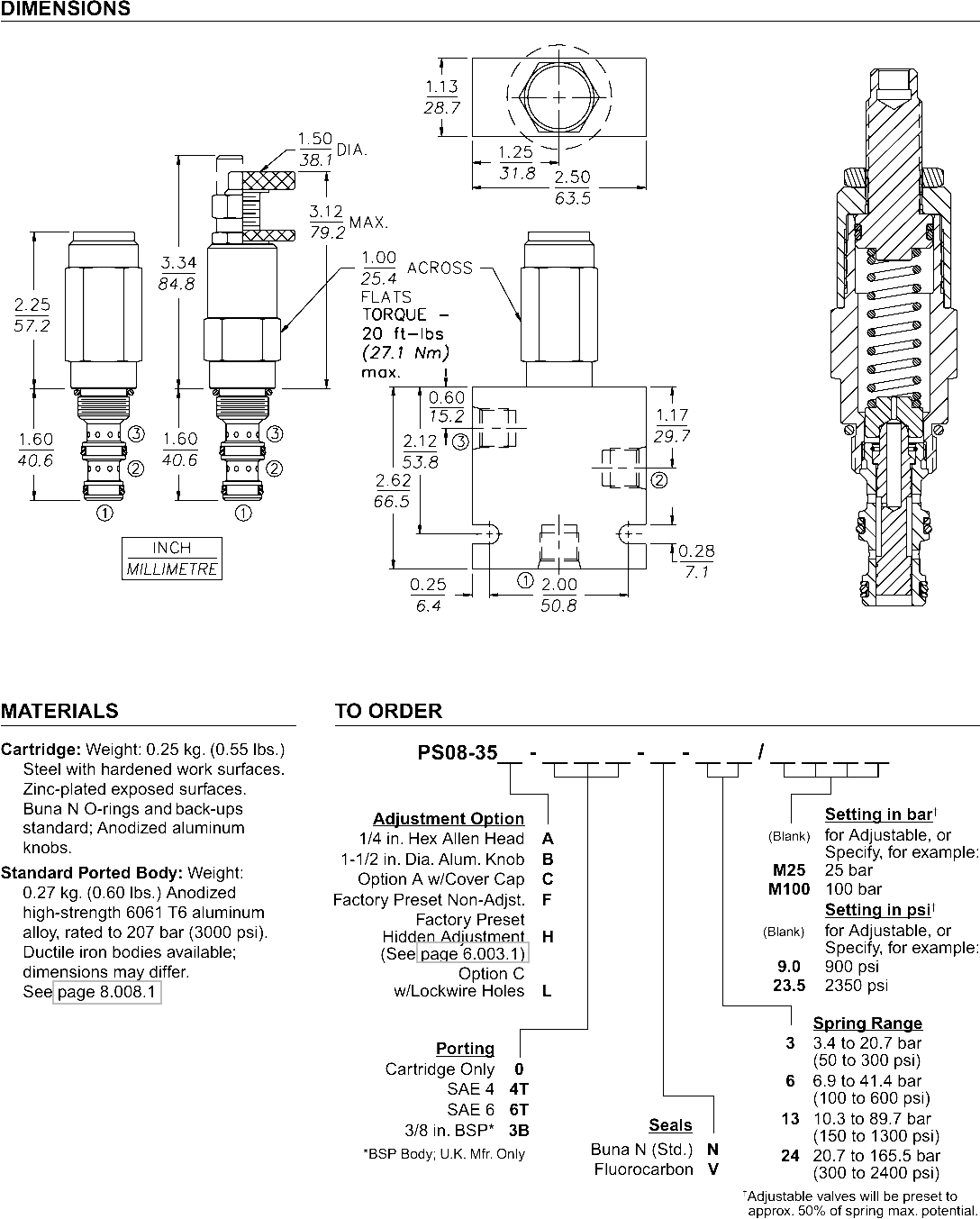

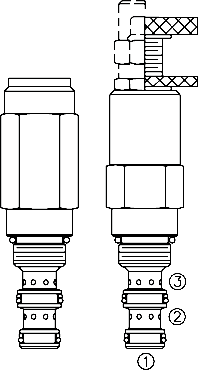

A screw-in, cartridge-style, direct-acting, spool-type, hydraulic sequence valve with external pilot and internal spring chamber drain.
Product Operation
In its steady state, the PS08-35 allows flow from ➁ to ➂On attainment of a pre-determined pressure at ➀, the cartridge shifts to close ➁ to ➂Since the spring chamber is vented at ➂, back pressure at ➂ will directly (1:1) affect the valve’s setting.
Product Features
• Adjustments cannot be backed out of the valve.
• Adjustments prohibit springs from going solid.
• Optional spring ranges to 165.5 bar (2400 psi).
• Hardened spool and cage for long life.
• Compact size.
Product Ratings
Operating Pressure: 240 bar (3500 psi)

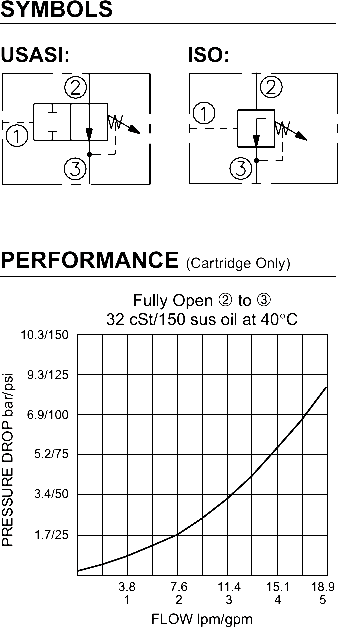

Flow: See Performance Chart
Internal Leakage: 82 cc/minute (5 cu. in./minute) max. at full close
Standard Spring Ranges: 3.4 to 20.7 bar (50 to 300 psi); 6.9 to 41.4 bar (100 to 600 psi); 10.3 to 89.7 bar (150 to 1300 psi); 20.7 to 165.5 bar (300 to 2400 psi)
Temperature: -40 to 120°C with standard Buna seals
Filtration: See page 9.010.1
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page 9.060.1
Installation: No restrictions; See page 9.020.1
Cavity: VC08-3; See page 9.108.1
Cavity Tool: CT08-3XX; See page 8.600.1
Seal Kit: SK08-3X-BM; See page 8.650.1
