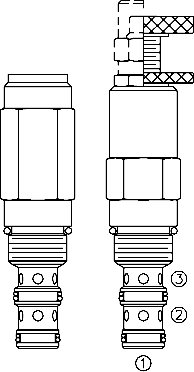

PS10-35 Sequence, External Pilot, Internal Drain (PS10-35)

A screw-in, cartridge-style, direct-acting, spool-type, hydraulic sequence valve with external pilot and internal spring chamber drain.

Product Operation

In its steady state, the PS10-35 allows flow from ➁ to ➂On attainment of a pre-determined pressure at ➀, the cartridge shifts to close ➁ to ➂Since the spring chamber is vented at ➂, back pressure at ➂ will directly (1:1) affect the valve’s setting.

Product Features

• Adjustments cannot be backed out of the valve.
 Adjustments prohibit springs from going solid.
 Hardened spool and cage for long life.
 Compact size.

Product Ratings

Operating Pressure: 138 bar (2000 psi)

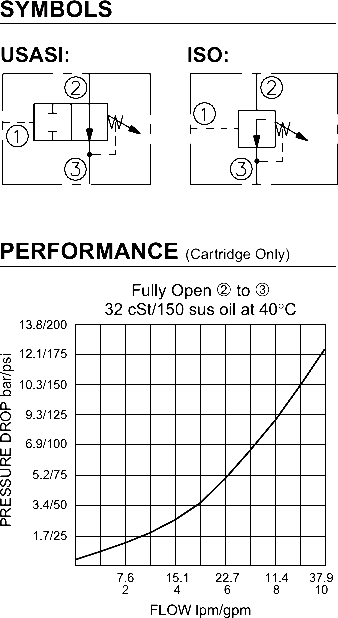

Flow: See Performance Chart
Internal Leakage: 82 cc/minute (5 cu. in./minute) max. at full close
Standard Spring Ranges: 6.9 to 138 bar (100 to 2000 psi)
Temperature: -40 to 120°C with standard Buna seals
Filtration: See page 9.010.1
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page 9.060.1
Installation: No restrictions; See page 9.020.1

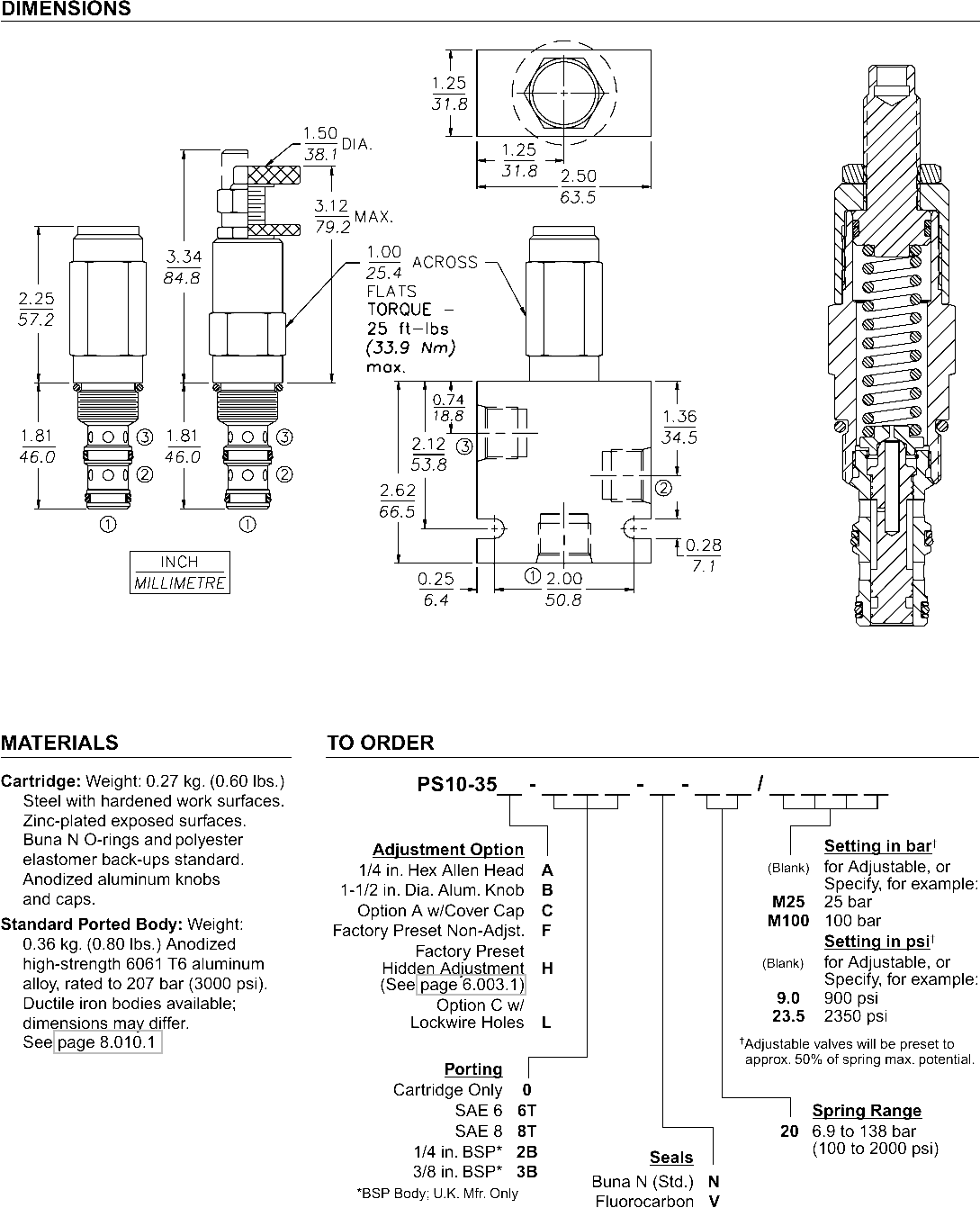

Cavity: VC10-3; See page 9.110.1
Cavity Tool: CT10-3XX; See page 8.600.1
Seal Kit: SK10-3X-BM; See page 8.650.1
