PS10-36 Pilot-Operated Sequence, Internal Pilot , (PS10-36)
A screw-in, cartridge-style, pilot-operated, spool-type, hydraulic sequence valve with internal pilot and external spring chamber drain.
Product Operation
In its steady state, the PS10-36 blocks flow from ➀ to ➁, with the spring chamber drained at ➂On attainment of a predetermined pressure at ➀, the cartridge shifts to open ➀ to ➁Note that back-pressure on ➂ adds to the spring setting value.
Product Features
• Adjustments cannot be backed out of the valve.
• Adjustments prohibit springs from going solid.
• Optional spring ranges to 207 bar (3000 psi).
• Hardened spool and cage for long life.
• Industry common cavity.
Product Ratings
Operating Pressure: to 240 bar (3500 psi)
Sequence Pressure Max.: to 207 bar (3000 psi)

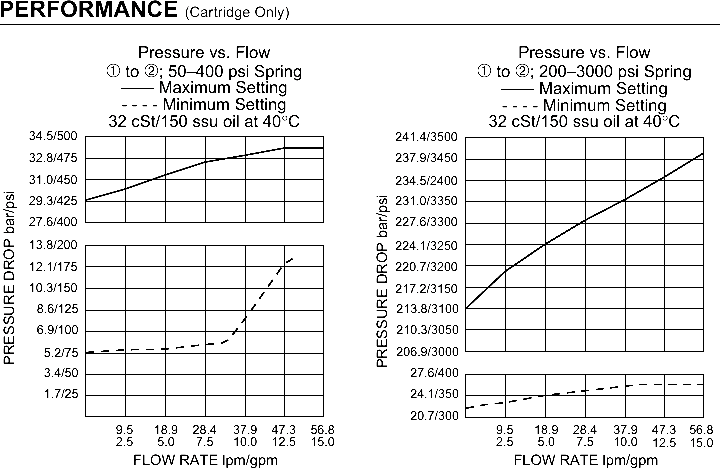

Flow: See Performance Chart
Internal Leakage: 82 cc/minute (5 cu. in./minute) max. to 85% of nominal setting
Pilot Orifi ce: Pilot-operated through 0.51 mm (0.02 inch) hole
Crack Pressure Defi ned: bar (psi) evident at 0.95 lpm (0.25 gpm) attained ➀ to ➁
Standard Spring Ranges:5.5 to 27.6 bar (80 to 400 psi) 10.3 to 103.4 bar (150 to 1500 psi)24.1 to 206.9 bar (350 to 3000 psi)
Temperature: -40 to 120°C with standard Buna seals
Filtration: See page 9.010.1
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page 9.060.1
Installation: No restrictions; See page 9.020.1

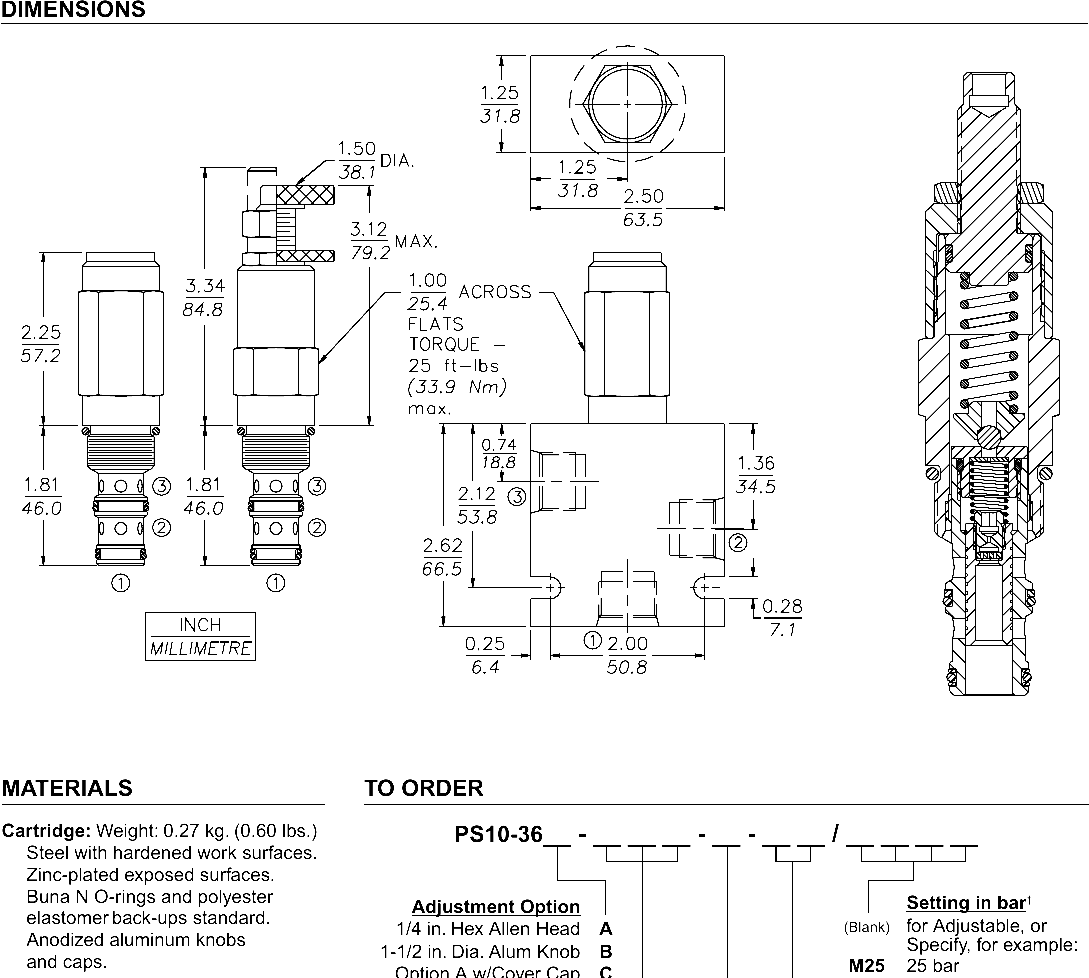

Cavity: VC10-3; See page 9.110.1
Cavity Tool: CT10-3XX; See page 8.600.1
Seal Kit: SK10-3X-BM; See page 8.650.1
