ER10-S30 Pressure Reducing Spool Logic Element (ER10-S30)

<div class="tab-share">
<div class="product-tabs"> </div>
</div>
<div class="product-info group">
<div>
<h3>Product Operation</h3>
</div>
<div>
In its steady state, the ER10-S30 allows flow from ➁ to ➀ with the spring chamber constantly drained at ➂. On attainment of a pre-determined pressure at ➀, set by a (remote) pilot relief valve connected to port ➂, the spool shifts to restrict input flow at ➁, thereby regulating pressure at ➀
</div>
<div>
<h3>Product Features</h3>
• Adjustments cannot be backed out of the valve.
• Adjustments prohibit springs from going solid.
• Optional spring ranges to 207 bar (3000 psi).
• Hardened spool and cage for long life.
• Industry common cavity.
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure: 350 bar (5000 psi); Polyurethane seals are recommended for operation up to 5000 psi; Aluminum bodies are rated up to 3000 psi.
Proof Pressure: 390 bar (5700 psi)
Flow: See Performance Chart
Maximum Pilot Flow: 5.3 lpm (1.4 gpm)
Bias Spring: 6.9 bar (100 psi)
Temperature: -40 to 120°C with standard Buna seals
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>
Cavity: VC10-S3; See page <a title="9.110.1" href="https://www.savery.co.uk/products/view/9-110-1">9.110.1</a>
Cavity Tool: CT10-S3XX; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK10-3X-BM; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>13.8/2006.9/10010.4/1503.5/50FLOW RATE lpm/gpmΔ PRESSURE bar/psiPressure Drop vs. FlowFlow Path ➁ to ➀ with port ➁ connected to port ➂11.4322.7634.1945.41256.81568.118276/4000242/350069/100035/500208/3000173/2500138/2000104/1500FLOW RATE lpm/gpmΔ PRESSURE bar/psiReduced Pressure vs. Flow at Different Pilot Relief Valve Settings11.4322.7634.1945.41256.81568.118
HYDRAFORCE.com®
</div>
</div>

6-470-1-image-dimensions

6-470-1-graphs-image

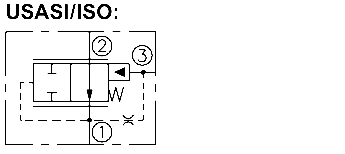

A screw-in, cartridge-style, spring biased, pressure reducing logic element.

6-470-1-main-image

ER12-S30 Pressure Reducing Spool Logic Element (ER12-S30)

<div>
<h3>Product Operation</h3>
In its steady state, the ER12-S30 allows flow from ➁ to ➀ with the spring chamber constantly drained at ➂. On attainment of a pre-determined pressure at ➀, set by a (remote) pilot relief valve connected to port ➂, the spool shifts to restrict input flow at ➁, thereby regulating pressure at ➀
</div>
<div>
<h3>Product Features</h3>
• Adjustments cannot be backed out of the valve.
• Adjustments prohibit springs from going solid.
• Optional spring ranges to 207 bar (3000 psi).
• Hardened spool and cage for long life.
• Industry common cavity.
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure: 350 bar (5000 psi); Polyurethane seals are recommended for operation up to 5000 psi; Aluminum bodies for this product are rated to 3000 psi
Proof Pressure: 390 bar (5700 psi)
Flow: See Performance Chart
Maximum Pilot Flow: 9.5 lpm (2.5 gpm)
Bias Spring: 8.3 bar (120 psi)
Temperature: -40 to 120°C with standard Buna seals
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>
Cavity: VC12-S3; See page <a title="9.112.1" href="https://www.savery.co.uk/products/view/9-112-1">9.112.1</a>
Cavity Tool: CT12-S3XX; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK12-3X-BM; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>20.7/3006.9/10017.2/25013.8/20010.4/1503.4/50FLOW lpm/gpmPRESSURE bar/psiPressure Drop vs. FlowFlow Path ➁ to ➀ with ➁ connected to ➂32 cST/150 sus oil at 40°C19538105715762095251143034.5/50031.0/45010.3/1506.9/1003.4/5027.6/40024.1/35017.2/25020.7/30013.8/200FLOW lpm/gpmPRESSURE bar/psiReduced Pressure vs. Flow at Different Pilot Relief Valve Settings82154236308451238105314345/5000310/4500103/150035/50069/1000276/4000241/3500172/2500207/3000138/2000FLOW lpm/gpmPRESSURE bar/psi195381057157620952511430
HYDRAFORCE.com®
</div>

6-472-1-symbols

6-472-1-graphs-image

6-472-1-image-dimensions

6-472-1-symbols-image

6-472-1-main-image

A screw-in, cartridge-style, spring biased, pressure reducing logic element.



PR08-32 Pressure Reducing/Relieving (PR08-32)

<div>
<h3>Product Operation</h3>
In its steady state, the PR08-32 allows flow to pass bidirectionally from ➁ to ➀, with the spring chamber constantly drained at ➂On attainment of a pre-determined pressure at ➀, the cartridge shifts to block flow at ➁, thereby regulating pressure at ➀. In this mode, the valve also will relieve ➀ to ➂ at a variable value over the set reducing pressure.
Note: Direct-acting PR series valves may not be suitable for some static load
applications. Consult factory.
</div>
<div>
<h3>Product Features</h3>
• Adjustments cannot be backed out of the valve.
• Adjustments prohibit springs from going solid.
• Optional spring ranges to 152 bar (2200 psi).
• Hardened spool and cage for long life.
• Industry common cavity.
• Compact size.
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure: 240 bar (3500 psi)
Proof Pressure: 390 bar (5700 psi)
Flow: 11.4 lpm (3 gpm) max.
Internal Leakage ➁
to ➂
: 82 cc/minute (5 cu. in/minute) max. at 207 bar (3000 psi) to 90% of nominal setting
Standard Spring Ranges (Reducing Function):3.4 to 20.7 bar (50 to 300 psi);10.4 to 41.4 bar (150 to 600 psi);20.7 to 82.8 bar (300 to 1200 psi);34.5 to 151.7 bar (500 to 2200 psi)
Temperature: -40 to 120°C with standard Buna seals
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>
Cavity: VC08-3; See page <a title="9.108.1" href="https://www.savery.co.uk/products/view/9-108-1">9.108.1</a>
Cavity Tool: CT08-3XX; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK08-3X-BM; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
</div>

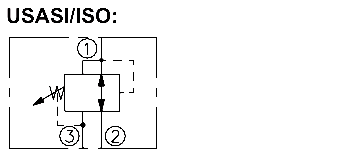

6-410-1-symbols

6-410-1-image-dimensions

6-410-1-symbols-graphs-image

6-410-1-main-image

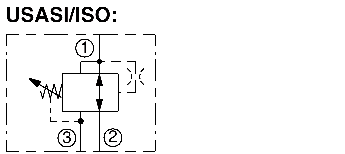

A screw-in, cartridge-style, direct-acting, spool-type, hydraulic pressure reducing/relieving valve with internal pilot and internal spring chamber drain, designed to act as a pressure-regulating device for secondary circuits. It is intended for use in stable input flow circuits.

PR10-32 Pressure Reducing/Relieving (PR10-32)

<div>
<h3>Product Operation</h3>
In its steady state, the PR10-32 allows flow to pass bidirectionally from ➁ to ➀, with the spring chamber constantly drained at ➂On attainment of a pre-determined pressure at ➀, the cartridge shifts to restrict input flow at ➁, thereby regulating pressure at ➀. In this mode, the valve will also relieve ➀ to ➂ at approximately 10 bar (150 psi) over the reducing setting.Note: Direct-acting PR series valves may not be suitable for some static load
applications. Consult factory.
</div>
<div>
<h3>Product Features</h3>
• Adjustments cannot be backed out of the valve.
• Adjustments prohibit springs from going solid.
• Optional spring ranges to 145 bar (2100 psi).
• Hardened spool and cage for long life.
• Industry common cavity.
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure: 207 bar (3000 psi)
Flow: See Performance Chart
Internal Leakage ➁
to ➂
: 82 cc/minute (5 cu. in/minute) max. at ΔP 207 bar (3000 psi)
Standard Spring Ranges (Reducing Function):5.5 to 27.6 bar (80 to 400 psi) 13.8 to 55.2 bar (200 to 800 psi)20.7 to 103 bar (300 to 1500 psi)27.6 to 145 bar (400 to 2100 psi)
Temperature: -40 to 120°C with standard Buna seals
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>
Cavity: VC10-3; See page <a title="9.110.1" href="https://www.savery.co.uk/products/view/9-110-1">9.110.1</a>
Cavity Tool: CT10-3XX; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK10-3X-BM; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
</div>

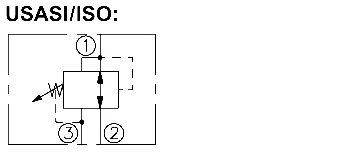

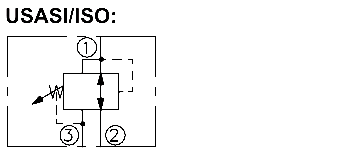

6-420-1-symbols

6-420-1-image-dimensions

6-420-1-symbols-graphs-image

6-420-1-main-image

A screw-in, cartridge-style, direct-acting, spool-type, hydraulic pressure reducing/re-lieving valve with internal pilot and internal spring chamber drain, designed to act as a pressure-regulating device for secondary circuits. It is intended for use in stable input flow circuits.

PR10-36 Pressure Reducing/Relieving, Pilot-Operated (PR10-36)

<div>
In its steady state, the PR10-36 allows flow to pass bidirectionally from ➁ to ➀, with the spring chamber constantly drained at ➂On attainment of a pre-determined pressure at ➀, the cartridge shifts to restrict input flow at ➁, thereby regulating pressure at ➀. In this mode, the valve will also relieve ➀ to ➂Deadband (from reducing to relieving) pressure rise over reduced pressure setting:
Non-flow condition: approximately 0.55 bar (8 psi); with flow: approximately 2.1 bar
(30 psi).
&nbsp;
</div>
<div>
<h3>Product Features</h3>
&nbsp;
• Adjustments cannot be backed out of the valve.
• Adjustments prohibit springs from going solid.
• Optional spring ranges to 207 bar (3000 psi).
• Hardened spool and cage for long life.
• Industry common cavity.
&nbsp;
</div>
<div>
<h3>Product Ratings</h3>
&nbsp;
Operating Pressure: 210 bar (3000 psi)
Proof Pressure: 390 bar (5700 psi)
Flow: See Performance Chart
Pilot Orifi ce: Pilot-operated through 0.51 mm (0.020 inch) hole
Standard Spring Ranges (Reducing Function):6.9 to 27.6 bar (100 to 400 psi);10.3 to 103 bar (150 to 1500 psi);27.6 to 207 bar (400 to 3000 psi)
Temperature: -40 to 120°C with standard Buna seals
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>
Cavity: VC10-3; See page <a title="9.110.1" href="https://www.savery.co.uk/products/view/9-110-1">9.110.1</a>
Cavity Tool: CT10-3XX; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK10-3X-BM; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
</div>

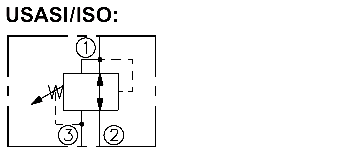

6-440-1-symbols

6-440-1-image-dimensions

6-440-1-symbols-graphs-image

6-440-1-main-image

A screw-in, cartridge-style, pilot-operated, spool-type, hydraulic pressure reducing/relieving valve with internal pilot and internal spring chamber drain, designed to act as a pressure-regulating device for secondary circuits.



PR12-36 Pressure Reducing/Relieving, Pilot-Operated (PR12-36)

<div>
<h3>Product Operation</h3>
In its steady state, the PR12-36 allows flow to pass bidirectionally from ➁ to ➀, with the spring chamber constantly drained at ➂On attainment of a pre-determined pressure at ➀, the spool shifts to restrict input flow from port ➁, thereby regulating pressure at ➀. In this mode, the valve will also relieve ➀ to ➂Flow Path: Reducing: ➁ to ➀; Relieving: ➀ to ➂
</div>
<div>
<h3>Product Features</h3>
• Adjustments cannot be backed out of the valve.
• Adjustments prohibit springs from going solid.
• Optional spring ranges to 207 bar (3000 psi).
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure: Ports ➀ and ➁: 276 bar (4000 psi)
Maximum Tank Pressure: Port ➂: 69 bar (1000 psi)
Flow: See Performance Chart
Standard Spring Ranges (Reducing Function):Code 04: 6.9 to 27.6 bar (100 to 400 psi);Code 30: 20.7 to 207 bar (300 to 3000 psi)
Maximum Pilot Flow and Leakage: 0.49 lpm (0.13 gpm) with max. control current and with inlet pressure at 276 bar (4000 psi) at regulated flow of 3.8 lpm (1 gpm).
Temperature: -40 to 120°C with standard Buna seals
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>
Cavity: VC12-3; See page <a title="9.110.1" href="https://www.savery.co.uk/products/view/9-110-1">9.110.1</a>
Cavity Tool: CT12-3XX; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK12-3X-BM; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>207/3000172/2500138/2000103/150069/1000381000301504381076201143015140FLOW RATE lpm/gpmPRESSURE bar/psiTypical Pressure vs. Flow at Maximun Pressure Settingfor Different Spring Ranges32 cSt/150 sus oil at 40CRelievingBody and Line:4.5 bar @189.3 lpm(65 psi @ 50 gpm)ReducingBody and Line:4.8 bar @189.3 lpm(70 psi @ 50 gpm)35/500189507620114301514018950240/3500Patent Pending
HYDRAFORCE.com®
</div>

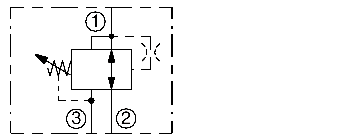

6-443-1-symbols

6-443-1-graphs-image

6-443-1-main-image

6-443-1-symbols-image

A screw-in, cartridge-style, pilot-operated, spool-type, hydraulic pressure reducing/relieving valve with internal pilot and internal spring chamber drain, designed to act as a pressure-regulating device in secondary circuits.

PR50-36 Pressure Reducing/Relieving, Pilot-Operated (PR50-36)

<div>
<h3>Product Operation</h3>
In its steady state, the PR50-36 allows flow to pass bidirectionally from ➁ to ➀, with the spring chamber constantly drained at ➂On attainment of a pre-determined pressure at ➀, the cartridge shifts to restrict input flow at ➁, thereby regulating pressure at ➀. In this mode, the valve will also relieve ➀ to ➂Deadband (from reducing to relieving) pressure rise over reduced pressure setting:
Non-flow condition: approximately 0.55 bar (8 psi); with flow: approximately 2.1 bar
(30 psi).
</div>
<div>
<h3>Product Features</h3>
• Adjustments cannot be backed out of the valve.
• Adjustments prohibit springs from going solid.
• Optional spring ranges to 345 bar (5000 psi).
• Hardened spool and cage for long life.
• Industry common cavity.
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure: 345 bar (5000 psi)
Flow: See Performance Chart
Pilot Orifi ce: Pilot-operated through 0.51 mm (0.020 inch) hole
Standard Spring Ranges (Reducing Function): 27.6 to 103.4 bar (400 to 1500 psi); 103.4 to 206.9 bar (1500 to 3000 psi); 206.9 to 344.8 bar (3000 to 5000 psi)
Temperature: -40 to 120°C with standard Buna seals
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>
Cavity: VC10-3; See page <a title="9.110.1" href="https://www.savery.co.uk/products/view/9-110-1">9.110.1</a>
Cavity Tool: CT10-3XX; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK10-3P-BM; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>207/3000172/2500138/2000103/150069/10003810195003810FLOW RATE lpm/gpmPRESSURE RISE bar/psiFlow Characteristic32 cSt/150 ssu oil at 40°C195RelievingReducing35/50056155615240/3500Patent Pending
HYDRAFORCE.com®
</div>

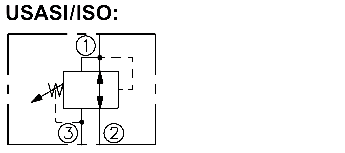

6-442-1-symbols

6-442-1-image-dimensions

6-442-1-symbols-graphs-image

6-442-1-main-image

A screw-in, cartridge-style, pilot-operated, spool-type, hydraulic pressure reducing/relieving valve with internal pilot and internal spring chamber drain, designed to act as a pressure-regulating device for secondary circuits.

PR50-38 Pressure Reducing/Relieving Spool Valve (PR50-38)

<div>
<h3>Product Operation</h3>
In its steady state, the PR50-38 allows flow to pass bidirectionally from port 2 to port 1, with the spring chamber constantly drained at port 3. Upon attainment of a predetermined pressure at 1, the spool shifts to block flow at 2, thereby regulating pressure at 1. In this mode, the valve will also relieve from port 1 to port 3, at a variable value over the set reducing pressure. Tank port pressure is additive to the pressure setting at a ratio of 1:1.
</div>
<div>
<h3>Product Features</h3>
• Adjustments cannot be backed out of the valve.
• Adjustments prohibit springs from going solid.
• Optional spring ranges to 227.5 bar (3300 psi).
• Optional 233 micron screen at port 2.
• Industry common cavity.
</div>
<div>
<h3>Product Ratings</h3>
Pressure Rating: 345 bar (5000 psi) at ports 1 and 2; 68.9 bar (1000 psi) at port 3; 241 bar (3500 psi) max for F and H Adjustment options.
Proof Pressure: 48.2 bar (7000 psi) at ports 1 and 2; 68.9 bar (1000 psi) at port 3
Burst Pressure: 1034 bar (5000 psi)
Regulated Pressure Range: 10.3 to 227.5 bar (150 to 3300 psi)
Maximum Rated Flow: See Performance Chart
Maximum Internal Leakage to Port 3: 82 ml per minute (5.0 cu. in. per minute)
Temperature: -40 to 100°C (-40 to 212°F) with standard Buna N seals;-26 to 204°C (-15 to 400°F) with fluorocarbon seals;-54 to 107°C (-65 to 225°F) with polyurethane seals
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>
Cavity: VC10-3; See page <a title="9.110.1" href="https://www.savery.co.uk/products/view/9-110-1">9.110.1</a>
Cavity Tool: CT10-3XX; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK10-3X-BM; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
PRESSU

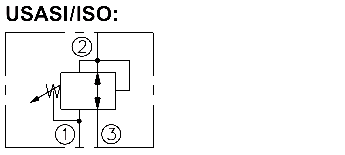

ISO SYMBOL
<a title="6.454.1" href="https://www.savery.co.uk/products/view/6-454-1">6.454.1</a>231
H
YDRA
F
ORCE.com®
RE CONTROLS9.7/1408.3/1206.9/1005.5/804.1/6015.1 422.7630.38FLOW lpm/gpmPRESSURE bar/psiFully Open Pressure DropPort 2 to Port 1 &amp; Port 1 to Port 332 cSt/150 sus oil at 40°C37.9107.62ScreenNo Screen1.4/20138/2000110.3/160082.7/120055.2/80027.6/4000.1000.200TIME secondsPRESSURE bar/psiResponse To Inlet Pressure Step Time (sec.) Step Up: 0.040Inlet Pressure Port 2 to Port 1Supporting Valve Upstream Inlet Pressure StepsBetween 241.3 bar (3500 psi) and 10.3 bar (150 psi)Pressure Step Responsein Reducing Mode Time (sec)Step Up: 0.014 Step Down: 0.043 Inlet Pressure Port 2 to Port 1Supporting Valve Downstream Reducing Flow StepsBetween 0 lpm (0 gpm) and 18.9 lpm (5 gpm)138/2000110.3/160082.7/120055.2/80027.6/4000.0500.100TIME secondsPRESSURE bar/psi
</div>

6-454-1-symbols

6-454-1-graphs-image

6-454-1-image-dimensions

6-454-1-symbols-image

6-454-1-main-image

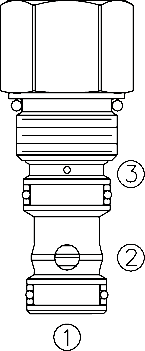

A screw-in, cartridge-style, direct-acting, spool-type, hydraulic pressure reducing/relieving valve, with internal spring-chamber drain and spool damping chamber. It is designed to act as a pressure regulating valve for secondary circuits. Internal damping makes this valve particularly suitable for use in circuits with unstable input flows in demanding applications requiring enhanced stability.

PR58-38 Pressure Reducing/Relieving Spool Valve (PR58-38)

<div>
<h3>Product Operation</h3>
In its steady state, the PR58-38 allows flow to pass bidirectionally from port 2 to port 1, with the spring chamber constantly drained at port 3. Upon attainment of a prede-termined pressure at 1, the spool shifts to block flow at 2, thereby regulating pressure at 1. In this mode, the valve will also relieve from port 1 to port 3, at a user-specified value over the set reducing pressure. Tank port pressure is additive to the pressure setting at a ratio of 1:1.
</div>
<div>
<h3>Product Features</h3>
• Adjustments cannot be backed out of the valve.
• Adjustments prohibit springs from going solid.
• Optional spring ranges to 248 bar (4200 psi).
• Optional 233 micron screen.
• Hardened parts for long life.
• Industry common cavity.
</div>
<div>
<h3>Product Ratings</h3>
Maximum Operating Pressure: 345 bar (5000 psi)
Proof Pressure: 379 bar (5500 psi)
Burst Pressure: 896 bar (13000 psi)
Regulated Pressure Range: 10.3–220.6 bar (150–4200 psi)
Note: 241 bar (3500 psi) maximum for ‘
F’ and ‘
H’ adjustment options.
Maximum Tank Port Pressure: 68.9 bar (1000 psi)
Maximum Rated Flow: 18.9 lpm (5 gpm); See performance chart
Maximum Internal Leakage to Port 3: 82 ml/minute (5.0 cu. in./minute)
Temperature: -40 to 100°C (-40 to 212°F) with Buna N seals; -26 to 204°C (-15 to 400°F) with fluorocarbon seals;-54 to 107°C (-65 to 224°F) with polyurethane seals.
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>
Cavity: VC08-3; See page <a title="9.108.1" href="https://www.savery.co.uk/products/view/9-108-1">9.108.1</a>
Cavity Tool: CT08-3XX; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK08-3X-BM; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
</div>

6-450-1-image-dimensions

6-450-1-graphs-image

6-450-1-symbols-image

6-450-1-main-image

6-450-1-symbols

A screw-in, cartridge-style, direct-acting, spool-type, hydraulic pressure reducing/relieving valve, with internal pilot and internal spring-chamber drain. It is designed to act as a pressure regulating valve for secondary circuits. Internal damping makes this valve particularly suitable for use in circuits with unstable input flows in demanding applications requiring enhanced stability.



PRES50-30 Pressure Reducing/Relieving (PRES50-30)

<div>
<h3>Product Operation</h3>
In its steady state, the PRES50-30 allows bidirectional ﬂ ow from ➂ to ➁ with the spring chamber constantly drained at ➀. Upon attainment of a predetermined pressure at ➁, the valve will shift to block ﬂ ow at ➂, thereby regulating pressure at ➁. In this mode, the valve will also relieve port ➁ to port ➀ at a variable value over the set reducing pressure.
The tank port pressure is additive to the pressure setting at a ratio of 1:1.
</div>
<div>
<h3>Product Features</h3>
• High Pressure steel adapter on inlet port ➂ withstands up to 345 bar (5000 psi).
• Hardened spool and cage for long life.
</div>
<div>
<h3>Product Ratings</h3>
Maximum Rated Pressure at Supply Port: 345 bar (5000 psi)
Regulated Pressure Range: 31 to 55.2 bar (450 to 800 psi) at no-ﬂ ow
Maximum Tank Port Pressure: 68.9 bar (1000 psi)
Rated Flow: 11.4 lpm (3 gpm) maximum
Maximum Internal Leakage: 131 ml/minute (8 cu. in./minute)
Temperature: -40 to 100°C with Buna N seals-26°C to 204°C with Fluorocarbon seals-54°C to 107°C with Polyurethane seals
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>
Cavity: VC98-3; See page <a title="9.110.1" href="https://www.savery.co.uk/products/view/9-110-1">9.110.1</a>
Cavity Tool: CT98-3XX; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK10-2X-0_SPL; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
HYDRAFORCE.com®
&nbsp;
3212.8/402.1/304.8/703.4/504.1/601.4/200.7/107.82.05.71.59.52.53.81.01.90.511.43.0FLOW lpm/gpmPRESSURE bar/psiPressure Drop vs. Flow; 3 to 232 cSt/150 sus oil at 40°CReducing/Relieving Pressure vs. FlowPRESSURE bar/psiPRESSURE bar/psi41.4/60013.8/20027.6/40055.2/80068.9/100082.7/120041.4/60013.8/20027.6/40055.2/80068.9/100082.7/1200FLOW lpm/gpm9.52.511.43.07.82.05.71.53.81.01.90.51.90.53.81.05.71.57.82.09.52.511.43.0Reducing Pressure 3 to 2Relieving Pressure 2 to 1
</div>

6-404-1-symbols

6-404-1-graphs-image

6-404-1-image-dimensions

6-404-1-symbols-image

6-404-1-main-image

A screw-in, cartridge-style, direct-acting, spool-type reducing/relieving valve designed to act as a pressure regulating device for secondary circuits. It is intended for use in stable-input ﬂ ow circuits.

Default Confirmation

Enter consent agreement text here.  The Consent Field will store this agreement text with the form entry in order to track what the user has consented to.

Admin Notification

New Newsletter Submission

Newsletter

BFPA-Logo-White

ISO9001 LOGO_White

ISO14001 LOGO_White

Logo

moog_savery_test_solutions_logo_vertical

Contact us

With over 300 years of engineering experience, Savery designs and manufactures high-quality hydraulic systems tailored to your needs. If you're interested in this product, fill in our contact form, and our team will be in touch.

Pressure Control Valves

Pressure Reducing : Relieving Valves

pressure-valves

24.03.28_BAR_Savery_2577

Bespoke Projects

<ul class="ul1">
<li class="li1">Bespoke lubrication systems for testing Aerospace propulsion using high temperature fluids and test article scavenge capability</li>
<li class="li1">Bespoke lubrication solution for testing Automotive EV components.</li>
<li class="li1">Bespoke assembly rigs for Aircraft landing gear with built in test facilities.</li>
<li class="li1">Bespoke pressure testing and flushing rigs for Aircraft assembly plants.</li>
<li class="li1">Purpose design test benches for fluid power components.</li>
<li class="li1">Ground support trolleys for production and field use for Aircraft testing.</li>
<li class="li1">Hydraulic ring mains for aircraft production and servicing.</li>
<li class="li1">Hydraulic Infrastructure for test houses.</li>
</ul>

Bespoke-Projects

140223Savery_154

140223Savery_175 (1)

Savery Hydraulics have a highly experienced team for fluid control for hydraulic, electronic control, installation and project management. Using this experience we have supported customers with a wide range of projects which are not traditionally considered hydraulic equipment. Some examples of bespoke projects we have successfully delivered are:-

Savery_2_comp

hero-bg

Hydraforce / Oil Control

Hydraforce products meet global quality standards including ISO 9001, QS 9000 and CE. Every Hydraforce valve, coil, solenoid, manifold and electro-hydraulic control goes through rigorous testing and inspection to perform beyond industry standards.

Savery offers one of the most comprehensive lines of hydraulic valves, solenoids and coils and is the UK distributor for the Hydraforce range of products for the mobile and industrial equipment markets, including high performance valves for flow rates of 0.4 to 530lpm and pressure up to 420 bar.

Tile_image

Savery_36_comp

Tile_backgorund_image_No_2

Hydraulic Control Systems

Tailored Solutions for Precision Control
Our in-house hardware and software design team is dedicated to delivering cost-effective and reliable solutions for a wide array of control system needs. From embedded microcontroller systems to large-scale machine controls, we excel in designing and developing systems that meet the most demanding specifications.
&nbsp;
Cloud-Based Monitoring for Seamless Access
We offer cloud-based system monitoring solutions that provide 24/7 access through smart phone or tablet apps, giving you real-time insights into your operations from anywhere.
&nbsp;
Industry-Leading Expertise
With extensive experience across various industries, including aerospace, automotive, wind turbine testing, marine, and industrial sectors, our engineers bring invaluable expertise to every project.

Hardware and Software Capabilities
Small-Scale Control Systems: We design cost-effective control systems in-house using bespoke electronic control boards giving you optimal performance for your specific needs.
Microchip Programming: We specialise in programming microchips for specialist applications in fluid power, providing tailored solutions for precise control.
Large-Scale Machine Control Systems: Our capabilities include designing dedicated Motor Control Centre (MCC) cabinets and implementing System Control and Data Acquisition (SCADA) plant monitoring for seamless operation of complex machinery.
Software Authoring: We are proficient in various software platforms, including:
<ul>
<li>Delta Motion Controllers </li>
<li>National Instruments LabView© </li>
<li>National Instruments LabWindows CVI© </li>
<li>PLCs: Allen Bradley, Siemens, Omron, Schneider, Bachmann, Koyo </li>
<li>HMI and SCADA Systems: Siemens, Schneider, Bachmann, Koyo </li>
</ul>

Cost-Effective Solutions, Tailored to Your Needs
Our deep understanding of different control systems enables us to select the most cost-effective platform to suit your systems development, ensuring you get the best value for your investment.
At Savery, we are committed to delivering innovative, reliable, and tailored solutions that optimise the performance of your hydraulic systems, empowering you to achieve your goals with precision and efficiency.
Get in touch with us today to discuss your project needs.

140223Savery_125

140223Savery_127

140223Savery_155

140223Savery_126

At Savery, we design and manufacture electronic systems that ensure the safe and efficient control and monitoring of hydraulic equipment. Our expertise lies in providing comprehensive control system solutions tailored to your specific requirements, with a focus on bespoke applications.

Hydraulic-Control-System

Savery_39_comp

24_03_28_BAR_Savery_3818

Hydraulic Control Systems

24.03.28_BAR_Savery_4084

Savery custom manifolds can be designed as part of a new power unit or to enhance your existing equipment & machinery. Custom designed manifolds offer no-leak, screw-in components with fast and easy valve removal and replacement.

HydraulicIntegratedCircuit(HIC) - ManifoldAssembly

Our team of experienced engineers can simplify the most complex hydraulic circuits to reduce cost, improve reliability, minimise pipe work connections and the physical size &amp; weight of the solutions.
Custom manifold assemblies are:
<ul>
<li data-leveltext="" data-font="Symbol" data-listid="1" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="1" data-aria-level="1">Designed by our engineers in house using the latest 3D CAD software for integration into your product. </li>
<li data-leveltext="" data-font="Symbol" data-listid="1" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="2" data-aria-level="1">Designed utilising Hydraforce cartridge valves and a vast range of other manufacturer’s components to achieve the required performance. </li>
<li data-leveltext="" data-font="Symbol" data-listid="1" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="3" data-aria-level="1">Machined using modern CNC equipment with specialist tooling to ensure high quality. </li>
<li data-leveltext="" data-font="Symbol" data-listid="1" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="4" data-aria-level="1">Manufactured from aluminium, steel or stainless steel to meet system pressure, flow and application requirements. </li>
<li data-leveltext="" data-font="Symbol" data-listid="1" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="5" data-aria-level="1">Designed in conjunction with your engineers to ensure we meet your unique requirements and installation needs. </li>
<li data-leveltext="" data-font="Symbol" data-listid="1" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="6" data-aria-level="1">Supplied in a variety of sizes from small manifold blocks with cartridges capable of controlling low(a few litres per minute) flow rate up to large complex assemblies for hundreds of litres per minute. </li>
<li data-leveltext="" data-font="Symbol" data-listid="1" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="7" data-aria-level="1">Supplied fully assembled &amp; tested in our UK facility &amp; meeting the necessary ISO recommended guidelines for hydraulic cleanliness prior to dispatch. </li>
</ul>

Manifold-Assembly

24.03.28_BAR_Savery_2587

Savery custom manifolds can be designed as part of a new power unit or to enhance your existing equipment & machinery. Custom designed manifolds offer no-leak, screw-in components with fast and easy valve removal and replacement.

Savery_11_comp

Hydraulic Integrated Circuit (HIC) – Manifold Assembly

24.03.28_BAR_Savery_2711

Hydraulic Power Unit

Our power units vary from compact, fixed pump systems to intricate setups featuring multiple variable displacement pumps and energy-saving variable speed drive technology. These units can be equipped with control manifolds for basic relief unloading functions or complex hydraulic control circuitry, custom-made for your application.
We offer bespoke electrical control equipment that can manually or automatically control the power source, adhering to all current safety standards. This can be paired with simple condition monitoring for parameters such as flow, pressure, level, temperature, and fluid condition, or with advanced SCADA data recording for remote access via the cloud. This ensures safe and reliable 24/7 operation of equipment.
Our power units can include fluid reservoirs ranging from 10 litres to over 14,000 litres, with built-in bund containment to meet regulatory requirements.
With Savery, you’re in safe hands. We work with you from conception through design, project planning, installation, commissioning, and servicing to deliver a cost-effective and efficient hydraulic and control solution.
We have successfully completed projects in various industries, including:
<ul>
<li data-leveltext="" data-font="Symbol" data-listid="2" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="1" data-aria-level="1">Civil: Flood Barriers, Roll-on/Roll-off dock equipment </li>
<li data-leveltext="" data-font="Symbol" data-listid="2" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="2" data-aria-level="1">Marine: Ship Stabiliser, steering and deck equipment (with in-house 60 Hz testing capability) </li>
<li data-leveltext="" data-font="Symbol" data-listid="2" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="3" data-aria-level="1">Testing Infrastructure: Automotive, Aerospace, research and production component testing </li>
<li data-leveltext="" data-font="Symbol" data-listid="2" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="4" data-aria-level="1">Mechanical Handling: Large Scissor lifts </li>
<li data-leveltext="" data-font="Symbol" data-listid="2" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="5" data-aria-level="1">Defence and Security: Specialist equipment </li>
<li data-leveltext="" data-font="Symbol" data-listid="2" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="6" data-aria-level="1">Wind: Turbine Blade testing </li>
</ul>
Trust Savery Hydraulics for your hydraulic power needs.

Hydraulic-Power-Unit

At Savery Hydraulics, we specialise in the design and manufacture of hydraulic power units tailored to customer specifications. Our offerings range from single fractional power motors to multiple pump sets, with power installations up to 2 Mw.

24.03.28_BAR_Savery_2719

For Product page (2) (1)

Contact Us

Savery hydraulic power packs and mini power packs are the culmination of many years of experience in manufacturing AC and DC power packs.

Small HydraulicPower Packs

The PB300 series of power units offer the latest design and features not normally associated with this type of unit. The units have a pressure up to 300 bar, which is achieved by the use of high specification materials. The centre adaptor can be machined to give a vast range of integral control options for single and double acting circuits.
Applications for this type of unit are numerous DC units for battery powered use include our tail lift packs and can be found on tippers, aerial access equipment and material handling trucks. AC units with power ratings from 0.25kW to 5.5kW have an even greater range of applications including the retail and service industry for the handling of goods &#8211; loading and unloading of vehicles and the lift industry for lifts installed in the home, disabled lifts and automotive assembly plants.
Savery has developed hydraulic power packs specifically for applications such as dock levellers, which provide a bridge between the loading bay and the truck being loaded or unloaded.
PB300 units have;
<ul>
<li>DC units 12V &amp; 24V / 0.2 – 3.5kW.</li>
<li>AC units 3 Phase &amp; 1 Phase / 0.25 – 5.5kW.</li>
<li>A vast range of control options for single and double acting circuits.</li>
<li>Advanced pressure die-cast aluminium centre adaptor.</li>
<li>The ability to eliminate porosity.</li>
</ul>
<img loading="lazy" decoding="async" class="alignnone size-full wp-image-5274" src="https://cms.savery.co.uk/wp-content/uploads/2024/03/E11-Logo.jpg" alt="" width="110" height="48" />

Small-Hydraulic-Power-Pack

Product page tile image (1)

Mini-packs-

Product_Page_Image

Savery offer a complete and comprehensive range of hydraulic power units, incorporating highly flexible, cost effective modular construction suited to both OEM and small users. The design of units for special applications is an important part of Savery’s marketing activities and our engineers can develop a unit to perfectly match our customer’s requirements.

Savery hydraulic power packs and mini power packs are the culmination of many years of experience in manufacturing AC and DC power packs.


Pressure Reducing : Relieving Valves

ER10-S30 Pressure Reducing Spool Logic Element (ER10-S30)

ER12-S30 Pressure Reducing Spool Logic Element (ER12-S30)

PR08-32 Pressure Reducing/Relieving (PR08-32)

PR10-32 Pressure Reducing/Relieving (PR10-32)

PR10-36 Pressure Reducing/Relieving, Pilot-Operated (PR10-36)

PR12-36 Pressure Reducing/Relieving, Pilot-Operated (PR12-36)

PR50-36 Pressure Reducing/Relieving, Pilot-Operated (PR50-36)

PR50-38 Pressure Reducing/Relieving Spool Valve (PR50-38)

PR58-38 Pressure Reducing/Relieving Spool Valve (PR58-38)

PRES50-30 Pressure Reducing/Relieving (PRES50-30)

Unloading Pilot

Thermal Relief Valve

Sequence, Kick-Down

Sequence with Pilot and Internal Vent

Sequence with Pilot and Drain

Sequence with External Pilot

Relief Valves, Poppet-Type

Relief Valves, Pilot-Operated, Spool-Type

Relief Valves, Bi-Directional

Pressure Reducing : Relieving Valves

Savery also offer

Bespoke Projects

Hydraforce / Oil Control

Hydraulic Control Systems

Hydraulic Integrated Circuit (HIC) – Manifold Assembly

Hydraulic Power Unit

Small Hydraulic Power Packs
