KS10-30 Kick-Down, Sequence, Internal Pilot (KS10-30)

<div>
<h3>Product Operation</h3>
In its steady state, the KS10-30 blocks flow at ➀, while allowing flow to pass from ➁ to ➂On attainment of a pre-determined pressure at ➀, the cartridge shifts to open ➀ to ➁. The ➀ to ➁ flow path will remain open until the pressure in the secondary circuit falls below a lower pressure setting determined by a second spring.
Note: Primary spring setting should be greater than secondary spring value.
</div>
<div>
<h3>Product Features</h3>
• Adjustments cannot be backed out of the valve.
• Adjustments prohibit springs from going solid.
• Optional spring ranges to 207 bar (3000 psi).
• Hardened spool and cage for long life.
• Industry common cavity.
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure: 207 bar (3000 psi)
Flow: See Performance Chart
Internal Leakage ➀ to ➁:
82 cc/minute (5 cu. in./minute) max. to 85% of nominal setting
Crack Pressure Defi ned: bar (psi) evident at ➀ when 0.95 lpm (0.25 gpm) attained ➀ to ➁
Standard Spring Ranges (Primary Spring): 10 to 103 bar (150 to 1500 psi); 27.6 to 207 bar (400 to 3000 psi)
Standard Spring Setting (Optional Secondary Spring): 7 bar (100 psi); 10 bar (150 psi); 14 bar (200 psi); 17 bar (250 psi)
Temperature: -40 to 120°C with standard Buna seals
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>
Cavity: VC10-3; See page <a title="9.110.1" href="https://www.savery.co.uk/products/view/9-110-1">9.110.1</a>
Cavity Tool: CT10-3XX; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK10-3X-BB; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
</div>

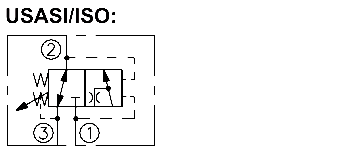

6-802-1-symbols

6-802-1-image-dimensions

6-802-1-symbols-graphs-image

6-802-1-main-image

A screw-in, cartridge-style, direct-acting, spool-type, hydraulic sequence valve with internal pilot and spring chamber drain, designed to direct flow to a secondary circuit once a pre-determined pressure level is attained in the primary circuit. The valve will remain shifted until the pressure in the secondary circuit falls below a lower pressure setting determined by a second spring.

KS10-31 Kick-Down, Sequence, Internal Pilot (KS10-31)

<div>
<h3>Product Operation</h3>
In its steady state, the KS10-31 blocks flow at ➂, while allowing flow to pass from ➀ to ➁On attainment of a pre-determined pressure at ➀, the cartridge shifts to open ➁ to ➂
</div>
<div>
<h3>Product Features</h3>
• Adjustments cannot be backed out of the valve.
• Adjustments prohibit springs from going solid.
• Optional spring ranges to 207 bar (3000 psi).
• Hardened spool and cage for long life.
• Industry common cavity.
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure: 207 bar (3000 psi)
Flow: See Performance Chart
Internal Leakage ➀
to ➁
: 115 cc/minute (7 cu. in./minute) max. to 85% of nominal setting
Crack Pressure Defi ned: bar (psi) evident at ➀ when 0.95 lpm (0.25 gpm) attained ➁ to ➂
Standard Spring Ranges (Primary Spring): 27.6 to 207 bar (400 to 3000 psi)
Standard Spring Setting (Optional Secondary Spring): 7 bar (100 psi); 10 bar (150 psi); 14 bar (200 psi); 17 bar (250 psi)
Temperature: -40 to 120°C with standard Buna seals
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>
Cavity: VC10-3; See page <a title="9.110.1" href="https://www.savery.co.uk/products/view/9-110-1">9.110.1</a>
Cavity Tool: CT10-3XX; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK10-3X-BB; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
</div>

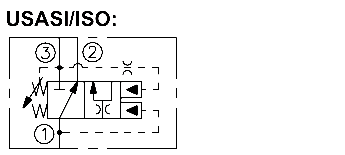

6-812-1-symbols

6-812-1-image-dimensions

6-812-1-symbols-graphs-image

6-812-1-main-image
