UP10-31 Unloading Pilot, Internal Drain (UP10-31)

<div>
<h3>Product Operation</h3>
In its steady state, the UP10-31 blocks flow from ➁ to ➂. On attainment of a pre-determined pressure at ➀, the spool shifts to allow flow from ➁ to ➂Since the spring chamber is vented at ➂, back pressure at ➂ will directly (1:1) affect the valve’s setting.
If pressure at ➀ drops to a level below the ratio-established reload value, the valve will close, blocking flow from ➁ to ➂
</div>
<div>
<h3>Product Features</h3>
• Adjustments cannot be backed out of the valve.
• Adjustments prohibit springs from going solid.
• Spring range to 206 bar (3000 psi).
• Hardened spool and cage for long life.
• Industry common cavity.
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure: 207 bar (3000 psi)
Flow: 3.8 lpm (1 gpm)
Ratio Between Unloading &amp; Reloading Pressure: 60% ±5%; 70% ±5%; 80% ±5%
Pressure Setting Range: 69 to 207 bar (1000 to 3000 psi)
Temperature: -40 to 120°C with standard Buna seals
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>
Cavity: VC10-3; See page <a title="9.110.1" href="https://www.savery.co.uk/products/view/9-110-1">9.110.1</a>
Cavity Tool: CT10-3XX; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK10-3X-MM; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
</div>

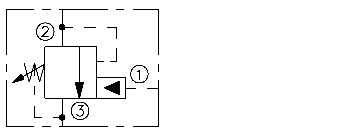

6-903-1-symbols

6-903-1-image-dimensions

6-903-1-symbols-graphs-image

6-903-1-main-image

A screw-in, cartridge-style, remote sequence, pilot unloading valve, with optional fi xed “unload/reload” pressure ratios for use in accumulator-type hydraulic systems.

UP10-40 Piloted Unloading Valve (UP10-40)

<div>
<h3>Product Operation</h3>
In its steady state, the UP10-40 blocks flow from ➁ to ➂. On attainment of a pre-determined pressure at ➀, the spool shifts to allow flow from ➁ to ➂. The spring chamber is vented to ➃If pressure at ➀ drops to a level below the ratio-established reload value, the valve will close, blocking flow from ➁ to ➂
</div>
<div>
<h3>Product Features</h3>
• Adjustments cannot be backed out of the valve.• Adjustments prohibit springs from going solid.• Hardened precision spool and cage for long life.• Industry common cavity.
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure: 206 bar (3000 psi) with staandard Buna N seals
Flow: 3.8 lpm (1 gpm); See Performance Chart
Pressure Setting Range: 69 to 207 bar (1000 to 3000 psi)
Loading and Unloading Ratios: 60% ±5%, 70% ±5%, 80% ±5%
Temperature: -40 to 120°C with standard Buna seals
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>
Cavity: VC10-4; See page <a title="9.110.1" href="https://www.savery.co.uk/products/view/9-110-1">9.110.1</a>
Cavity Tool: CT10-4XX; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK10-4X-MMM; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
</div>

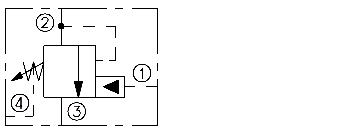

6-910-1-symbols

6-910-1-image-dimensions

6-910-1-symbols-graphs-image

6-910-1-main-image

A screw-in, cartridge-style, remote sequence, piloted unloading valve with optional fi xed unload/reload pressure ratios of 60%, 70% or 80%, for use in accumulator-type hydraulic systems.
