FR16-30F Regulator, Pressure-Compensated (FR16-30F)
A screw-in, cartridge-style, pressure-compensated, non-adjustable flow regulator, intended for use in fi xed displacement hydraulic circuits requiring partial pump flow diversion on a priority basis.
Product Operation

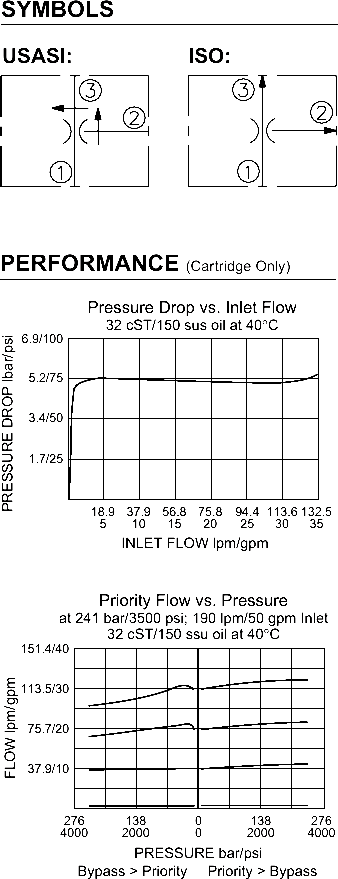

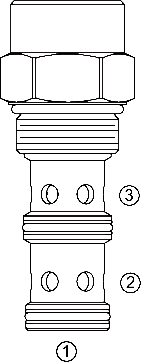

The FR16-30F maintains a constant flow rate from ➂ regardless of load pressure changes in the system downstream of ➂, or in the bypass leg at ➁The valve’s spool maintains a constant differential pressure of 5.5 bar (80 psi) across
a fi xed internal orifice, thereby regulating the hydraulic flow rate from ➀ to ➂The FR16-30F is a priority type regulator, delivering the pump flow to ➂ fi rst, then bypassing excess to ➁. All ports may be fully pressurized.Flow out of priority port ➂ may vary based on input flow amount, particularly with lower temperatures and increased fl uid viscosities. Settings may need to be
established through correlation study. Consult factory.
Product Features
• Hardened parts for long life.
• Quiet, modulated response.

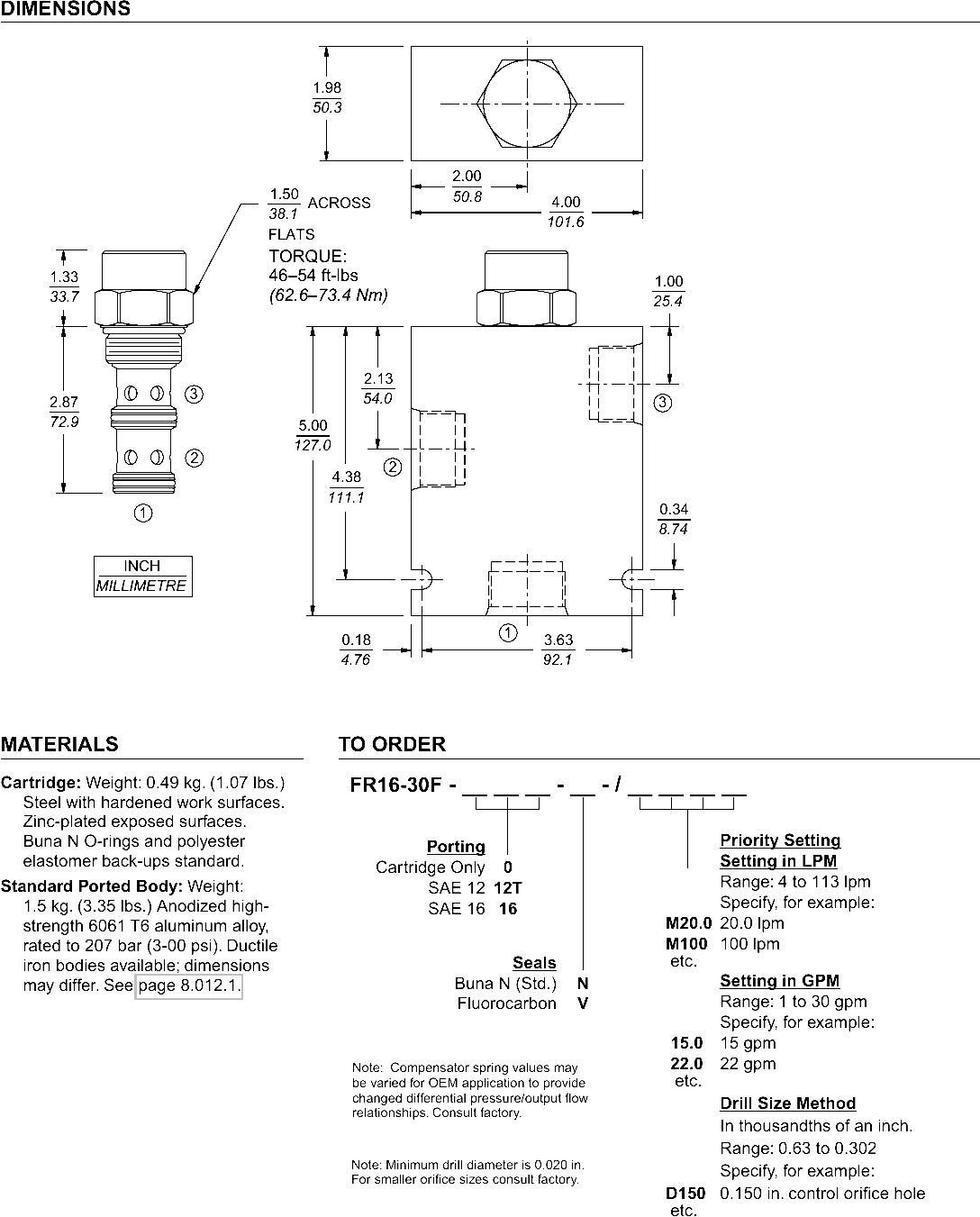

Product Ratings
Operating Pressure: 241 bar (3500 psi)
Flow Rate: 113 lpm (30.0 gpm) max. priority; 190 lpm (50.0 gpm) max. input
Standard Compensator Bias Spring: 5.5 bar (80 psid) differential
Flow Maintenance Setting Range: up to 76 lpm (20 gpm) to accuracy of ±10%; 76 to 114 lpm (20 to 30 gpm) to accuracy of ±15%
Temperature: -40 to 120°C
Filtration: See page 9.010.1
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page 9.060.1
Installation: No restrictions; See page 9.020.1
Cavity: VC16-3; See page 9.116.1
Cavity Tool: CT16-3XX; See page 8.600.1
Seal Kit: SK16-3X-MM; See page 8.650.1
