FR08-30F Regulator, Pressure-Compensated (FR08-30F)

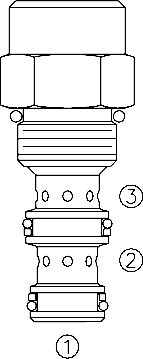

A screw-in, cartridge-style, pressure-compensated, non-adjustable flow regulator, intended for use in fi xed displacement hydraulic circuits requiring partial pump flow diversion on a priority basis.
Product Operation
The FR08-30F maintains a constant flow rate from ➂ regardless of load pressure changes in the system downstream of ➂, or in the bypass leg at ➁The valve’s spool maintains a constant differential pressure of 6.5 bar (95 psi) across
a fi xed internal orifice, thereby regulating the hydraulic flow rate from ➀ to ➂The FR08-30F is a priority type regulator, delivering the pump flow to ➂ fi rst, then bypassing excess to ➁. All ports may be fully pressurized.Flow out of priority port ➂ may vary based on input flow amount, particularly with lower temperatures and increased fl uid viscosities. Settings may need to be
established through correlation study. Consult factory.
Product Features
• Hardened parts for long life.
• Quiet, modulated response.
• Compact size.
Product Ratings
Operating Pressure: 207 bar (3000 psi)
Flow Rate: 7.6 lpm (2.0 gpm) max. regulated; 11.4 lpm (3.0 gpm) max. input. Inlet pressure at ➀ begins to rise over the compensating differential when bypass flow exceeds 7.5 lpm (2 gpm)
Standard Compensator Bias Spring: 6.5 bar (95 psid) differential

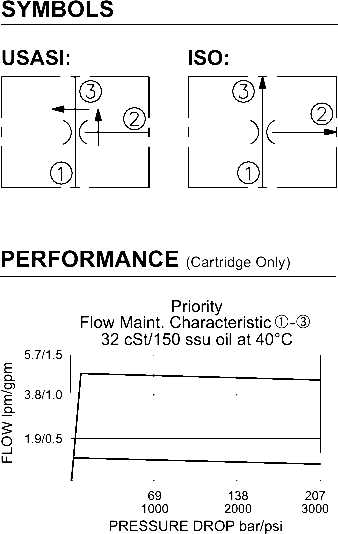

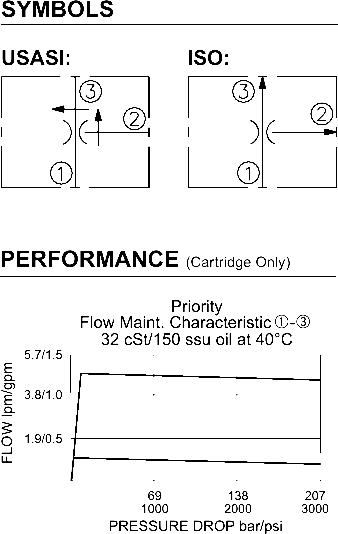

Flow Maintenance Setting Range: 0.4 to 1.8 lpm (0.10 to 0.49 gpm) to accuracy of ±15%; 1.9 to 7.5 lpm (0.5 to 2.0 gpm) to accuracy of ±10%
Temperature: -40 to 120°C
Filtration: See page 9.010.1
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page 9.060.1
Installation: No restrictions; See page 9.020.1

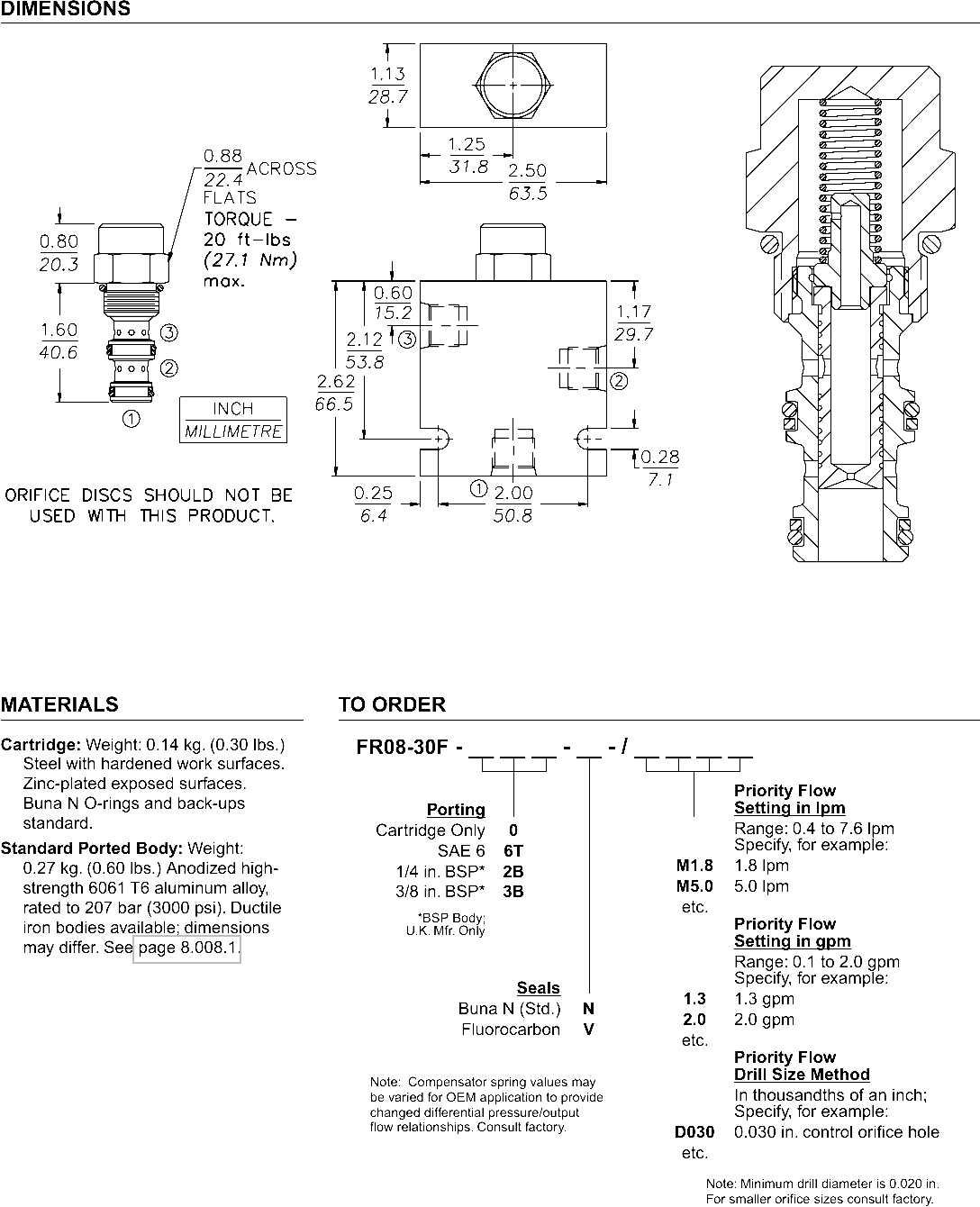

Cavity: VC08-3; See page 9.108.1
Cavity Tool: CT08-3XX; See page 8.600.1
Seal Kit: SK08-3X-TB; See page 8.650.1
