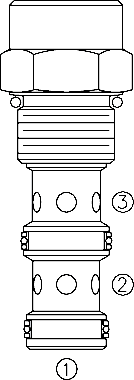

FR12-30F Regulator, Pressure-Compensated (FR12-30F)

A screw-in, cartridge-style, pressure-compensated, non-adjustable flow regulator, intended for use in fi xed displacement hydraulic circuits requiring partial pump flow diversion on a priority basis.

Product Operation

The FR12-30F maintains a constant flow rate from ➂ regardless of load pressure changes in the system downstream of ➂, or in the bypass leg at ➁The valve’s spool maintains a constant differential pressure of 6.5 bar (95 psi) across
a fi xed internal orifice, thereby regulating the hydraulic flow rate from ➁ to ➂The FR12-30F is a priority type regulator, delivering the pump flow to ➂ fi rst, then bypassing excess to ➁. All ports may be fully pressurized.Flow out of priority port ➂ may vary based on input flow amount, particularly with lower temperatures and increased fl uid viscosities. Settings may need to be
established through correlation study. Consult factory.

Product Features

• Hardened parts for long life.
 Quiet, modulated response.
 Cost effective cavity.

Product Ratings

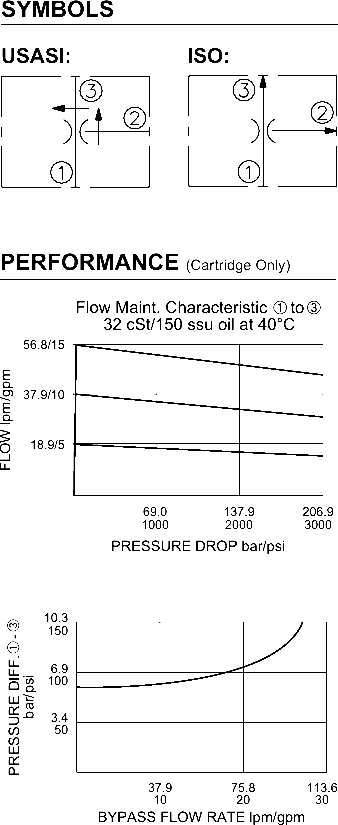

Operating Pressure: 240 bar (3500 psi)
Flow Rate: 49.2 lpm (13.0 gpm) max. regulated; 94.6 lpm (25.0 gpm) max. input
Standard Compensator Bias Spring: 6.5 bar (95 psid) differential
Flow Maintenance Setting Range: 3.8 to 11.4 lpm (1.0 to 3.0 gpm) to accuracy of ±15%; 11.4 to 45.4 lpm (3.0 to 12.0 gpm) to accuracy of ±10%
Temperature: -40 to 120°C
Filtration: See page 9.010.1
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page 9.060.1

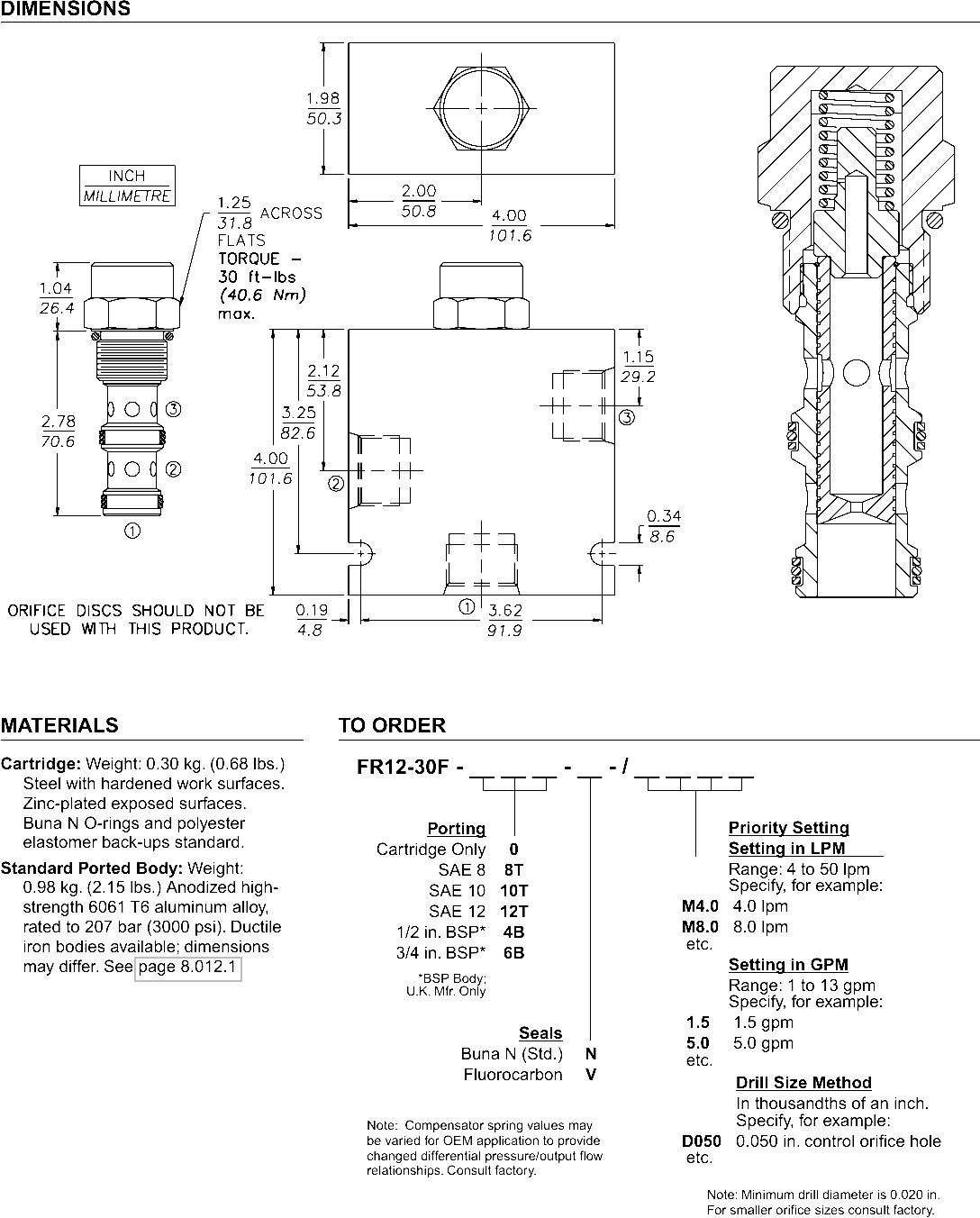

Installation: No restrictions; See page 9.020.1
Cavity: VC12-3; See page 9.112.1
Cavity Tool: CT12-3XX; See page 8.600.1
Seal Kit: SK12-3X-MM; See page 8.650.1
