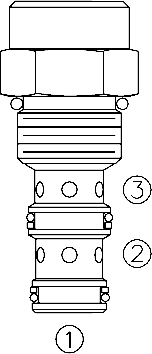

FR10-30F Regulator, Pressure-Compensated (FR10-30F)
A screw-in, cartridge-style, pressure-compensated, non-adjustable flow regulator, intended for use in fi xed displacement hydraulic circuits requiring partial pump flow diversion on a priority basis.

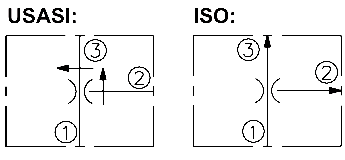

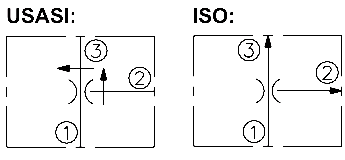

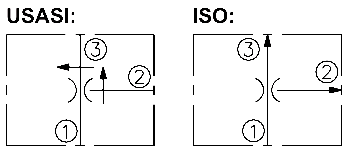

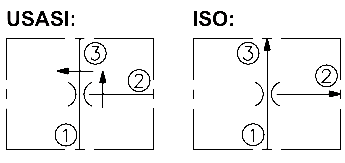

Product Operation
The FR10-30F maintains a constant flow rate from ➂ regardless of load pressure changes in the system downstream of ➂, or in the bypass leg at ➁The valve’s spool maintains a constant differential pressure of 6.5 bar (95 psi) across
a fi xed internal orifice, thereby regulating the hydraulic flow rate from ➀ to ➂The FR10-30F is a priority type regulator, delivering the pump flow to ➂ fi rst, then bypassing excess to ➁. All ports may be fully pressurized.Flow out of priority port ➂ may vary based on input flow amount, particularly with lower temperatures and increased fl uid viscosities. Settings may need to be
established through correlation study. Consult factory.
Product Features
• Hardened parts for long life.
• Quiet, modulated response.
• Industry common cavity.
Product Ratings
Operating Pressure: 207 bar (3000 psi)

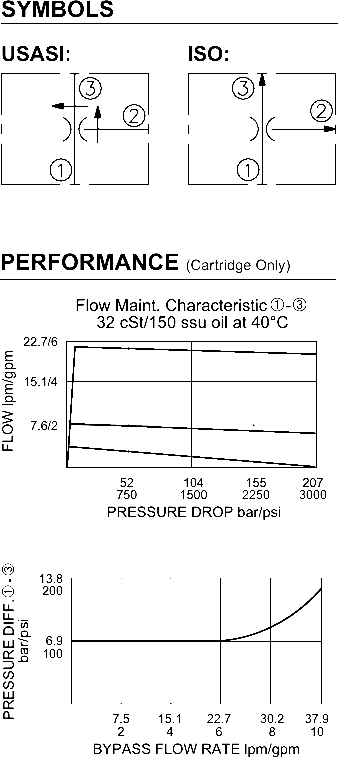

Flow Rate: 22.7 lpm (6.0 gpm) max. regulated; 37.8 lpm (10.0 gpm) max. input. Pressure at ➀ begins to rise higher than compensating pressure differential when bypass flow exceeds 23 lpm (6 gpm).
Standard Compensator Bias Spring: 6.5 bar (95 psid) differential
Flow Maintenance Setting Range: 0.4 to 5.9 lpm (0.10 to 1.5 gpm) to accuracy of ±15%; 6 to 22.7 lpm (1.6 to 6.0 gpm) to accuracy of ±10%
Temperature: -40 to 120°C
Filtration: See page 9.010.1
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page 9.060.1
Installation: No restrictions; See page 9.020.1

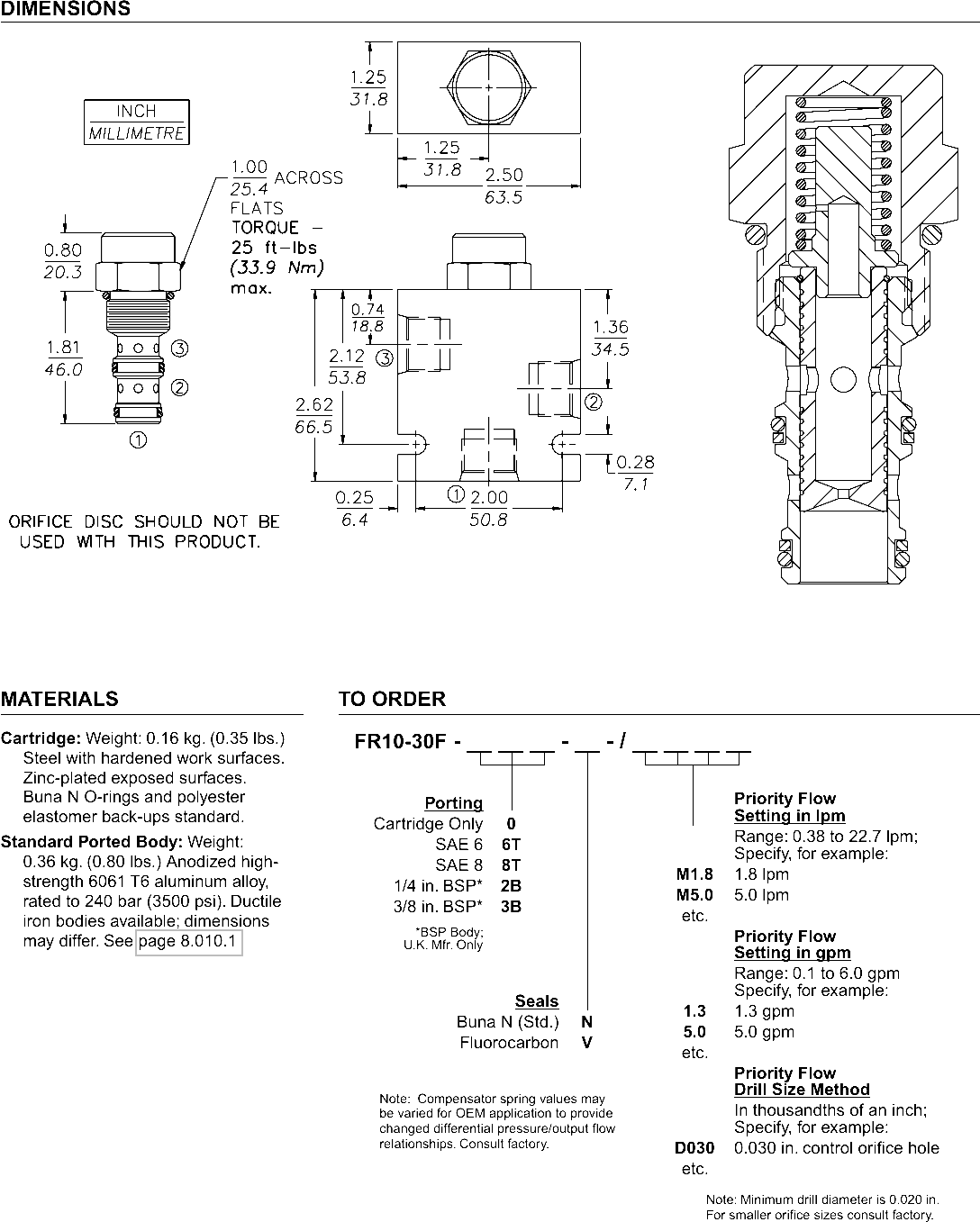

Cavity: VC10-3; See page 9.110.1
Cavity Tool: CT10-3XX; See page 8.600.1
Seal Kit: SK10-3X-TB; See page 8.650.1
