Check Valves, Guided

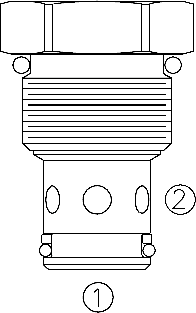

CV10-24 Check Valve (CV10-24)

<div>
<h3>Product Operation</h3>
The CV10-24 allows flow passage from 2 to 1, while blocking flow from 1 to 2.
The cartridge has a fully guided check which is spring-biased closed until sufficient pressure is applied at 2 to open to 1.
</div>
<div>
<h3>Product Features</h3>
• Low check mass for anti-cavitation applications.
• Hardened seat for long life and low leakage.
• Optional bias springs for back-pressure application flexibility.
• Industry common cavity.
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure: 240 bar (3500 psi)
Flow: See Performance Chart
Internal Leakage: 0.25 ml/minute (5 drops/minute) max. at 241 bar (3500 psi)

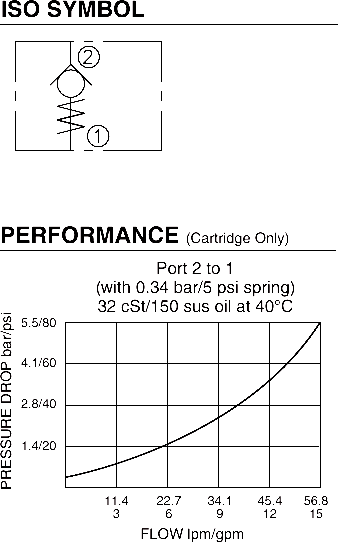

Crack Pressure Defined: Gauge psi evident at 2 at 16.4 cc/minute (1 cu. in./minute) attained at 1
Standard Bias Springs at Crack: 0.35 bar (5 psi); 1.7 bar (25 psi); 3.8 bar(55 psi)
Temperature: -40° to 120°C (-40°F to 250°F with Buna N seals; -35°C to 204°C (-31°F to 400°F) with Viton seals
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>

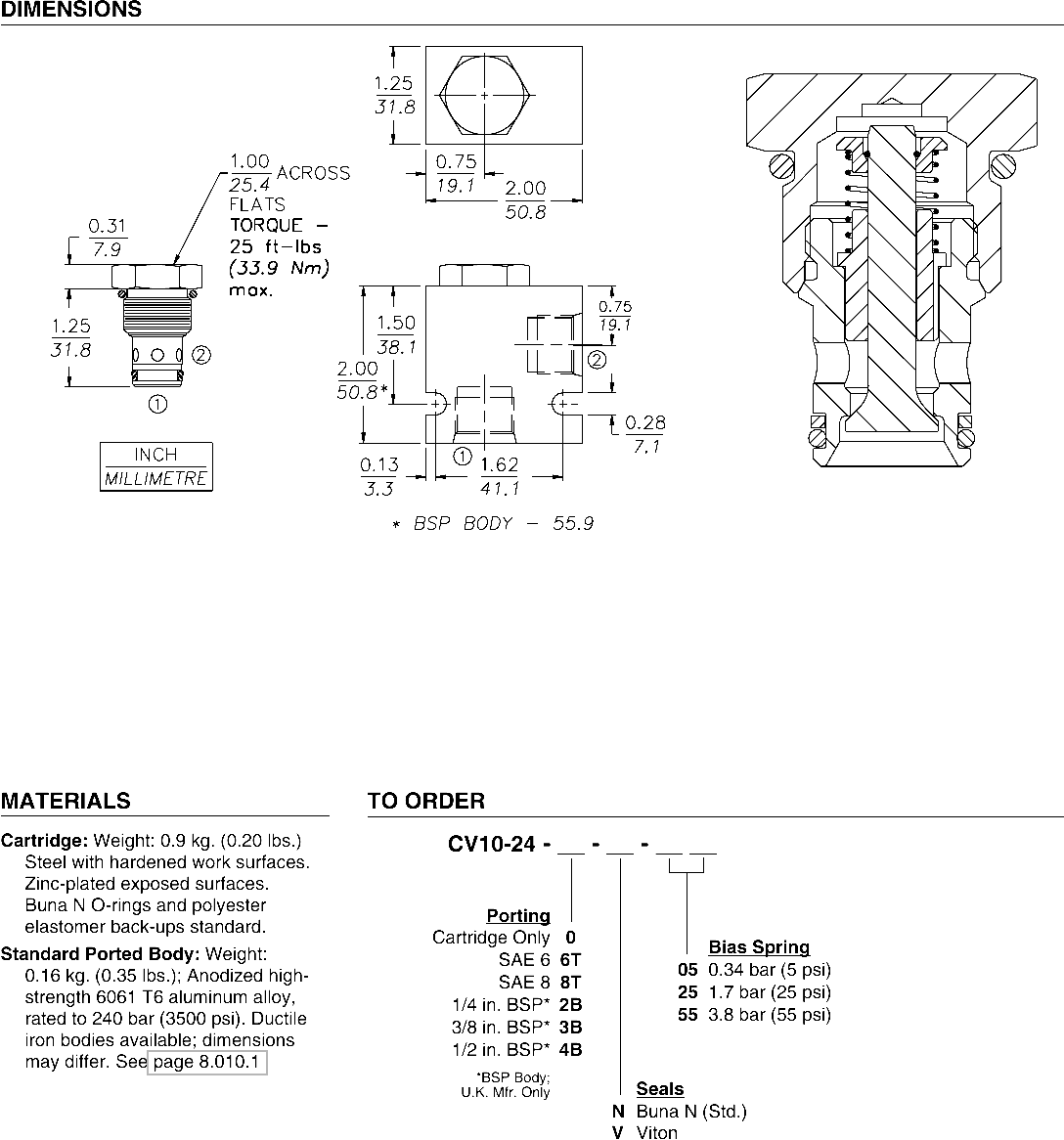

Cavity: VC10-2; See page <a title="9.110.1" href="https://www.savery.co.uk/products/view/9-110-1">9.110.1</a>
Cavity Tool: CT10-2XX; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kits: SK10-2X-B; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
</div>

4-040-1-symbols

4-040-1-image-dimensions

4-040-1-main-image

4-040-1-symbols-graphs-image

A screw-in, cartridge-style, hydraulic check valve for use as a blocking or load-holding device.

24.03.28_BAR_Savery_2577
