Check Valves, Guided

HCV12-20 HyPerformance™ Check Valve (HCV12-20)

<div>
<h3>Product Operation</h3>
The HCV12-20 allows flow passage from 1 to 2, while normally blocking oil flow in the opposite direction.
The cartridge has a fully guided check which is spring-biased closed until sufficient pressure is applied at 1 to open to 2.
</div>
<div>
<h3>Product Features</h3>
• Hardened seat for long life and low leakage.
• Optional bias springs for back-pressure application flexibility.
• Fully guided check assembly.
• Cost effective cavity.• All HyPerformance products are tested to the rigorous standards of the NFPA specification T<a title="2.6.1" href="https://www.savery.co.uk/products/view/2-6-1">2.6.1</a>.• All HyPerformance valves are tested at a verification level of 90% and an assurance of 99%.
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure: 350 bar (5075 psi) 10% cycle life: 420 bar (6090 psi)
Fatigue Rating: Two million cycles at 420 bar (6090 psi)
Cycle Life: One million cycles
Proof Pressure: 420 bar (6090 psi)
Burst Pressure: 1380 bar (20000 psi)
Flow: 95 lpm (25 gpm)
Internal Leakage: 0.25 ml/minute (5 drops/minute) max. at 350 bar (5075 psi)
Operating Temperature: -54° to 107°C (-65° to 225°F) with PPDI Urethane seals
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>
Cavity: HVC12-2; See page <a title="9.112.1" href="https://www.savery.co.uk/products/view/9-112-1">9.112.1</a>
Cavity Tool: HCT12-2XX; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK12-2U-0; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
</div>

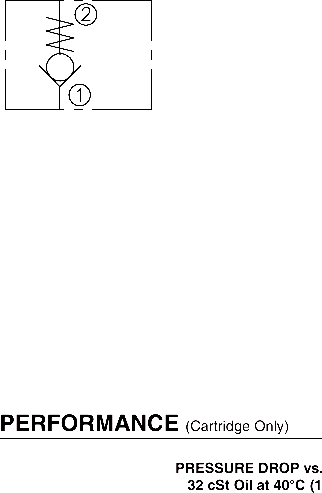

4-013-3-symbols

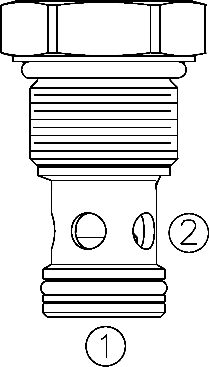

4-013-3-main-image

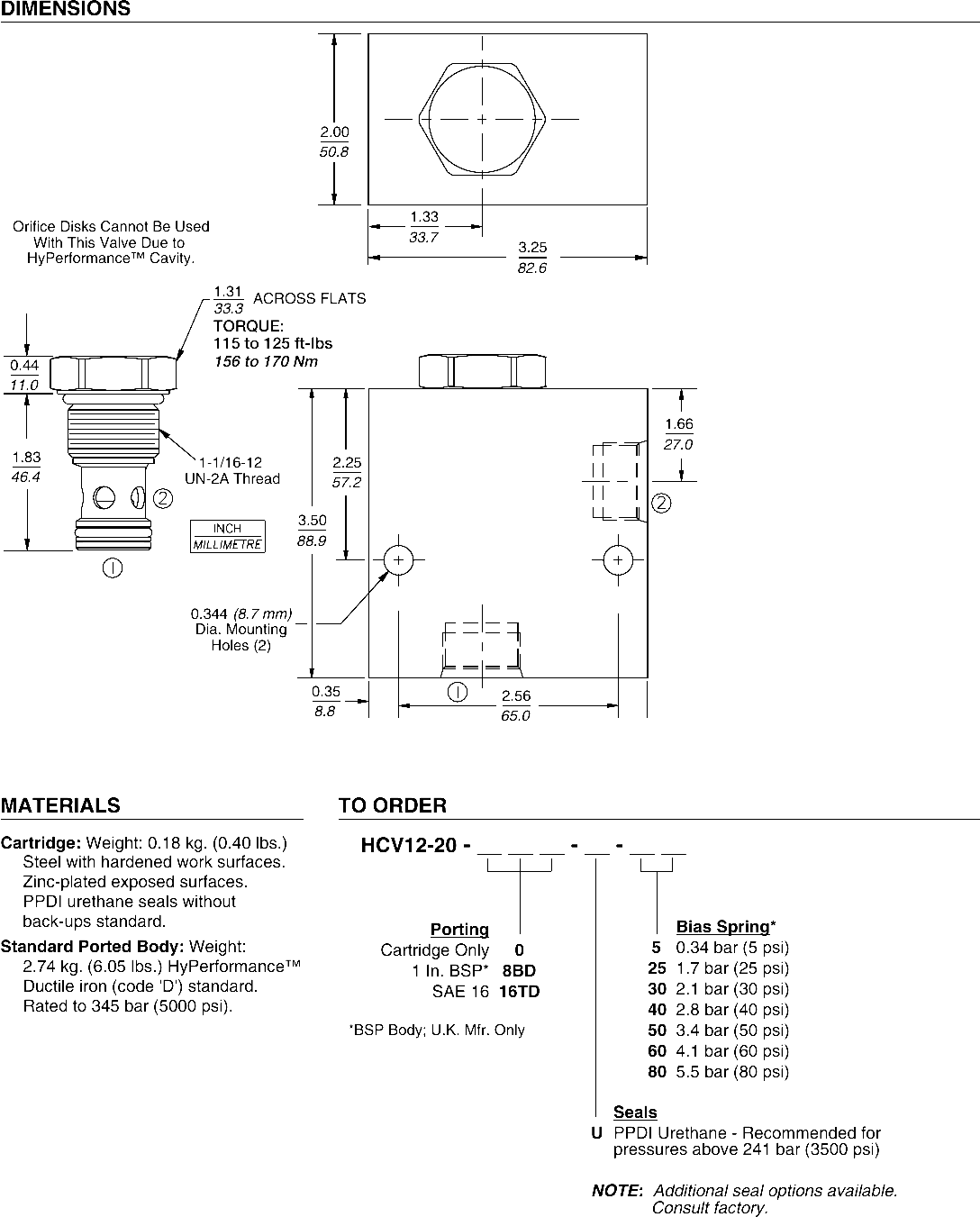

4-013-3-image-dimensions

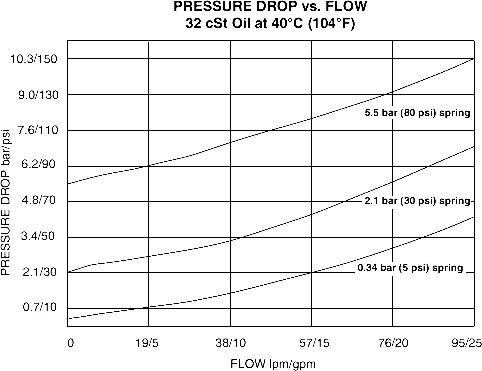

4-013-3-graphs-image

4-013-3-symbols-image

A screw-in, cartridge-style, hydraulic check valve for use as a blocking or load-holding device for high pressure applications.
