Check Valves, Guided

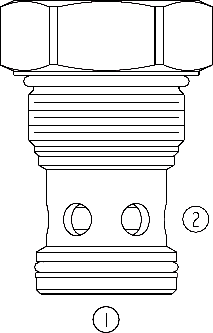

HCV42-M20 HyPerformance (HCV42-M20)

<div>
<h3>Product Operation</h3>
The HCV42-M20 allows flow from ➀ to ➁, while blocking flow in the opposite direction.
The cartridge has a fully guided poppet which is spring-biased to closed until
suffi cient pressure is applied at ➀ to open to ➁
</div>
<div>
<h3>Product Features</h3>
• Hardened seat for long life and low leakage.• Optional bias springs for back-pressure application flexibility.• All HyPerformance products are tested to the rigorous standards of the NFPA specifi cation T<a title="2.6.1" href="https://www.savery.co.uk/products/view/2-6-1">2.6.1</a>.• All HyPerformance valves are tested at a verifi cation level of 90% and an assurance of 99%.
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure: 350 bar (5075 psi); 10% cycle life: 420 bar (6090 psi)Note: All HyPerformance products are tested for 900K cycles at 350 bar and 100K at 420 bar.
Fatigue Rating: 2 million cycles at 420 bar
Burst Pressure: 1380 bar (20000 psi)
Flow: 303 lpm (80 gpm)
Max. Internal Leakage: 0.25 cc/minute (5 drops/minute) at 350 bar (5075 psi)
Operating Temperature: -54 to 107°C (-65 to 225°F) with Urethane seals
Ambient Temperature: -40 to 90°C
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>
Cavity: HVC42-M2; See page <a title="9.142.1" href="https://www.savery.co.uk/products/view/9-142-1">9.142.1</a>
Cavity Tool: HCT42-M2XX; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK42-M2X-X; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
HYDRAFORCE.com®6.9/1006.2/905.5/804.8/704.1/603.4/502.8/402.1/301.4/200.7/107.6/1108.3/1209.0/1309.7/14010.3/15011.0/16011.7/17012.4/18013.1/19013.8/200FLOW lpm/gpmPressure Drop vs. Flowfor each Spring Code Option32 cSt/150 sus oil at 40°CPRESSURE DROP bar/psi7620114301006030150515140189502276026570303803810
</div>

4-017-1-symbols

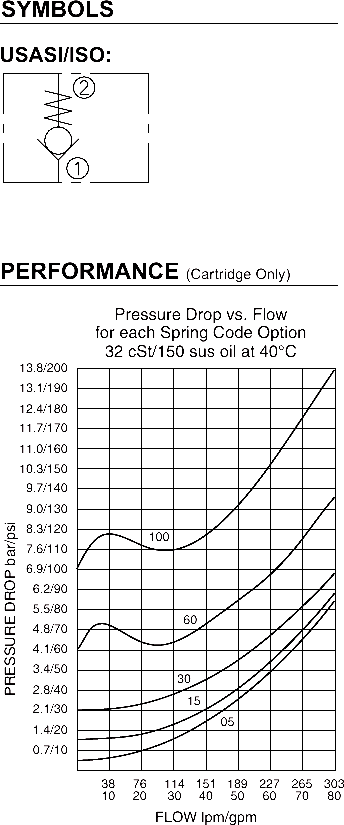

4-017-1-symbols-graphs-image

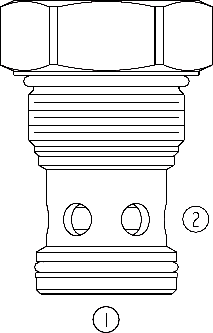

4-017-1-main-image

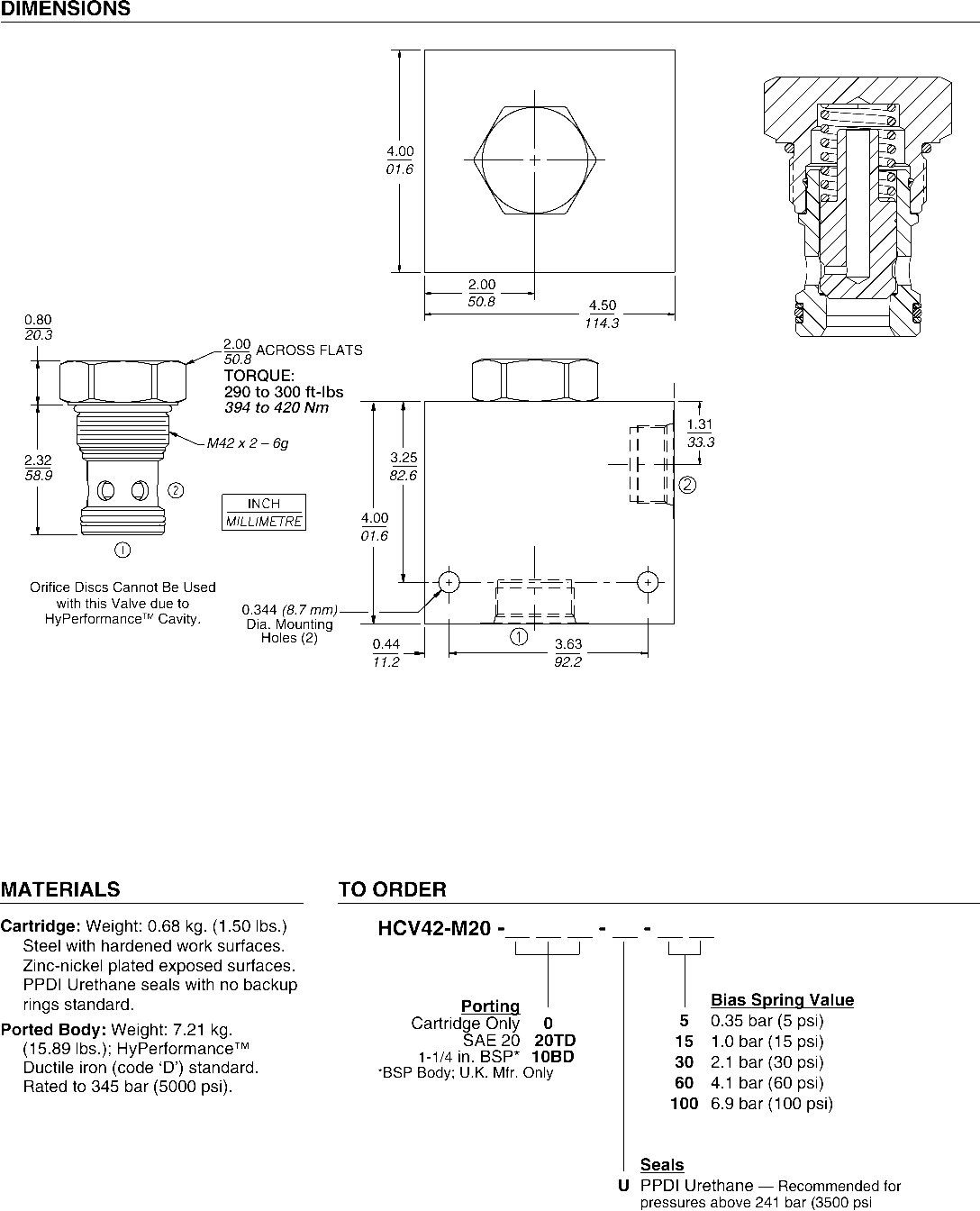

4-017-1-image-dimensions

A screw-in, cartridge-style, hydraulic check valve for use as a blocking or load-holding device in high pressure applications.
