Check Valves, Guided

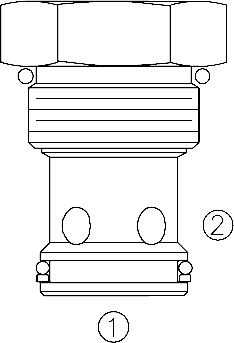

CV16-20 Check Valve (CV16-20)

<div>
<h3>Product Operation</h3>
The CV16-20 allows flow from ➀ to ➁, while blocking oil flow in the opposite direction.The cartridge has a fully guided poppet which is spring-biased to closed until suffi &#8211;
cient pressure is applied at ➀ to open to ➁
</div>
<div>
<h3>Product Features</h3>
• Hardened seat for long life and low leakage.• Optional bias springs for back-pressure application flexibility.• Industry common cavity.
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure: 240 bar (3500 psi)
Proof Pressure: 350 bar (5075 psi)
Flow: See Performance Chart
Internal Leakage: 0.25 cc/minute (5 drops/minute) max. at 240 bar (3500 psi)
Crack Pressure Defi ned: Gauge pressure evident at ➀ at 0.95 lpm (0.25 gpm) attained
Standard Bias Springs at Crack: 0.35 bar (5 psi); 1.7 bar (25 psi); 4.1 bar (60 psi)
Temperature: -40 to 120°C
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>
Cavity: VC16-2; See page <a title="9.116.1" href="https://www.savery.co.uk/products/view/9-116-1">9.116.1</a>
Cavity Tool: CT16-2XX; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK16-2X-T; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
</div>

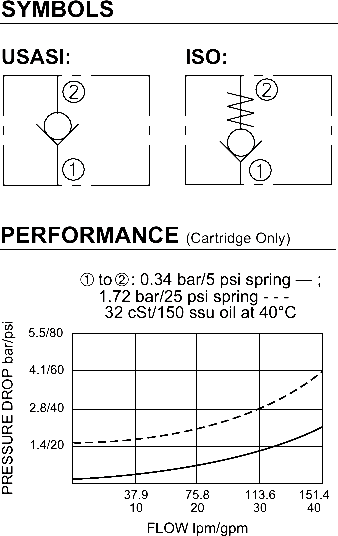

4-014-1-symbols

4-014-1-symbols-graphs-image

4-014-1-main-image

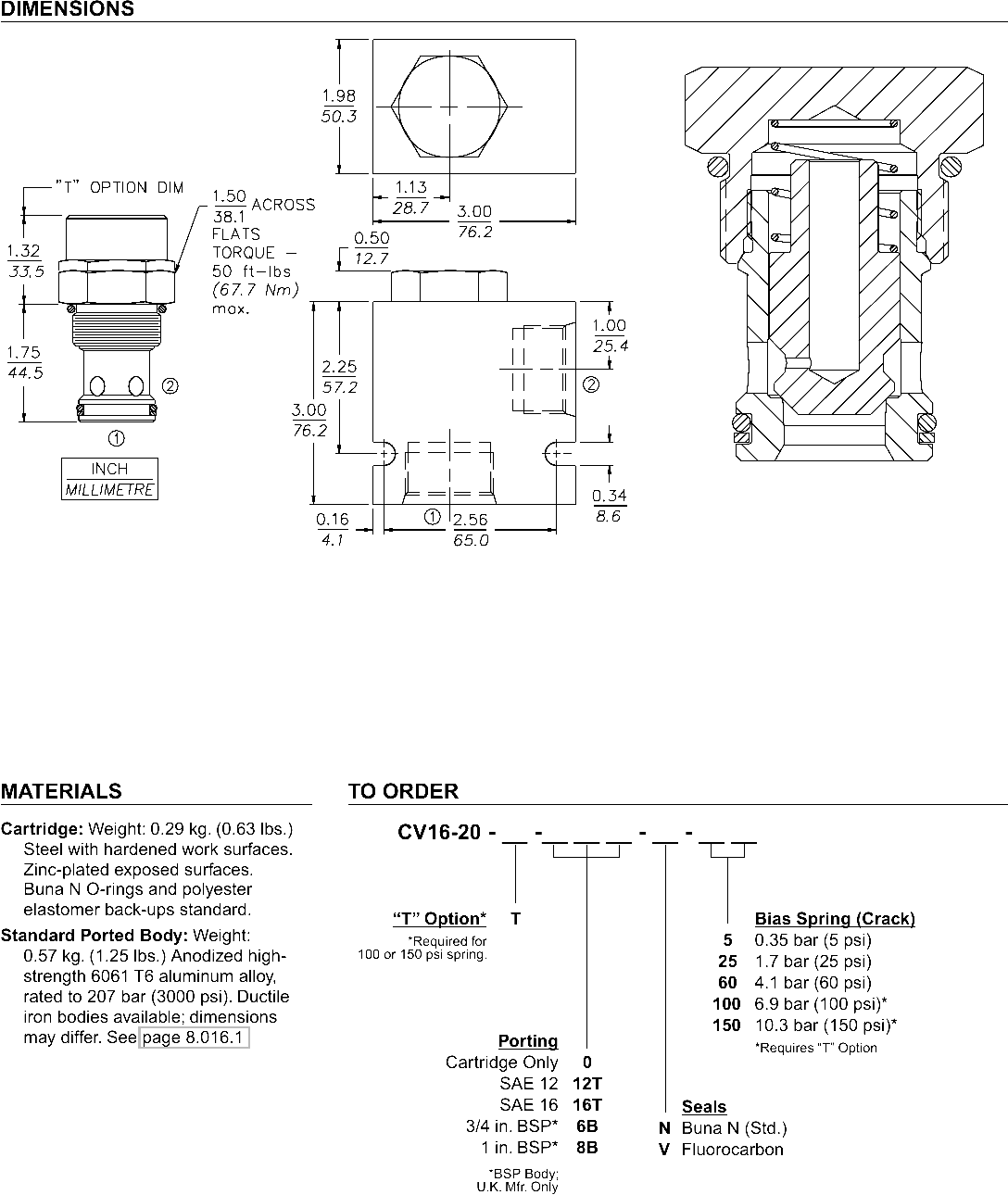

4-014-1-image-dimensions

A screw-in, cartridge-style, hydraulic check valve for use as a blocking or load-holding device.
