Check Valves, Guided

CV10-23 Check Valve (CV10-23)

<div>
<h3>Product Operation</h3>
The CV10-23 allows flow passage from ➁ to ➀, while blocking flow from ➀ to ➁The cartridge has a fully guided check which is spring-biased closed until suffi cient
pressure is applied at ➁ to open to ➀
</div>
<div>
<h3>Product Features</h3>
• Low check mass for anti-cavitation applications.
• Hardened seat for long life and low leakage.
• Optional bias springs for back-pressure application flexibility.
• Industry common cavity.
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure: 240 bar (3500 psi)
Proof Pressure: 420 bar (6090 psi)
Flow: See Performance Chart
Internal Leakage: 0.25 cc/minute (5 drops/minute) max. at 240 bar (3500 psi)
Crack Pressure Defi ned: Gauge psi evident at ➁ at 16.4 cc/minute (1 cu. in./minute) attained at ➀
Standard Bias Springs at Crack: 0.3 bar (4 psi); 1.7 bar (25 psi); 3.8 bar (55 psi)
Temperature: -40 to 120°C
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: See note in dimension drawing regarding minimum pilot drill diameter. Use of 10-size 2P standard ported body is prohibited.
Cavity: VC10-2; See page <a title="9.110.1" href="https://www.savery.co.uk/products/view/9-110-1">9.110.1</a> (Cavity Variation “A”)
Cavity Tool: CT10-2XX; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK10-2X-B; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>8.3/1206.9/1005.5/804.1/602.8/40PRESSURE DROP bar/psi to (with 0.27 bar/4 psi spring)32 cSt/150 ssu oil at 40°C11.4322.7634.19FLOW lpm/gpm45.4121.4/2056.815➁ ➀
HYDRAFORCE.com®
</div>

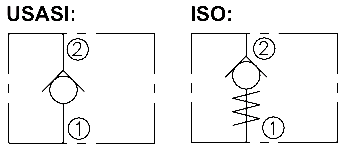

4-034-1-symbols

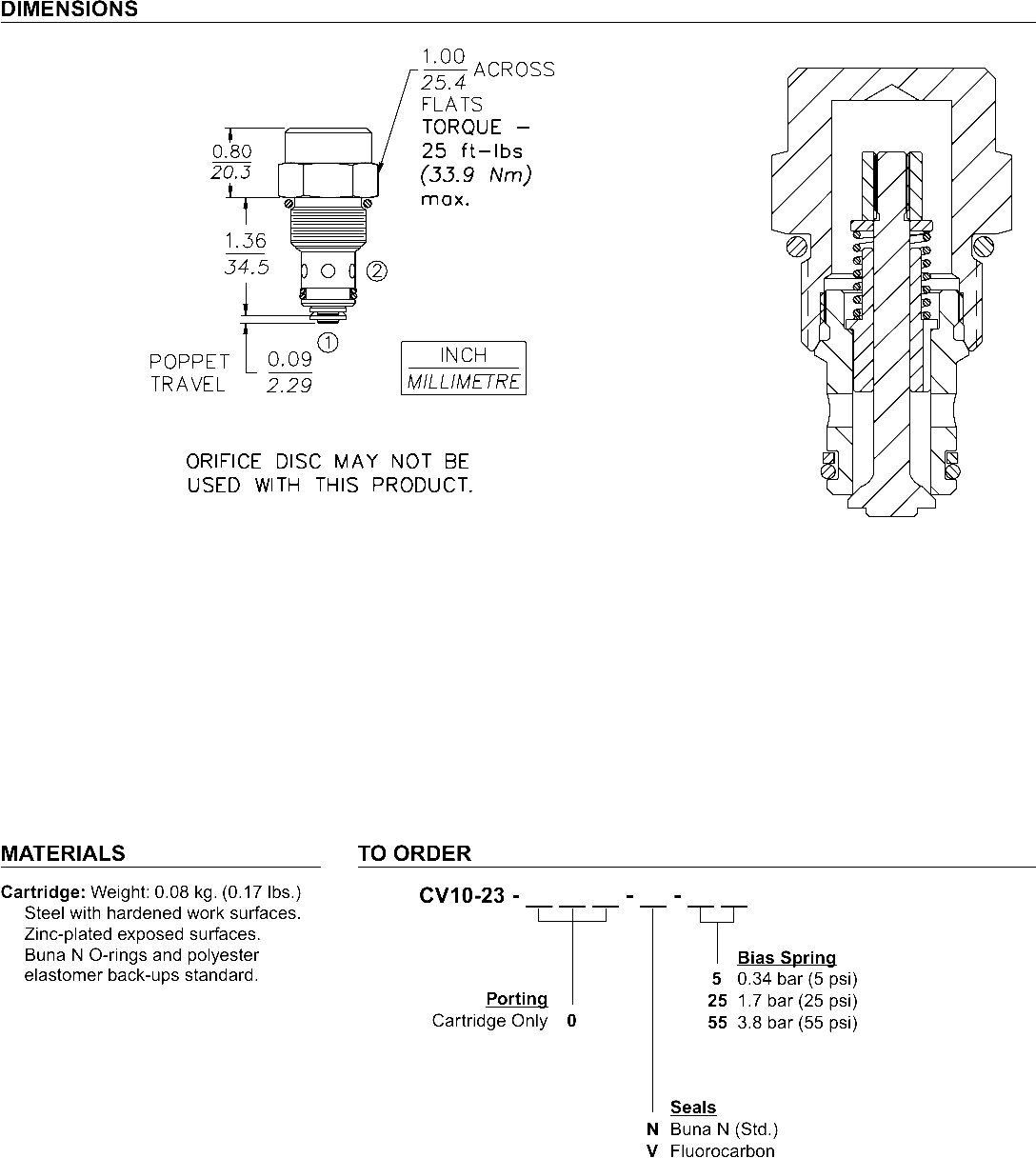

4-034-1-image-dimensions

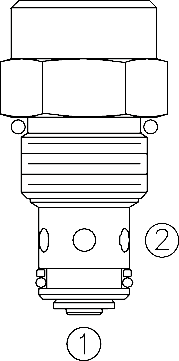

4-034-1-main-image

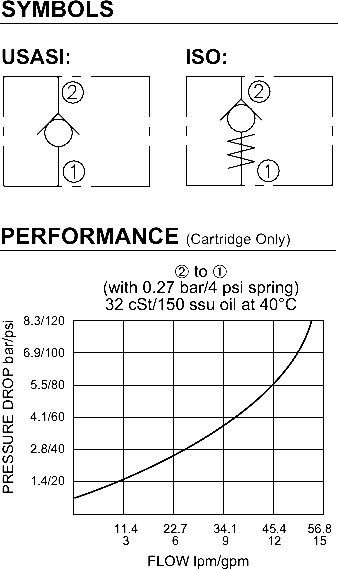

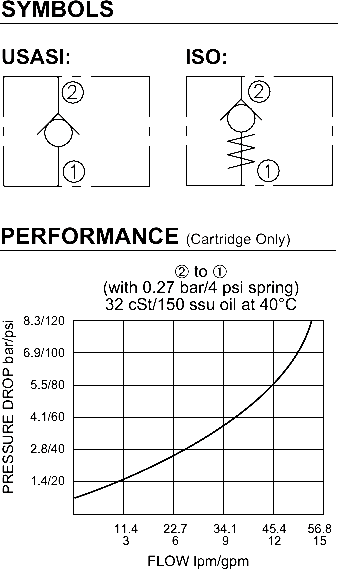

4-034-1-symbols-graphs-image
