Check Valves, Guided

CV06-B21 Check Valve (CV06-B21)

<div class="product-info group">
<div>
<h3>Product Operation</h3>
The CV06-B21 allows flow from ➁ to ➀, while normally blocking flow in the opposite direction. The cartridge is spring-biased closed until suffi cient pressure is applied at ➁ to open to ➀
</div>
<div>
<h3>Product Features</h3>
• Hardened seat for long life and low leakage.• Fully guided check assembly.• Small size.• Fast closing and seating.
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure: 345 bar (5000 psi)
Proof Pressure: 690 bar (10,000 psi)
Burst Pressure: greater than 828 bar (12,000 psi)
Flow: up to 7.6 lpm (2 gpm)
Internal Leakage: 0.10 cc/minute (2 drops/minute) max. at 34.5 bar (500 psi) and 345 bar (5000 psi) from port 1, port 2, inlet
Operating Temperature: -54°C to 107°C (-65°F to 225°F)
Filtration: Recommend 25µ nominal or better; See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions
Cavity: VC06-B2; See page <a title="9.106.1" href="https://www.savery.co.uk/products/view/9-106-1">9.106.1</a>
Cavity Tool: CT06-B2xx; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
</div>
</div>
<div class="product-related"> </div>

4-017-7-symbols

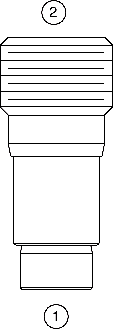

4-017-7-image-dimensions

4-017-7-main-image

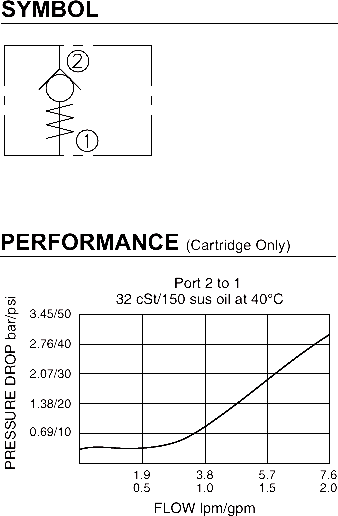

4-017-7-symbols-graphs-image
