Check Valves, Guided

CV06-B20 Check Valve (CV06-B20)

<div class="product-info group">
<div>
<h3>Product Operation</h3>
The CV06-B20 allows flow from ➀ to ➁, while normally blocking flow in the opposite direction. The cartridge is spring-biased closed until suffi cient pressure is applied at ➀ to open to ➁
</div>
<div>
<h3>Product Features</h3>
• Hardened seat for long life and low leakage.• Fully guided check assembly.• Small size.• Fast closing and seating.
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure: 345 bar (5000 psi)
Proof Pressure: 690 bar (10,000 psi)
Burst Pressure: greater than 828 bar (12,000 psi)
Flow: up to 7.6 lpm (2 gpm)
Internal Leakage: 0.10 cc/minute (2 drops/minute) max. at 34.5 bar (500 psi) and 345 bar (5000 psi) from port 1, port 2, inlet
Operating Temperature: -54°C to 107°C (-65°F to 225°F)
Filtration: Recommend 25µ nominal or better; See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions
Cavity: VC06-B2; See page <a title="9.106.1" href="https://www.savery.co.uk/products/view/9-106-1">9.106.1</a>
Cavity Tool: CT06-B2xx; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
</div>
</div>
<div class="product-related"> </div>

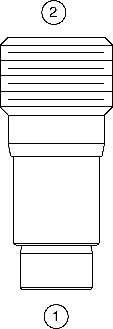

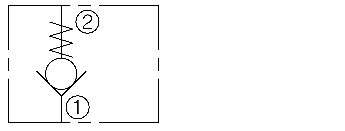

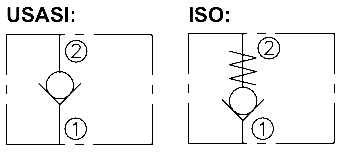

4-006-1-symbols

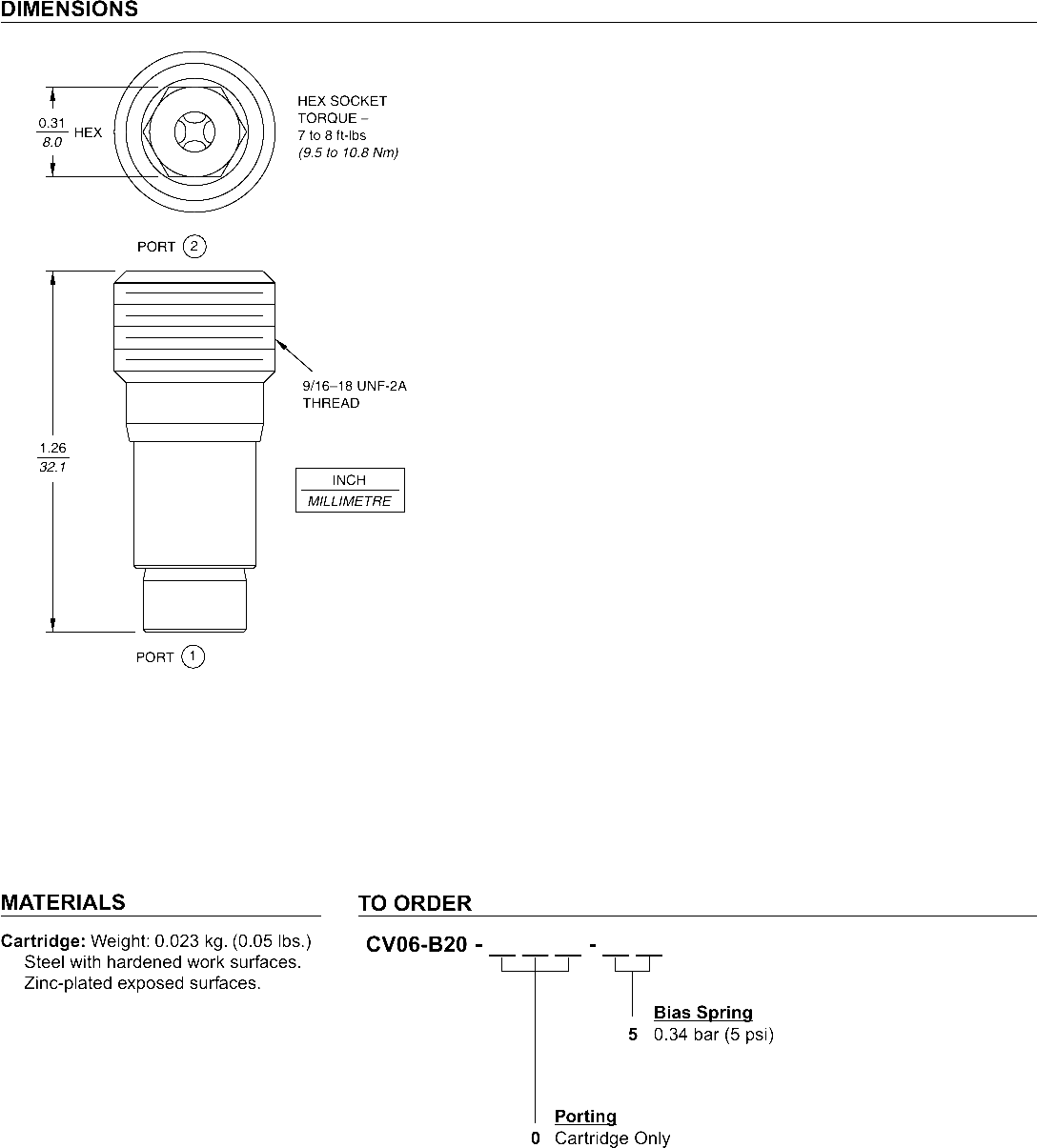

4-006-1-image-dimensions

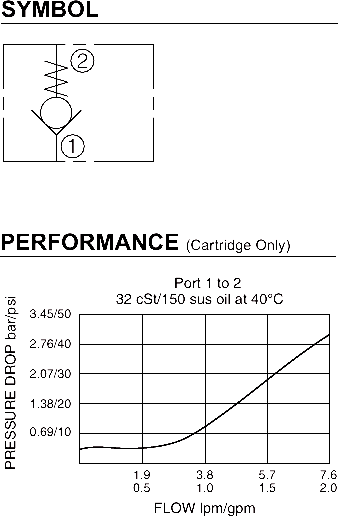

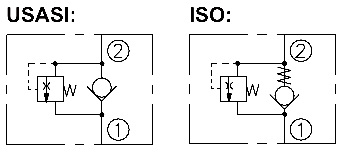

4-006-1-symbols-graphs-image

4-006-1-main-image

A screw-in, cartridge-style, hydraulic check valve for blocking or load-holding.


24.03.28_BAR_Savery_2577

Bespoke Projects

<ul class="ul1">
<li class="li1">Bespoke lubrication systems for testing Aerospace propulsion using high temperature fluids and test article scavenge capability</li>
<li class="li1">Bespoke lubrication solution for testing Automotive EV components.</li>
<li class="li1">Bespoke assembly rigs for Aircraft landing gear with built in test facilities.</li>
<li class="li1">Bespoke pressure testing and flushing rigs for Aircraft assembly plants.</li>
<li class="li1">Purpose design test benches for fluid power components.</li>
<li class="li1">Ground support trolleys for production and field use for Aircraft testing.</li>
<li class="li1">Hydraulic ring mains for aircraft production and servicing.</li>
<li class="li1">Hydraulic Infrastructure for test houses.</li>
</ul>

Bespoke-Projects

140223Savery_154

140223Savery_175 (1)

Savery Hydraulics have a highly experienced team for fluid control for hydraulic, electronic control, installation and project management. Using this experience we have supported customers with a wide range of projects which are not traditionally considered hydraulic equipment. Some examples of bespoke projects we have successfully delivered are:-

Savery_2_comp

hero-bg

Hydraforce / Oil Control

Hydraforce products meet global quality standards including ISO 9001, QS 9000 and CE. Every Hydraforce valve, coil, solenoid, manifold and electro-hydraulic control goes through rigorous testing and inspection to perform beyond industry standards.

Savery offers one of the most comprehensive lines of hydraulic valves, solenoids and coils and is the UK distributor for the Hydraforce range of products for the mobile and industrial equipment markets, including high performance valves for flow rates of 0.4 to 530lpm and pressure up to 420 bar.

Tile_image

Savery_36_comp

Tile_backgorund_image_No_2

Hydraulic Control Systems

Tailored Solutions for Precision Control
Our in-house hardware and software design team is dedicated to delivering cost-effective and reliable solutions for a wide array of control system needs. From embedded microcontroller systems to large-scale machine controls, we excel in designing and developing systems that meet the most demanding specifications.
&nbsp;
Cloud-Based Monitoring for Seamless Access
We offer cloud-based system monitoring solutions that provide 24/7 access through smart phone or tablet apps, giving you real-time insights into your operations from anywhere.
&nbsp;
Industry-Leading Expertise
With extensive experience across various industries, including aerospace, automotive, wind turbine testing, marine, and industrial sectors, our engineers bring invaluable expertise to every project.

Hardware and Software Capabilities
Small-Scale Control Systems: We design cost-effective control systems in-house using bespoke electronic control boards giving you optimal performance for your specific needs.
Microchip Programming: We specialise in programming microchips for specialist applications in fluid power, providing tailored solutions for precise control.
Large-Scale Machine Control Systems: Our capabilities include designing dedicated Motor Control Centre (MCC) cabinets and implementing System Control and Data Acquisition (SCADA) plant monitoring for seamless operation of complex machinery.
Software Authoring: We are proficient in various software platforms, including:
<ul>
<li>Delta Motion Controllers </li>
<li>National Instruments LabView© </li>
<li>National Instruments LabWindows CVI© </li>
<li>PLCs: Allen Bradley, Siemens, Omron, Schneider, Bachmann, Koyo </li>
<li>HMI and SCADA Systems: Siemens, Schneider, Bachmann, Koyo </li>
</ul>

Cost-Effective Solutions, Tailored to Your Needs
Our deep understanding of different control systems enables us to select the most cost-effective platform to suit your systems development, ensuring you get the best value for your investment.
At Savery, we are committed to delivering innovative, reliable, and tailored solutions that optimise the performance of your hydraulic systems, empowering you to achieve your goals with precision and efficiency.
Get in touch with us today to discuss your project needs.

140223Savery_125

140223Savery_127

140223Savery_155

140223Savery_126

At Savery, we design and manufacture electronic systems that ensure the safe and efficient control and monitoring of hydraulic equipment. Our expertise lies in providing comprehensive control system solutions tailored to your specific requirements, with a focus on bespoke applications.

Hydraulic-Control-System

Savery_39_comp

24_03_28_BAR_Savery_3818

Hydraulic Control Systems

24.03.28_BAR_Savery_4084

Savery custom manifolds can be designed as part of a new power unit or to enhance your existing equipment & machinery. Custom designed manifolds offer no-leak, screw-in components with fast and easy valve removal and replacement.

HydraulicIntegratedCircuit(HIC) - ManifoldAssembly

Our team of experienced engineers can simplify the most complex hydraulic circuits to reduce cost, improve reliability, minimise pipe work connections and the physical size &amp; weight of the solutions.
Custom manifold assemblies are:
<ul>
<li data-leveltext="" data-font="Symbol" data-listid="1" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="1" data-aria-level="1">Designed by our engineers in house using the latest 3D CAD software for integration into your product. </li>
<li data-leveltext="" data-font="Symbol" data-listid="1" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="2" data-aria-level="1">Designed utilising Hydraforce cartridge valves and a vast range of other manufacturer’s components to achieve the required performance. </li>
<li data-leveltext="" data-font="Symbol" data-listid="1" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="3" data-aria-level="1">Machined using modern CNC equipment with specialist tooling to ensure high quality. </li>
<li data-leveltext="" data-font="Symbol" data-listid="1" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="4" data-aria-level="1">Manufactured from aluminium, steel or stainless steel to meet system pressure, flow and application requirements. </li>
<li data-leveltext="" data-font="Symbol" data-listid="1" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="5" data-aria-level="1">Designed in conjunction with your engineers to ensure we meet your unique requirements and installation needs. </li>
<li data-leveltext="" data-font="Symbol" data-listid="1" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="6" data-aria-level="1">Supplied in a variety of sizes from small manifold blocks with cartridges capable of controlling low(a few litres per minute) flow rate up to large complex assemblies for hundreds of litres per minute. </li>
<li data-leveltext="" data-font="Symbol" data-listid="1" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="7" data-aria-level="1">Supplied fully assembled &amp; tested in our UK facility &amp; meeting the necessary ISO recommended guidelines for hydraulic cleanliness prior to dispatch. </li>
</ul>

Manifold-Assembly

24.03.28_BAR_Savery_2587

Savery custom manifolds can be designed as part of a new power unit or to enhance your existing equipment & machinery. Custom designed manifolds offer no-leak, screw-in components with fast and easy valve removal and replacement.

Savery_11_comp

Hydraulic Integrated Circuit (HIC) – Manifold Assembly

24.03.28_BAR_Savery_2711

Hydraulic Power Unit

Our power units vary from compact, fixed pump systems to intricate setups featuring multiple variable displacement pumps and energy-saving variable speed drive technology. These units can be equipped with control manifolds for basic relief unloading functions or complex hydraulic control circuitry, custom-made for your application.
We offer bespoke electrical control equipment that can manually or automatically control the power source, adhering to all current safety standards. This can be paired with simple condition monitoring for parameters such as flow, pressure, level, temperature, and fluid condition, or with advanced SCADA data recording for remote access via the cloud. This ensures safe and reliable 24/7 operation of equipment.
Our power units can include fluid reservoirs ranging from 10 litres to over 14,000 litres, with built-in bund containment to meet regulatory requirements.
With Savery, you’re in safe hands. We work with you from conception through design, project planning, installation, commissioning, and servicing to deliver a cost-effective and efficient hydraulic and control solution.
We have successfully completed projects in various industries, including:
<ul>
<li data-leveltext="" data-font="Symbol" data-listid="2" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="1" data-aria-level="1">Civil: Flood Barriers, Roll-on/Roll-off dock equipment </li>
<li data-leveltext="" data-font="Symbol" data-listid="2" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="2" data-aria-level="1">Marine: Ship Stabiliser, steering and deck equipment (with in-house 60 Hz testing capability) </li>
<li data-leveltext="" data-font="Symbol" data-listid="2" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="3" data-aria-level="1">Testing Infrastructure: Automotive, Aerospace, research and production component testing </li>
<li data-leveltext="" data-font="Symbol" data-listid="2" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="4" data-aria-level="1">Mechanical Handling: Large Scissor lifts </li>
<li data-leveltext="" data-font="Symbol" data-listid="2" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="5" data-aria-level="1">Defence and Security: Specialist equipment </li>
<li data-leveltext="" data-font="Symbol" data-listid="2" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="6" data-aria-level="1">Wind: Turbine Blade testing </li>
</ul>
Trust Savery Hydraulics for your hydraulic power needs.

Hydraulic-Power-Unit

At Savery Hydraulics, we specialise in the design and manufacture of hydraulic power units tailored to customer specifications. Our offerings range from single fractional power motors to multiple pump sets, with power installations up to 2 Mw.

24.03.28_BAR_Savery_2719

For Product page (2) (1)

Contact Us

Savery hydraulic power packs and mini power packs are the culmination of many years of experience in manufacturing AC and DC power packs.

Small HydraulicPower Packs

The PB300 series of power units offer the latest design and features not normally associated with this type of unit. The units have a pressure up to 300 bar, which is achieved by the use of high specification materials. The centre adaptor can be machined to give a vast range of integral control options for single and double acting circuits.
Applications for this type of unit are numerous DC units for battery powered use include our tail lift packs and can be found on tippers, aerial access equipment and material handling trucks. AC units with power ratings from 0.25kW to 5.5kW have an even greater range of applications including the retail and service industry for the handling of goods &#8211; loading and unloading of vehicles and the lift industry for lifts installed in the home, disabled lifts and automotive assembly plants.
Savery has developed hydraulic power packs specifically for applications such as dock levellers, which provide a bridge between the loading bay and the truck being loaded or unloaded.
PB300 units have;
<ul>
<li>DC units 12V &amp; 24V / 0.2 – 3.5kW.</li>
<li>AC units 3 Phase &amp; 1 Phase / 0.25 – 5.5kW.</li>
<li>A vast range of control options for single and double acting circuits.</li>
<li>Advanced pressure die-cast aluminium centre adaptor.</li>
<li>The ability to eliminate porosity.</li>
</ul>
<img loading="lazy" decoding="async" class="alignnone size-full wp-image-5274" src="https://cms.savery.co.uk/wp-content/uploads/2024/03/E11-Logo.jpg" alt="" width="110" height="48" />

Small-Hydraulic-Power-Pack

Product page tile image (1)

Mini-packs-

Product_Page_Image

Savery offer a complete and comprehensive range of hydraulic power units, incorporating highly flexible, cost effective modular construction suited to both OEM and small users. The design of units for special applications is an important part of Savery’s marketing activities and our engineers can develop a unit to perfectly match our customer’s requirements.

Savery hydraulic power packs and mini power packs are the culmination of many years of experience in manufacturing AC and DC power packs.


Savery_34_comp

Small Hydraulic Power Packs

HCV42-M20 HyPerformance (HCV42-M20)

<div>
<h3>Product Operation</h3>
The HCV42-M20 allows flow from ➀ to ➁, while blocking flow in the opposite direction.
The cartridge has a fully guided poppet which is spring-biased to closed until
suffi cient pressure is applied at ➀ to open to ➁
</div>
<div>
<h3>Product Features</h3>
• Hardened seat for long life and low leakage.• Optional bias springs for back-pressure application flexibility.• All HyPerformance products are tested to the rigorous standards of the NFPA specifi cation T<a title="2.6.1" href="https://www.savery.co.uk/products/view/2-6-1">2.6.1</a>.• All HyPerformance valves are tested at a verifi cation level of 90% and an assurance of 99%.
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure: 350 bar (5075 psi); 10% cycle life: 420 bar (6090 psi)Note: All HyPerformance products are tested for 900K cycles at 350 bar and 100K at 420 bar.
Fatigue Rating: 2 million cycles at 420 bar
Burst Pressure: 1380 bar (20000 psi)
Flow: 303 lpm (80 gpm)
Max. Internal Leakage: 0.25 cc/minute (5 drops/minute) at 350 bar (5075 psi)
Operating Temperature: -54 to 107°C (-65 to 225°F) with Urethane seals
Ambient Temperature: -40 to 90°C
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>
Cavity: HVC42-M2; See page <a title="9.142.1" href="https://www.savery.co.uk/products/view/9-142-1">9.142.1</a>
Cavity Tool: HCT42-M2XX; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK42-M2X-X; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
HYDRAFORCE.com®6.9/1006.2/905.5/804.8/704.1/603.4/502.8/402.1/301.4/200.7/107.6/1108.3/1209.0/1309.7/14010.3/15011.0/16011.7/17012.4/18013.1/19013.8/200FLOW lpm/gpmPressure Drop vs. Flowfor each Spring Code Option32 cSt/150 sus oil at 40°CPRESSURE DROP bar/psi7620114301006030150515140189502276026570303803810
</div>

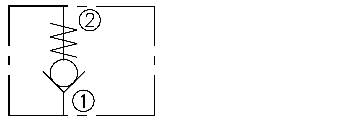

4-017-1-symbols

4-017-1-symbols-graphs-image

4-017-1-main-image

4-017-1-image-dimensions

A screw-in, cartridge-style, hydraulic check valve for use as a blocking or load-holding device in high pressure applications.

<div class="product-info group">
<div>
<h3>Product Operation</h3>
The HCV16-20 allows flow from 1 to 2, while normally blocking flow in the opposite
direction.
The cartridge has a fully guided poppet which is spring-biased to closed until
sufficient pressure is applied at 1 to open to 2.
</div>
<div>
<h3>Product Features</h3>
• Hardened seat for long life and low leakage.• Optional bias springs for back-pressure application flexibility.• All HyPerformance products are tested to the rigorous standards of the NFPA specification T<a title="2.6.1" href="https://www.savery.co.uk/products/view/2-6-1">2.6.1</a>.• All HyPerformance valves are tested at a verification level of 90% and an assurance of 99%.
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure: 350 bar (5075 psi); 10% cycle life: 420 bar (6090 psi)Note: All HyPerformance products are tested for 900K cycles at 350 bar and 100K at 420 bar.
Fatigue Rating: 2 million cycles at 420 bar
Burst Pressure: 1380 bar (20000 psi)
Flow: Up to 151 lpm (40 gpm)
Max. Internal Leakage: 0.25 cc/minute (5 drops/minute) at 350 bar (5075 psi)
Operating Temperature: -54 to 107°C (-65 to 225°F) with Urethane seals
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>
Cavity: HVC16-2; See page <a title="9.116.1" href="https://www.savery.co.uk/products/view/9-116-1">9.116.1</a>
Cavity Tool: HCT16-2XX; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK16-2X-X; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
</div>
</div>
<div class="product-related"> </div>

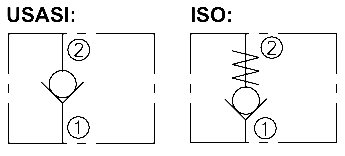

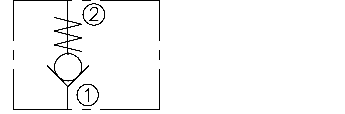

4-015-1-symbols

4-015-1-image-dimensions

4-015-1-symbols-graphs-image

4-015-1-main-image

HCV16-20 HyPerformance (HCV16-20)

HCV12-20 HyPerformance™ Check Valve (HCV12-20)

<div>
<h3>Product Operation</h3>
The HCV12-20 allows flow passage from 1 to 2, while normally blocking oil flow in the opposite direction.
The cartridge has a fully guided check which is spring-biased closed until sufficient pressure is applied at 1 to open to 2.
</div>
<div>
<h3>Product Features</h3>
• Hardened seat for long life and low leakage.
• Optional bias springs for back-pressure application flexibility.
• Fully guided check assembly.
• Cost effective cavity.• All HyPerformance products are tested to the rigorous standards of the NFPA specification T<a title="2.6.1" href="https://www.savery.co.uk/products/view/2-6-1">2.6.1</a>.• All HyPerformance valves are tested at a verification level of 90% and an assurance of 99%.
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure: 350 bar (5075 psi) 10% cycle life: 420 bar (6090 psi)
Fatigue Rating: Two million cycles at 420 bar (6090 psi)
Cycle Life: One million cycles
Proof Pressure: 420 bar (6090 psi)
Burst Pressure: 1380 bar (20000 psi)
Flow: 95 lpm (25 gpm)
Internal Leakage: 0.25 ml/minute (5 drops/minute) max. at 350 bar (5075 psi)
Operating Temperature: -54° to 107°C (-65° to 225°F) with PPDI Urethane seals
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>
Cavity: HVC12-2; See page <a title="9.112.1" href="https://www.savery.co.uk/products/view/9-112-1">9.112.1</a>
Cavity Tool: HCT12-2XX; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK12-2U-0; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
</div>

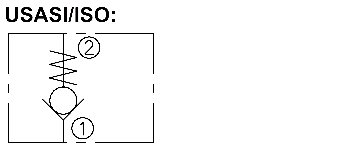

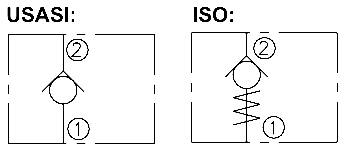

4-013-3-symbols

4-013-3-main-image

4-013-3-image-dimensions

4-013-3-graphs-image

4-013-3-symbols-image

A screw-in, cartridge-style, hydraulic check valve for use as a blocking or load-holding device for high pressure applications.

HCV08-20 HyPerformance™ Check Valve (HCV08-20)

<div>
<h3>Product Operation</h3>
The HCV08-20 allows flow passage from 1 to 2, while normally blocking oil flow in the opposite direction.
The cartridge valve has a fully guided poppet which is spring-bias closed until sufficient pressure is applied at 1 to open to 2.
</div>
<div>
<h3>Product Features</h3>
• Hardened seat for long life and low leakage.• Optional bias springs for back-pressure application flexibility.• Fully guided check assembly.• Compact size.• Fast closing and seating.
• All HyPerformance™ products are tested to the rigorous standards of the NFPA specification T<a title="2.6.1" href="https://www.savery.co.uk/products/view/2-6-1">2.6.1</a> and are tested at a verification level of 90% and an assurance of 99%
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure: 350 bar (5075 psi); 10% cycle life: 420 bar (6090 psi) Note: All HyPerformance™ products are tested for 900K cycles at 350 bar and 100K at 420 bar.
Proof Pressure: 630 bar (10000 psi)
Burst Pressure: 1380 bar (20000 psi)
Flow Rating: 30 lpm (8 gpm)
Internal Leakage: 0.10 cc/minute (2 drops/minute) max. at 350 bar (5075 psi)
Temperature: -40 to 100°C (-40 to 212°F) with Buna N seals; -26 to 204°C (-15 to 400°F) with Viton seals; -54 to 107°C (-65 to 225°F) with Urethane seals
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>
Cavity: HVC08-2; See page <a title="9.108.1" href="https://www.savery.co.uk/products/view/9-108-1">9.108.1</a>
Cavity Tool: HCT08-2XX; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK08-2X-T; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
</div>

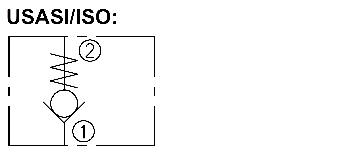

4-010-3-symbols

4-010-3-image-dimensions

4-010-3-symbols-graphs-image

4-010-3-main-image

CV50-20 Check Valve, High Pressure (CV50-20)

<div class="product-info group">
<div>
<h3>Product Operation</h3>
The CV50-20 allows flow passage from ➀ to ➁, while normally blocking oil flow in the opposite direction.
The cartridge has a fully guided check which is spring-biased closed until suffi cient
pressure is applied at ➀ to open to ➁
</div>
<div>
<h3>Product Features</h3>
• Hardened seat for long life and low leakage.
• Optional bias springs for back-pressure application flexibility.
• Fully guided check assembly.
• Industry common cavity.
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure: 345 bar (5000 psi)
Flow: See Performance Chart
Internal Leakage: 0.10 cc/minute (2 drops/minute) max. at 345 bar (5000 psi)
Crack Pressure Defi ned: Gauge psi evident at ➀ at 16.4 cc/minute (1 cu. in./minute) attained
Standard Bias Springs at Crack: 0.34 bar (5 psi); 1 bar (15 psi); 2.1 bar (30 psi); 4.8 bar (70 psi)
Temperature: -40 to 120°C
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>
Cavity: VC10-2; See page <a title="9.110.1" href="https://www.savery.co.uk/products/view/9-110-1">9.110.1</a>
Cavity Tool: CT10-2XX; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK10-2P-T; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
</div>
</div>
<div class="product-related"> </div>

4-012-1-symbols

4-012-1-image-dimensions

4-012-1-symbols-graphs-image

4-012-1-main-image

A screw-in, cartridge-style, hydraulic check valve for use as a blocking or load-holding device for high pressure applications.



CV42-M20 Check Valve (CV42-M20)

<div>
<h3>Product Operation</h3>
The CV42-M20 allows flow from ➀ to ➁, while blocking oil flow in the opposite direction.
The cartridge has a fully guided poppet which is spring-biased to closed until
suffi cient pressure is applied at ➀ to open to ➁
</div>
<div>
<h3>Product Features</h3>
• Hardened seat for long life and low leakage.• Optional bias springs for back-pressure application flexibility.• Conforms to ISO 7789 cavity.
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure: 240 bar (3500 psi)
Proof Pressure: 350 bar (5075 psi)
Flow: See Performance Chart
Internal Leakage: 0.25 cc/minute (5 drops/minute) max. at 240 bar (3500 psi)
Crack Pressure Defi ned: Gauge pressure evident at ➀ at 0.95 lpm (0.25 gpm) attained at ➁
Standard Bias Springs at Crack: 0.35 bar (5 psi); 1.7 bar (25 psi); 4.1 bar (60 psi)
Temperature: -40 to 120°C
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>
Cavity: VC42-M2 (ISO M42-2.0); See page <a title="9.142.1" href="https://www.savery.co.uk/products/view/9-142-1">9.142.1</a>
Cavity Tool: CT42-M2XX; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK42-M2X-T; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
HYDRAFORCE.com®
</div>

4-016-1-symbols

4-016-1-image-dimensions

4-016-1-symbols-graphs-image

4-016-1-main-image

A screw-in, cartridge-style, hydraulic check valve for use as a blocking or load-holding device.

CV16-20 Check Valve (CV16-20)

<div>
<h3>Product Operation</h3>
The CV16-20 allows flow from ➀ to ➁, while blocking oil flow in the opposite direction.The cartridge has a fully guided poppet which is spring-biased to closed until suffi &#8211;
cient pressure is applied at ➀ to open to ➁
</div>
<div>
<h3>Product Features</h3>
• Hardened seat for long life and low leakage.• Optional bias springs for back-pressure application flexibility.• Industry common cavity.
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure: 240 bar (3500 psi)
Proof Pressure: 350 bar (5075 psi)
Flow: See Performance Chart
Internal Leakage: 0.25 cc/minute (5 drops/minute) max. at 240 bar (3500 psi)
Crack Pressure Defi ned: Gauge pressure evident at ➀ at 0.95 lpm (0.25 gpm) attained
Standard Bias Springs at Crack: 0.35 bar (5 psi); 1.7 bar (25 psi); 4.1 bar (60 psi)
Temperature: -40 to 120°C
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>
Cavity: VC16-2; See page <a title="9.116.1" href="https://www.savery.co.uk/products/view/9-116-1">9.116.1</a>
Cavity Tool: CT16-2XX; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK16-2X-T; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
</div>

4-014-1-symbols

4-014-1-symbols-graphs-image

4-014-1-main-image

4-014-1-image-dimensions

CV12-21 Check Valve (CV12-21)

<div>
<h3>Product Operation</h3>
The CV12-21 allows flow passage from ➁ to ➀, while blocking flow from ➀ to ➁The cartridge has a fully guided check which is spring-biased closed until suffi cient
pressure is applied at ➁ to open to ➀
</div>
<div>
<h3>Product Features</h3>
• Low check mass for anti-cavitation applications.
• Hardened seat for long life and low leakage.
• Optional bias springs for back-pressure application flexibility.
• Cost-effective cavity.
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure: 240 bar (3500 psi)
Flow: See Performance Chart
Internal Leakage: 0.25 cc/minute (5 drops/minute) max. at 240 bar (3500 psi)
Crack Pressure Defi ned: Gauge bar (psi) evident at ➁ at 16.4 cc/minute (1 cu. in./minute) attained at ➀
Standard Bias Springs at Crack: 0.4 bar (6 psi); 1.8 bar (26 psi); 3.8 bar (56 psi)
Temperature: -40 to 120°C
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: See note in dimension drawing regarding minimum pilot drill diameter
Cavity: VC12-2 (Cavity Variation “A”); See page <a title="9.112.1" href="https://www.savery.co.uk/products/view/9-112-1">9.112.1</a>
Cavity Tool: CT12-2XX; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK12-2X-B; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
</div>

4-020-1-symbols

4-020-1-image-dimensions

4-020-1-main-image

4-020-1-symbols-graphs-image

A screw-in, cartridge-style, hydraulic check valve for use as a blocking or load-holding device.

CV12-20 Check Valve (CV12-20)

<div>
<h3>Product Operation</h3>
The CV12-20 allows flow passage from ➀ to ➁, while normally blocking oil flow in the opposite direction.
The cartridge has a fully guided check which is spring-biased closed until suffi cient
pressure is applied at ➀ to open to ➁
</div>
<div>
<h3>Product Features</h3>
• Hardened seat for long life and low leakage.
• Optional bias springs for back-pressure application flexibility.
• Fully guided check assembly.
• Cost effective cavity.
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure: 240 bar (3500 psi)
Proof Pressure: 420 bar (6090 psi)
Flow: See Performance Chart
Internal Leakage: 0.25 cc/minute (5 drops/minute) max. at 240 bar (3500 psi)
Crack Pressure Defi ned: Gauge bar (psi) evident at ➀ at 16.4 cc/minute (1 cu. in./minute) attained
Standard Bias Springs at Crack: 0.34 bar (5 psi); 1.7 bar (25 psi); 4.1 bar (60 psi)
Temperature: -40 to 120°C
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>
Cavity: VC12-2; See page <a title="9.112.1" href="https://www.savery.co.uk/products/view/9-112-1">9.112.1</a>
Cavity Tool: CT12-2XX; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK12-2X-T; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
</div>

4-013-1-symbols

4-013-1-image-dimensions

4-013-1-main-image

4-013-1-symbols-graphs-image

CV10-28 Check Valve with Thermal Relief (CV10-28)

<div>
<h3>Product Operation</h3>
The CV10-28 allows flow from ➀ to ➁, while blocking oil flow in the opposite direction. If the pressure at ➁ exceeds the thermal relief valve setting, a small amount of oil will be allowed to pass from ➁ to ➀, preventing cylinder damage from pressure intensifi cation.
NOTE: The relief valve feature is not intended for use in dynamic pressure limiting
applications. Consult factory.
</div>
<div>
<h3>Product Features</h3>
• Hardened seats for long life and low leakage.• Industry common cavity.
</div>
<div>
<h3>Product Ratings</h3>
Formula for Thermal Expansion: ΔP = 57.7 x ΔT (where ΔP is in psi; ΔT is in °F)
Operating Pressure: 241 bar (3500 psi)
Proof Pressure: 390 bar (5700 psi)
Thermal Relief Settings:
05 34.5 – 48.3 bar (500 – 700 psi)
10 69.0 – 93.1 bar (1000 – 1350 psi)
20 137.9 – 172.4 bar (2000 – 2500 psi)
25 172.4 – 217.2 bar (2500 – 3150 psi)
30 206.9 – 262.1 bar (3000 – 3800 psi)
40 275.9 – 344.8 bar (4000 – 5000 psi)
45 310.3 – 386.2 bar (4500 – 5600 psi)
Flow: See Performance Chart
Internal Leakage: 0.25 cc/minute (5 drops/minute) max. at 240 bar (3500 psi)
Standard Check Bias Spring at Crack: 4.5 bar (65 psi)
Check ➀
to ➁
Crack Pressure Defi ned: Gauge bar (psi) evident at ➀ at 16.4 cc/minute (1 cu. in./minute) attained at ➁
Temperature: -40 to 120°C
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>
Cavity: VC10-2; See page <a title="9.110.1" href="https://www.savery.co.uk/products/view/9-110-1">9.110.1</a>
Cavity Tool: CT10-2XX; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK10-2X-T; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
</div>

4-050-1-symbols

4-050-1-image-dimensions

4-050-1-main-image

4-050-1-symbols-graphs-image

A screw-in, cartridge-style, hydraulic check valve for use as a blocking or load-holding device. The cartridge incorporates a low flow thermal relief valve intended to prevent cylinder damage resulting from temperature-induced pressure intensification.

CV06-B20 Check Valve (CV06-B20)

Product Operation

Product Features

Product Ratings

HCV42-M20 HyPerformance (HCV42-M20)

HCV16-20 HyPerformance (HCV16-20)

HCV12-20 HyPerformance™ Check Valve (HCV12-20)

HCV08-20 HyPerformance™ Check Valve (HCV08-20)

CV50-20 Check Valve, High Pressure (CV50-20)

CV42-M20 Check Valve (CV42-M20)

CV16-20 Check Valve (CV16-20)

CV12-21 Check Valve (CV12-21)

CV12-20 Check Valve (CV12-20)

CV10-28 Check Valve with Thermal Relief (CV10-28)

Savery also offer

Bespoke Projects

Hydraforce / Oil Control

Hydraulic Control Systems

Hydraulic Integrated Circuit (HIC) – Manifold Assembly

Hydraulic Power Unit

Small Hydraulic Power Packs
