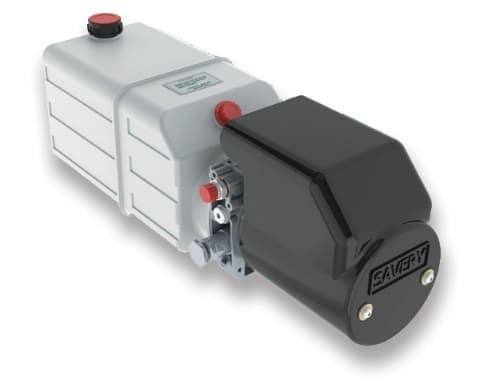

Tipper Pack

Specification

• 1.6KW, 12vdc and 2.2KW, 24vdc electric motor complete with relay and plastic motor cover.
• A range of reservoirs complete with suction strainer and filler breather.
• Horizontal or vertical mounting options.

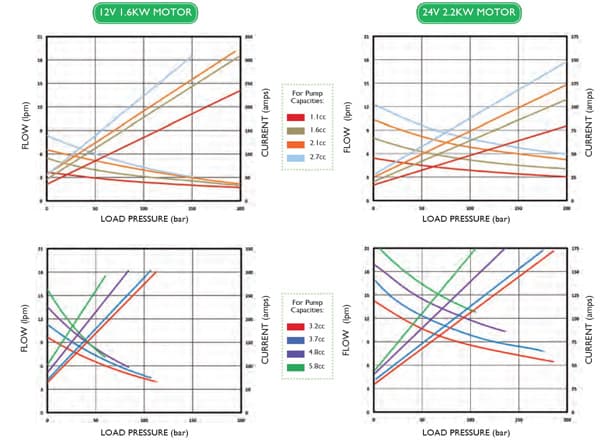

• Pressures of up to 200 bar and flows from 3 to 15 l/min.
• Two main relief valve options 40-100 bar and 100-200 bar.
• 12vdc and 24vdc lowering valve and P line check.

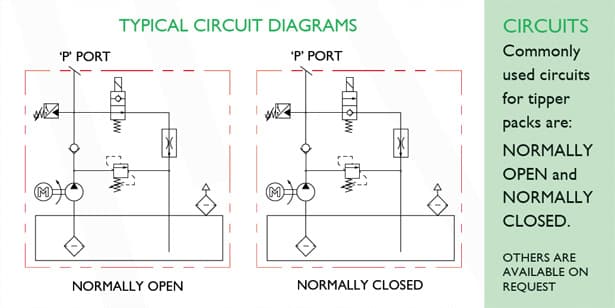

• Can be supplied suitable for all single and double acting applications.
• Push button pendants, isolators etc can be supplied as required.
• Our tipper packs can be supplied with or without E Mark certification.

While this pack is primarily designed for tippers, its derivatives can be adapted for a variety of applications, including:

• Tail lifts
• Passenger lifts
• Scissor lifts
• Forklifts
• Access lifts
• Agricultural applications
• Material handling equipment

In addition to our standard offerings, we also design custom power packs tailored to meet specific customer requirements. All our packs are manufactured at our facility in Coventry, and each one undergoes thorough testing before dispatch.
